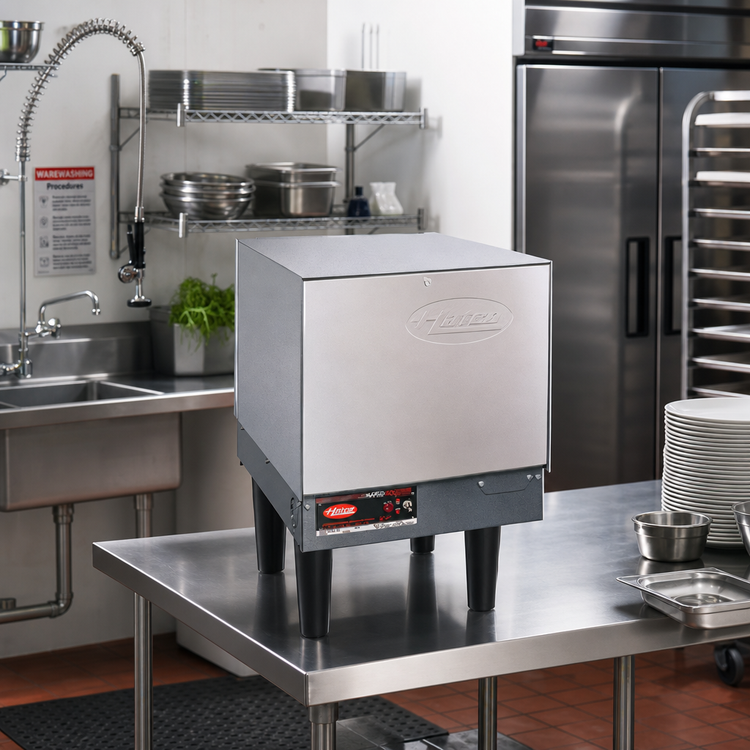

Hatco Compact Electric Booster Water Heater, 6 Gallon, 9 kW, 208V, 3-Phase

Quick Ship Model

Deliver the 180°F final rinse water your dishwasher needs with a compact 6-gallon booster heater built for tight dish room spaces.

  • Supplies 180°F final rinse water for sanitizing and flash-drying dishes and flatware.
  • 6-gallon storage capacity in a compact footprint.
  • 9.0 kW electric operation at 208V, 60 Hz, 3-phase.
  • Factory pre-plumbed and pre-wired for easier installation.
  • Stainless steel front panel with powder-coated silver-gray hammertone body.
  • Includes a Castone lined tank with a 10-year limited warranty and built-in safety controls.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

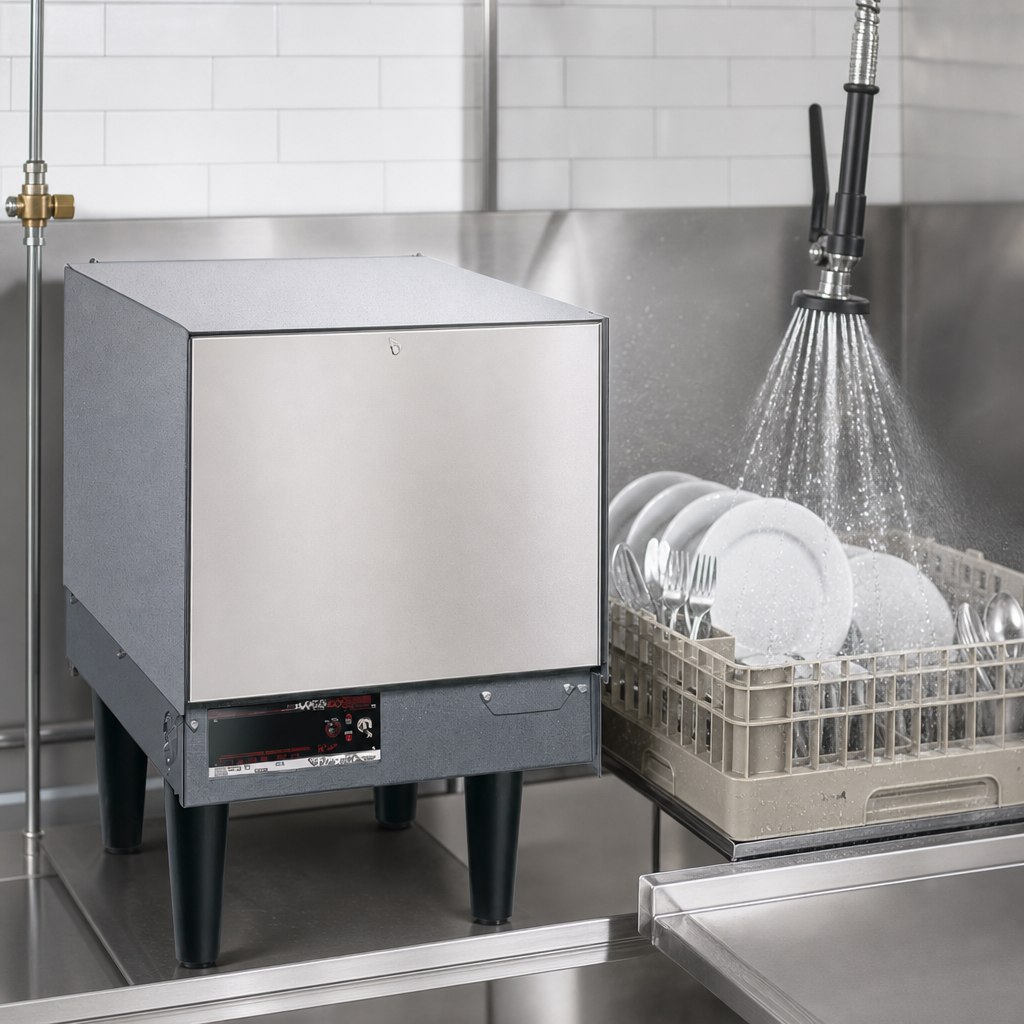

180°F Final Rinse Support

Provides the final rinse water required to sanitize and flash-dry dishes and flatware.

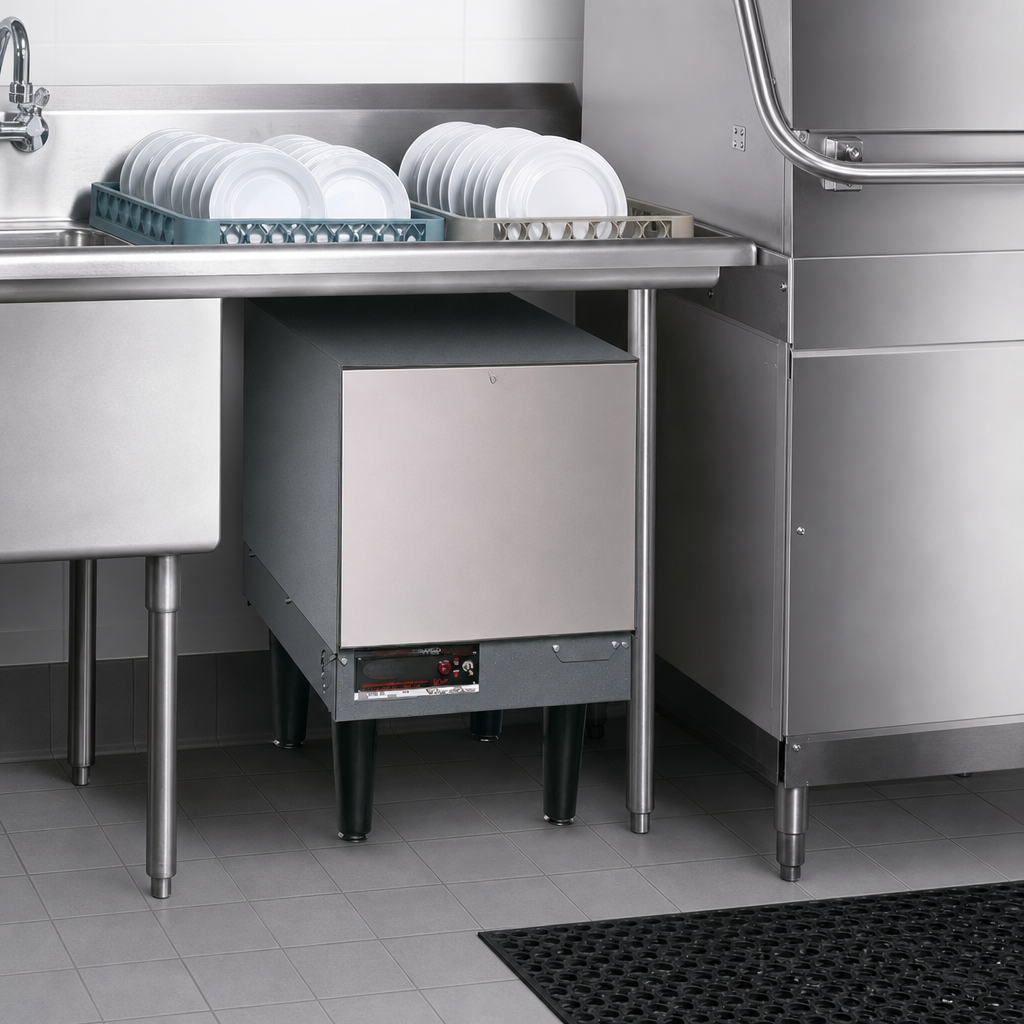

Compact Space-Saving Design

Designed to fit beside a dishwasher and help conserve space in the dish room.

Castone Lined Tank

Tank is lined with Castone and includes a 10-year limited warranty.

Factory Pre-Plumbed And Pre-Wired

Supplied with internal plumbing and electrical wiring for easier installation.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

3/4 Inch NPT Connections

Includes 3/4 inch NPT pipe and fittings for inlet and outlet connections.

Fiberglass Insulation

Helps minimize heat loss during operation.

Service-Friendly Front Panels

Swing-away front panels provide quicker access to probes and elements for easier serviceability.

Standard 6 Inch Legs

Ships with 6-inch non-adjustable legs; slide brackets are available as an accessory.

Type Booster Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Watts 9 kW
Voltage 208 Volts
Hertz 60 Hz
Phase 3-Phase
Amps 37.5 Amps
Breaker Size 50 Amps
Water Inlet Size 3/4 Inch NPT
Interior Finish Castone
Color Silver Gray
Finish Powder-Coated Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It supplies 180°F (82°C) final rinse water for sanitizing and flash-drying dishes and flatware.
The unit has a 6-gallon storage capacity.
This model is rated at 9.0 kW, 208 Volts, 60 Hz, 3-phase.
It can be installed next to the dishwasher with slide brackets or on 6-inch legs; slide brackets are also available as an accessory.
Incoming water above 3.0 grains of hardness per gallon must be treated and softened before being supplied to the booster heater.
The Castone lined tank includes a 10-year limited warranty.
