Hatco Quick Ship Compact Electric Booster Heater, 6 Gallon, 9 kW, 208V, 1-Phase

Stainless Steel Front, Castone® Lined Tank, 6-Inch Legs

A space-saving booster heater that delivers dependable 180°F final-rinse water in a compact, easy-to-service design.

  • Compact 6-gallon storage capacity sized for dishwasher final-rinse applications.
  • 9.0 kW electric operation at 208V, 60 Hz, 1-phase.
  • Castone®-lined tank with stainless steel front panel and powder-coated silver-gray hammertone body.
  • Built-in safety controls include low-water cut-off, high-temperature limit control, gauges, and relief valves.
  • Standard 6-inch legs with optional slide brackets for under-dishtable mounting.
  • NSF and cULus listed and made in the USA.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

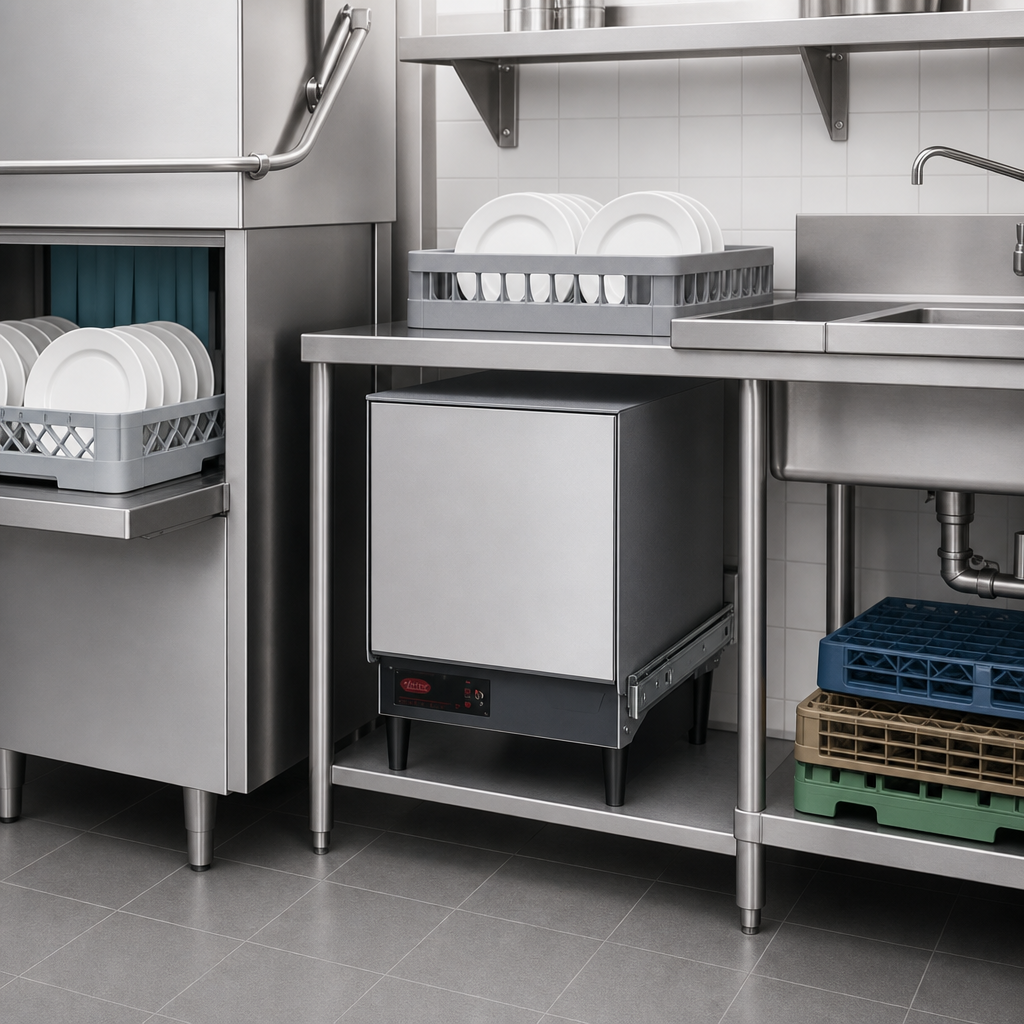

Compact Space-Saving Design

Built to fit in tight dish room installations and can be placed next to a dishwasher or mounted under a dishtable with slide brackets.

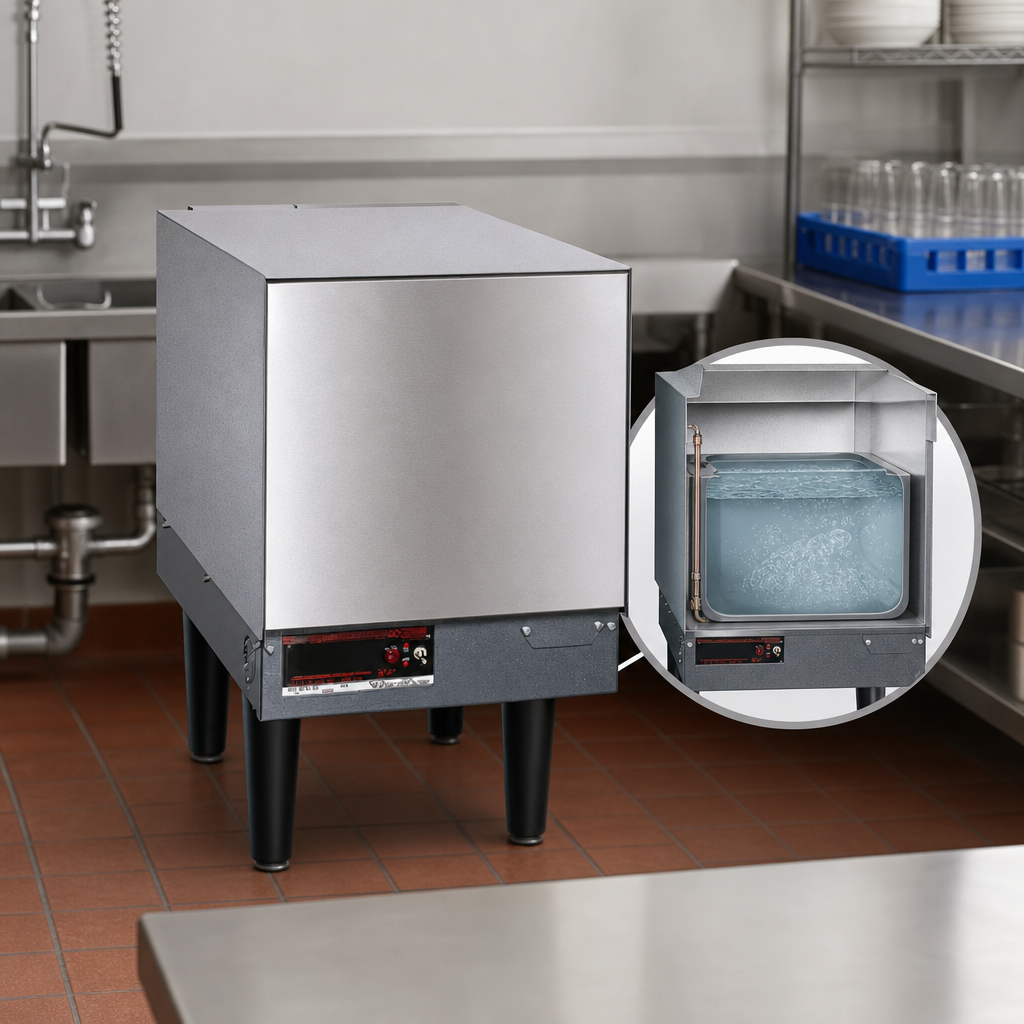

6-Gallon Storage Capacity

Provides 6 gallons of hot water for final-rinse sanitation and flash-drying applications.

9.0 kW Electric Heating

Delivers the heating capacity needed to supply 180°F final-rinse water at 208V, 60 Hz, 1-phase.

Castone®-Lined Tank

Features a Castone-lined tank and includes a 10-year limited tank warranty.

Factory Pre-Plumbed and Pre-Wired

Supplied with internal plumbing, calibrated immersion thermostat, and high-temperature limit switch for easier installation.

Built-In Safety Components

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, low-water cut-off, pilot indicator light, and on-off switch.

Durable Exterior Finish

Standard construction includes a stainless steel front panel and a powder-coated silver-gray hammertone body.

6-Inch Legs

Supplied with 6-inch plastic non-adjustable legs; optional slide brackets are available for alternate mounting.

Type Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 9 kW
Voltage 208 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 43.3 Amps
Breaker Size 60 Amps
Water Connection Required
Water Inlet Size 3/4 Inch NPT
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone®-lined tank.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It supplies 180°F (82°C) final-rinse water to help sanitize and flash-dry dishes and flatware.
The unit has a 6-gallon storage capacity.
This model is rated at 208 volts, 60 Hz, 1-phase, and 9.0 kW.
Yes. The literature notes that slide brackets are available for mounting under a dishtable.
Standard safety and operating features include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, and low-water cut-off.
The Castone®-lined tank includes a 10-year limited warranty.
