Hatco  |  SKU: C-7

Hatco C-7 High Temp & Low Temp Dishwashers

$2,567.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure Parts list
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

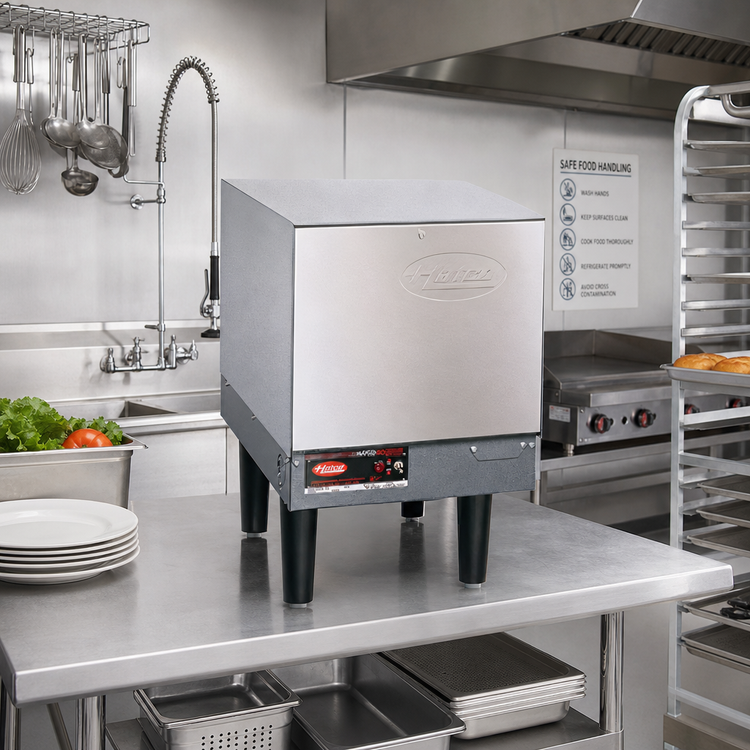

Hatco C-7 Compact Electric Booster Water Heater – 7 kW

6 gal storage • delivers 180°F (82°C) final-rinse water for high-temp dishwashers

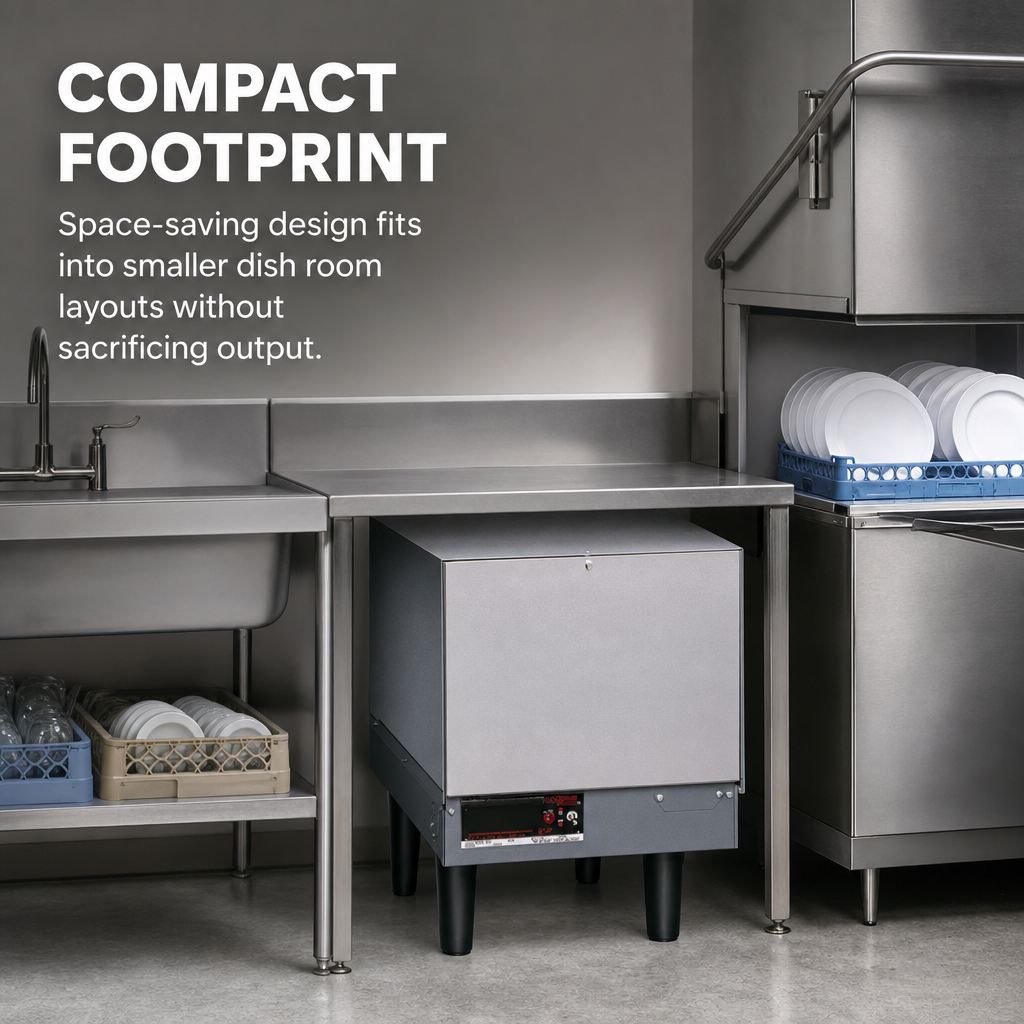

Ideal for tight dish room layouts, the Hatco C-7 provides a continuous supply of sanitizing hot water while occupying less than 1½ ft² of floor space. Factory-assembled, pre-wired and pre-plumbed, it ships ready to install so you can get up and running fast.

Key benefits

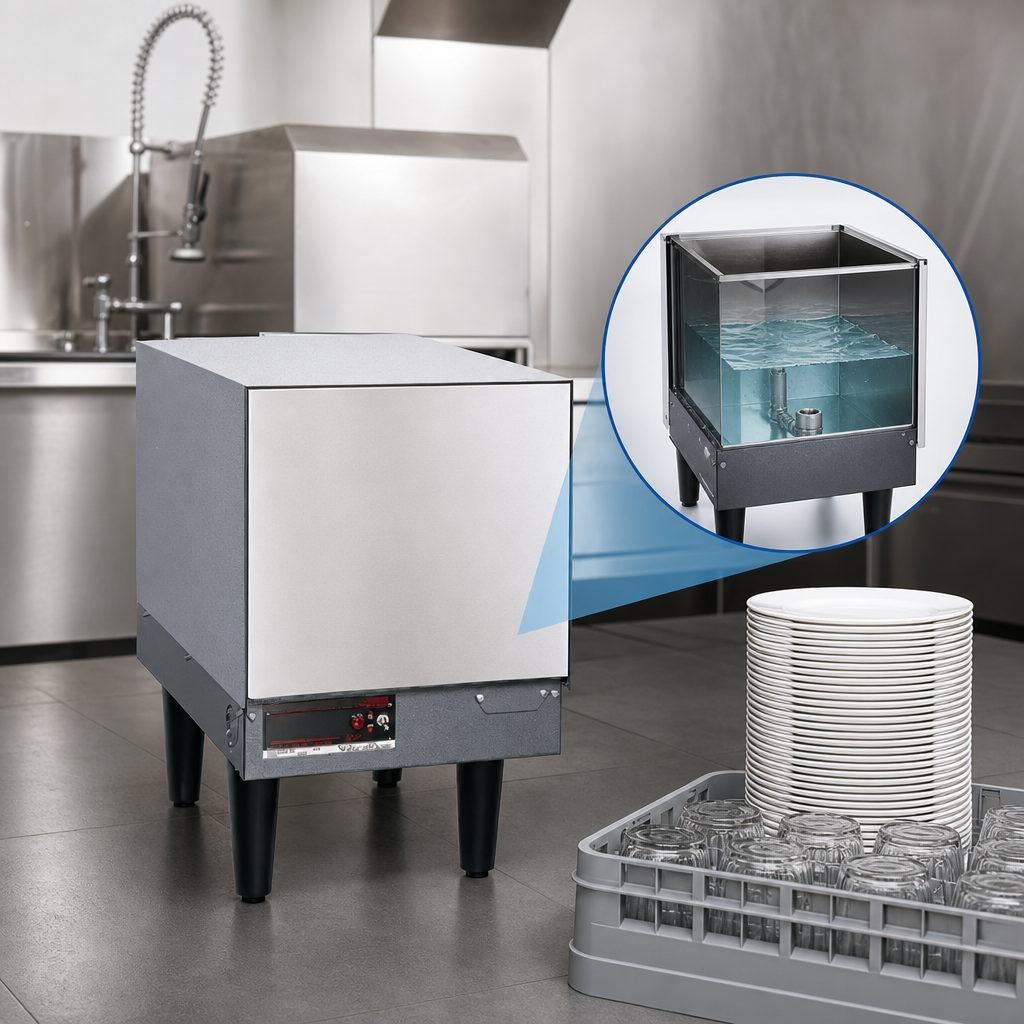

  • 6 gal (23 L) Castone® lined tank – 10-year limited warranty.
  • 7.0 kW electric input recovers up to 70 gph @ 40°F rise (40 gph @ 70°F rise).
  • Stainless steel front panel with powder-coated silver-gray hammertone body – durable, corrosion-resistant & easy to wipe clean.
  • Fully insulated cabinet minimizes standby heat loss and operating costs.
  • Comprehensive safety package: temperature/pressure relief valve, pressure-reducing valve, dual temp/pressure gauges, high-limit cutoff, low-water cutoff, on/off toggle switch & pilot indicator light.
  • 3⁄4" NPT inlet & outlet for straightforward connection to your warewasher or final-rinse manifold.
  • 6" (152 mm) non-adjustable plastic legs included; optional stainless legs or slide brackets available.
  • NSF & cULus listed; proudly Made in the USA.

Performance & capacities

Storage capacity 6 gal / 23 L
Input rating 7.0 kW (electric)
Recovery @ 40°F (22°C) rise 70 gph / 265 lph
Recovery @ 70°F (39°C) rise 40 gph / 151 lph

Electrical options

Voltage / Phase Operating amps Recommended breaker
208 V / 1 Φ 33.7 A 50 A
240 V / 1 Φ 29.2 A 40 A
208 V / 3 Φ 29.1 A 40 A
240 V / 3 Φ 25.2 A 40 A
480 V / 1 Φ 14.6 A 20 A
480 V / 3 Φ 12.6 A 20 A

Dimensions & weight

Width 13.06" / 332 mm
Depth 20.69" / 525 mm (26" / 660 mm overall with relief valve)
Height (cabinet) 13.78" / 350 mm
Overall height 19.78" / 502 mm incl. 6" legs
Shipping weight 118 lb / 54 kg

What’s included

  • C-7 booster heater with 6" plastic legs (factory installed)
  • Temperature/pressure relief valve & pressure-reducing valve (pre-plumbed)
  • Installation & operating manual

Optional accessories (ordered with unit): slide-mounting brackets, stainless body & legs, security package, shock absorber and back-pressure relief valve.

Water quality reminder: Incoming water harder than 3 GPG must be softened to maintain performance and protect your 10-year tank warranty.

Hatco provides 24/7 parts & service assistance across the U.S. and Canada.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

19.75in

Width

13.0in

Depth

20.75in

Shipping Weight

118.0lbs

Tank Capacity

6 gallon

Width

11" - 19"

Wattage

4 - 11 kilowatts

Specifications

Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 7.0kW, NSF, cULus, Made in USA
