Hatco Compact Electric Booster Water Heater, 6 Gallon, 7 kW, 240V, 3-Phase

SKU: C-7-240-3-QS
GTIN: 61570000964
$2,593.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Water Heater, 6 Gallon, 7 kW, 240V, 3-Phase

Quick Ship Model

Delivers 180°F final-rinse water in a compact footprint that fits neatly beside the dishwasher.

  • Provides 180°F final-rinse water to help sanitize and flash-dry dishes and flatware.
  • 6-gallon storage capacity fits compact dishroom layouts.
  • 7.0 kW, 240V, 3-phase electrical operation for commercial use.
  • Castone® lined tank with built-in low-water and high-temperature protection.
  • Stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch plastic non-adjustable legs.
  • NSF and cULus listed and made in the USA.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

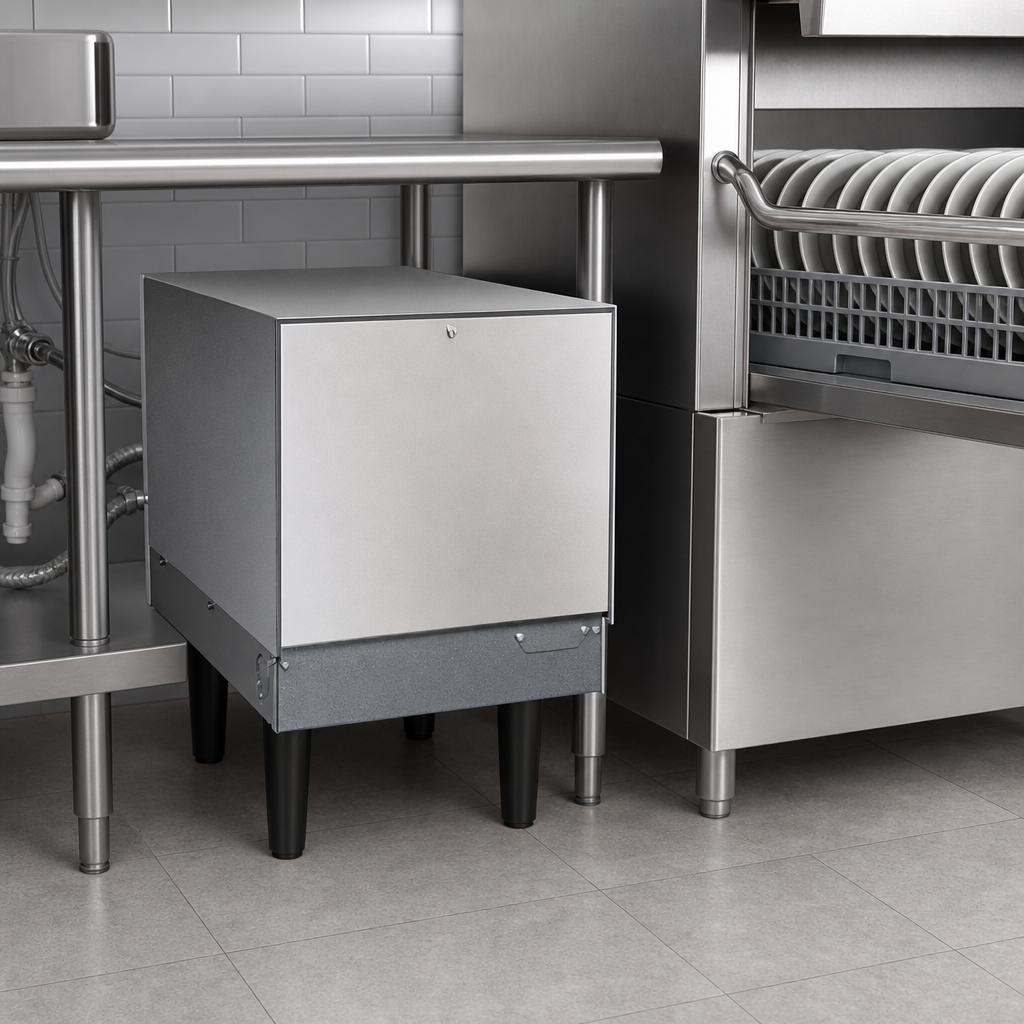

Compact Space-Saving Design

Built to install close to the dishwasher, with standard 6-inch legs and optional slide brackets for under-dishtable mounting.

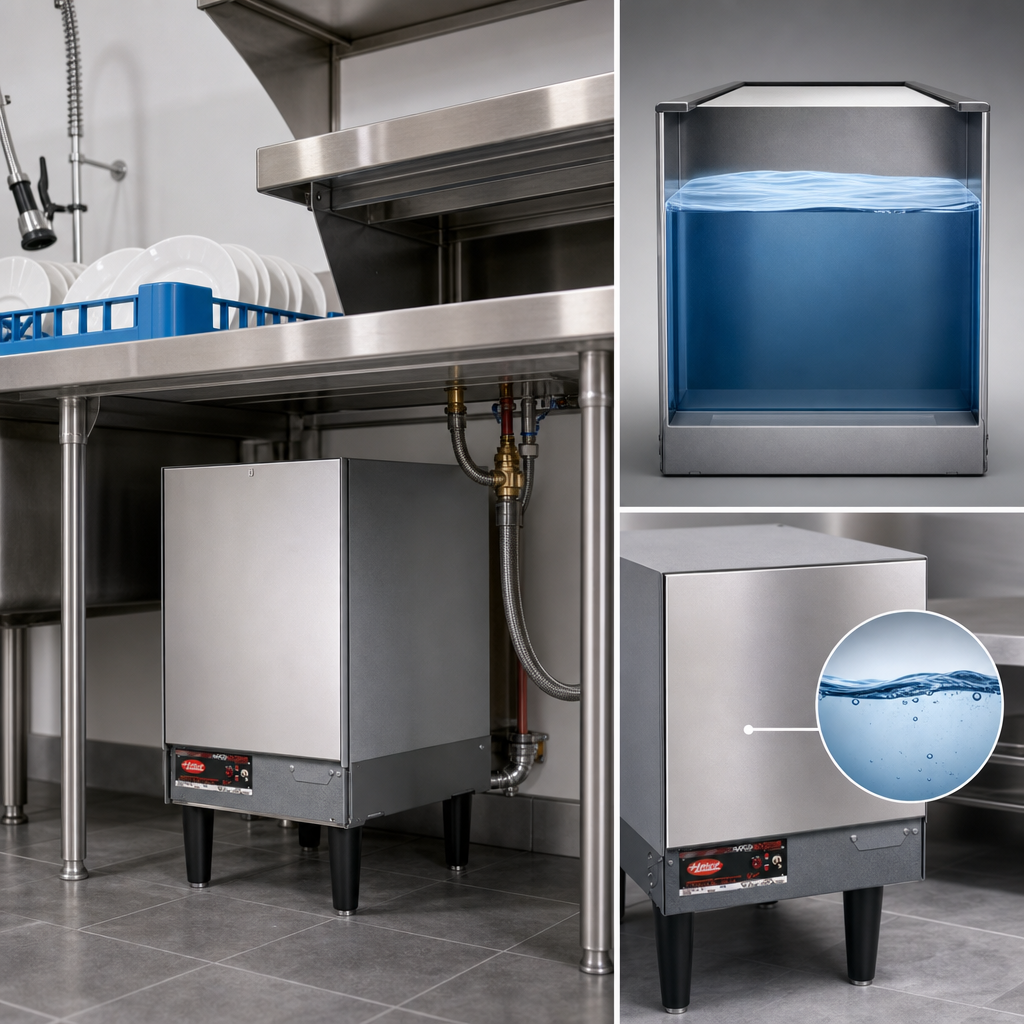

6-Gallon Storage Capacity

Holds 6 gallons of water to support final-rinse demand in compact dishroom applications.

7.0 kW, 240V, 3-Phase Operation

Configured for 240-volt, 3-phase electrical service with a 7.0 kW heating load.

Castone® Lined Tank

Tank is Castone lined and carries a 10-year limited warranty.

Factory Pre-Plumbed and Pre-Wired

Includes calibrated immersion thermostat and is pre-plumbed/pre-wired for easier installation.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot light, on-off switch, and low-water cut-off.

Durable Exterior

Features a stainless steel front panel with a powder-coated silver-gray hammertone body.

Service-Friendly Construction

Swing-away front panels provide easier access to probes, elements, control fuses, and transformer components.

Type Electric Booster Water Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Voltage 240 Volts
Watts 7 kW
Hertz 60 Hz
Phase 3-Phase
Amps 25.2 Amps
Breaker Size 40 Amps
Controls Thermostatic
Interior Finish Castone Lined
Finish Powder-Coated Silver-Gray Hammertone
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone lined tank.

Documents

PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Quick ship PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It provides 180°F (82°C) final-rinse water to sanitize and flash-dry dishes and flatware.
The unit has a 6-gallon storage capacity.
It operates on 240V, 60 Hz, 3-phase power and is rated at 7.0 kW.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot light, on-off switch, and low-water cut-off.
It is designed to install beside the dishwasher on 6-inch legs, and slide brackets are available for under-dishtable mounting.
Yes. The product is made in the USA and is listed as NSF and cULus.
