Hatco C-7-208-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

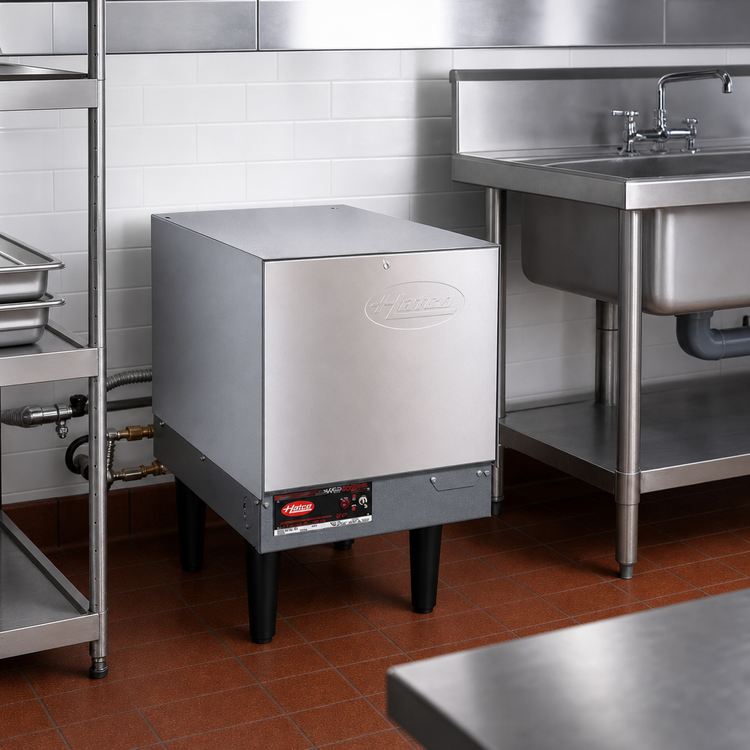

Hatco C-7 Quick-Ship Compact Electric Booster Heater – 7 kW

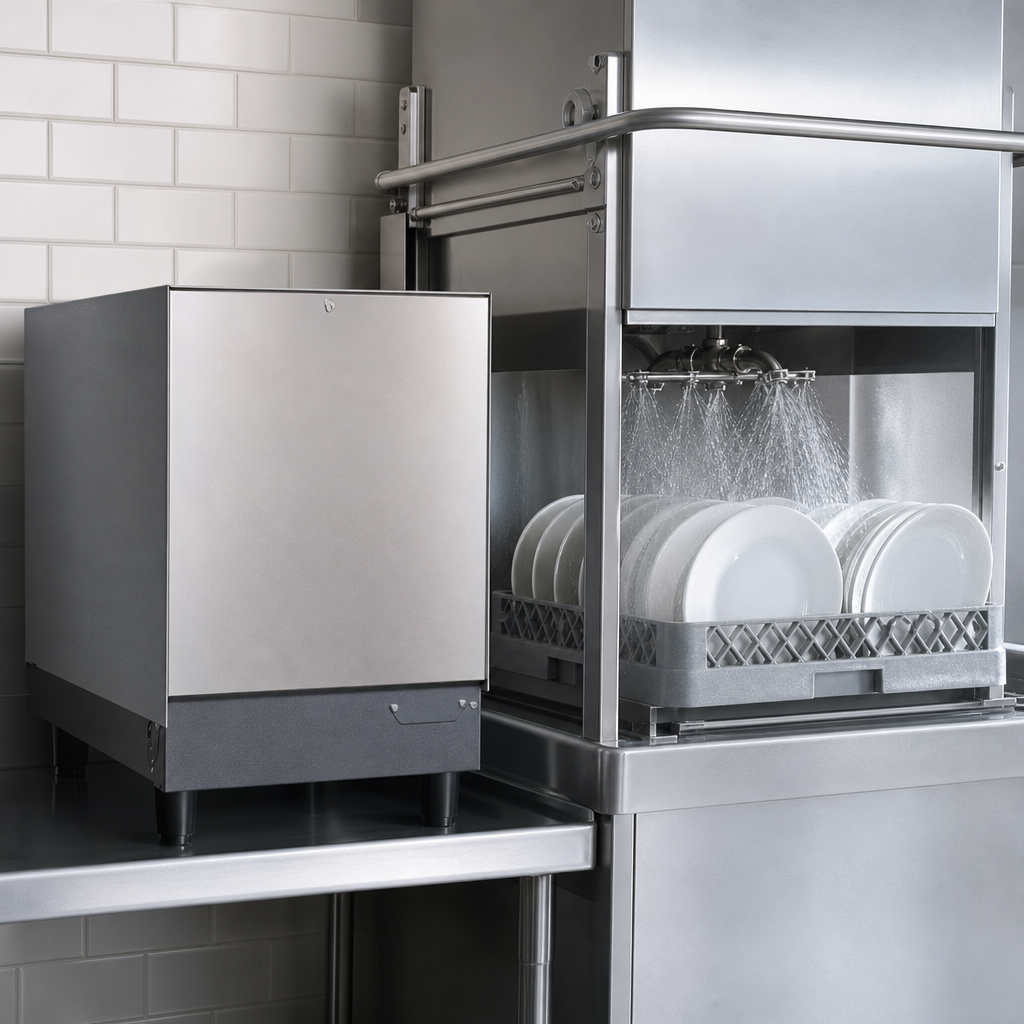

208 V | 3-Phase | 6 gal Storage | NSF, cULus ListedDeliver 180 °F (82 °C) final-rinse water in seconds and keep your dishroom running at peak efficiency. Hatco’s Quick-Ship C-7 Compact Booster Heater ships fast, installs easily beside most commercial dishmachines, and supplies consistent, high-temperature sanitizing power from a rugged 6-gallon Castone® tank.
Key advantages
- 70 gph recovery at a 40 °F rise (40 gph at 70 °F rise) for steady 180 °F rinse water.
- Durable Castone-lined tank carries a 10-year limited warranty.
- Stainless steel front panel and powder-coated silver-gray hammertone body resist corrosion and scratches.
- Factory-installed safety suite: temperature/pressure relief valve, pressure-reducing valve, dual gauges, high-temperature limit, pilot light, on/off switch, and low-water cut-off.
- Thick fiberglass insulation minimizes standby heat loss, lowering utility costs.
- Swing-away front panel provides tool-free access to elements and probes.
- NSF, cULus certified and proudly Made in the USA.
- Part of Hatco’s Quick-Ship program for same-day shipment when ordered by Noon CT (stock permitting).
Performance & electrical
| Model | C-7 (Quick-Ship) |
|---|---|
| Heat input | 7.0 kW electric |
| Voltage / phase | 208 V, 60 Hz, 3-phase |
| Full-load amps | 29.1 A |
| Recommended breaker | 40 A |
| Recovery rate* | 70 gph @ 40 °F rise 40 gph @ 70 °F rise |
Physical data

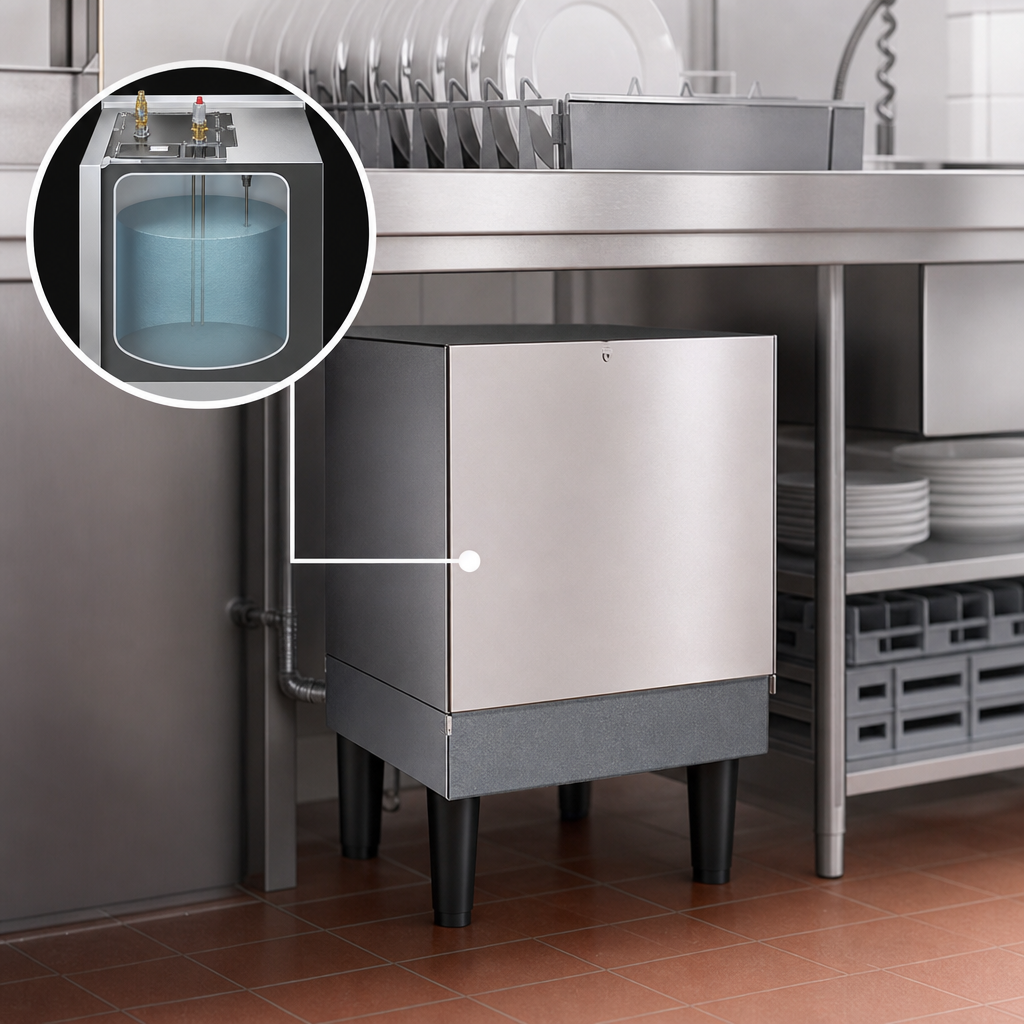

| Storage capacity | 6 gal (23 L) |
|---|---|
| Dimensions (W × D × H) | 13.06" × 20.69" × 19.78" (with 6" legs) |
| Inlet / outlet size | ¾" NPT (female) |
| Ship weight | 118 lb (54 kg) |
| Construction | Stainless steel front panel, silver-gray hammertone body, 6" non-adjustable plastic legs |
| Certifications | NSF, cULus, Made in USA |
Optional extras (factory-fit only)
- Full stainless steel body and base
- Security package (Torx® screws & locking control cover)
- Slide brackets for under-table mounting
- Adjustable stainless steel legs, 6"–7"
- Shock absorber or back-pressure relief valve
- Blended phosphate injection system (non-potable)
*Recovery rates based on incoming water at 140 °F. Actual performance varies with supply conditions.
Quick-Ship advantage
Order by 12 PM (Noon) Central Time, reference “Quick-Ship,” and your C-7 Booster Heater will leave Hatco’s dock the same business day—getting you up and running without delay.
