Hatco  |  SKU: C-6

Hatco C-6 High Temp & Low Temp Dishwashers

$2,532.47
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

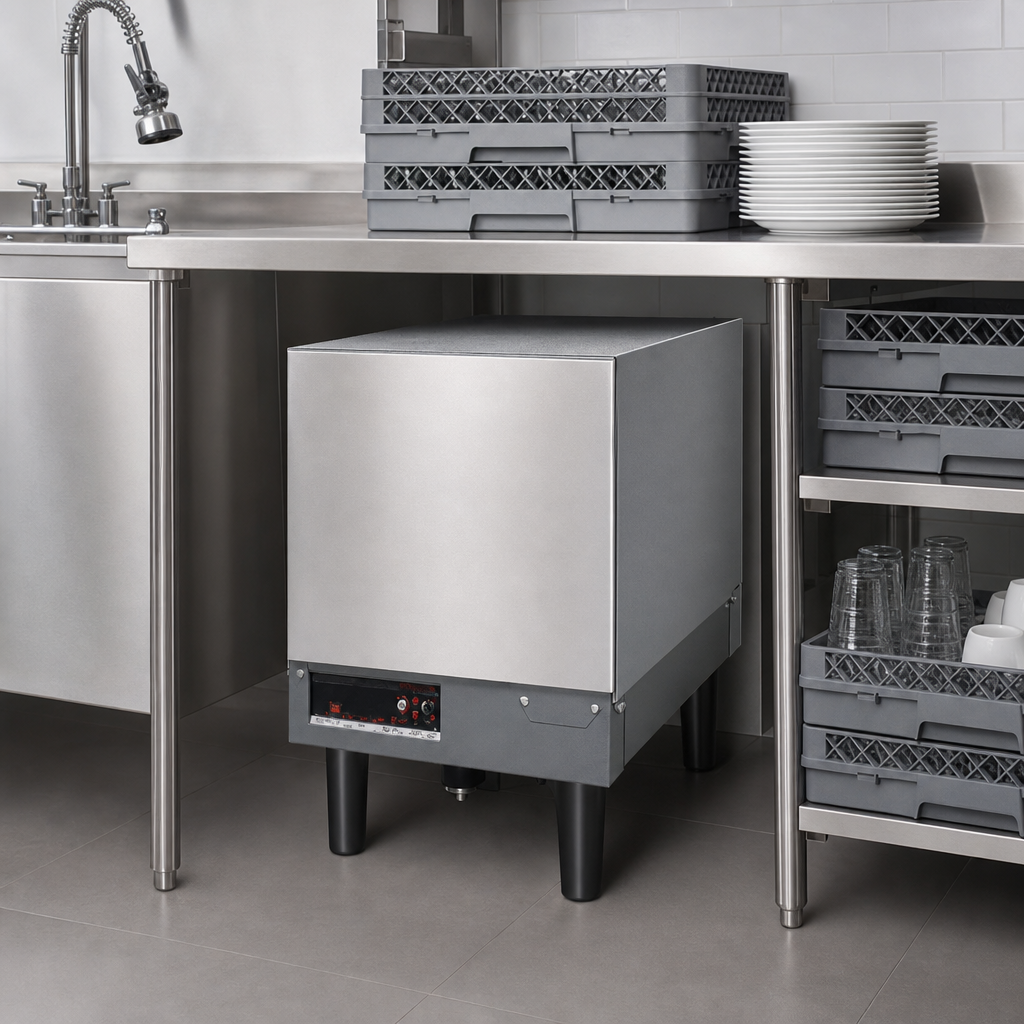

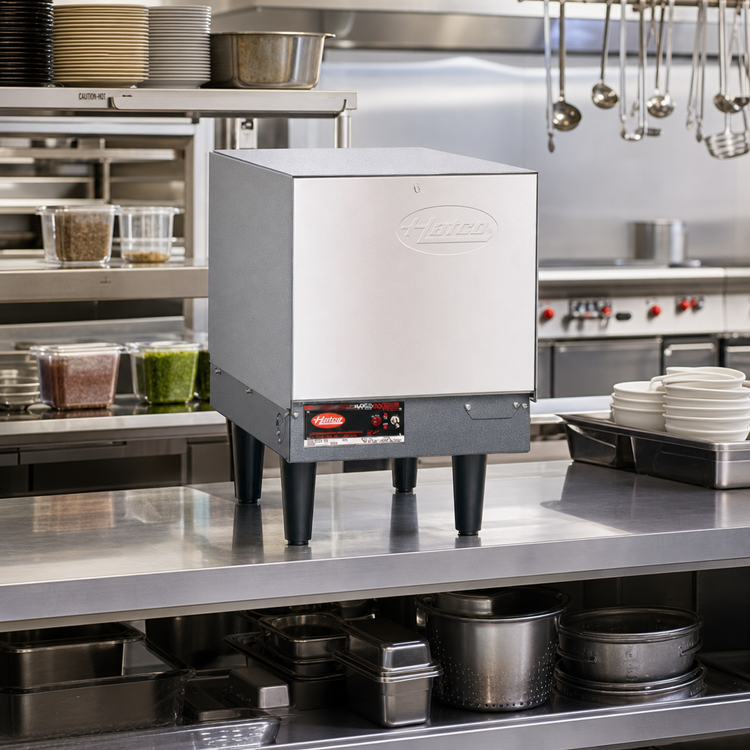

Hatco C-6 Compact Electric Booster Water Heater

6 kW • 6 gal Castone® tank • 180°F final-rinse assurance

Built in the USA for busy dish-rooms with tight footprints, the Hatco C-6 Compact Booster Heater delivers a dependable 180°F (82°C) sanitizing rinse every cycle. Factory-wired, pre-plumbed and ready to install, it lets your warewasher perform at its best without adding installation headaches.

Why You’ll Love It

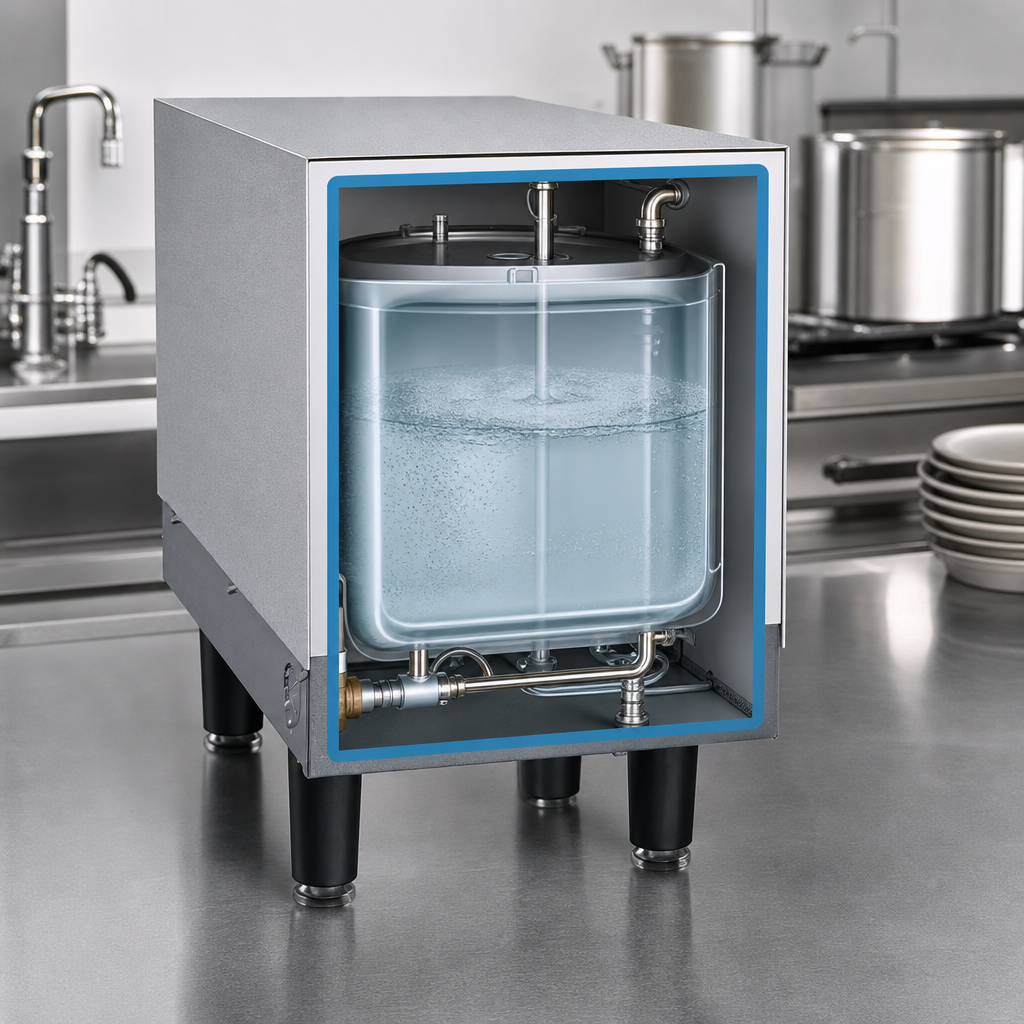

  • 6 gal (23 L) storage tank lined with Castone® cement for superior corrosion protection — backed by a 10-year limited warranty.
  • 6 kW electric elements recover up to 60 gph at a 40°F rise (34 gph at 70°F) to keep pace with high-volume dish machines.
  • Stainless steel front panel and powder-coated silver-gray hammertone body resist dents, scratches and microbes thanks to Hatco’s IFS anti-microbial coating.
  • Completely factory assembled with:
    • Temperature/pressure relief valve & pressure-reducing valve
    • Two easy-read temp/pressure gauges
    • High-temperature limit & low-water cut-off for element protection
    • On/Off toggle switch and pilot indicator light
  • 6″ (152 mm) non-adjustable plastic legs included; optional slide brackets or stainless legs available for under-counter mounting.
  • Fiberglass insulation throughout the cabinet reduces standby heat loss and operating costs.
  • Swing-away front panel gives quick access to probes, fuses and elements for fast service.
  • NSF & cULus listed; proudly Made in the USA.

Specifications

Model C-6
Storage capacity 6 gal / 23 L
Electrical rating 6 kW, field-selectable (see amps below). Shipped pre-wired.
• 208 V/1ɸ 28.9 A  |  208 V/3ɸ 21.6 A
• 240 V/1ɸ 25 A  |  240 V/3ɸ 18.1 A
• 480 V/1ɸ 12.5 A  |  480 V/3ɸ 10.8 A
Water temperature recovery 40°F rise – 60 gph (227 lph)
70°F rise – 34 gph (129 lph)
Dimensions (W × D × H) 13.06″ × 20.69″ × 13.78″ (332 × 525 × 350 mm)
Height excl. legs; T/P valve adds to overall height.
Shipping weight ≈ 118 lb / 54 kg
Construction Stainless front; powder-coated steel cabinet; Castone lined tank
Standard legs 6″ plastic, non-adjustable
Certifications NSF, cULus
Origin Made in USA

Popular Factory Options

  • Stainless steel body & base
  • Security package (Torx® screws & control cover)
  • Slide-mounting brackets for dishtable installation
  • Stainless adjustable legs (6″–7″)
  • Shock absorber to reduce water hammer
Important: Incoming water harder than 3 grains per gallon must be treated/softened. Scale buildup caused by untreated water is not covered under warranty.

Need help sizing or configuring? Chat with our team or see the full Hatco booster guide on the Hatco website.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

19.75in

Width

13.0in

Depth

20.75in

Shipping Weight

118.0lbs

Tank Capacity

6 gallon

Width

11" - 19"

Wattage

4 - 11 kilowatts

Specifications

Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 6.0kW, NSF, cULus, Made in USA
