Hatco Compact Electric Booster Water Heater, 6 Gallon, 6.0 kW, 240V, 3-Phase

SKU: C-6-240-3-QS
GTIN: 61570000963
$2,558.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Water Heater, 6 Gallon, 6.0 kW, 240V, 3-Phase

Quick Ship Model with Stainless Steel Front Panel

Deliver 180°F final-rinse water in a compact, quick-ship design built for reliable dishroom sanitation.

  • 6-gallon storage capacity supplies final-rinse water for dish and flatware sanitation.
  • 6.0 kW electric heating at 240V, 60 Hz, 3-phase for dependable operation.
  • Compact footprint with 6-inch legs is designed for space-saving placement next to the dishwasher.
  • Castone-lined tank and fiberglass insulation help retain heat and support long service life.
  • Stainless steel front panel with powder-coated silver-gray hammertone body for commercial durability.
  • Built-in safety controls include a temperature/pressure relief valve, pressure reducing valve, gauges, high-temperature limit, and low-water cut-off.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

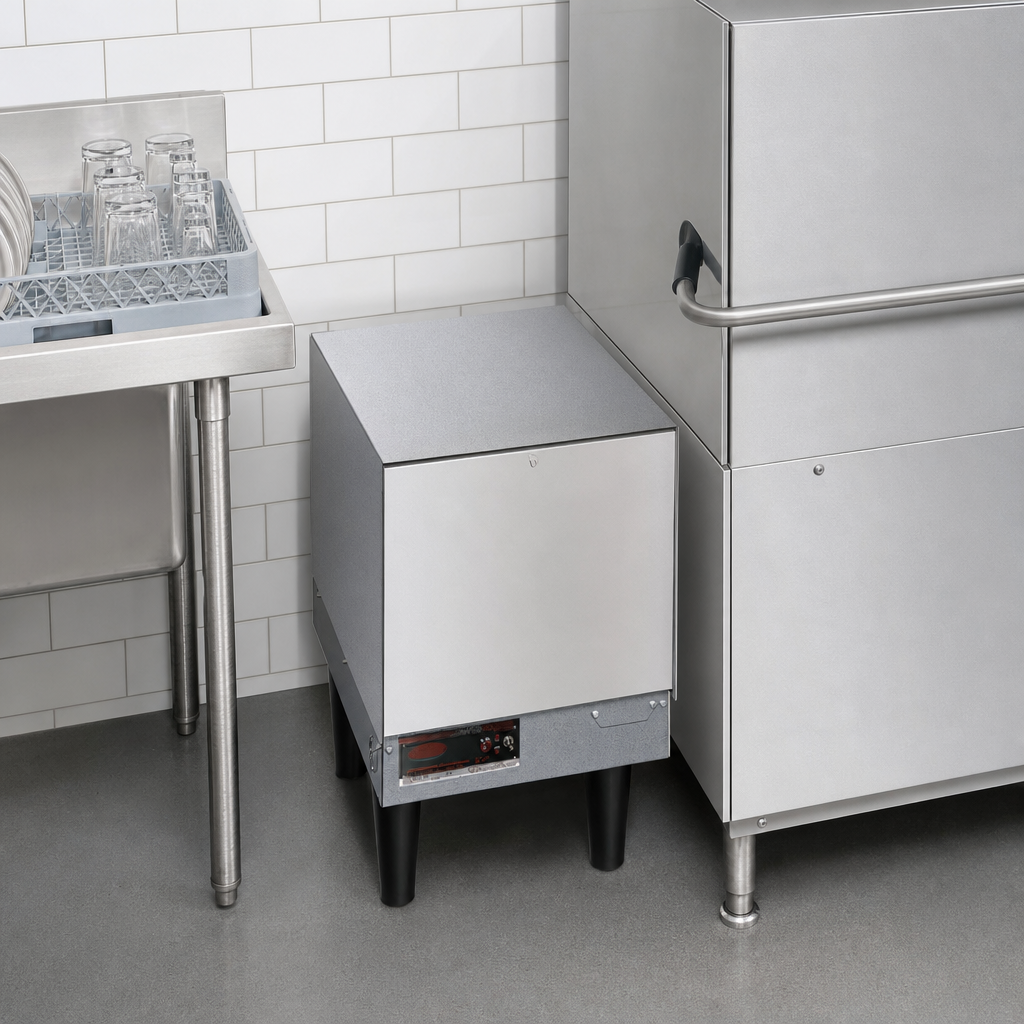

Compact Footprint

Space-saving design is made for installation next to the dishwasher.

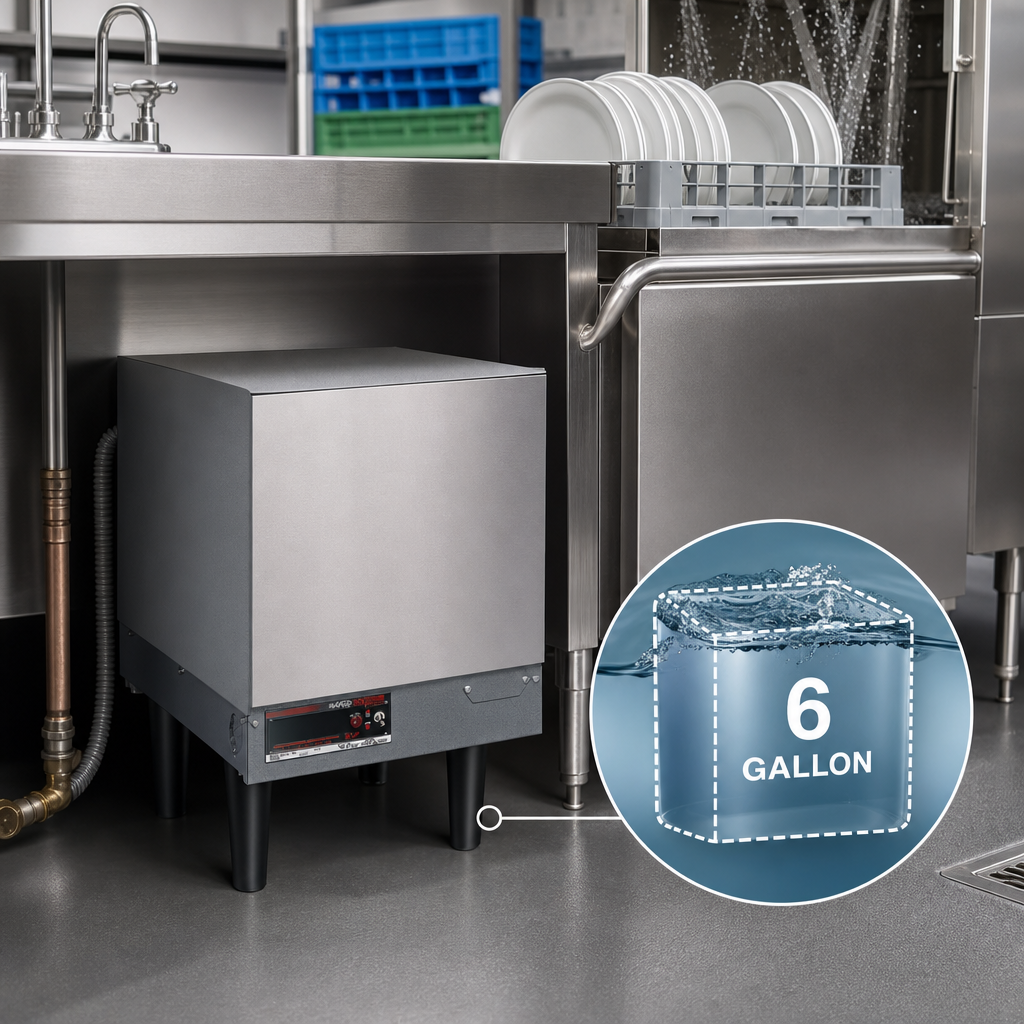

6-Gallon Storage Capacity

Provides the hot water reserve needed for final-rinse dishroom use.

180°F Final Rinse Water

Supplies the rinse temperature required to sanitize and flash-dry dishes and flatware.

Castone-Lined Tank

Durable lined tank construction includes a 10-year limited warranty.

Factory Pre-Plumbed and Pre-Wired

Internal plumbing and wiring are included with a calibrated immersion thermostat for easier installation.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two gauges, high-temperature limit control, pilot light, on-off switch, and low-water cut-off.

Stainless Steel Front Panel

Features a stainless steel front with a powder-coated silver-gray hammertone body.

Fiberglass Insulation

Helps minimize heat loss and maintain water temperature.

3/4-Inch NPT Connections

Internal plumbing includes 3/4-inch NPT pipe and fittings for inlet and outlet.

6-Inch Plastic Legs

Standard non-adjustable legs are included for floor-mounted installation.

Type Booster Water Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Connection Size 3/4 Inch NPT
Controls Thermostatic
Recovery Rate 60 GPH at 40°F Rise; 34 GPH at 70°F Rise
Watts 6 kW
Voltage 240 Volts
Amps 21.6 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 30 Amps
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone-lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It supplies 180°F final-rinse water for sanitizing and flash-drying dishes and flatware.
This model is rated for 240 Volts, 60 Hz, 3-Phase, and 6.0 kW.
The storage capacity is 6 gallons.
Yes. It includes standard 6-inch plastic non-adjustable legs.
Yes. Optional slide brackets are available for mounting under a dishtable.
Yes. Incoming water over 3.0 grains of hardness per gallon must be treated and softened before use.
