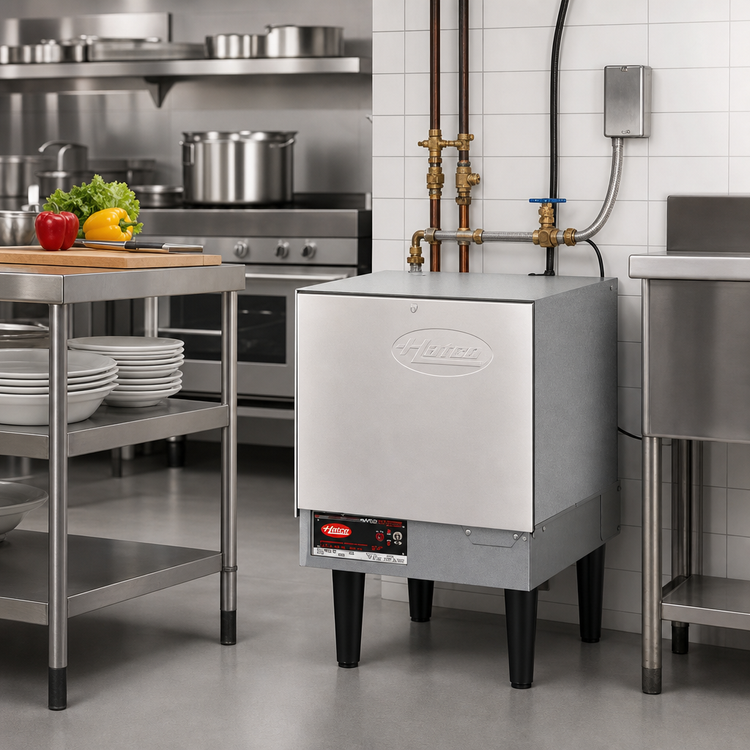

Hatco Compact Electric Booster Water Heater, 6 Gallon, 240V, Single Phase

Quick Ship Model

A space-saving 6-gallon booster heater that delivers 180°F final rinse water for reliable dishwasher sanitation.

  • Compact 6-gallon electric booster heater for commercial dishroom final-rinse applications.
  • Supplies 180°F rinse water to help sanitize and flash-dry dishes and flatware.
  • 240V, 60 Hz, 1-phase, 6.0 kW operation for compatible commercial installs.
  • Castone lined tank with stainless steel front panel and powder-coated hammertone body.
  • Factory pre-plumbed and pre-wired with built-in safety controls and gauges.
  • NSF and cULus listed and made in the USA.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

6-Gallon Storage Capacity

Compact tank holds 6 gallons (23 liters) of hot water for booster heater applications.

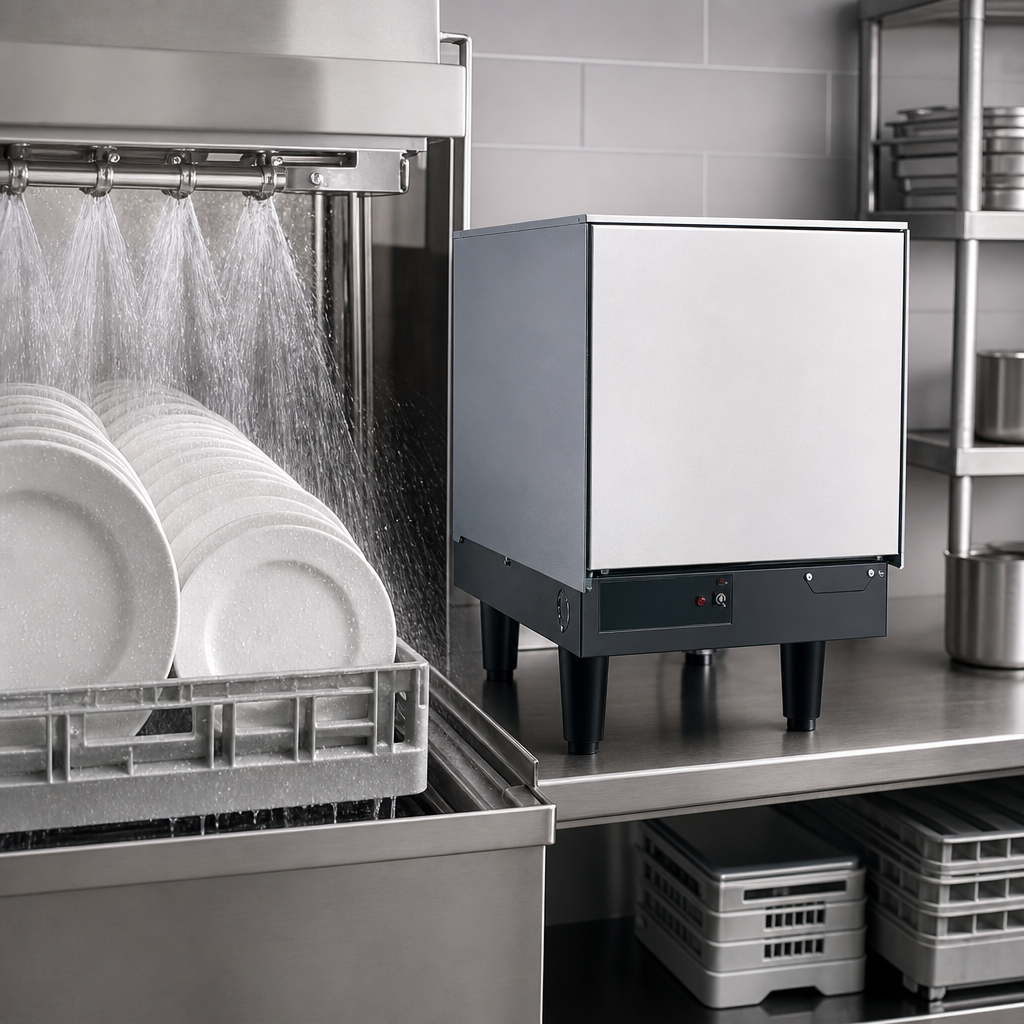

180°F Final Rinse Performance

Designed to supply the 180°F (82°C) final rinse water needed to sanitize and flash-dry dishes and flatware.

Castone Lined Tank

Standard Castone® lined tank is designed for a 150 psi working pressure and hydrostatically tested at 300 psi; includes a 10-year limited warranty.

Factory Pre-Plumbed and Pre-Wired

Includes calibrated immersion thermostat and high-temperature limit switch for easier installation.

Built-In Safety Package

Features a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Durable Exterior Construction

Stainless steel front panel with powder-coated silver-gray hammertone body.

Space-Saving Installation

Can be installed next to the dishwasher on standard 6-inch legs or mounted under a dishtable with slide brackets.

Service-Friendly Access

Swing-away front panels provide quick access to probes and elements for easier serviceability.

Type Booster Heater
Style Compact
Installation Type Floor Model (With 6-Inch Legs)
Capacity 6 Gallons
Controls Thermostatic
Voltage 240 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 25 Amps
Watts 6 kW
Breaker Size 40 Amps
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone lined tank

Documents

PDF Cutsheet PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It supplies 180°F final rinse water for sanitizing and flash-drying dishes and flatware.
The unit operates at 240 volts, 60 Hz, single phase, and 6.0 kW.
This model has a 6-gallon storage capacity.
Yes. It is available with slide brackets for mounting under a dishtable.
Incoming water above 3.0 grains of hardness per gallon must be treated and softened to help prevent liming and sediment buildup.
