Hatco

Hatco Compact 6-Gallon Electric Dishwasher Booster Heater, 208V, 3-Phase

SKU: C-6-208-3-QS
GTIN: 61570000962
$2,558.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact 6-Gallon Electric Dishwasher Booster Heater, 208V, 3-Phase

6.0 kW, Floor Model, Stainless Steel Front Panel

Delivers 180°F final rinse water in a compact, space-saving electric design built for commercial dish rooms.

  • 6-gallon storage capacity supplies the high-temperature rinse water needed for dishwashing sanitation and flash-drying.
  • Operates on 208V, 60 Hz, 3-phase power with a 6.0 kW heating output.
  • Castone® lined tank is built for durability and includes a 10-year limited warranty.
  • Factory pre-plumbed and pre-wired for simpler installation and service.
  • Standard stainless steel front panel and powder-coated silver-gray hammertone body.
  • Includes built-in safety features such as low-water cut-off, high-temperature limit control, and pressure protection.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

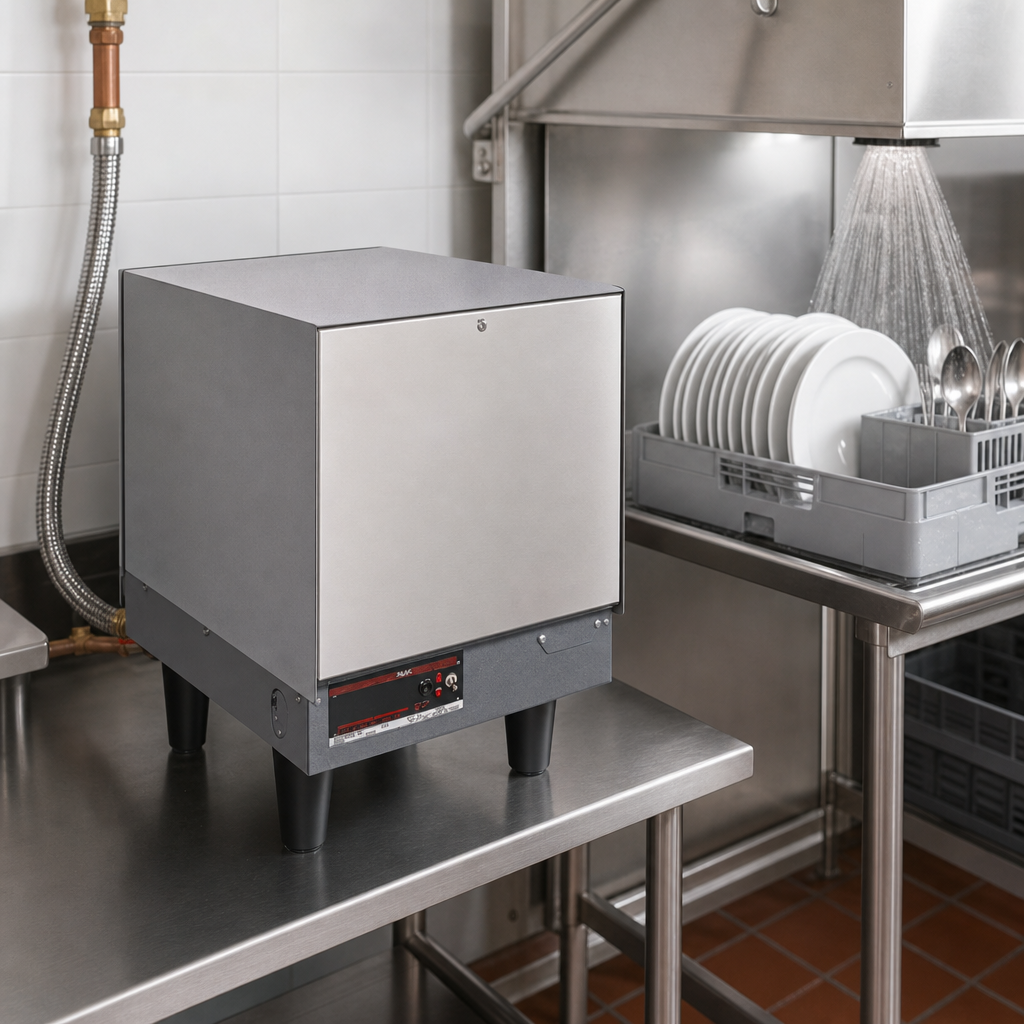

180°F Final Rinse Performance

Provides the final rinse water required to sanitize and flash-dry dishes and flatware.

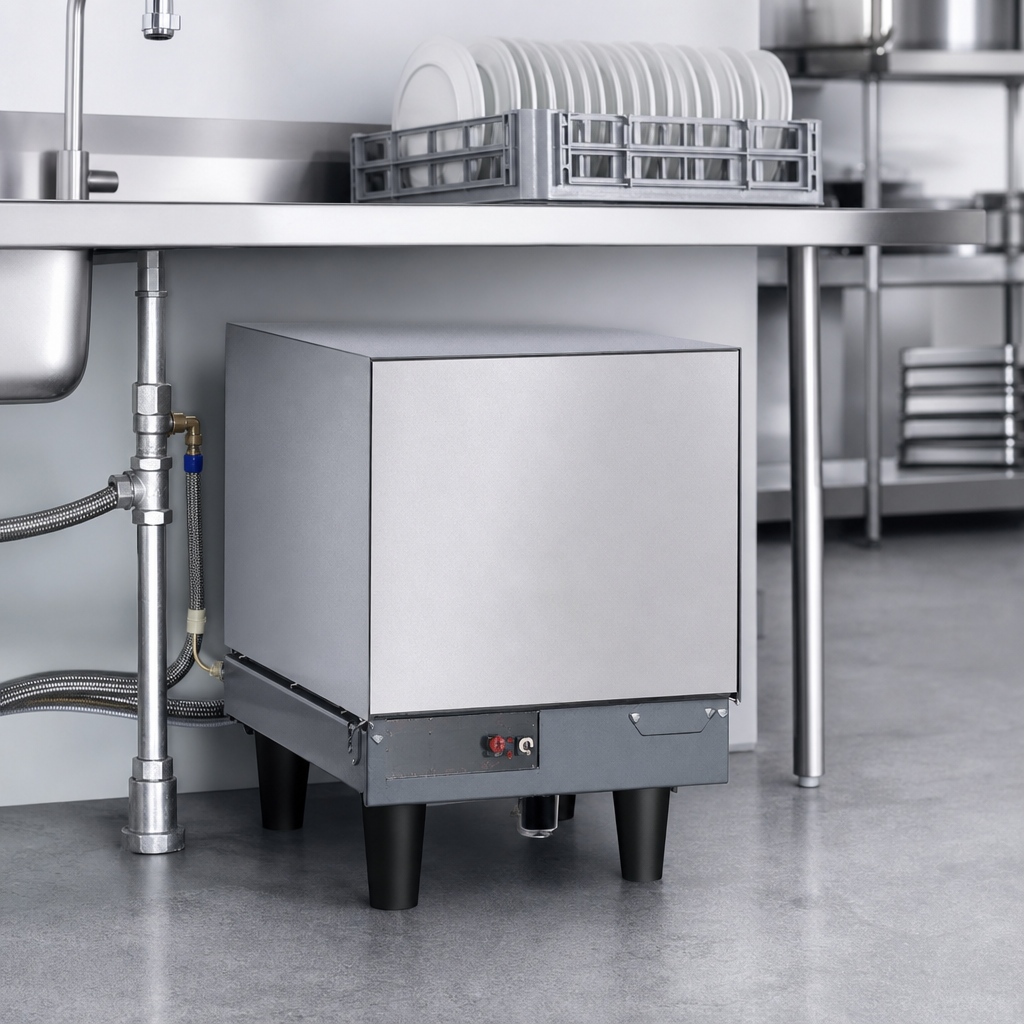

6-Gallon Storage Capacity

Compact 6-gallon tank capacity suits space-conscious dish room installations.

Castone® Lined Tank

Tank is Castone lined for durability and is covered by a 10-year limited warranty.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, and low-water cut-off.

Factory Pre-Plumbed And Pre-Wired

Shipped with internal plumbing, calibrated immersion thermostat, and high-temperature limit switch already installed.

Durable Exterior Construction

Standard stainless steel front panel with a powder-coated silver-gray hammertone body.

Service-Friendly Access

Swing-away front panels provide easier access to probes and elements for maintenance.

Flexible Mounting Options

Standard 6-inch legs are included, and slide brackets are available for mounting under a dishtable.

Type Booster Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Watts 6 kW
Voltage 208 Volts
Amps 25 Amps
Hertz 60 Hz
Phase 3-Phase
Controls Thermostatic
Finish Powder-Coated Silver-Gray Hammertone
Water Inlet Size 3/4 Inch NPT
Breaker Size 40 Amps
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It provides 180°F (82°C) final rinse water for sanitizing and flash-drying dishes and flatware.
This model has a 6-gallon storage capacity.
The unit is rated at 6.0 kW and operates on 208V, 60 Hz, 3-phase power.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, and low-water cut-off.
Yes, slide brackets are available for mounting the booster heater under a dishtable.
The Castone® lined tank includes a 10-year limited warranty.
