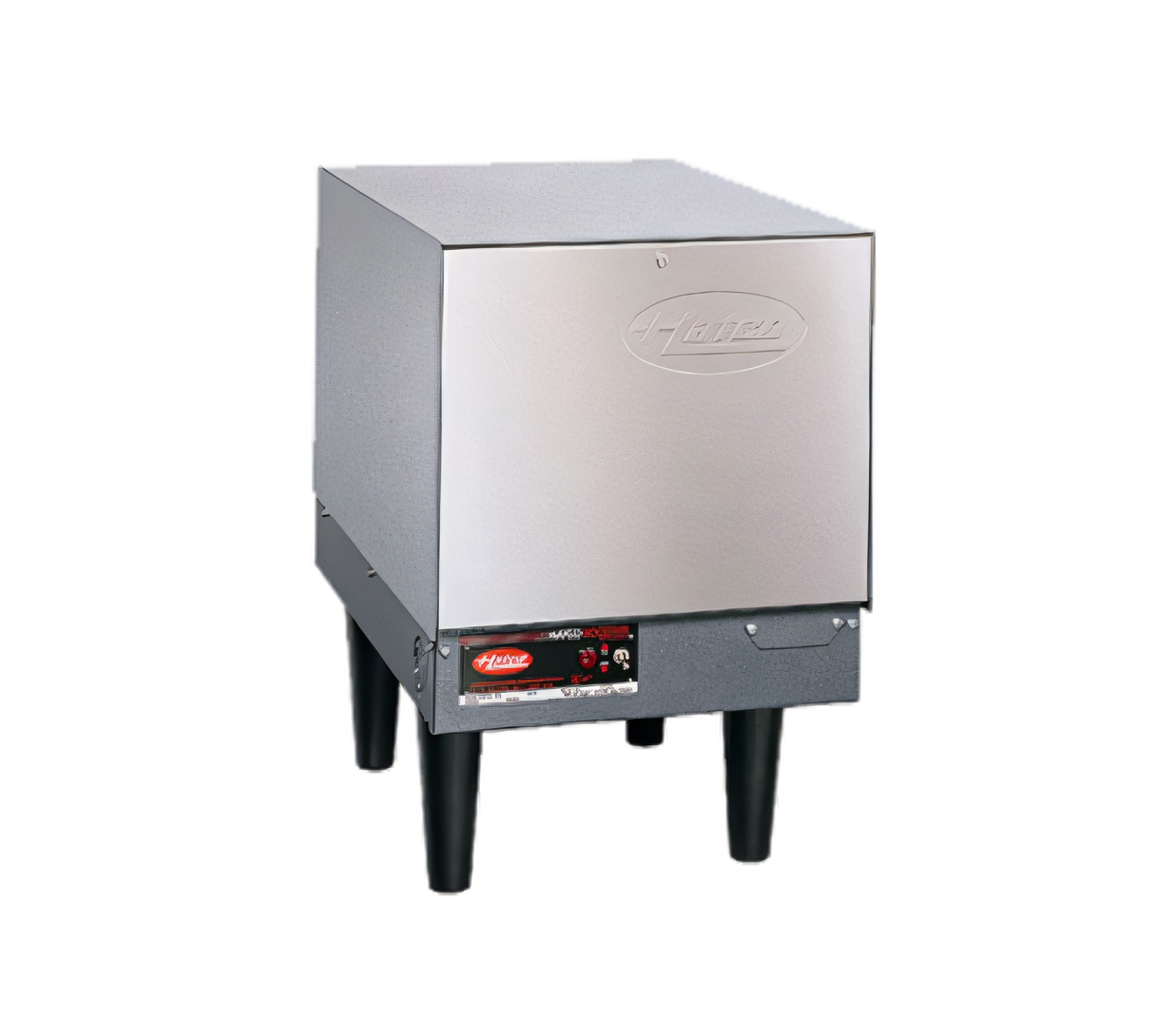

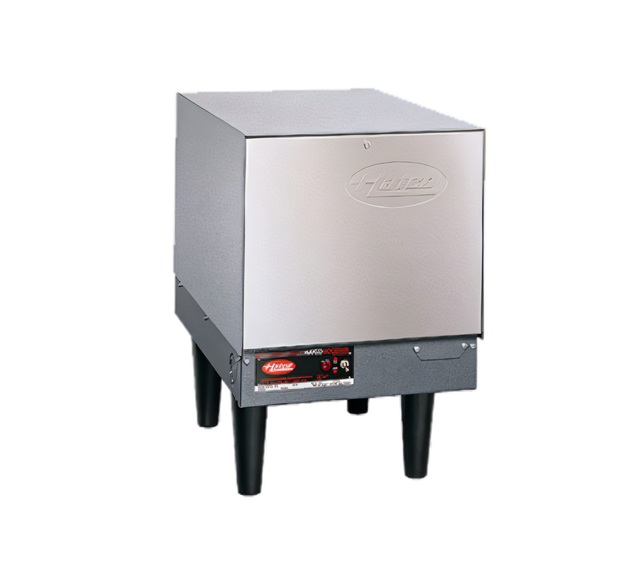

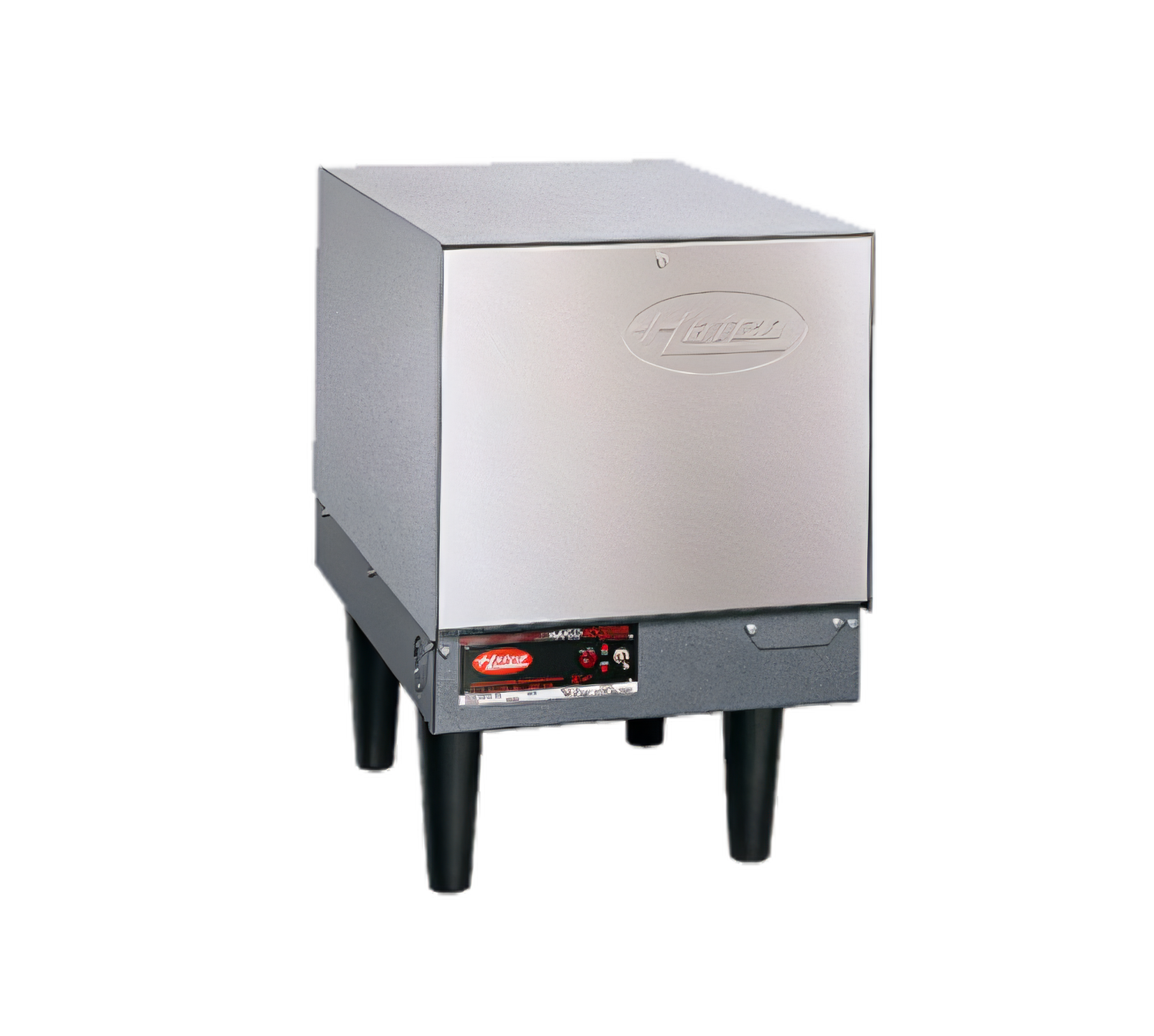

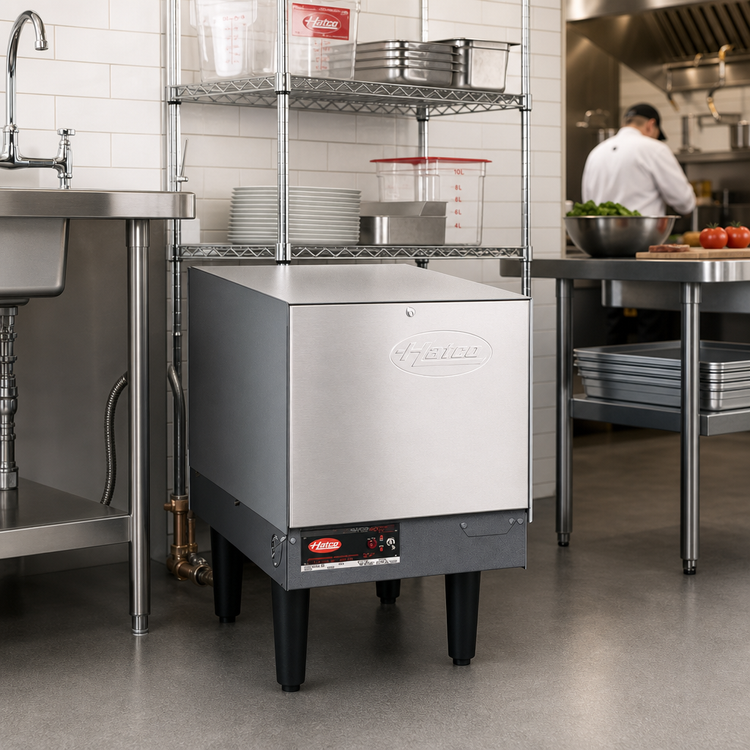

Hatco Compact Electric Booster Water Heater, 6 Gallon, 208V, 6 kW
Quick Ship Model, 1-Phase, Standard 6-Inch Legs
This compact electric booster heater supplies the 180°F final-rinse water dishwashers need in a space-saving, easy-to-install package.
- 6-gallon storage capacity delivers the final rinse water required to sanitize and flash-dry dishes and flatware.
- 208V, 60 Hz, 1-phase, 6.0 kW electric operation for commercial dish room applications.
- Castone® lined tank with fiberglass insulation helps retain heat; tank carries a 10-year limited warranty.
- Built-in safety package includes a temperature/pressure relief valve, pressure reducing valve, gauges, high-temperature limit, pilot light, and low-water cut-off.
- Stainless steel front panel with powder-coated silver-gray hammertone body for a durable commercial finish.
- NSF and cULus listed and made in the USA.
Overall Dimensions:
13.0"W x 20.75"D x 19.75"HProduct Weight:

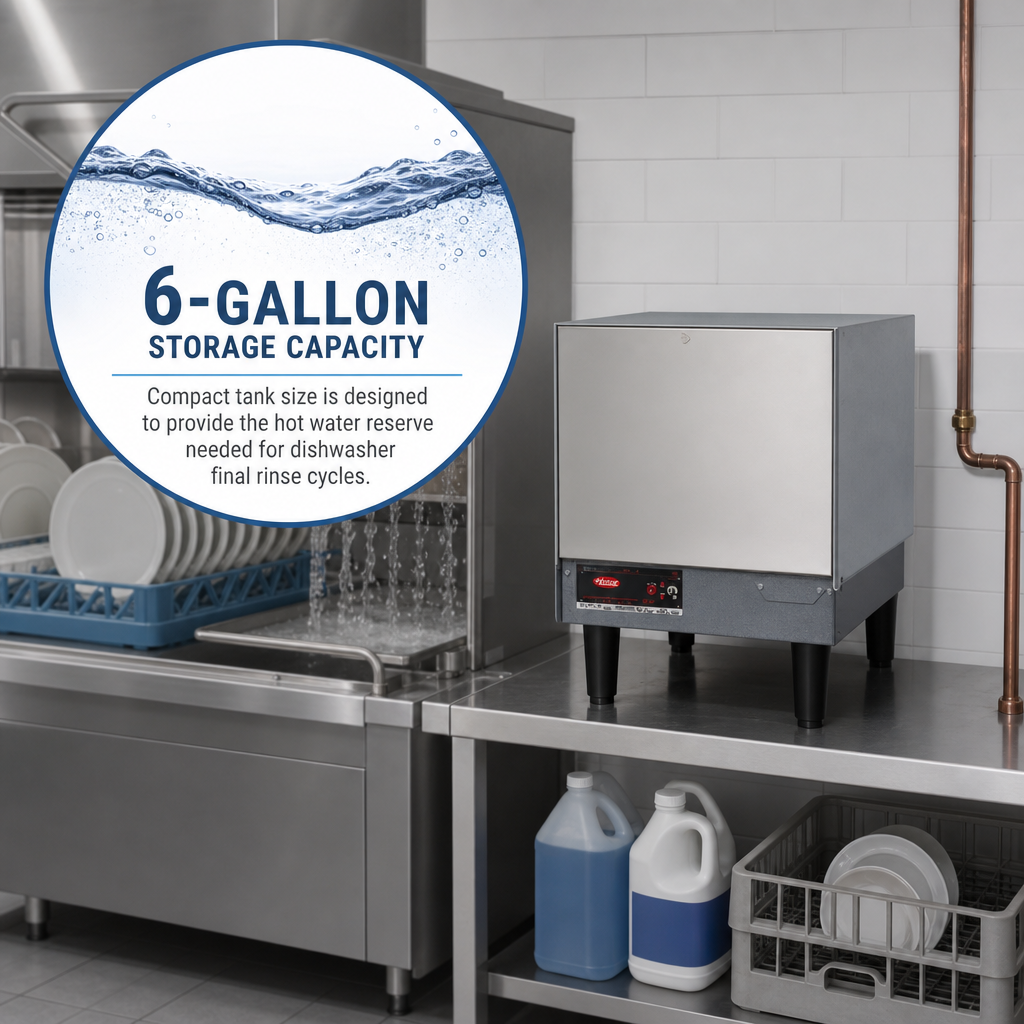

118.0 lb6-Gallon Storage Capacity
Compact tank size is designed to provide the hot water reserve needed for dishwasher final rinse cycles.

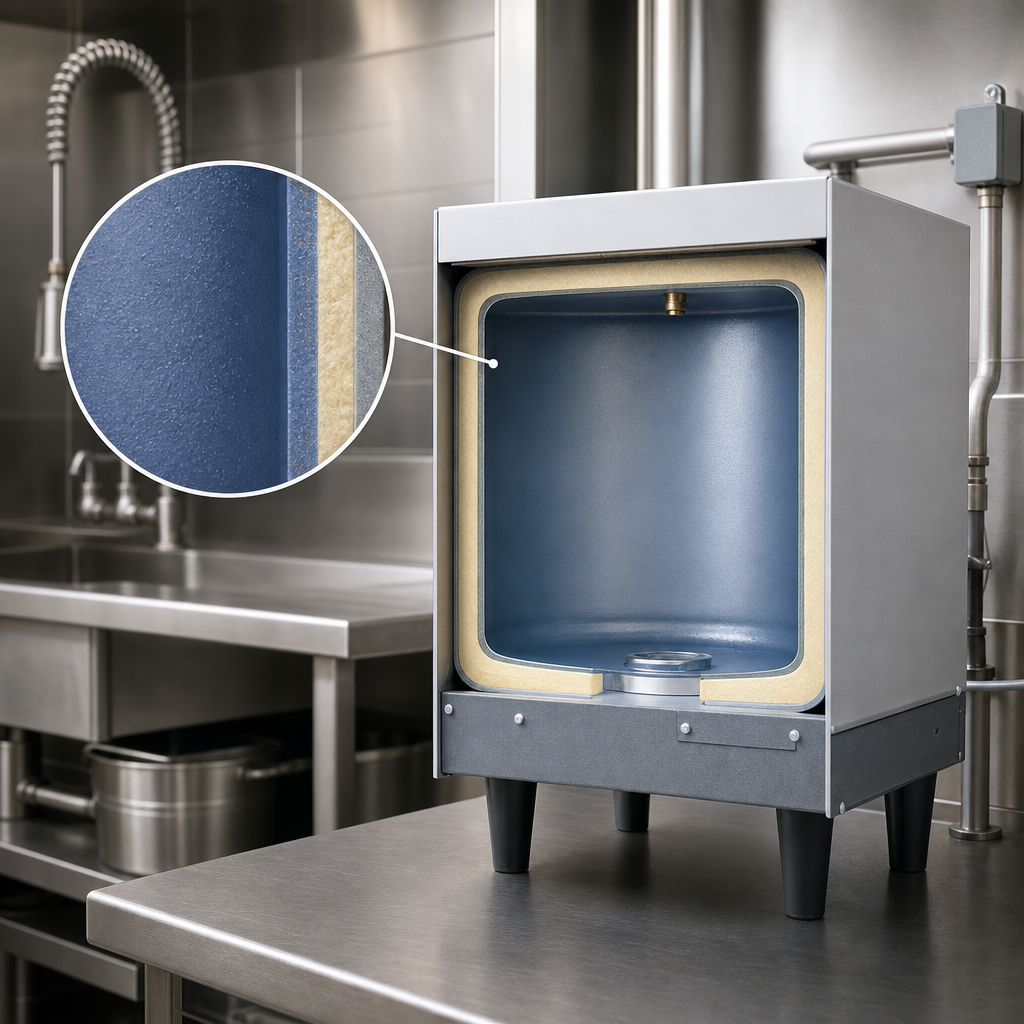

Castone® Lined Tank
Lined tank construction is standard and is covered by a 10-year limited warranty.
Built-In Safety Controls
Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
Factory Pre-Plumbed and Pre-Wired
Unit ships ready for installation with internal plumbing, calibrated immersion thermostat, and high-temperature limit switch.
Stainless Steel Front Panel
A stainless steel front panel provides a clean, corrosion-resistant face for the dish room.
Powder-Coated Hammertone Body
Silver-gray hammertone body finish adds durability and a professional appearance.
Standard 6-Inch Legs
Supplied with 6-inch plastic non-adjustable legs; slide brackets are also available for mounting under a dishtable.
3/4-Inch NPT Inlet and Outlet
Internal plumbing includes 3/4-inch NPT pipe and fittings for inlet and outlet connections.
Fiberglass Insulation
Insulation helps minimize heat loss and improve operating efficiency.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on the Castone® lined tank.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
