Hatco C-57 High Temp & Low Temp Dishwashers
Description

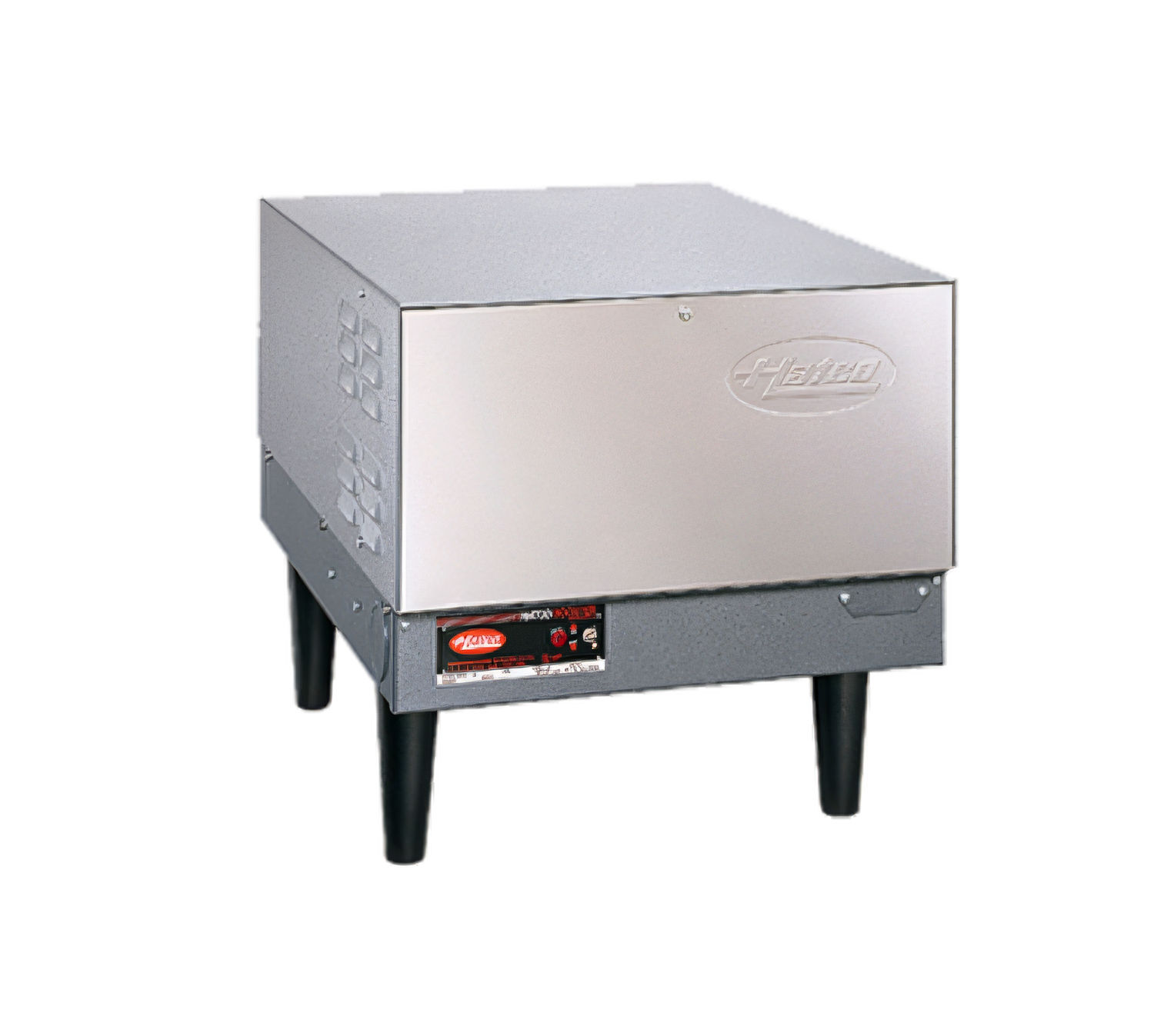

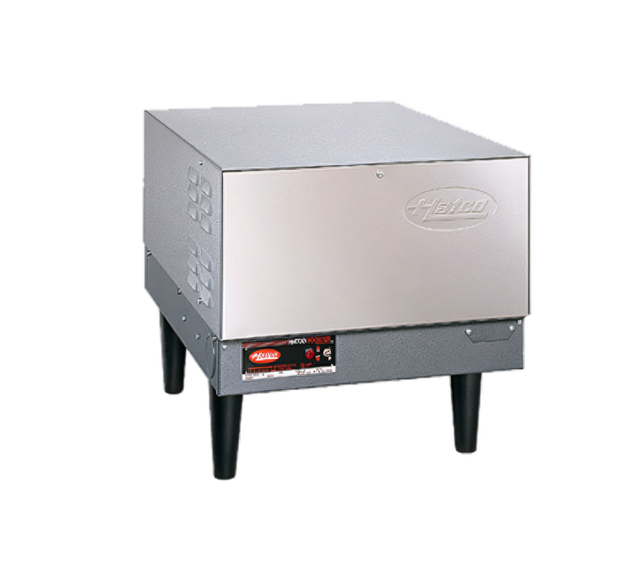

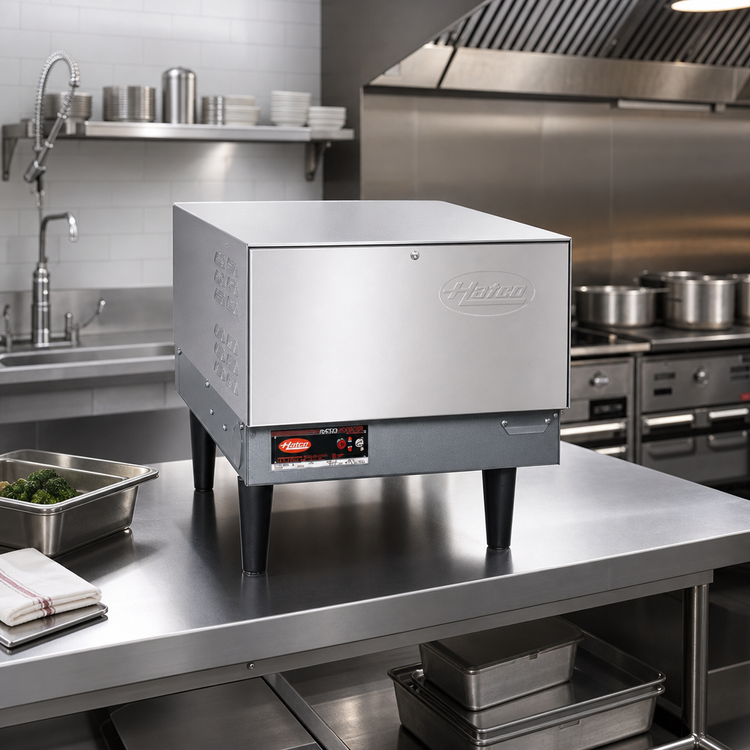

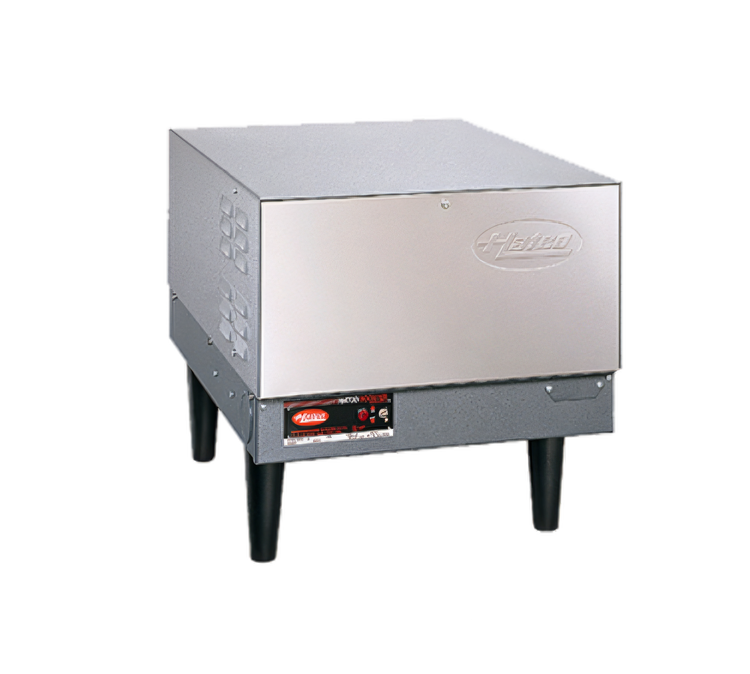

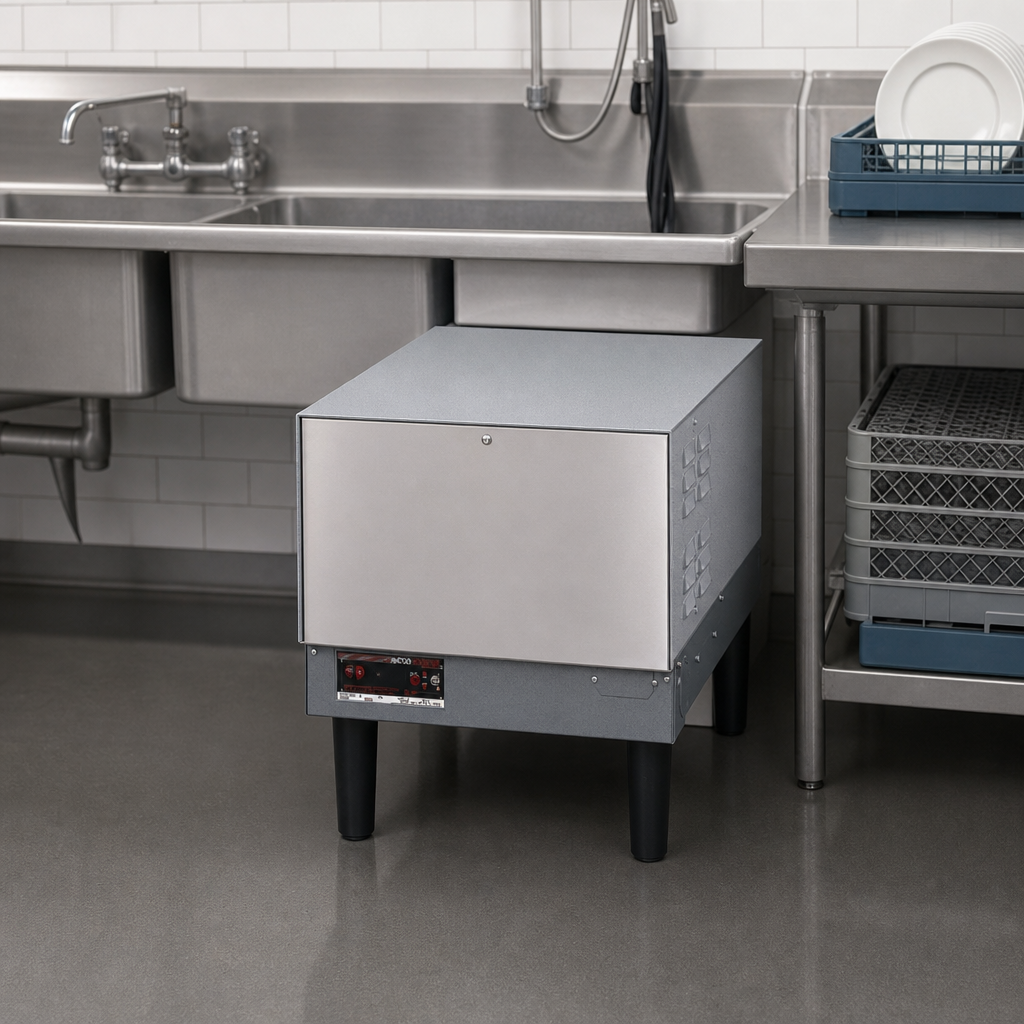

Hatco C-57 Compact Electric Booster Water Heater
57 kW • 6 gal (23 L) Storage • Made in USADeliver the 180 °F (82 °C) final-rinse water your high-temperature dishwasher demands—without sacrificing valuable floor space. Hatco’s 57 kW Compact Booster combines a rugged Castone® lined tank, stainless steel front and silver-gray hammertone body in a space-saving footprint that installs right beside the dishmachine. Certified NSF and cULus for commercial kitchens.
Why You’ll Love It
- Generates up to 573 gal/hr (2169 L/hr) at a 40 °F rise—plenty of 180 °F rinse water for even the busiest racks.

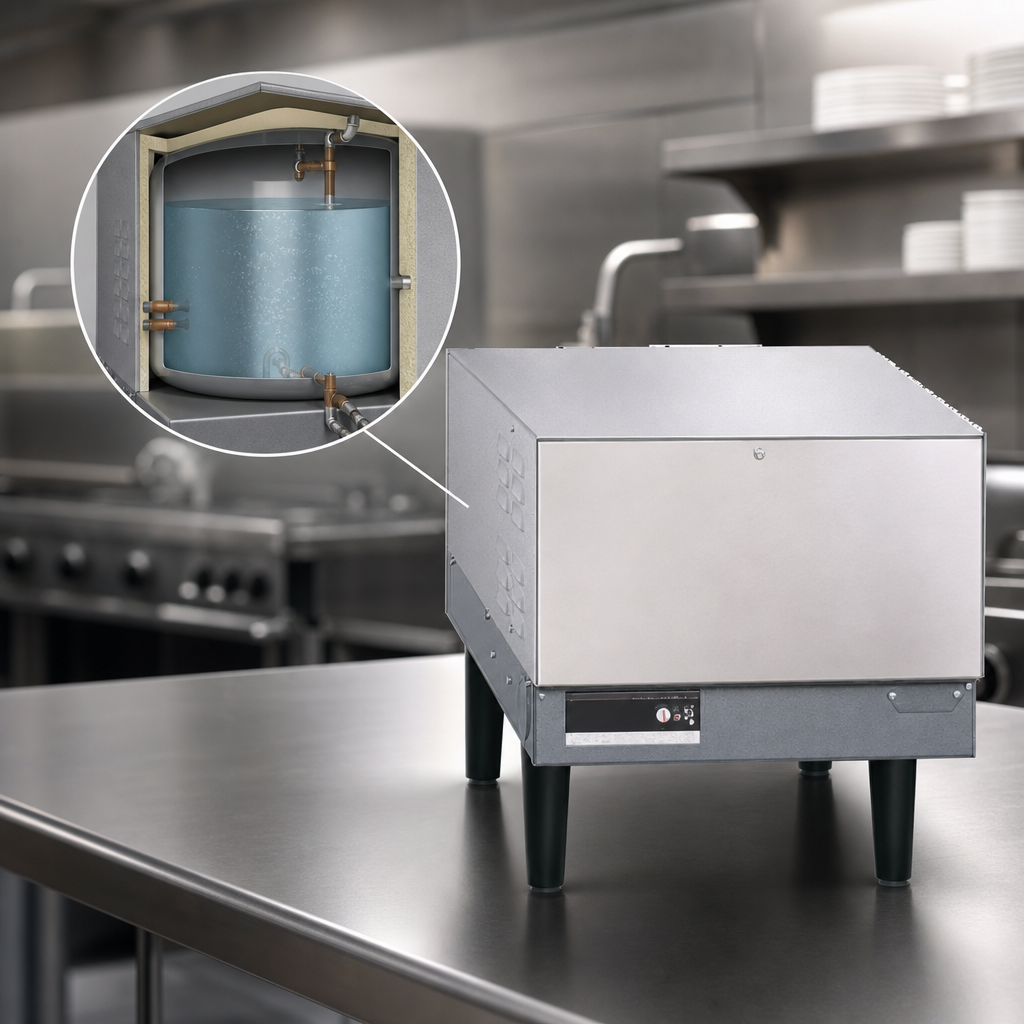

- 6 gal Castone® lined tank resists corrosion & liming and carries a 10-year limited warranty.
- Factory pre-plumbed & pre-wired with calibrated immersion thermostat and high-temperature limit for fast, worry-free installation.
- Stainless steel front panel with powder-coated silver-gray hammertone body features Hatco’s IFS antimicrobial finish.
- All-in-one safety package:
- Temperature/pressure relief valve & pressure reducing valve
- Dual temperature/pressure gauges
- Low-water cut-off to protect elements
- High-temperature limit control & illuminated power switch
- Fiberglass insulation minimizes standby heat loss.
- Supplied with four 6" (152 mm) non-adjustable plastic legs—perfect height for cleaning underneath.
Performance at a Glance
| Model | C-57 |
|---|---|
| Storage Capacity | 6 gal (23 L) |
| kW Rating | 57 kW |
| Voltage / Phase | 240 V, 480 V or 600 V / 3-phase |
| Amps (240 V / 480 V / 600 V) | 137.2 A / 68.6 A / 54.9 A |
| Breaker/Fuse Size | 175 A / 90 A / 70 A |
| Water Recovery (40 °F / 70 °F rise) |
573 gph / 326 gph (2169 lph / 1234 lph) |
| Operating Pressure | Max 150 psi (1034 kPa) |
| Overall Dimensions (W × D × H*) | 18" × 24" × 12.03" *Height excludes legs & T/P valve |
| Shipping Weight | ≈ 142 lb (64 kg) |
| Certifications | NSF Listed, cULus Listed |
Installation Notes
- 3⁄4" NPT inlet & outlet connections.
- Electrical service must match voltage/phase shown above and be protected by the stated breaker size.
- Incoming water must not exceed 3 GPG hardness—use a water softener if necessary. Product failure caused by liming is not covered under warranty.
- Optional accessories such as slide-mount brackets, stainless steel adjustable legs, shock absorbers and back-pressure relief valves are available separately.
Includes Hatco’s 10-year limited Castone tank warranty plus 24/7 parts & service assistance in the U.S. and Canada.
