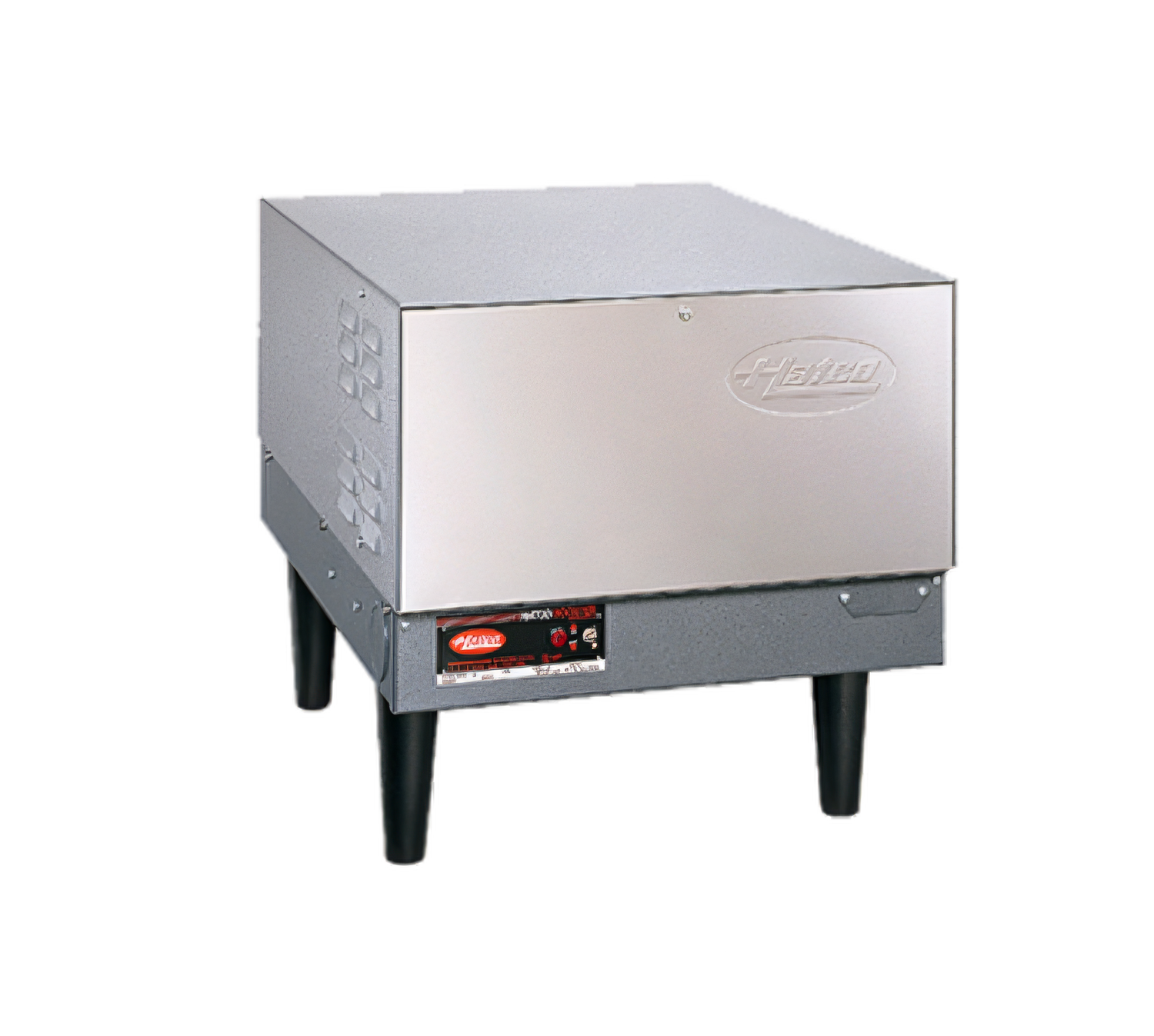

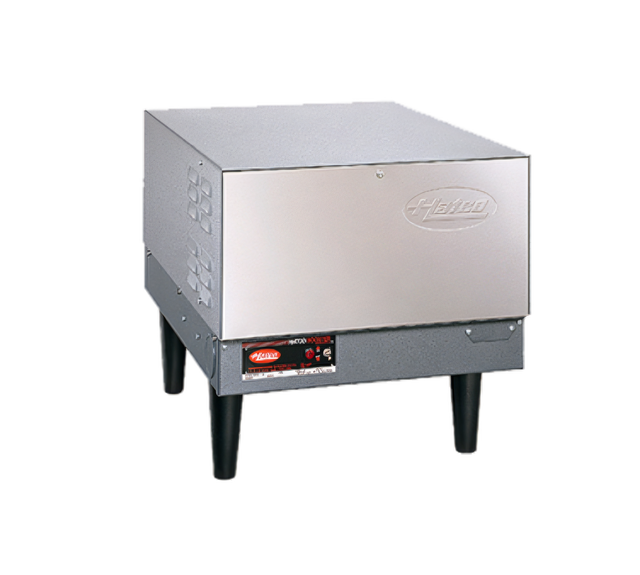

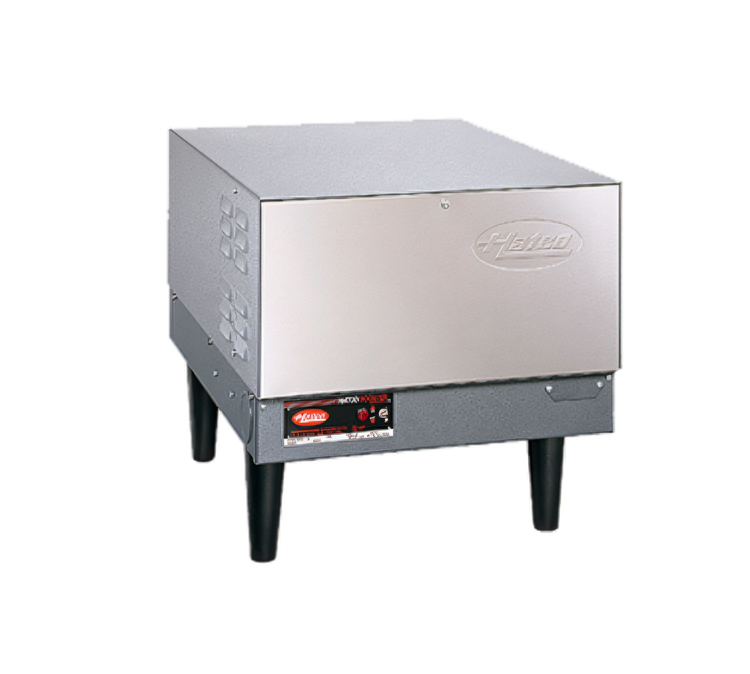

Hatco Compact Electric Booster Water Heater, 6 Gallon, 57 kW, 480V, 3-Phase
Hatco Compact Electric Booster Water Heater, 6 Gallon, 57 kW, 480V, 3-Phase
Quick Ship Model with Standard 6-Inch Legs
Built for high-demand dish rooms, this compact booster heater delivers 180°F final rinse water in a space-saving 6-gallon package.
- Provides the 180°F final rinse water needed to sanitize and flash-dry dishes and flatware.
- 57 kW electric heating at 480V, 60 Hz, 3-phase supports heavy-duty dish room demand.
- 6-gallon storage capacity in a compact footprint that installs next to the dishwasher.
- Castone® lined tank and fiberglass insulation help support long service life and reduce heat loss.
- Stainless steel front panel with powder-coated silver-gray hammertone body for durable construction.
- Factory pre-plumbed and pre-wired with built-in safety controls for easier installation and operation.
Overall Dimensions:
18.0"W x 24.0"D x 18.0"HProduct Weight:

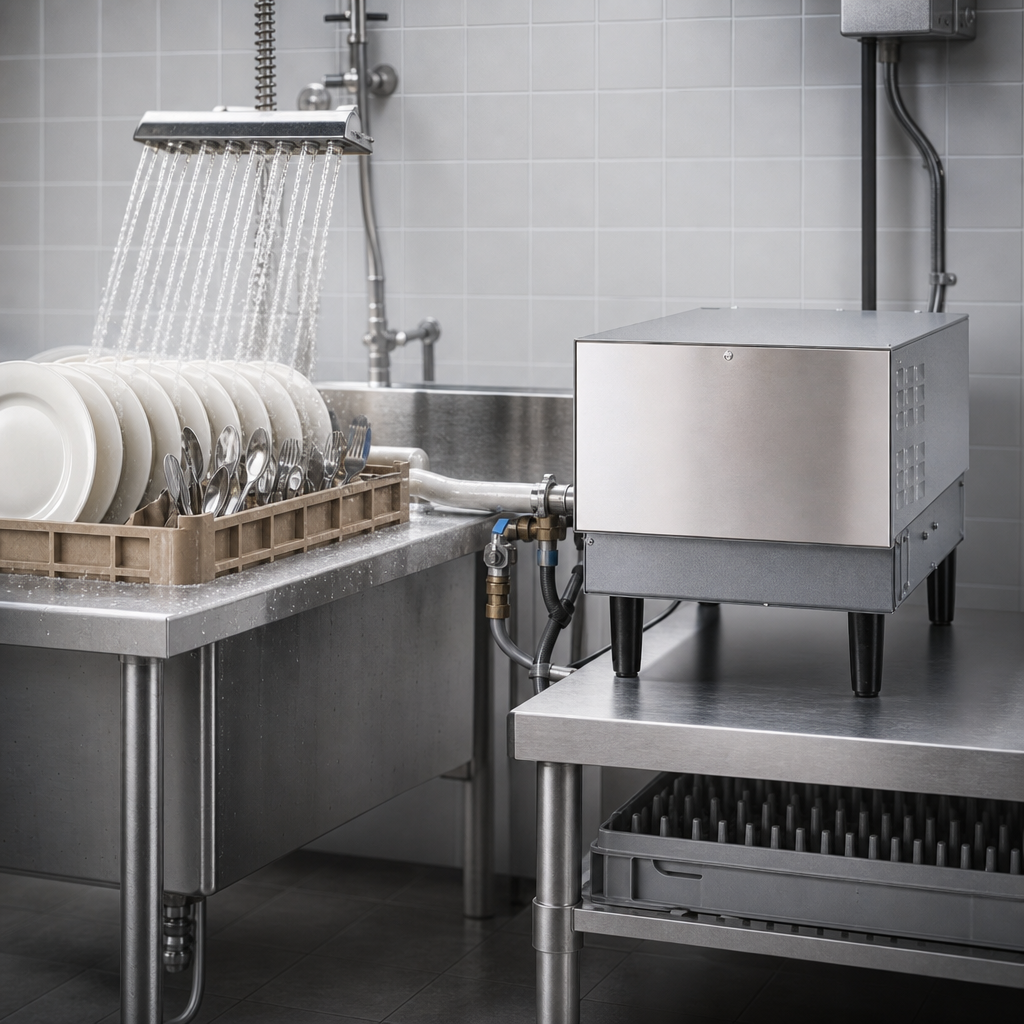

142.0 lb180°F Final Rinse Water
Supplies the final rinse water required to sanitize and flash-dry dishes and flatware.

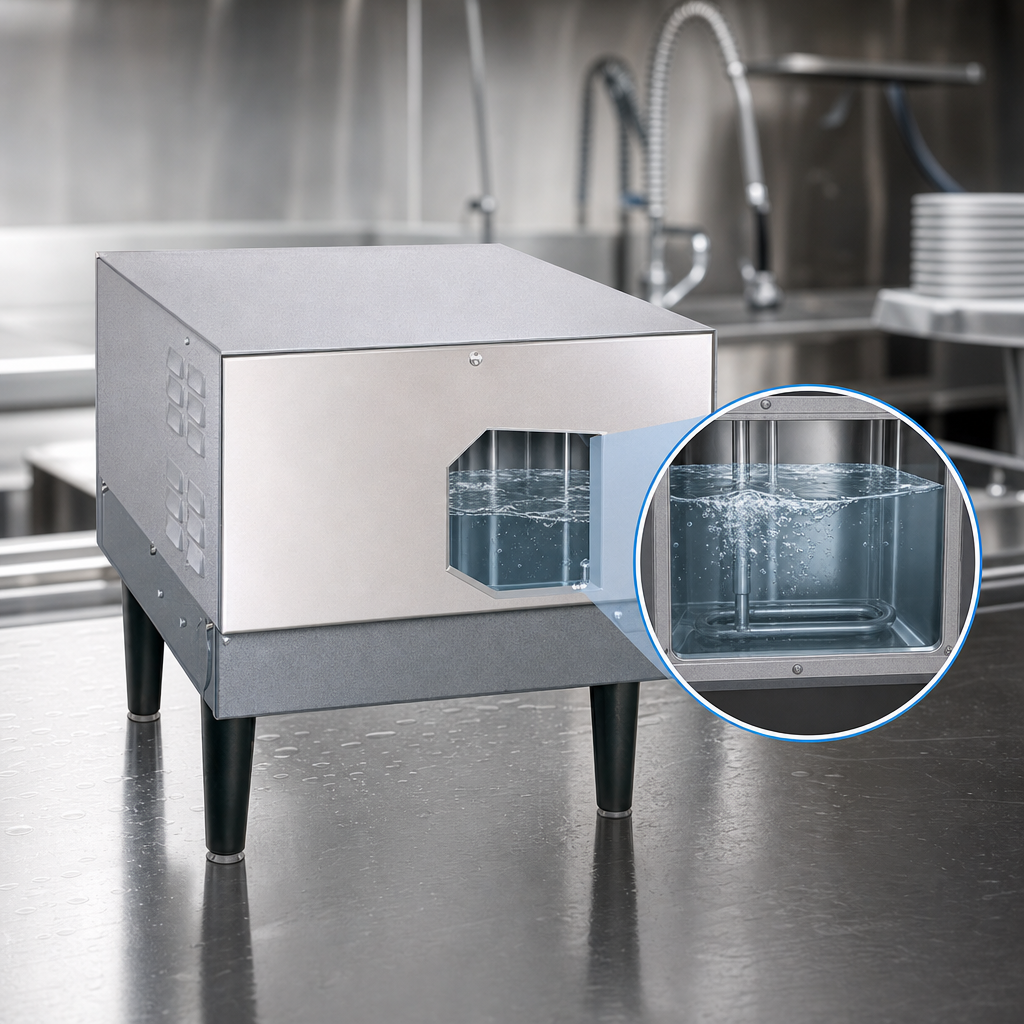

6-Gallon Storage Capacity
Compact tank holds 6 gallons (23 liters) for steady rinse-water supply.
57 kW, 480V, 3-Phase Operation
High-output electric operation sized for demanding commercial dish room use.
Castone® Lined Tank
Durable lined tank construction includes a 10-year limited warranty.

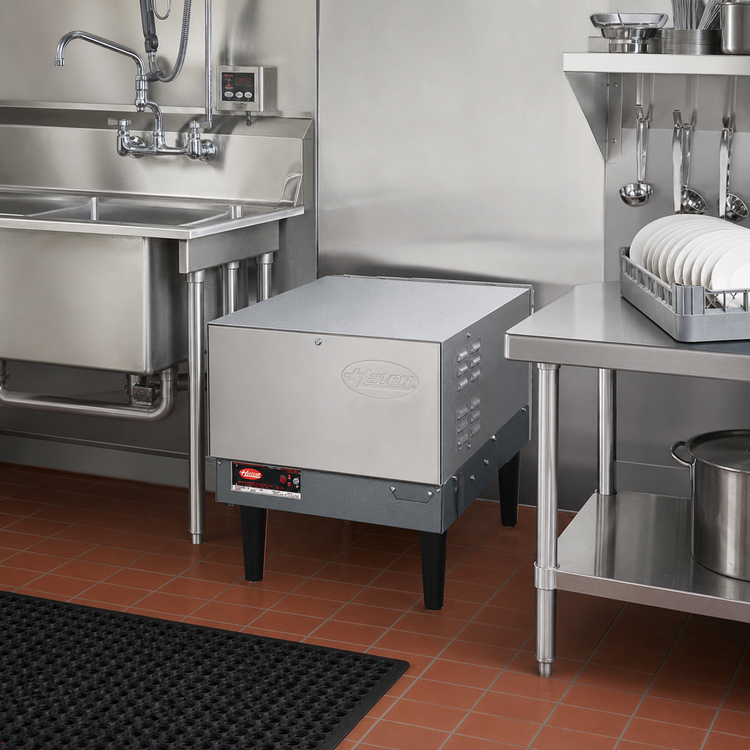

Compact Space-Saving Design
Easy to install next to the dishwasher with slide brackets or on standard 6-inch legs.
Factory Pre-Plumbed and Pre-Wired
Includes a calibrated immersion thermostat and high-temperature limit switch for simpler setup.
Built-In Safety Controls
Features a temperature/pressure relief valve, pressure reducing valve, gauges, high-temperature limit control, pilot light, on/off switch, and low-water cut-off.
Durable Exterior Construction
Stainless steel front panel with powder-coated silver-gray hammertone body.
Fiberglass Insulation
Helps minimize heat loss during operation.
3/4 Inch NPT Piping
Internal inlet and outlet piping and fittings are included for installation.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on Castone® lined tank.
