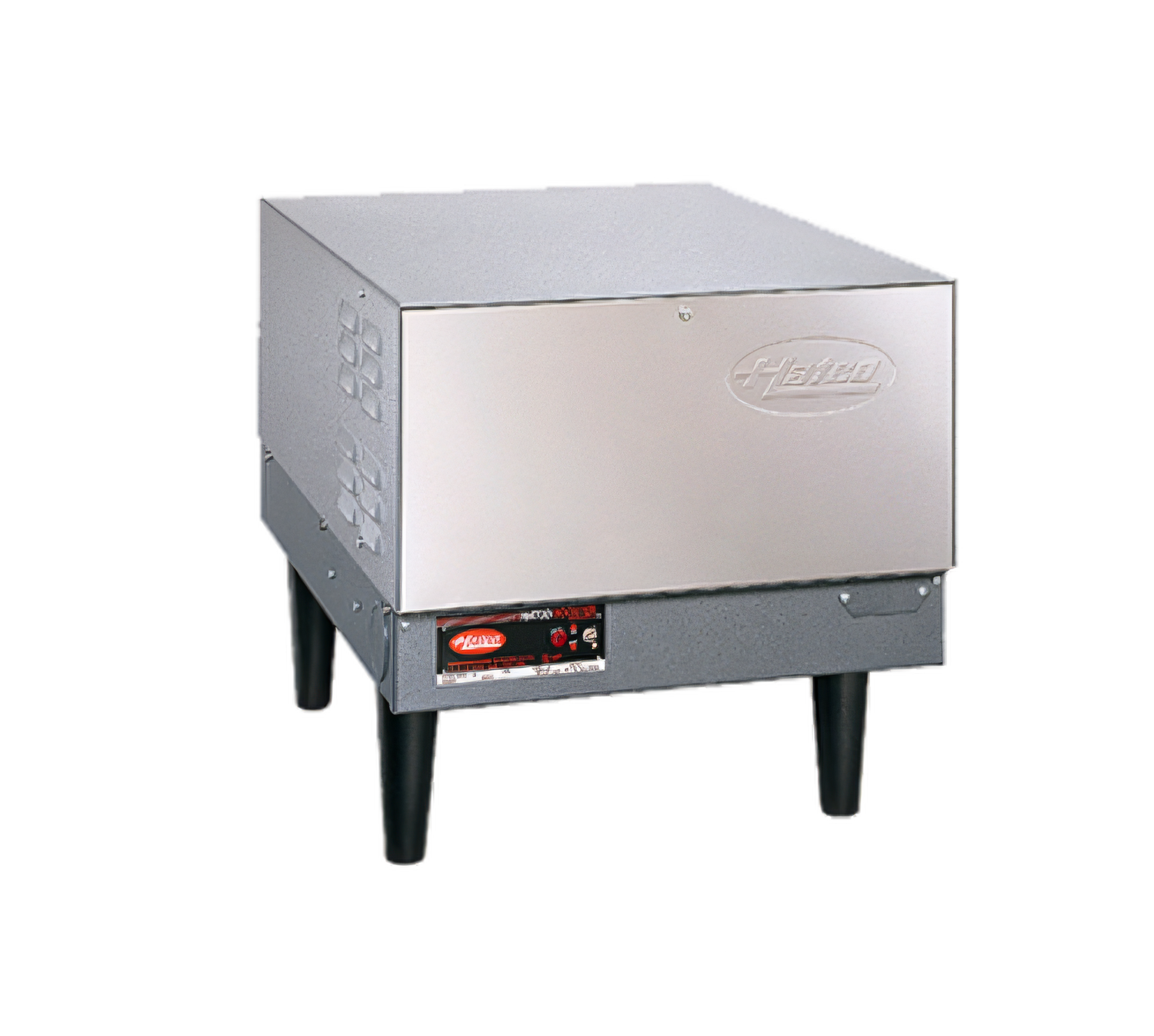

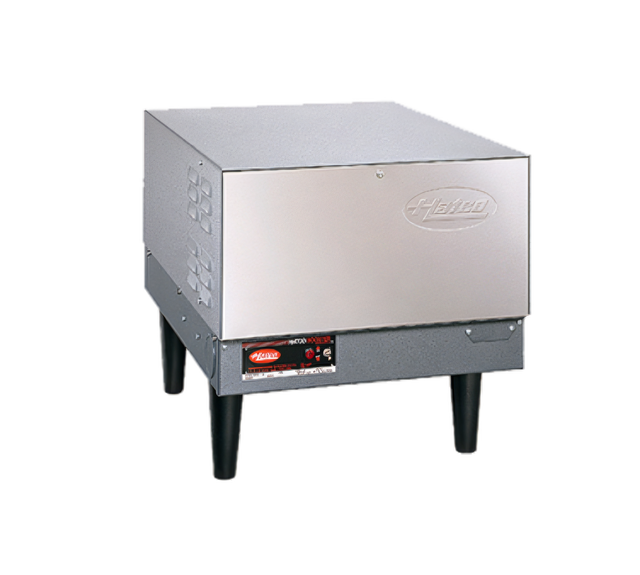

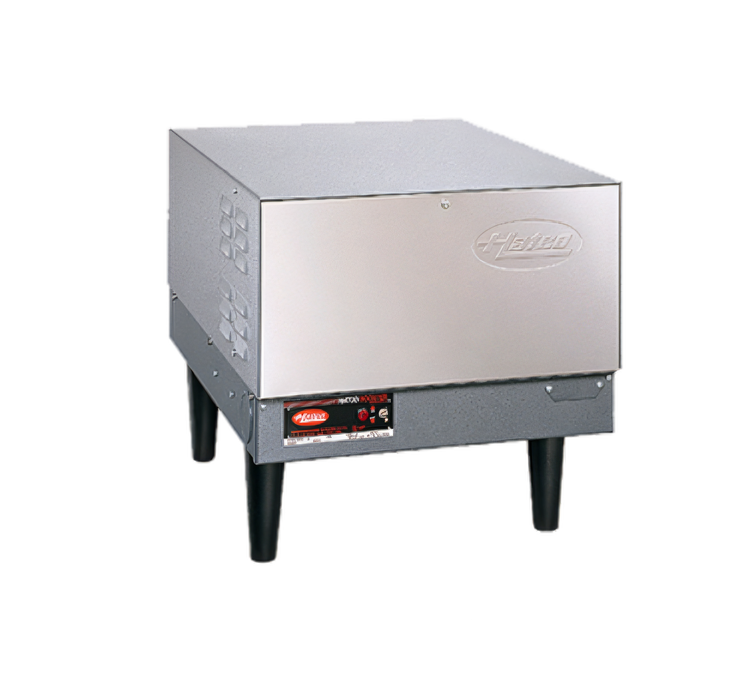

Compact Floor Model Electric Booster Water Heater, 6 Gallon, 57 kW, 208V, 3-Phase
Compact Floor Model Electric Booster Water Heater, 6 Gallon, 57 kW, 208V, 3-Phase
Stainless Steel Front Panel, Powder-Coated Body, 6-Inch Plastic Non-Adjustable Legs
Built for commercial dish rooms, this compact booster heater delivers 180°F final rinse water from a 6-gallon tank with fast 57 kW electric recovery.
- Compact electric booster heater for commercial dishwashing final rinse applications.
- 6-gallon storage capacity with 57 kW output for rapid recovery.
- 208V, 60 Hz, 3-phase electrical service.
- Castone® lined tank with built-in safety controls and factory pre-plumbed/pre-wired convenience.
- Stainless steel front panel and powder-coated silver-gray hammertone body.
- Standard 6-inch legs; slide brackets are available for under-dishtable mounting.
Overall Dimensions:
18.0"W x 24.0"D x 18.0"HProduct Weight:

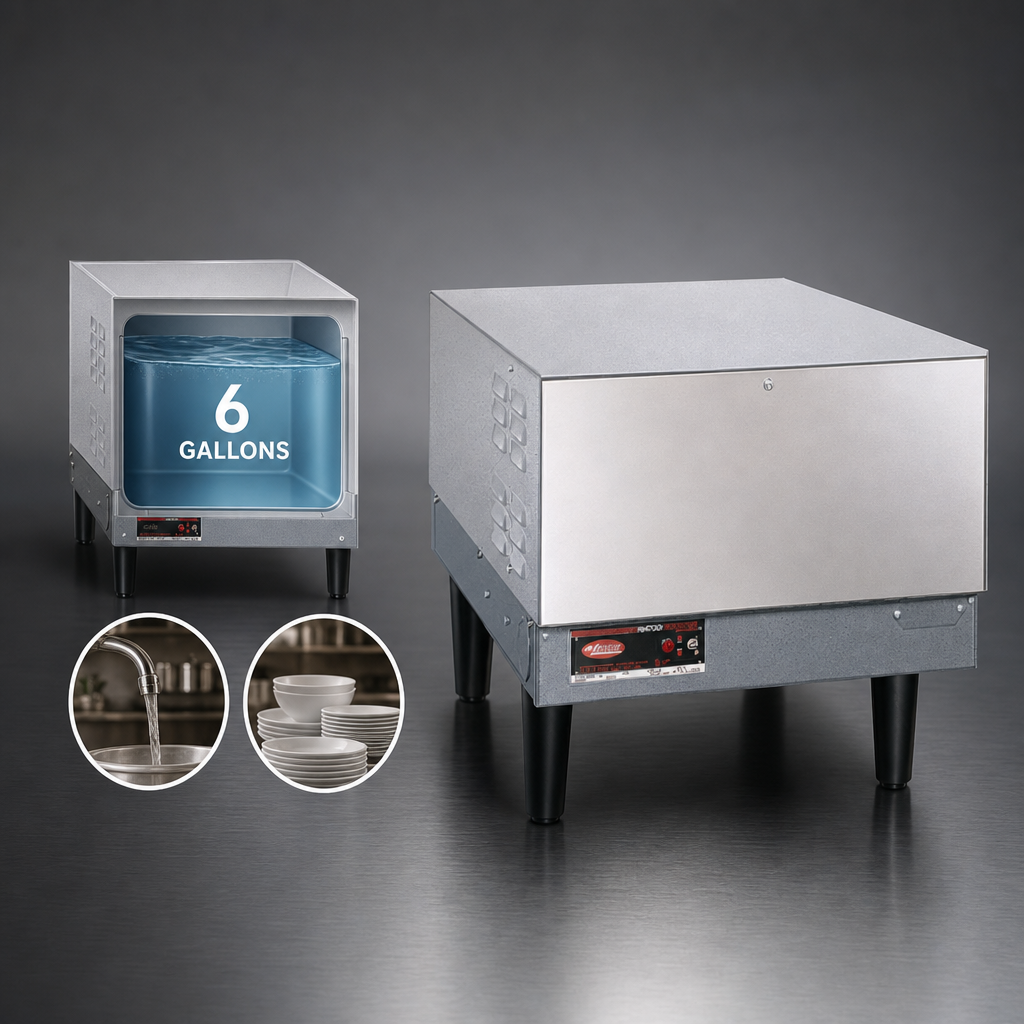

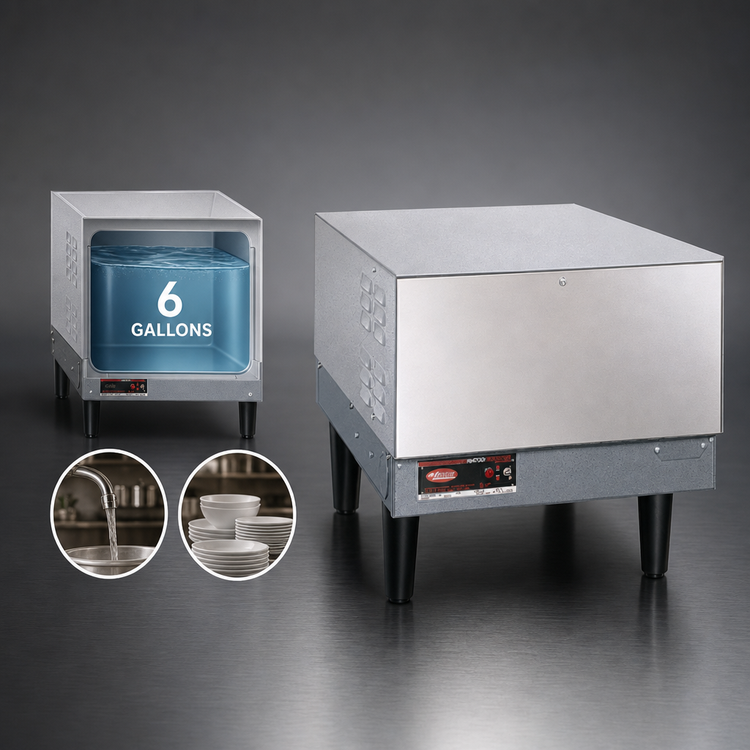

142.0 lb6-Gallon Storage Capacity
Provides 6 gallons (23 liters) of storage for hot water supply in a compact footprint.

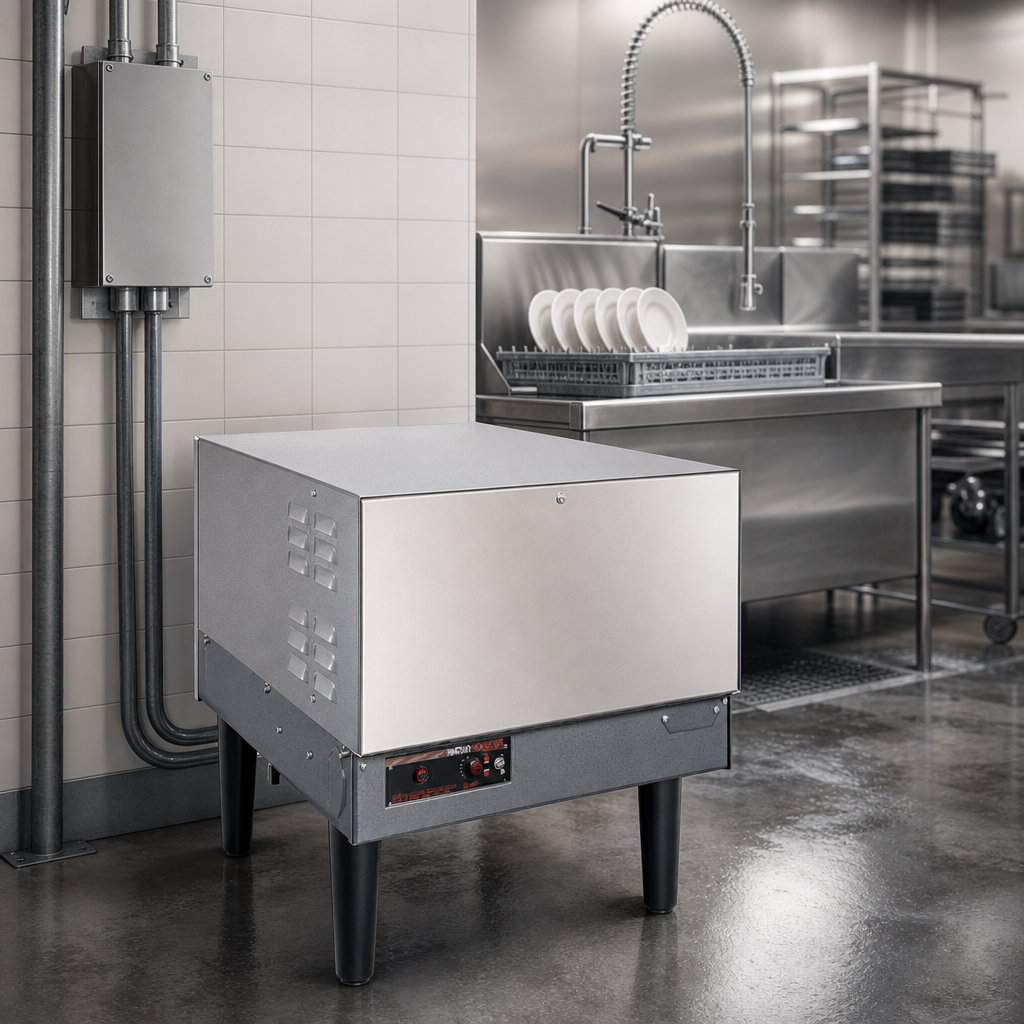

57 kW Electric Output
High-output electric operation supports fast recovery in demanding dish room applications.
180°F Final Rinse Supply
Designed to deliver the 180°F (82°C) final rinse water needed to sanitize and flash-dry dishes and flatware.
Castone® Lined Tank
Durable Castone® lined tank construction with a 10-year limited warranty on the lining.
Factory Pre-Plumbed and Pre-Wired
Includes a calibrated immersion thermostat and high-temperature limit switch for easier installation.
Built-In Safety Controls
Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
Corrosion-Resistant Exterior
Features a stainless steel front panel with a powder-coated silver-gray hammertone body.
Easy Service Access
Swing-away front panels provide quick access to probes and elements for simpler servicing.
Flexible Mounting Options
Standard 6-inch non-adjustable legs are included, and slide brackets are available for under-dishtable mounting.
Water Quality Requirement
Incoming water above 3.0 grains of hardness per gallon must be treated and softened to help protect performance and operating life.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on the Castone® lined tank.
