Hatco C-54 High Temp & Low Temp Dishwashers
Description

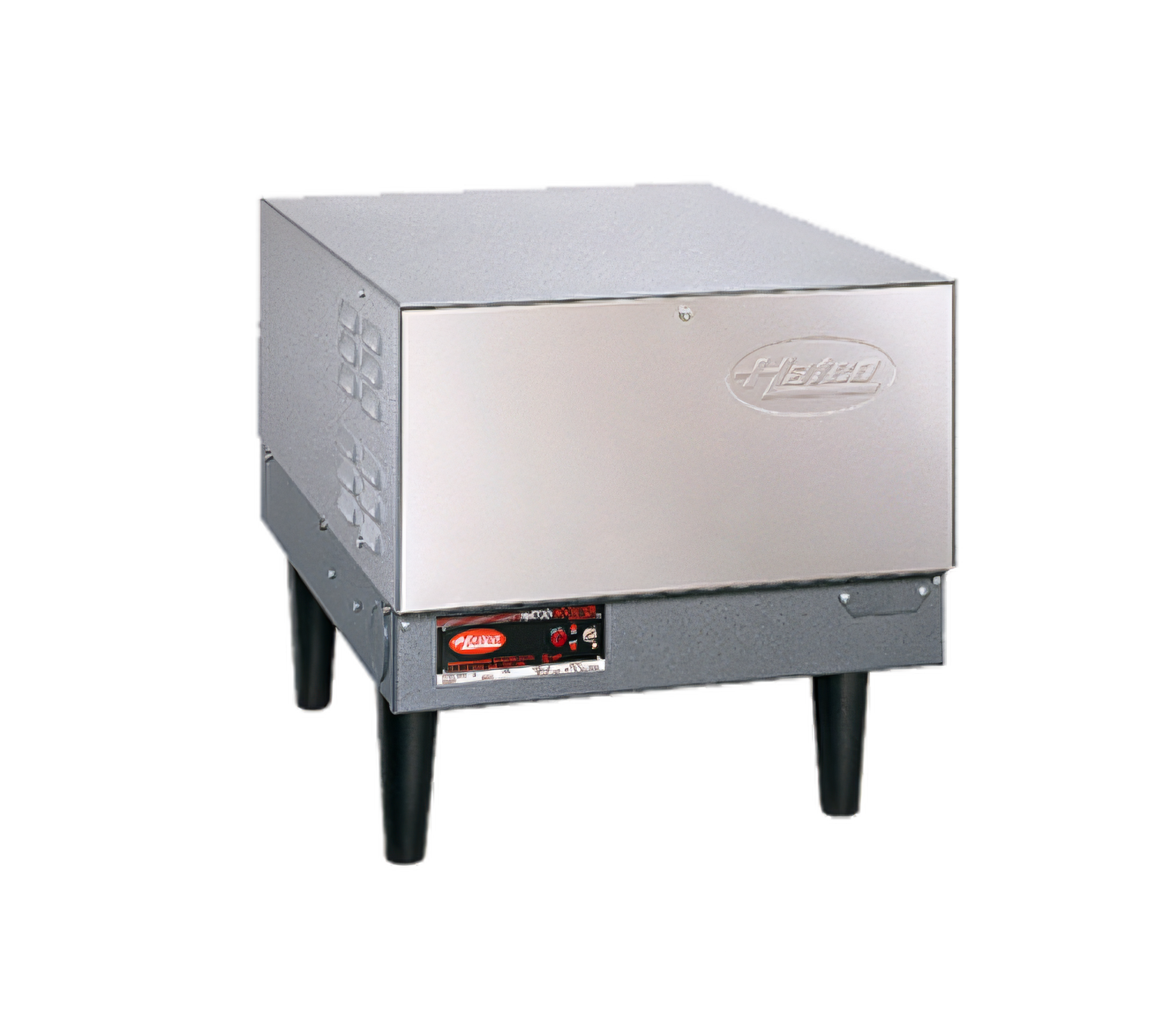

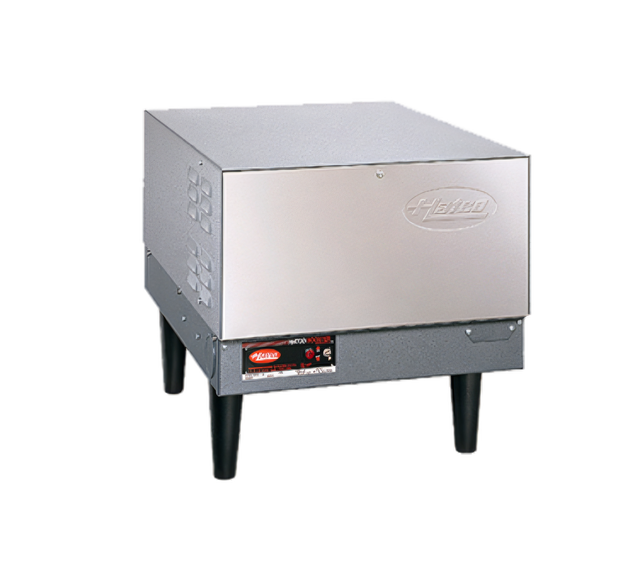

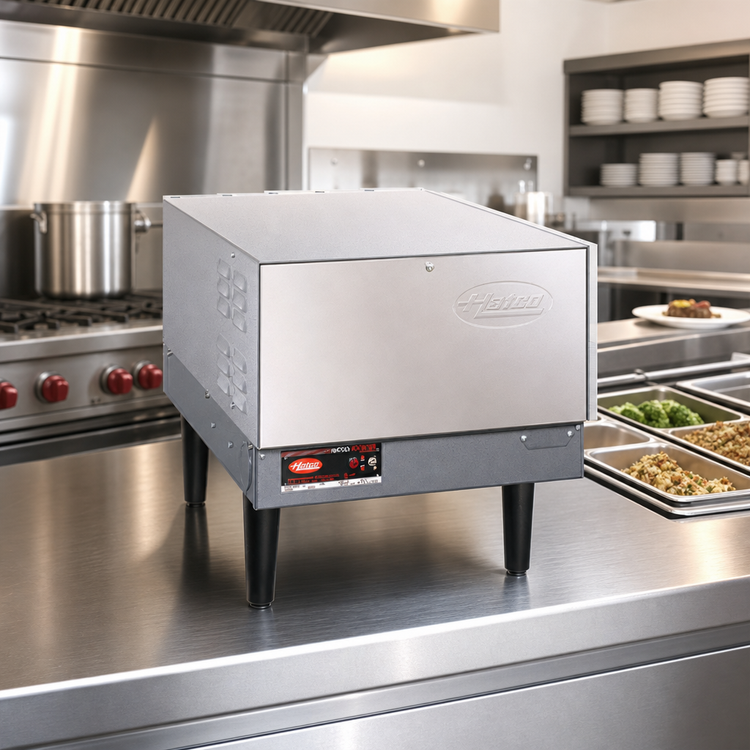

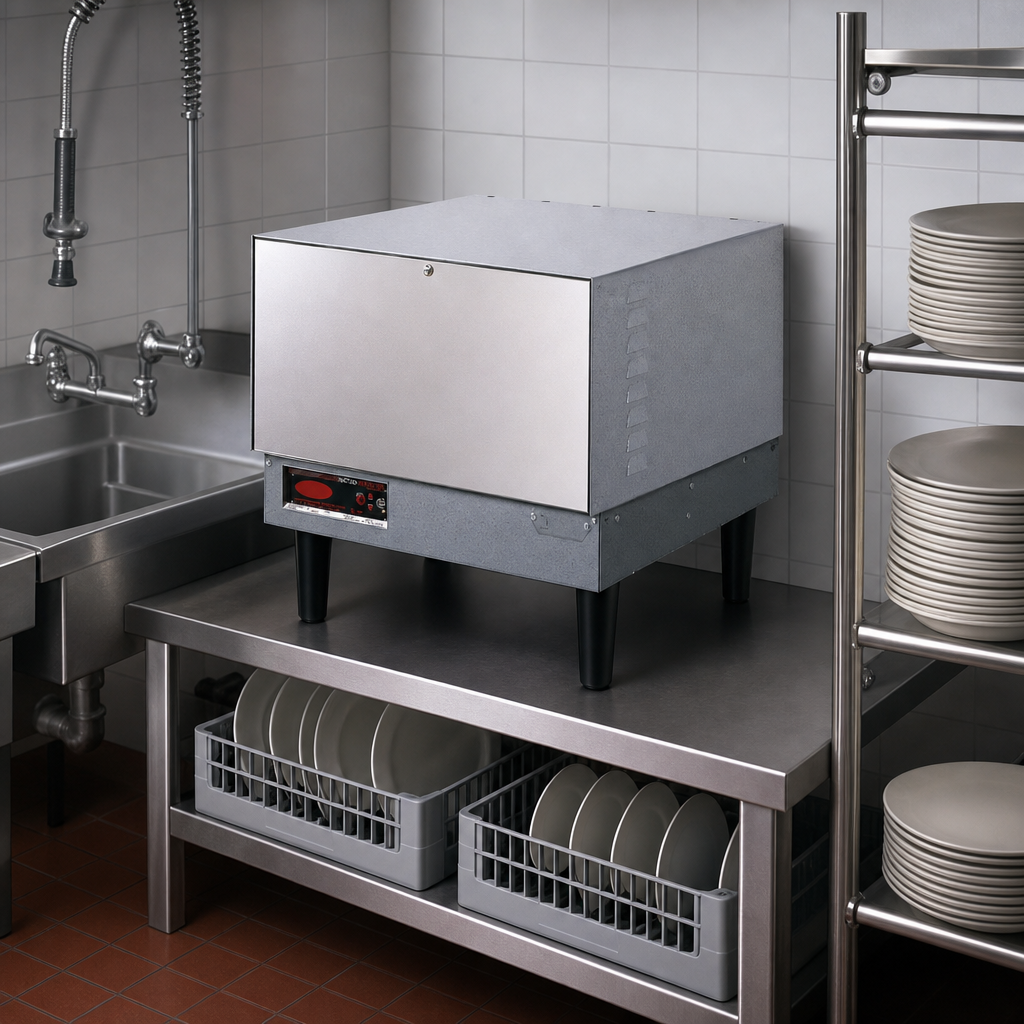

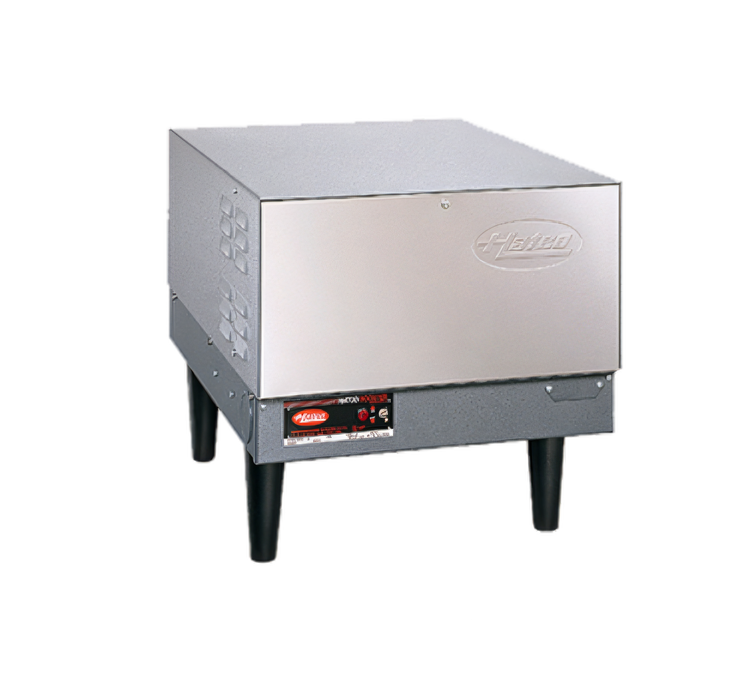

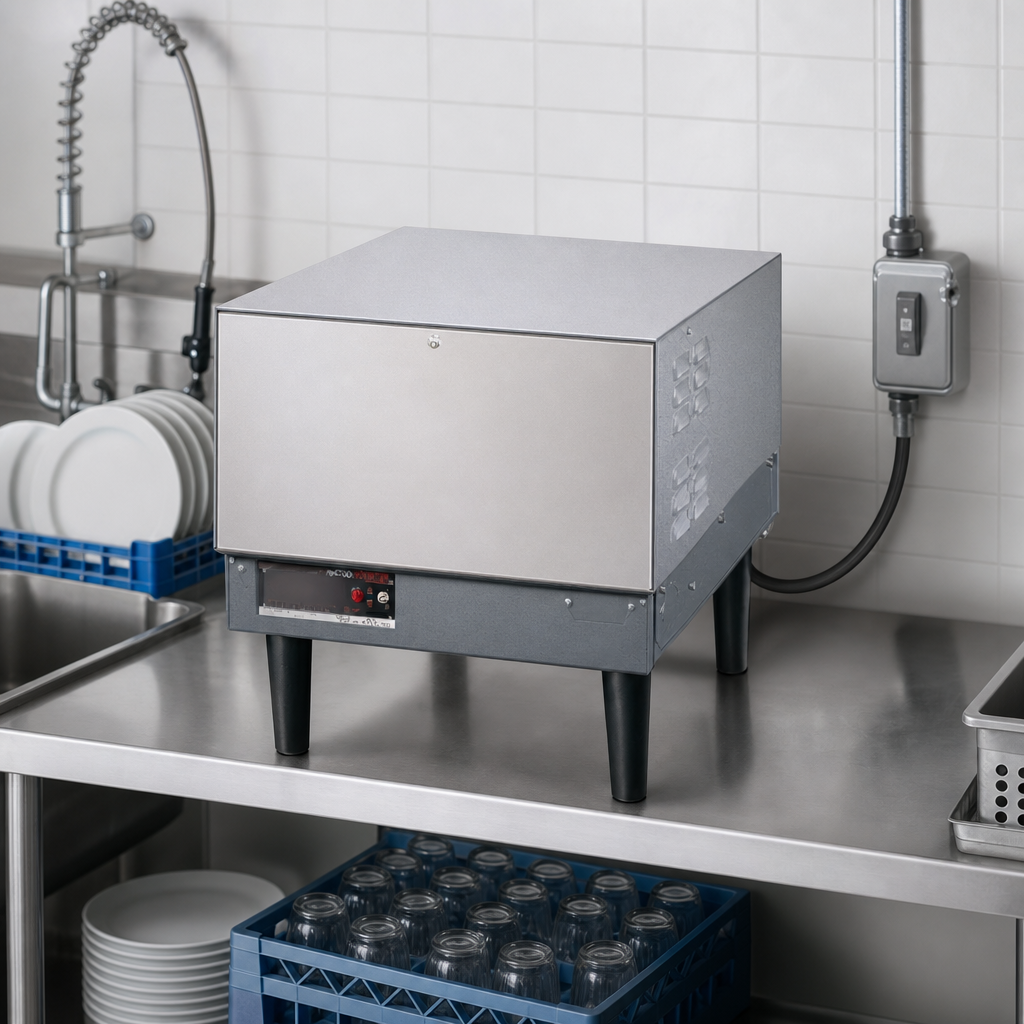

Hatco C-54 Compact Electric Booster Heater — 54 kW
6 gal Castone® tank • 180°F final rinse • NSF & cULusBuilt for relentless rush hours, the Hatco C-54 delivers a continuous 180°F (82°C) sanitizing rinse to keep even the busiest conveyor or flight-type dishmachine up to code and on schedule. A towering 54 kW of heating power and a space-saving 6 gal Castone® tank combine to give you industrial-strength performance in a footprint that slips effortlessly under a dish-table or next to the washer.
Key advantages
- Massive 54 kW output maintains 180°F rinse water during peak demand.
- 6 gal (23 L) Castone®-lined tank fights corrosion and carries a 10-year limited warranty.
- Factory pre-plumbed & pre-wired with calibrated immersion thermostat and ECO high-limit.
- Stainless-steel front panel plus antimicrobial silver-gray hammertone powder-coated body.
- Temperature/pressure relief valve, pressure-reducing valve, dual gauges and low-water cut-off included.
- Swing-away front panel for quick, tool-free access to elements, probes and fuses.
- 6" (152 mm) molded plastic legs supplied; slide brackets available for dishtable mounting.
- NSF listed, cULus certified and proudly Made in the USA.
Performance
| Recovery @ 40°F (22°C) rise | 542 gph (2052 lph) |
|---|---|
| Recovery @ 70°F (39°C) rise | 310 gph (1174 lph) |
| Final rinse temperature | 180°F (82°C) |
Technical specifications
| Storage capacity | 6 gal / 23 L |
|---|---|
| Heating power | 54 kW |
| Electrical* |
3-phase 240 V – 130 A 3-phase 480 V – 65 A 3-phase 600 V – 52 A *Install on a dedicated fused disconnect per local code. |
| Water connections | ¾" NPT inlet & outlet (bottom rear) |
| Dimensions (W × D × H) |
18" × 24" × 12.03" (457 × 610 × 306 mm) Height increases to 29.25" (743 mm) with T/P relief valve. |
| Leg height | 6" (152 mm) non-adjustable plastic |
| Approx. ship weight | 142 lb (64 kg) |
| Certifications | NSF, cULus |
| Country of origin | USA |
Perfect for
- High-volume conveyor and flight-type dishmachines
- Hospitals, universities and correctional kitchens
- Large restaurants, hotels and banquet facilities
- Anywhere low rinse temps are not an option
Need a different capacity? Hatco Compact Boosters are available from 4 kW to 57 kW — ask for details.
