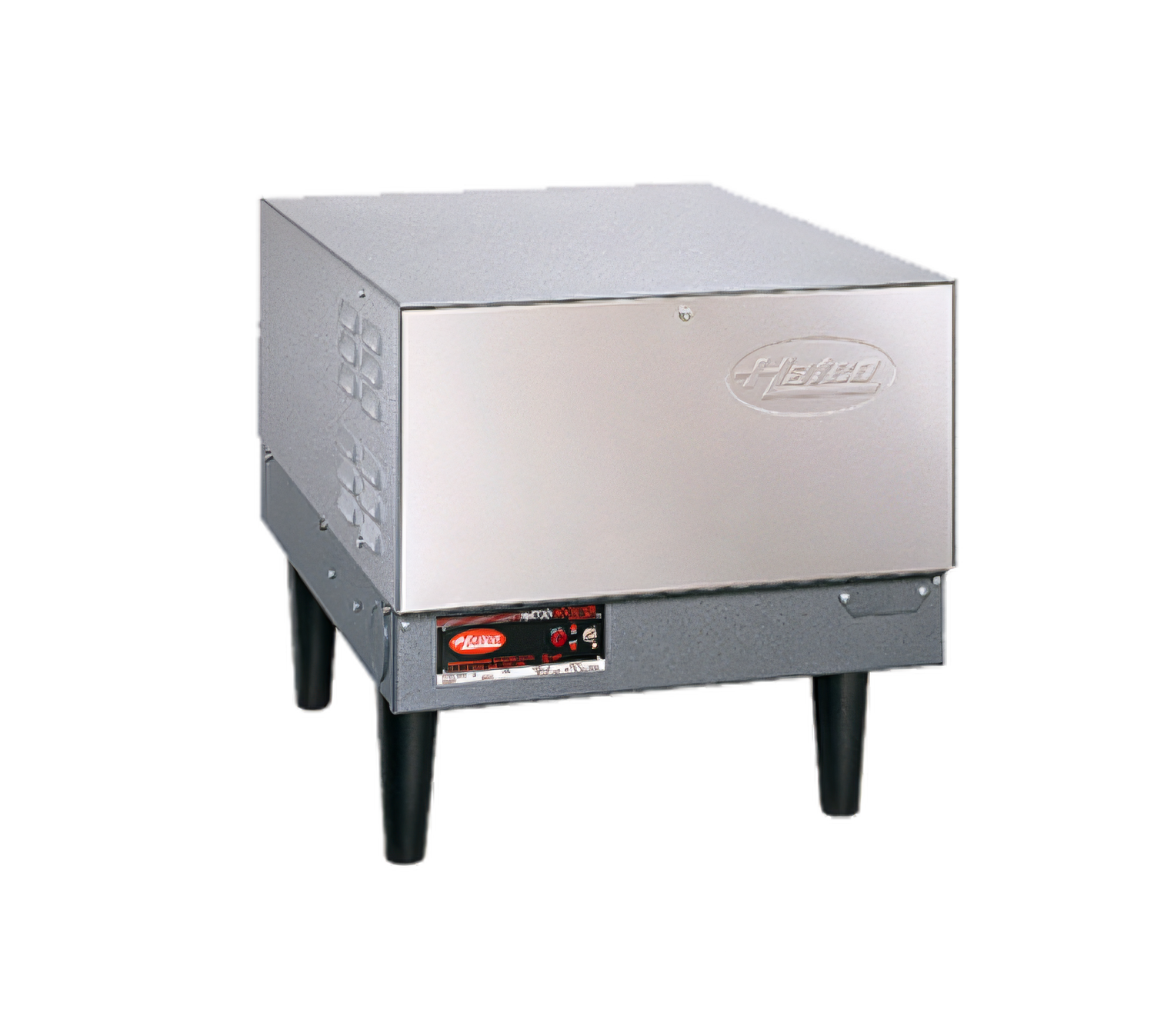

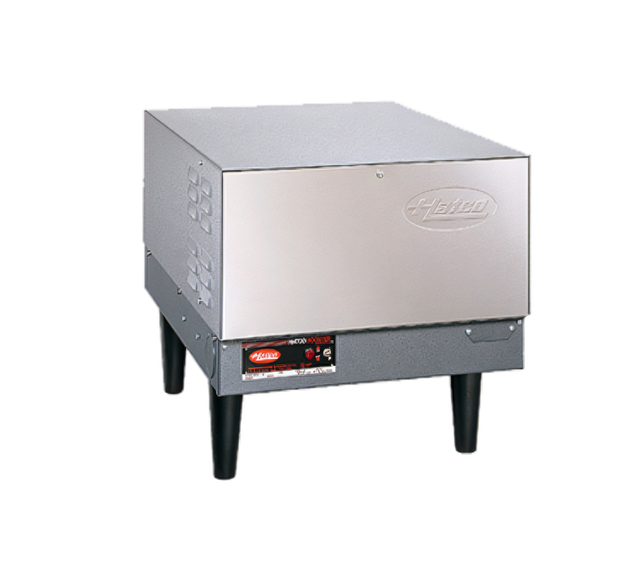

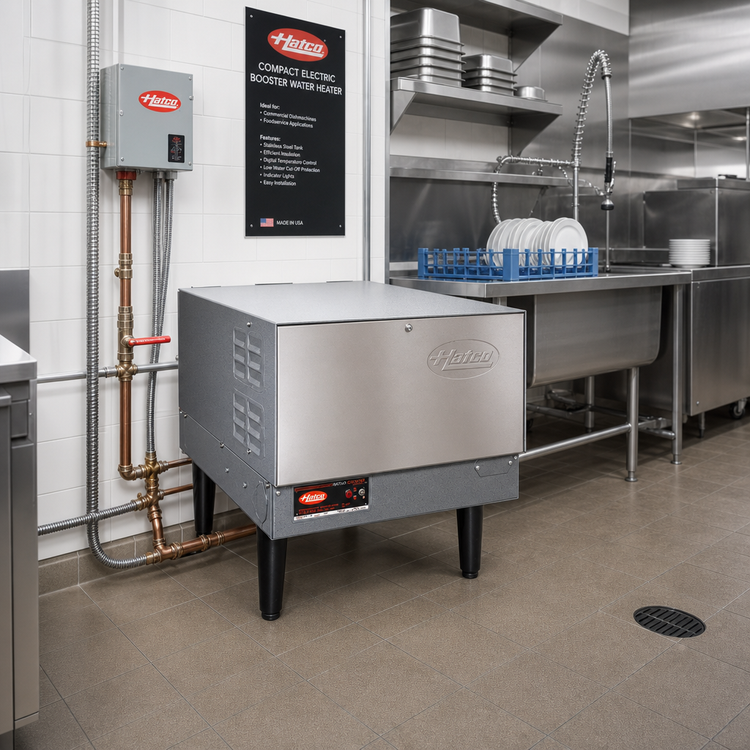

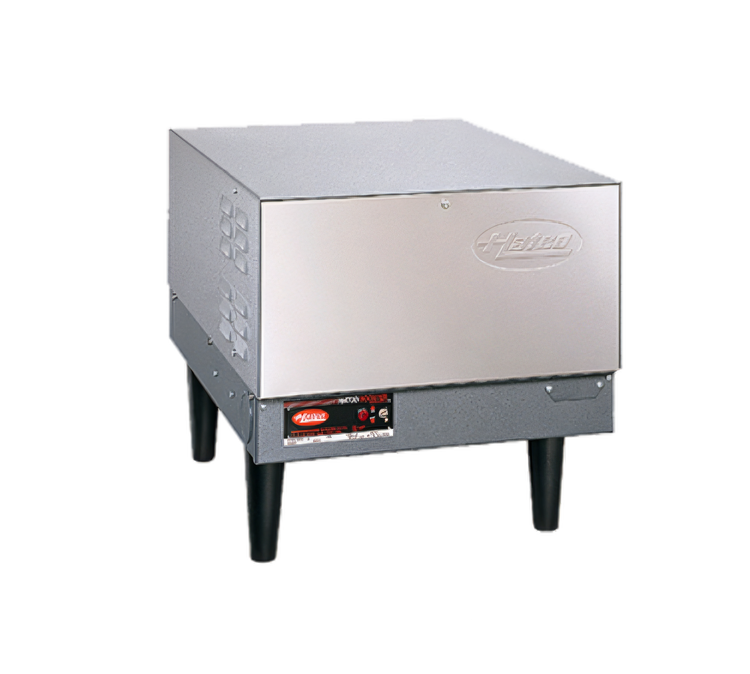

Hatco Compact Electric Booster Water Heater, 6 Gallon, 54 kW, 480V/3-Phase

Quick Ship Model with 6" Non-Adjustable Legs

Built for high-demand dish rooms, this compact 6-gallon booster heater delivers 180°F final rinse water with dependable 54 kW electric performance.

  • Delivers 180°F final rinse water to sanitize and flash-dry dishes and flatware.
  • 6-gallon storage capacity in a compact, space-saving footprint.
  • 54 kW electric output with 480V/60 Hz/3-phase service.
  • Castone® lined tank with fiberglass insulation for durability and heat retention.
  • Stainless steel front panel with powder-coated silver-gray hammertone body.
  • Built-in safety controls and 6" plastic non-adjustable legs for easy placement.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

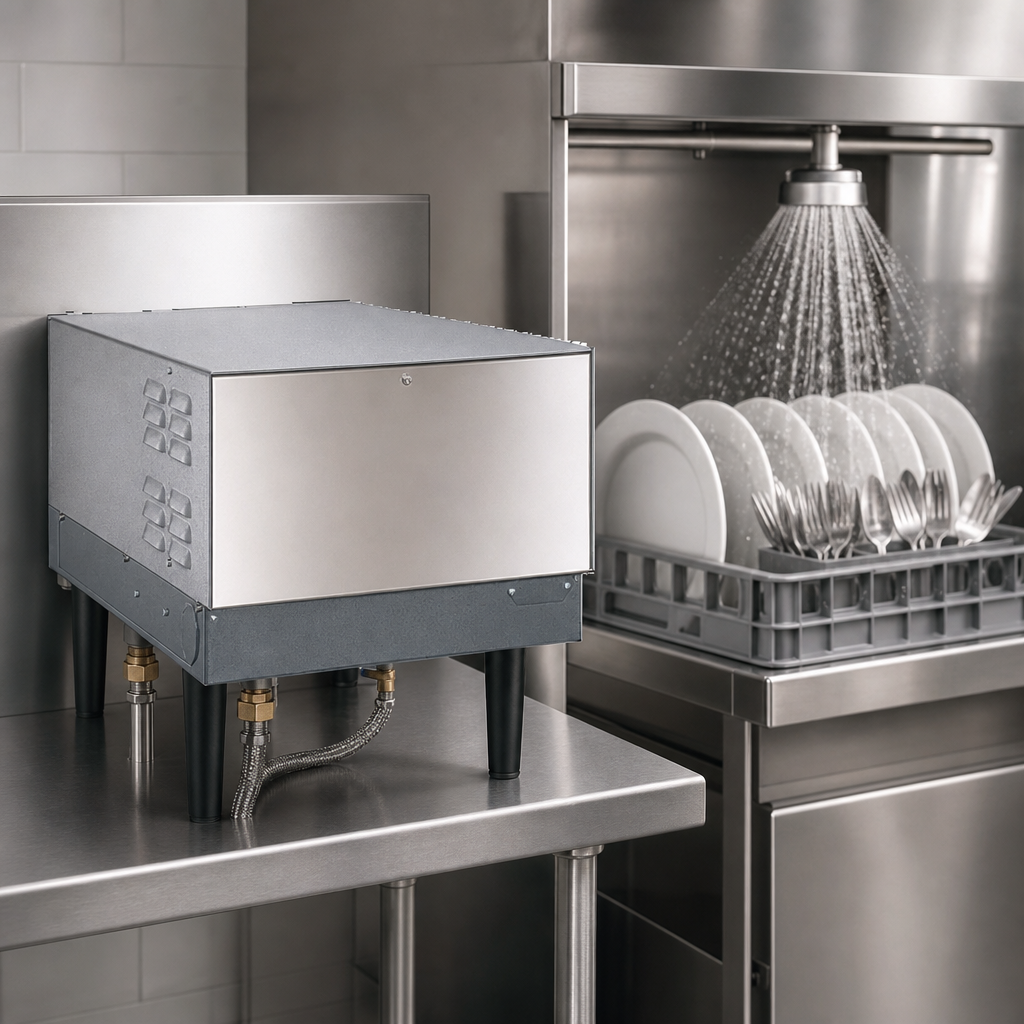

180°F Final Rinse Supply

Provides the final rinse water needed to sanitize and flash-dry dishes and flatware.

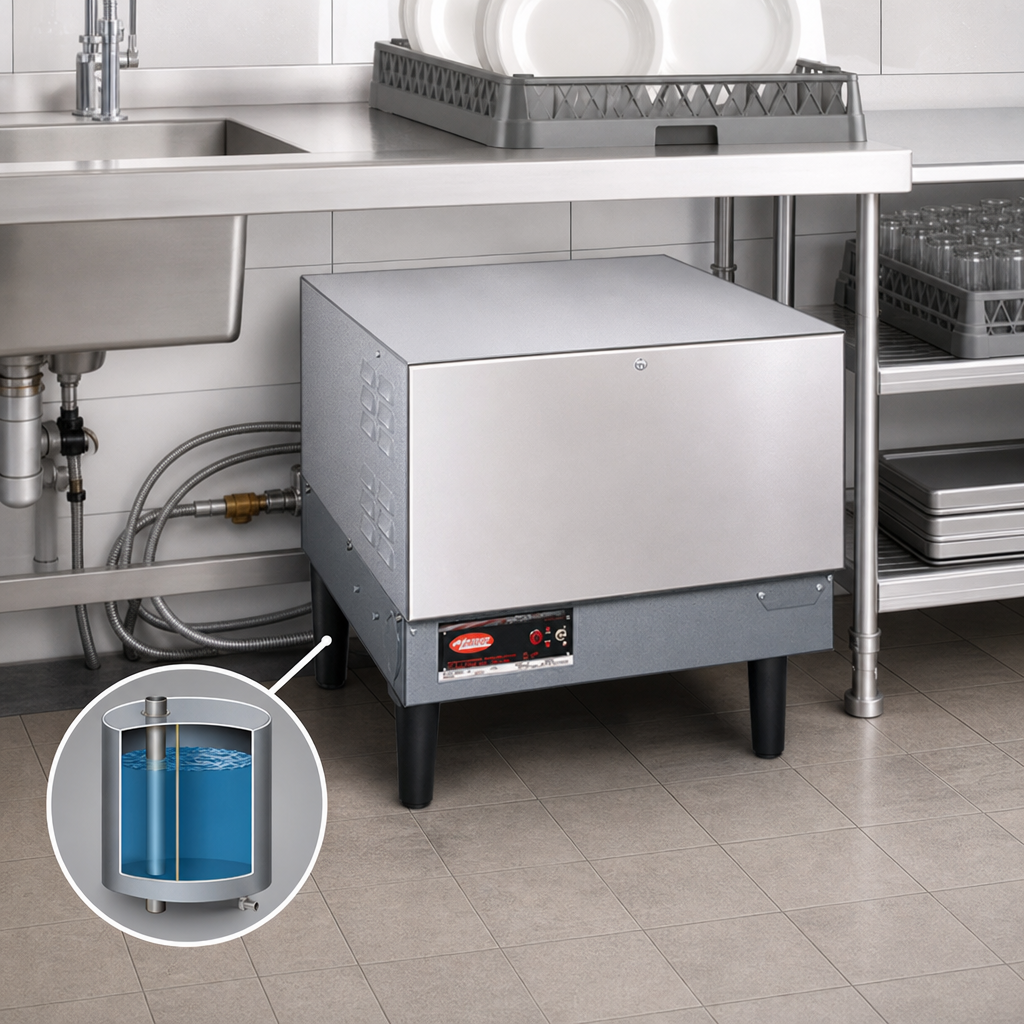

6-Gallon Capacity

Space-saving storage tank is designed for compact dishroom installations.

54 kW Electric Output

High-capacity electric heating on 480V/60 Hz/3-phase service.

Castone® Lined Tank

Durable lined tank construction with a 10-year limited warranty.

High Recovery Output

Rated for 542 gph at a 40°F rise and 310 gph at a 70°F rise.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Durable Exterior Finish

Stainless steel front panel with a powder-coated silver-gray hammertone body.

Service-Friendly Design

Factory pre-plumbed and pre-wired with swing-away front panels, plus 6" plastic non-adjustable legs and 3/4" NPT inlet/outlet fittings.

Type Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 54 kW
Voltage 480 Volts
Amps 65 Amps
Breaker Size 90 Amps
Hertz 60 Hz
Phase 3-Phase
Controls Thermostatic
Water Connection Required
Water Inlet Size 3/4 Inch NPT
Finish Powder-Coated Silver-Gray Hammertone
Color Silver-Gray
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download

Frequently Asked Questions

It supplies the 180°F final rinse water needed to sanitize and flash-dry dishes and flatware.
This model is rated at 54 kW and uses 480V, 60 Hz, 3-phase power.
The storage capacity is 6 gallons.
It includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
Incoming water above 3.0 grains of hardness per gallon must be treated and softened before feeding the booster heater.
The Castone® lined tank includes a 10-year limited warranty.
