Hatco Compact Electric Booster Water Heater, 6 Gallon, 54 kW, 240V, 3-Phase

SKU: C-54-240-3-QS
GTIN: 61570000992
$4,760.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

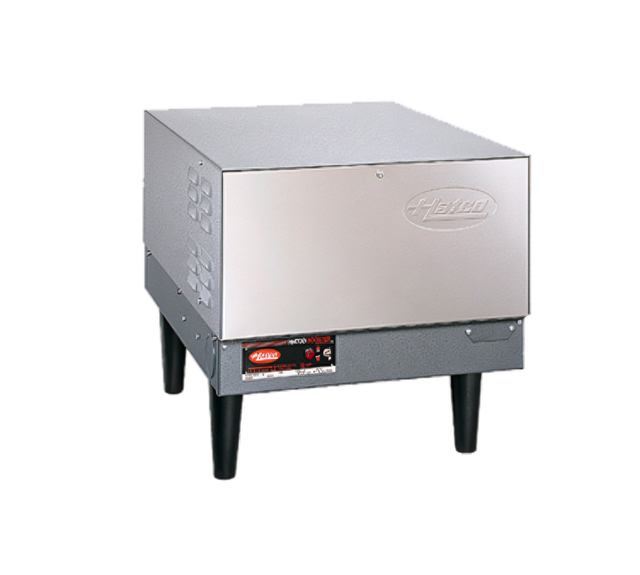

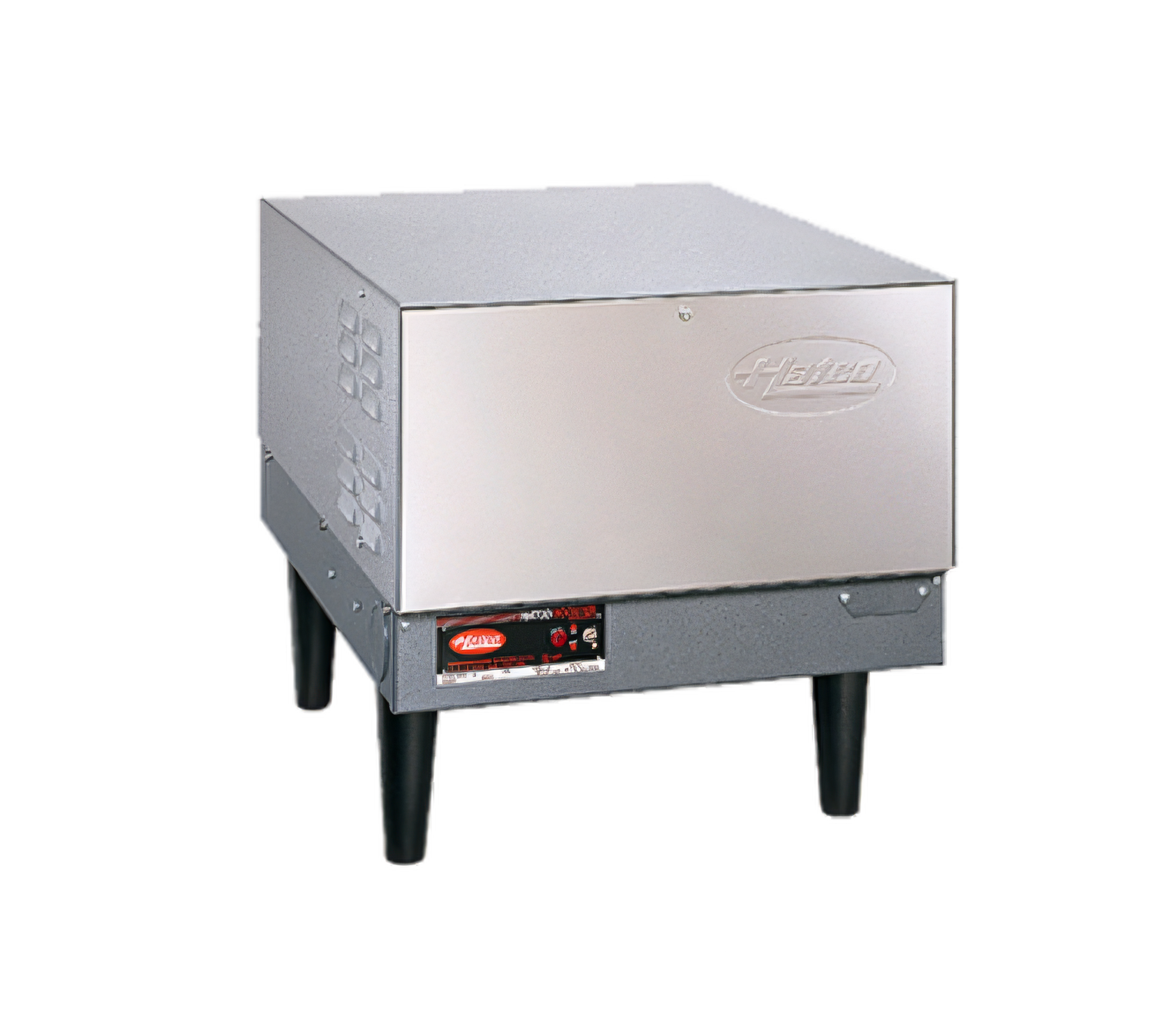

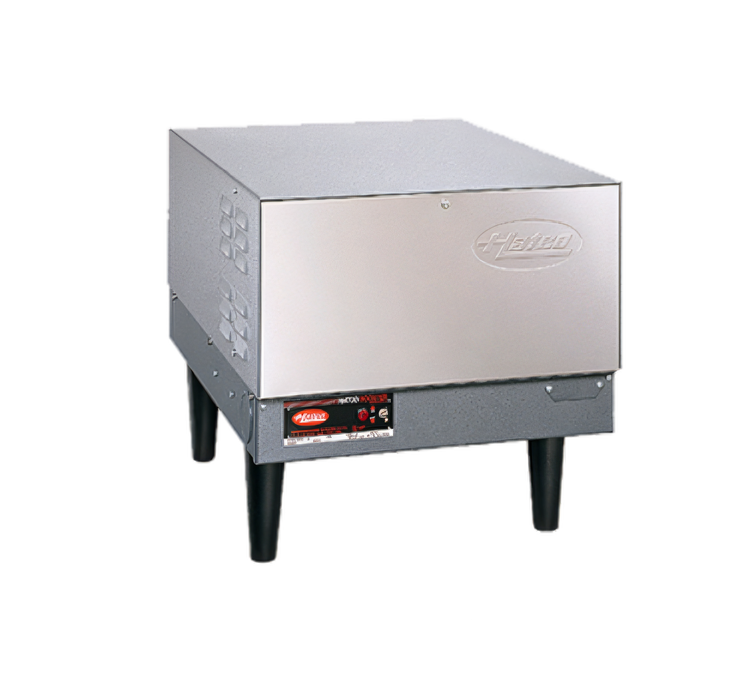

Hatco Compact Electric Booster Water Heater, 6 Gallon, 54 kW, 240V, 3-Phase

Quick Ship Model, Stainless Steel Front Panel

A compact, high-output electric booster heater that delivers 180°F final rinse water in a space-saving 6-gallon design.

  • Supplies the 180°F final rinse water needed to sanitize and flash-dry dishes and flatware.
  • 54 kW output with 240V, 3-phase power for demanding commercial dishroom applications.
  • 6-gallon storage capacity in a compact footprint for space-conscious installations.
  • Factory pre-plumbed and pre-wired to help simplify installation and service.
  • Includes a Castone® lined tank, fiberglass insulation, and multiple built-in safety controls.
  • Stainless steel front panel with powder-coated silver-gray hammertone body for durable everyday use.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

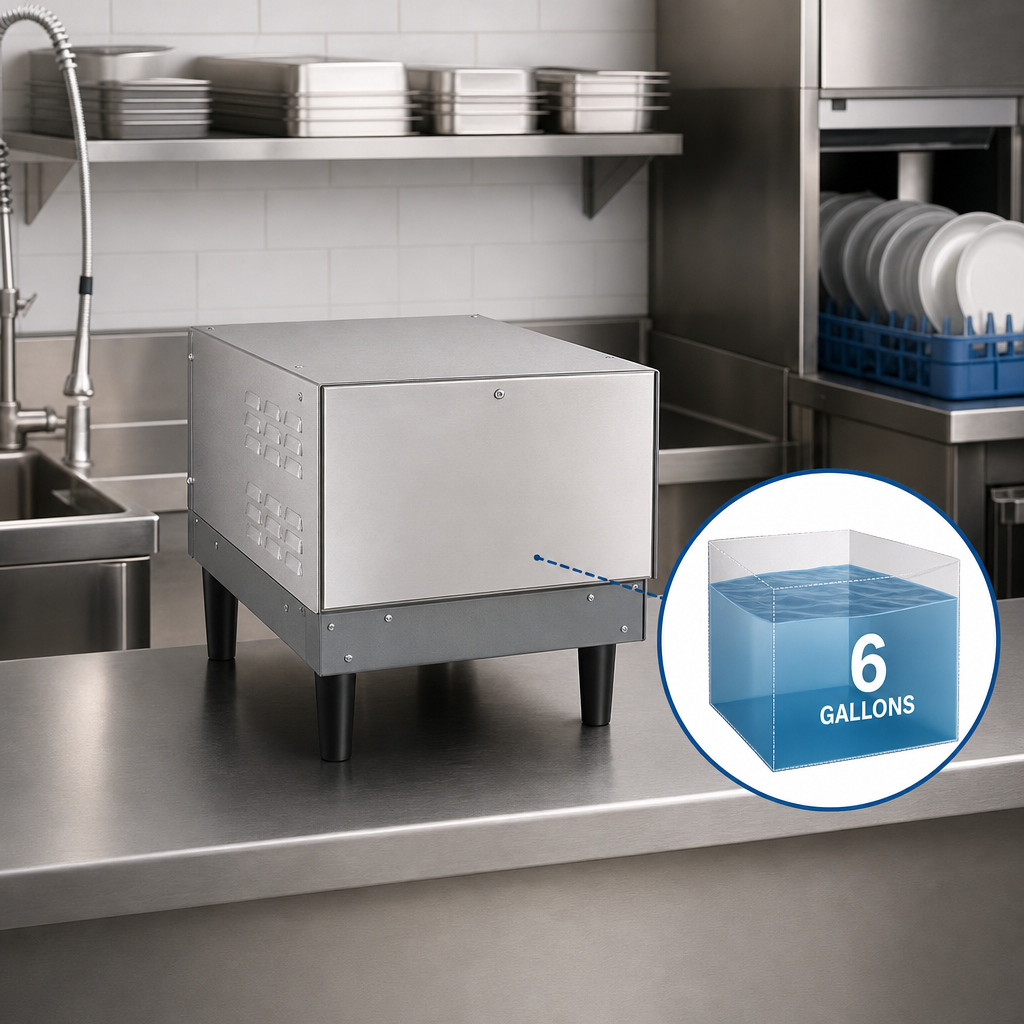

6-Gallon Storage Capacity

Compact tank size provides 6 gallons of stored hot water for final-rinse demand.

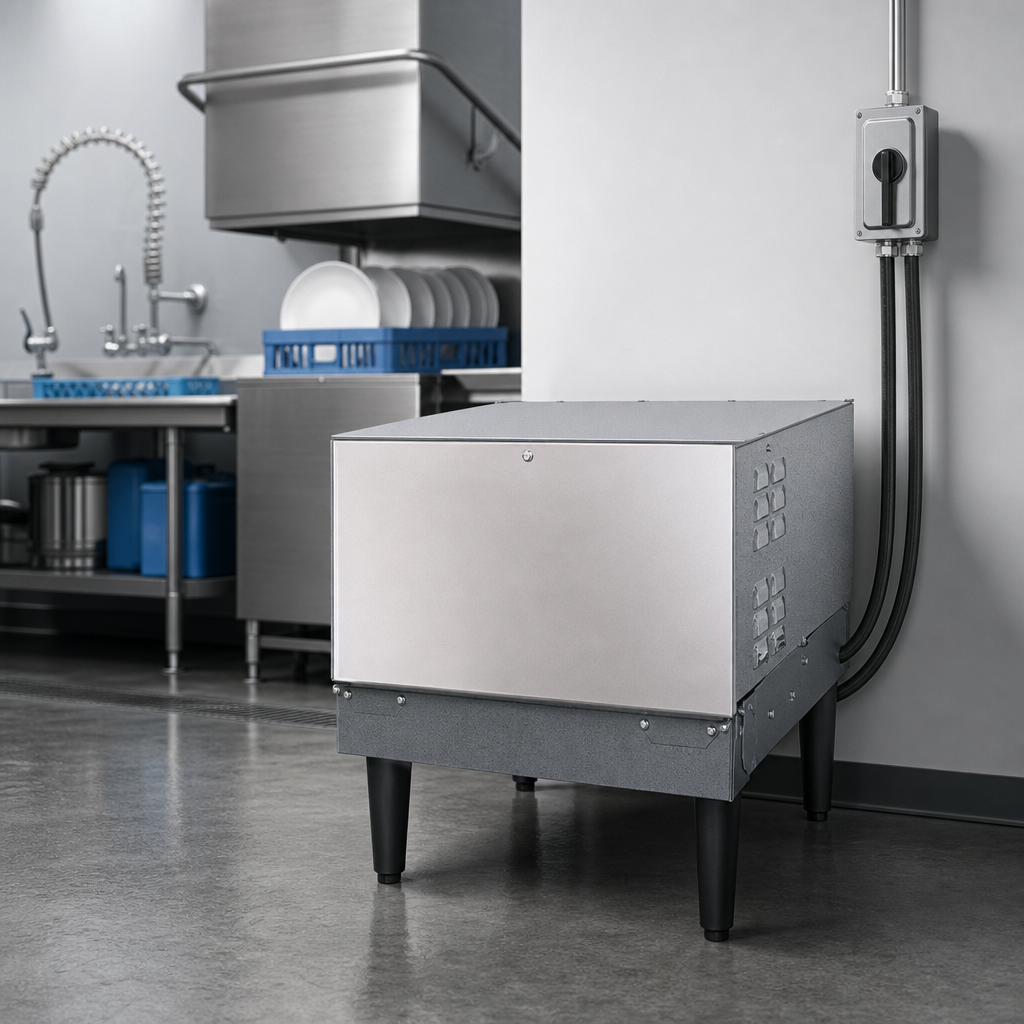

54 kW Electric Heating

High-output electric operation supports heavy-use dishwasher booster applications.

Castone® Lined Tank

Tank lining is standard on all models and carries a 10-year limited warranty.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Factory Pre-Plumbed and Pre-Wired

Unit arrives with internal plumbing and electrical connections in place, along with a calibrated immersion thermostat and high-temperature limit switch.

Space-Saving Mounting Options

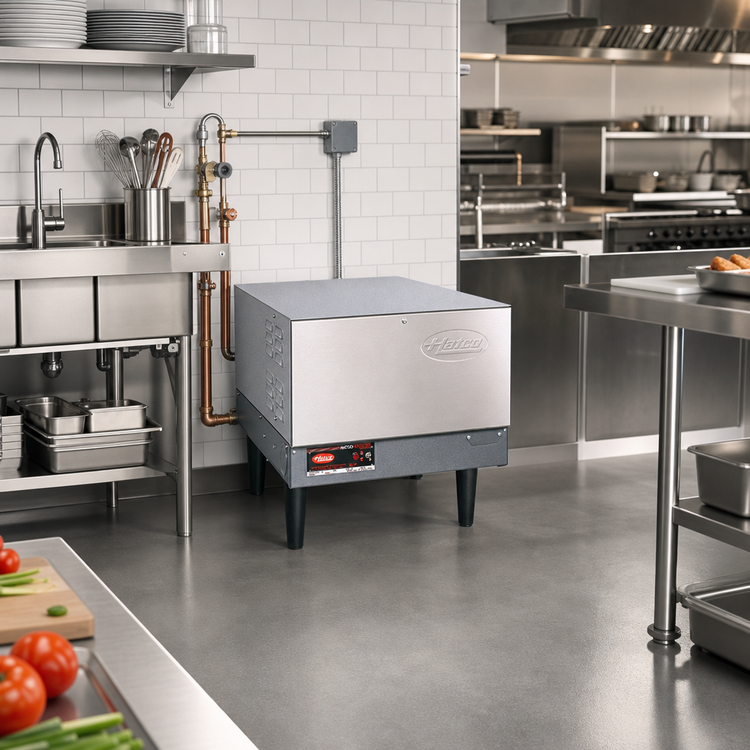

Can be installed next to a dishwasher on 6-inch legs or mounted with slide brackets under a dishtable.

Durable Exterior Construction

Standard stainless steel front panel and powder-coated silver-gray hammertone body provide a rugged commercial finish.

Fiberglass Insulation

Helps minimize heat loss and improve operating efficiency.

Type Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 54 kW
Voltage 240 Volts
Phase 3-Phase
Hertz 60 Hz
Amps 130 Amps
Breaker Size 175 Amps
Controls Thermostatic
Water Inlet Size 3/4 Inch NPT
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 18 Inches
Shipping Weight 142 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank

Documents

PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download

Frequently Asked Questions

It supplies 180°F (82°C) final rinse water needed to sanitize and flash-dry dishes and flatware.
The unit has a 6-gallon storage capacity.
This model operates on 240 Volts, 60 Hz, 3-phase power and is rated at 54 kW.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
It can be installed next to the dishwasher on 6-inch legs or mounted with slide brackets under a dishtable.
The Castone® lined tank includes a 10-year limited warranty.
