Hatco C-54-208-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

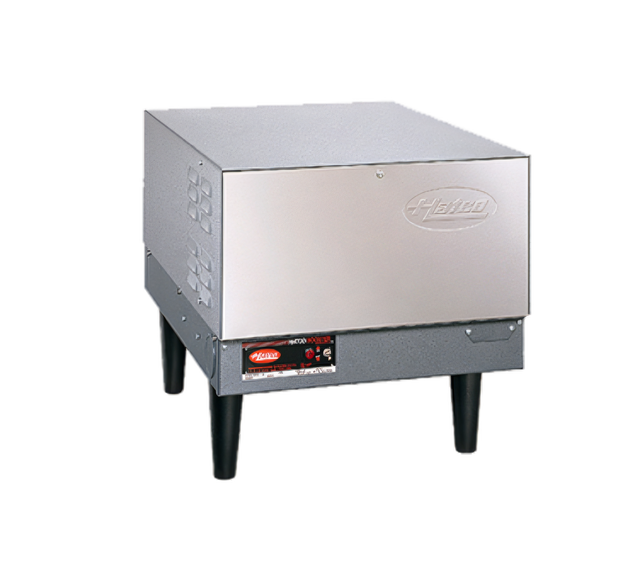

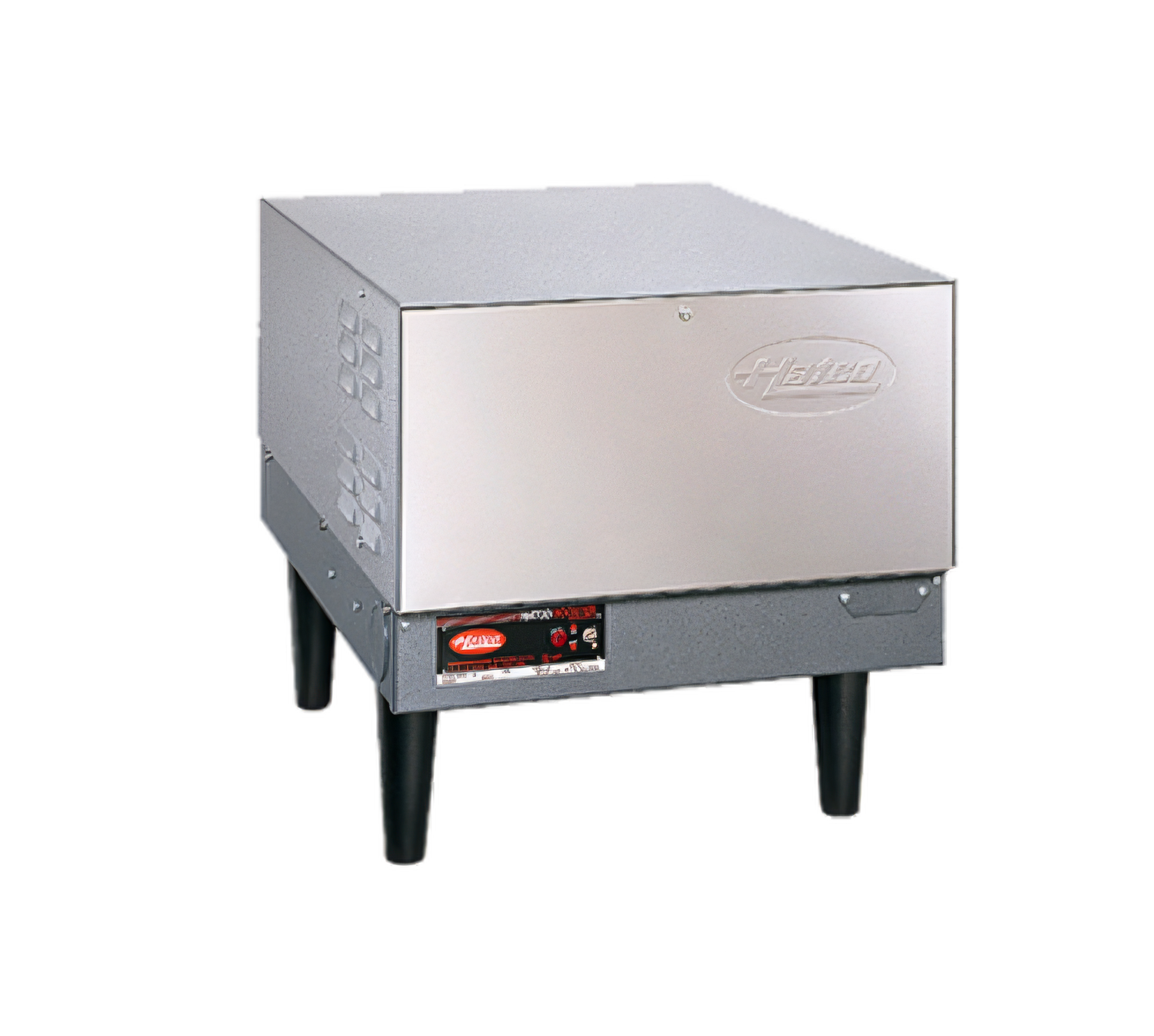

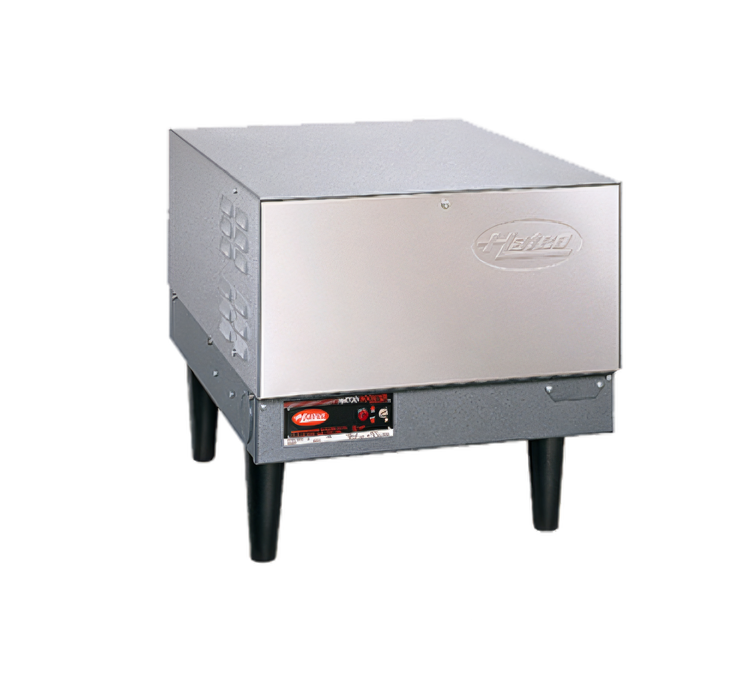

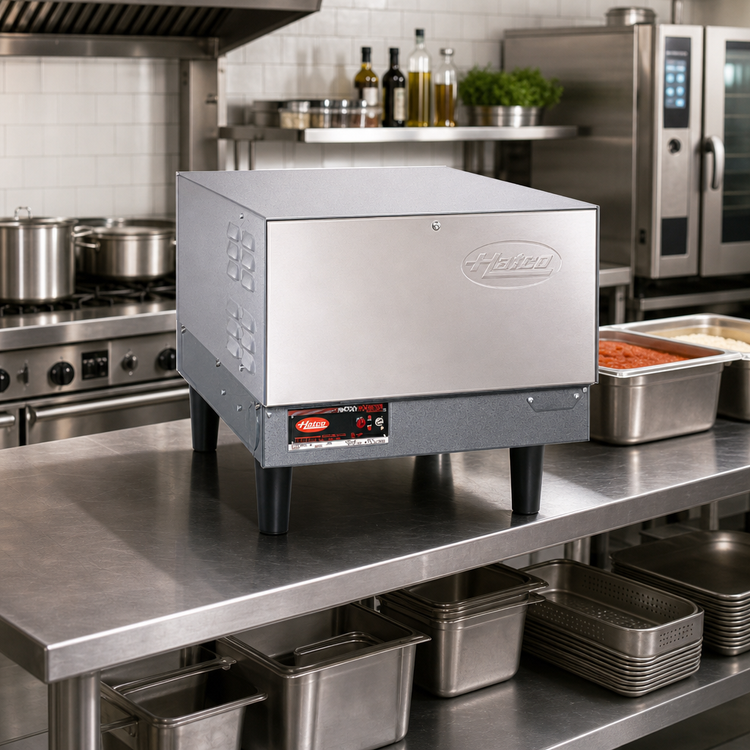

Hatco “Quick Ship” Compact Booster Heater | 54 kW, 208 V / 60 Hz / 3-Phase
Model C-54 • 6 gal Castone® lined tank • NSF & cULus • Made in USANeed 180 °F (82 °C) final-rinse water now? Hatco’s Quick Ship C-54 arrives fast and installs even faster, delivering high-volume sanitizing power that keeps high-capacity dishmachines running at peak speed.
Key benefits
- Instant 180 °F rinse: 54 kW of electric power heats and stores the NSF-required final rinse for spotless, flash-dry dishes.
- High recovery rates: Up to 542 gph (2,052 lph) at a 40 °F rise / 310 gph (1,174 lph) at a 70 °F rise—perfect for high-volume conveyor or flight-type dishwashers.

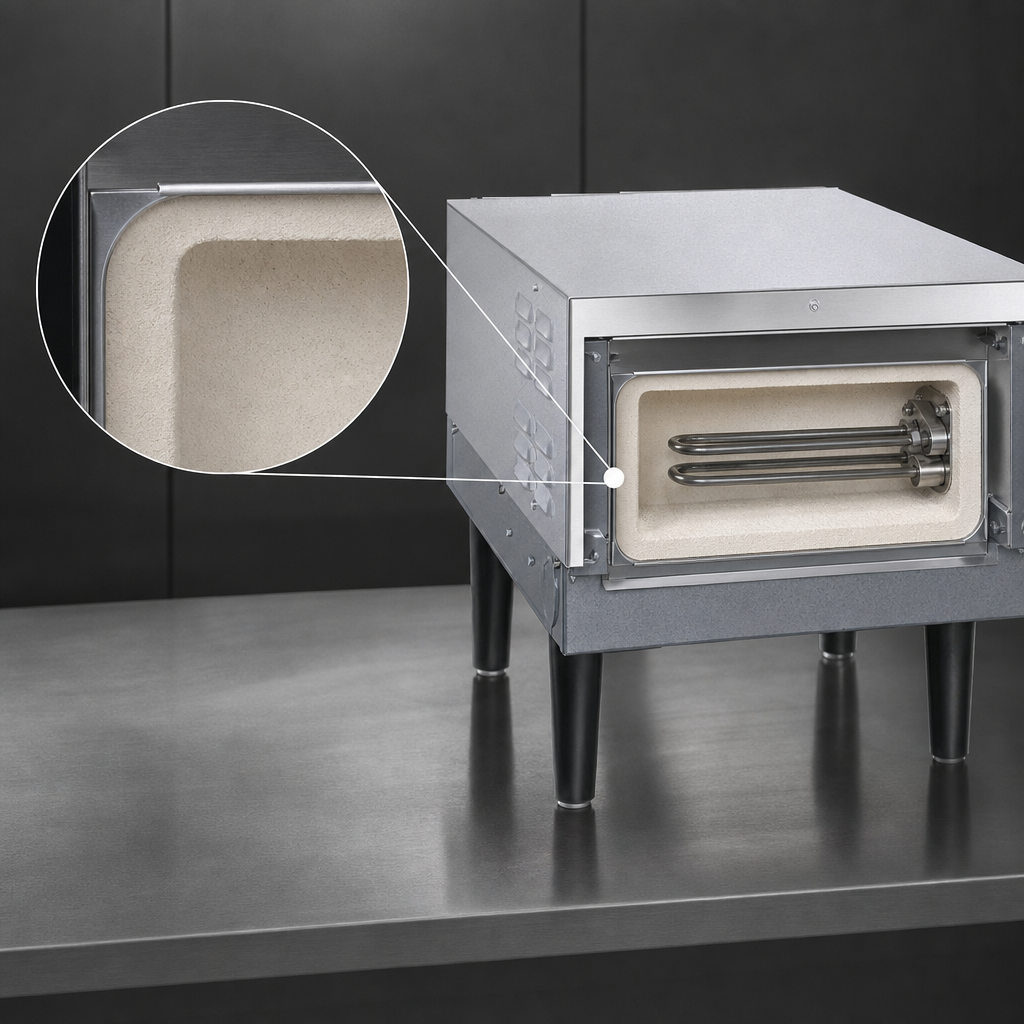

- 6 gal Castone® tank: Non-porous, cement-lined and backed by a 10-year limited warranty for superior corrosion resistance.
- Space-saving “Compact” footprint: Fits beneath a dishtable or on included 6″ non-adjustable plastic legs; slide-mount brackets are optional.
- Durable exterior: Stainless-steel front panel with silver-gray hammertone powder-coated body featuring IFS antimicrobial protection.

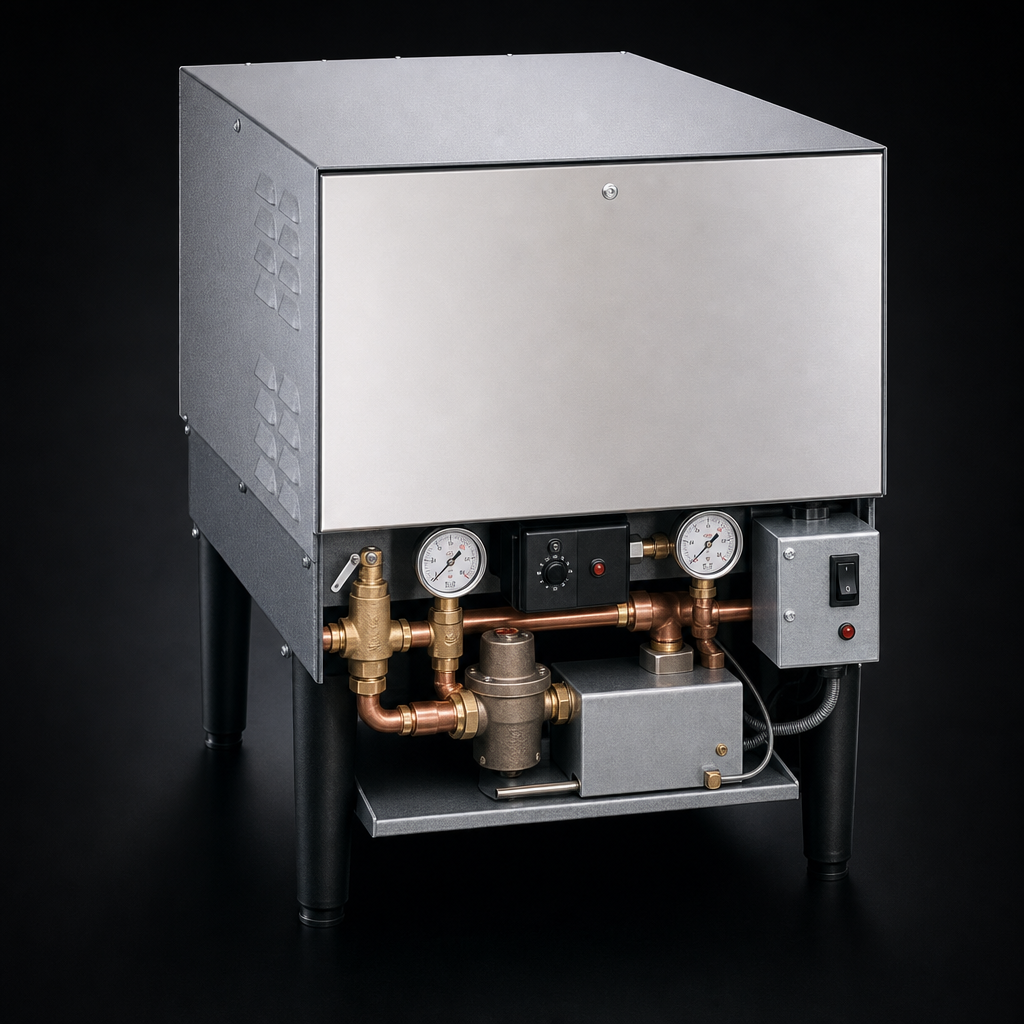

- Factory pre-plumbed & pre-wired: Ships ready to hook up—no field assembly headaches.
- Service-friendly design: Swing-away front panel grants instant access to probes, elements and fuses.
Built-in safety & performance controls
- Low-water cut-off prevents element burnout
- High-temperature limit control and calibrated immersion thermostat
- On/off power toggle with power & error indicator lights
- Temperature/pressure relief valve & pressure-reducing valve (¾″ NPT inlet/outlet)
- Dual temperature/pressure gauges for easy monitoring
- Fiberglass insulation minimizes stand-by heat loss
Technical specifications
| Storage capacity | 6 gal | 23 L |
|---|---|
| Input | 54 kW |
| Voltage & phase | 208 V / 60 Hz / 3-phase |
| Recovery @ 40 °F rise | 542 gph | 2,052 lph |
| Recovery @ 70 °F rise | 310 gph | 1,174 lph |
| Dimensions (W×D×H*) | 18″ × 24″ × 12.03″ (457 × 610 × 306 mm) *height without legs |
| Standard legs | 6″ (152 mm) non-adjustable, high-impact plastic |
| Shipping weight | ≈ 142 lb | 64 kg |
| Certifications | NSF, cULus |
| Country of origin | USA |
Popular factory options
- Stainless-steel body & base
- Stainless-steel adjustable legs (6″–7″)
- Slide brackets for under-counter mounting
- Security package with Torx® screws & control cover
- Shock absorber or back-pressure relief valve
*Leg height not included in dimensional height.
For installation, electrical and plumbing requirements, refer to the Hatco Installation & Operating Manual (available in our Document Library).
