Hatco C-5 High Temp & Low Temp Dishwashers
Description

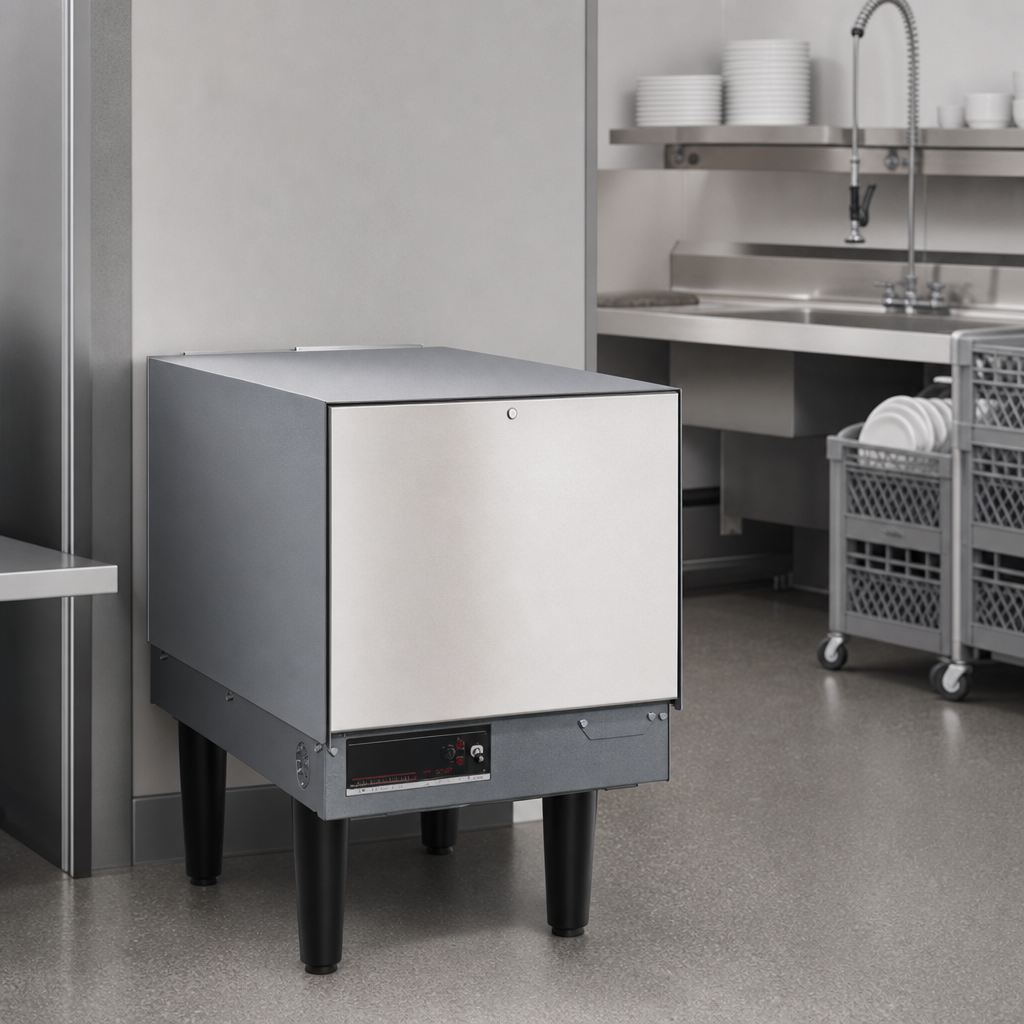

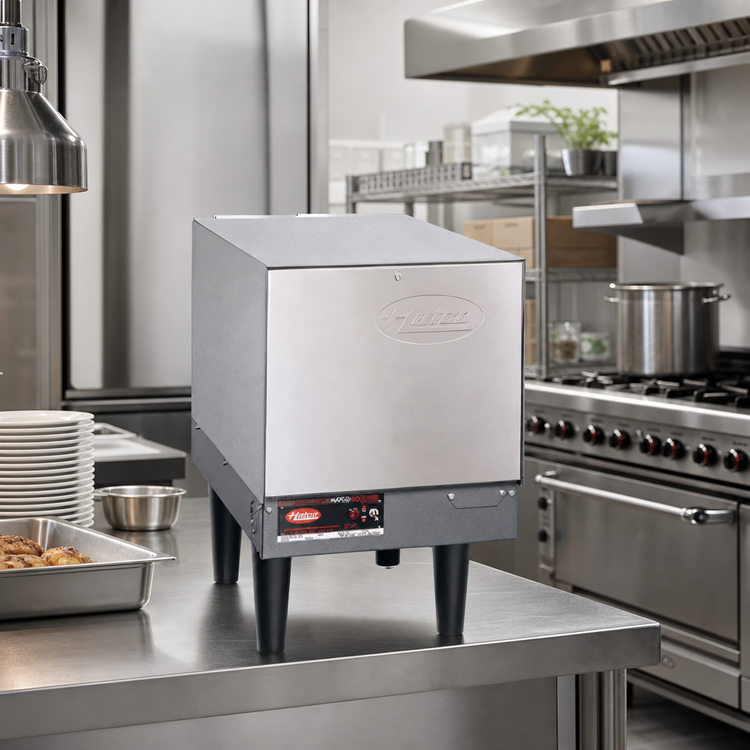

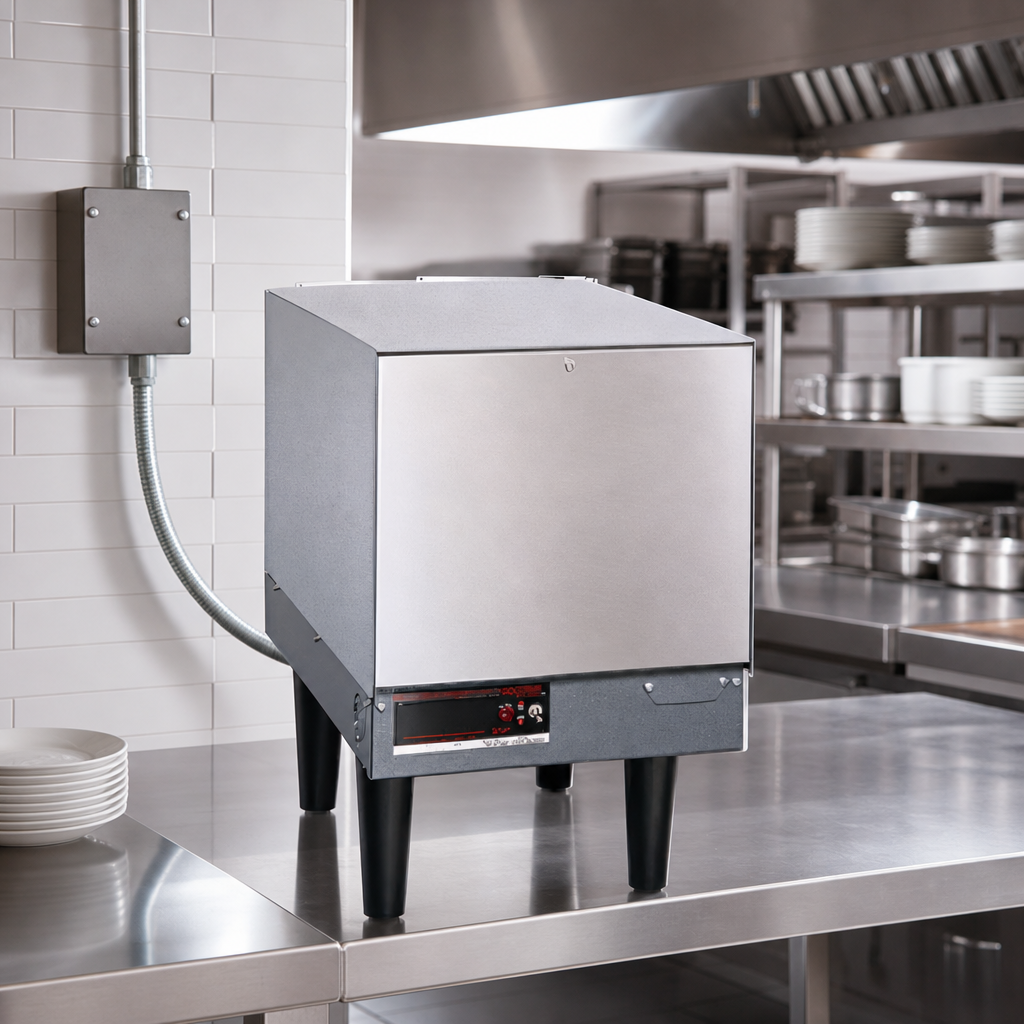

Hatco C-5 Compact Electric Booster Heater
5 kW • 6 gal storage • NSF & cULus Listed • Made in USAGive your warewasher the 180 °F (82 °C) final-rinse water it needs in a footprint barely wider than a sheet pan. The Hatco C-5 Compact Booster Heater tucks neatly beside or beneath most commercial dish machines, yet delivers up to 50 gal/hr of sanitizing hot water— ensuring sparkling dishes and faster table turns every shift.
Why You’ll Love It
- 6 gal (23 L) Castone® lined tank resists corrosion & carries a 10-year limited warranty.
- Powerful 5 kW heating elements recover up to 50 gal/hr at a 40 °F rise—perfect for single-rack and conveyor dish machines.
- Factory-installed temperature/pressure relief valve, pressure-reducing valve, dual gauges, high-limit & low-water cut-off for rock-solid safety.
- Stainless steel front panel with durable, silver-gray hammertone powder-coated body—now infused with antimicrobial silver ions.
- Pre-plumbed, pre-wired & slide-out front panel design slashes installation and service time.
- 6" non-adjustable plastic legs included; optional slide brackets or stainless legs available.
Performance at a Glance
| Storage Capacity | 6 gal / 23 L |
|---|---|
| Heating Power | 5 kW, electric |
| Water Recovery | 50 gal/hr @ 40 °F rise 29 gal/hr @ 70 °F rise |
| Factory Setpoint | 180 °F / 82 °C final-rinse temperature |
Technical Specifications
| Model | Hatco C-5 |
|---|---|
| Voltage / Phase |
208 V, 1 Φ, 24.1 A (30 A breaker) 240 V, 1 Φ, 20.9 A (30 A breaker) 480 V, 1 Φ, 10.5 A (15 A breaker) |
| Inlet / Outlet | ¾" NPT |
| Exterior Dimensions* | 13.06" W × 20.69" D × 13.78" H Installed height with 6" legs: 19.78" H |
| Shipping Weight | 115 lb / 52 kg |
| Construction | Stainless front panel, powder-coated steel body, Castone® tank |
| Certifications | NSF, cULus |
| Country of Origin | USA |
*Depth increases to 26" when accounting for the factory-installed temperature/pressure relief valve.
Peace-of-Mind Protection
- 10-year limited warranty on the Castone tank.
- 1-year parts & labor warranty backed by Hatco’s award-winning service network.
- Meets NSF Standard for 180 °F dish sanitizing; cULus listed for electrical safety.
Need a different kW or mounting style? Ask us about the full Hatco C-Series lineup, optional stainless legs, security packages and slide-under dishtable brackets.
