Hatco Compact Electric Dishwasher Booster Water Heater, 6 Gallon, 5 kW, 208V, 1-Phase
Hatco Compact Electric Dishwasher Booster Water Heater, 6 Gallon, 5 kW, 208V, 1-Phase
Stainless Steel Front Panel, Powder-Coated Body, 6 Inch Legs
A space-saving 6-gallon electric booster heater that delivers 180°F final rinse water with factory pre-plumbed convenience and built-in safety controls.
- 6-gallon compact booster heater designed to supply 180°F final rinse water for dishwasher sanitation and flash drying.
- 5.0 kW, 208V, 60 Hz, 1-phase operation for commercial dish room use.
- Castone® lined tank and fiberglass insulation help retain heat and support long service life.
- Factory pre-plumbed and pre-wired with temperature/pressure relief components, gauges, and safety controls.
- Stainless steel front panel, powder-coated silver-gray body, and 6" legs fit tight installations.
- Made in USA and supported with 24/7 parts and service assistance in the U.S. and Canada.
Overall Dimensions:
13.0"W x 20.75"D x 19.75"HProduct Weight:

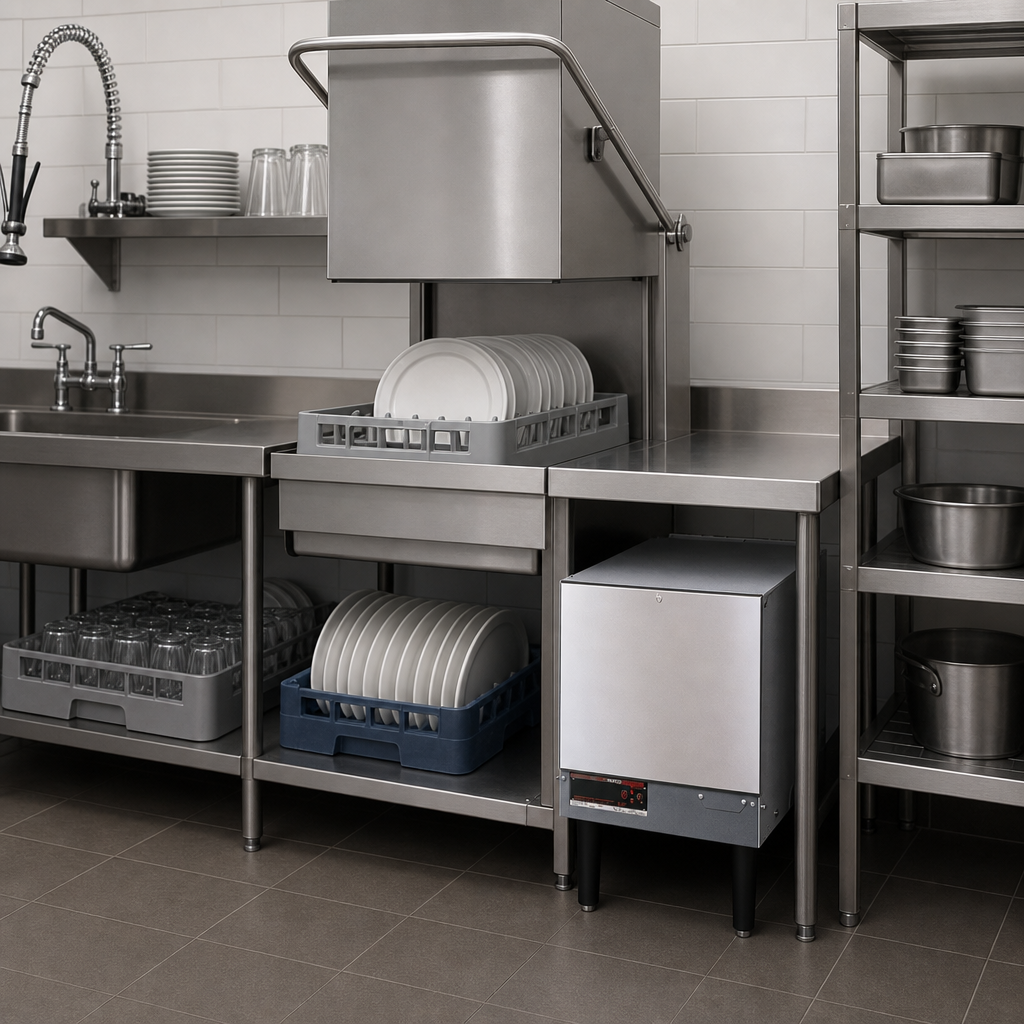

115.0 lbCompact Dishwasher Booster Design
Space-saving electric booster heater provides the final 180°F rinse water needed to sanitize and flash-dry dishes and flatware.

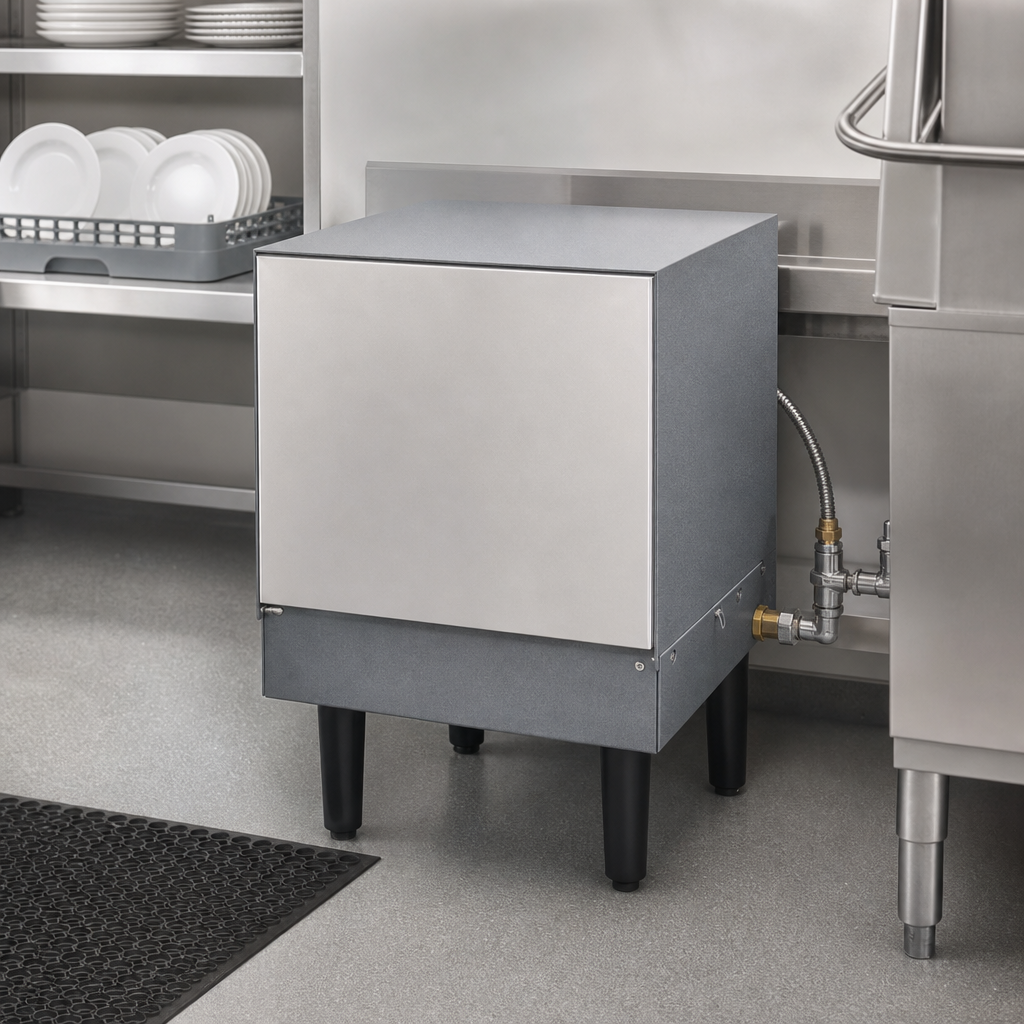

6-Gallon Storage Capacity
Holds 6 gallons of water for compact dish room installations.
Castone® Lined Tank
The tank is Castone® lined for durability and is covered by a 10-year limited warranty.
Pre-Plumbed and Pre-Wired
Factory configuration includes calibrated immersion thermostat and high-temperature limit switch for easier installation.
Built-In Safety Components
Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
Durable Cabinet Construction
Standard stainless steel front panel and powder-coated silver-gray hammertone body provide a clean, commercial appearance.
Easy Service Access
Swing-away front panels allow quicker access to probes and elements for maintenance.
Water Quality Requirement
Incoming water above 3.0 grains per gallon must be softened before use to help protect performance and operating life.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on the Castone® lined tank.
