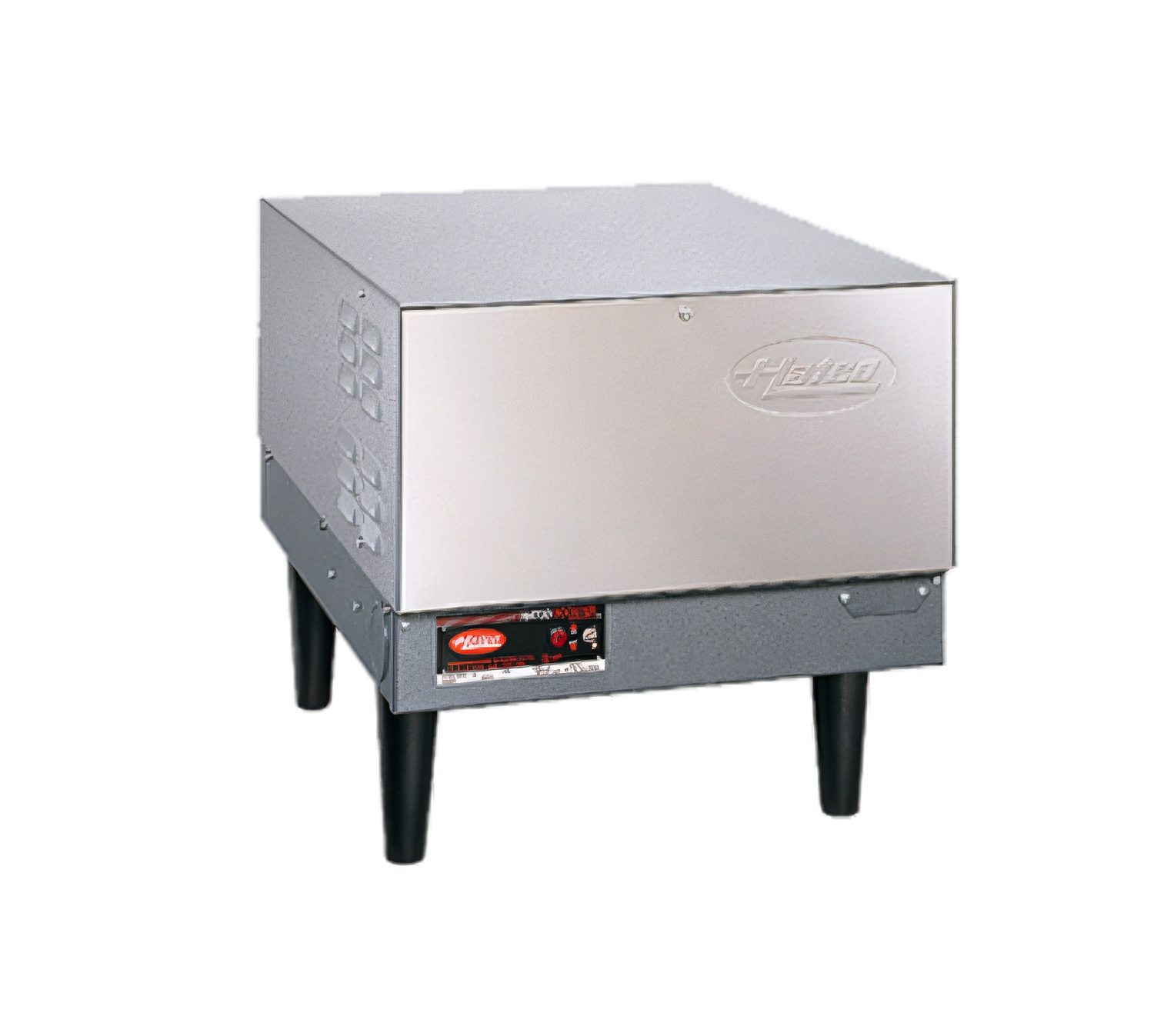

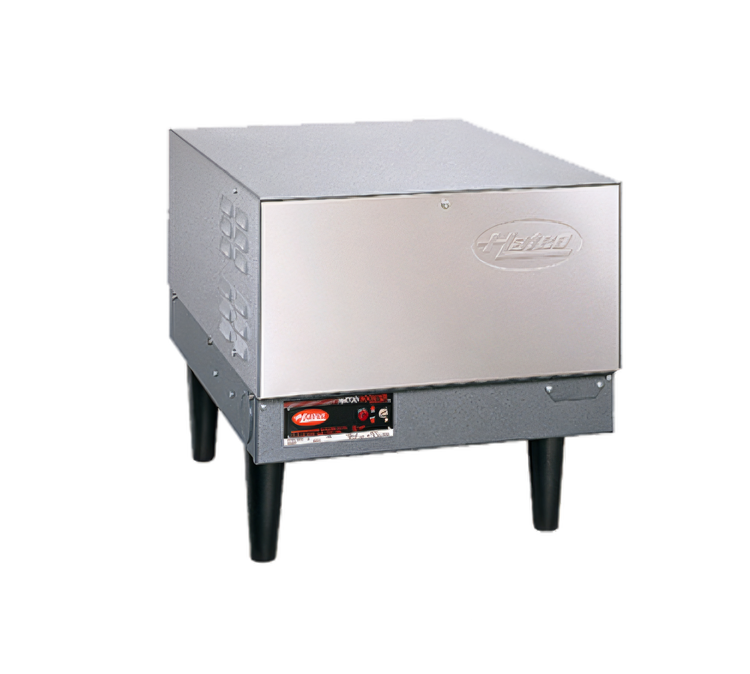

Hatco C-45 Compact Electric Booster Water Heater

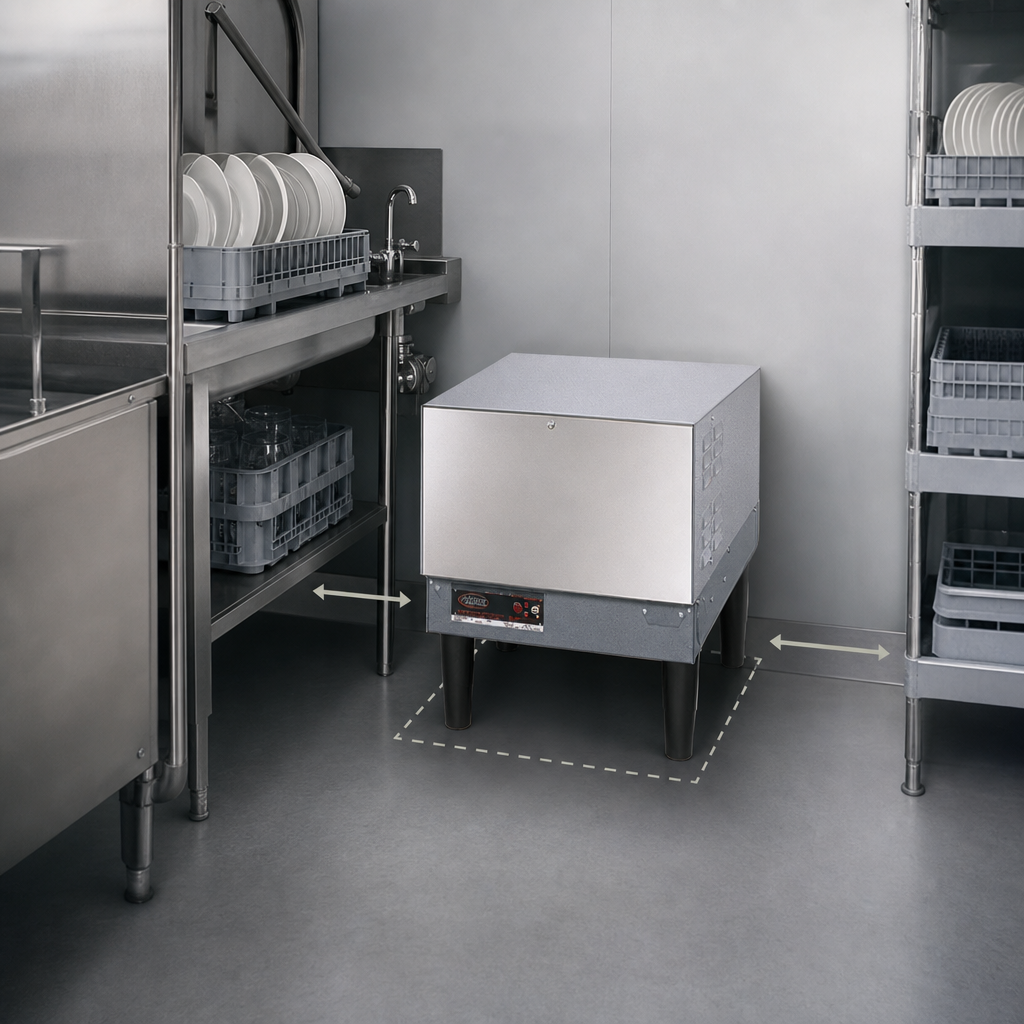

6 gal | 45 kW | Castone®-Lined TankDeliver a consistent 180 °F (82 °C) final rinse—even during the busiest rush—with the Hatco C-45 Compact Booster. This 45 kW powerhouse stores 6 gallons (23 L) of piping-hot water in a low-profile cabinet that installs right next to your dishmachine.
Key Advantages
- NSF-approved 180 °F (82 °C) rinse water for rapid sanitizing and flash-drying.
- Castone® cement-lined tank carries a 10-year limited warranty.
- Stainless-steel front panel with durable silver-gray powder-coated hammertone body.
- Factory pre-plumbed & pre-wired—connect ¾" NPT water and power, and you’re ready.
- Safety suite: temperature/pressure relief valve, pressure-reducing valve, dual temp/pressure gauges, high-limit & low-water cut-off.
- Energy-saving fiberglass insulation minimizes standby heat loss.
- Swing-away front panel provides tool-free access to probes, fuses and heating elements.
- 6" (152 mm) molded plastic legs included; stainless adjustable legs available.
- cULus listed, NSF certified, proudly Made in the USA.
Technical Specifications
| Model | C-45 |
|---|---|

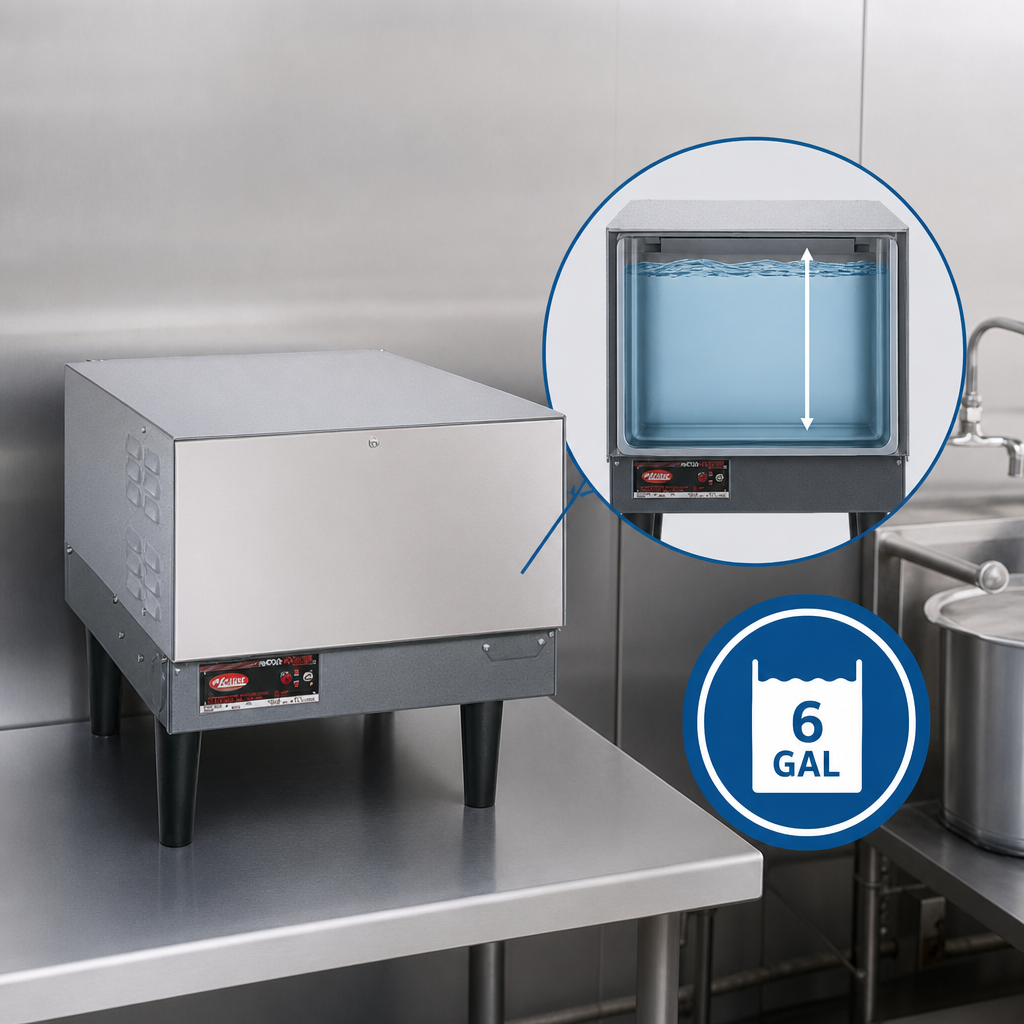

| Storage Capacity | 6 gal / 23 L |
| Power | 45 kW, electric, 3-phase |
| Available Voltages | 208 V, 240 V, 480 V, 600 V |
| Amperage Draw | 125 A @ 208 V | 108.3 A @ 240 V | 54.2 A @ 480 V | 43.5 A @ 600 V |
| Recovery Rate* | 452 gph (1711 lph) @ 40 °F rise 258 gph (977 lph) @ 70 °F rise |
| Water Connections | ¾" NPT inlet & outlet |
| Cabinet Dimensions (W × D × H†) | 18" × 24" × 12.03" (457 × 610 × 306 mm) |
| Height with Legs | ≈ 18" (457 mm) |
| Approx. Ship Weight | 142 lb (64 kg) |
| Certifications | NSF, cULus |
| Country of Origin | USA |
* Recovery rates shown at stated temperature rise. † Height excludes legs and temperature/pressure relief valve.
Perfect For
- Conveyor & flight-type dishmachines
- Cafeterias, hospitals & schools
- Hotels, banquet kitchens & casinos
- High-volume catering and commissary operations
Need a different kW rating or voltage? Explore the full Hatco Compact Booster line or chat with our equipment specialists.
