Hatco C-45-480-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

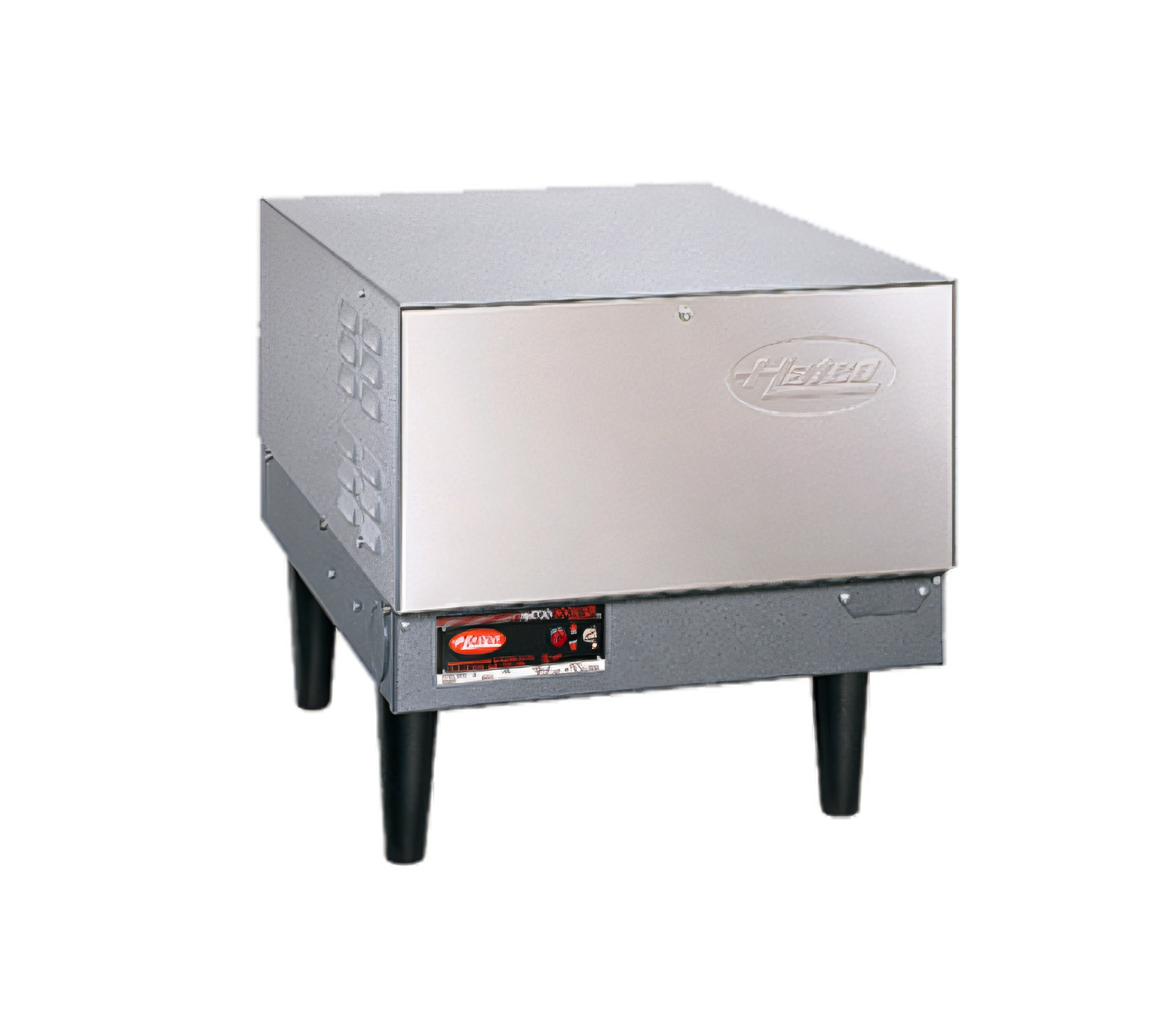

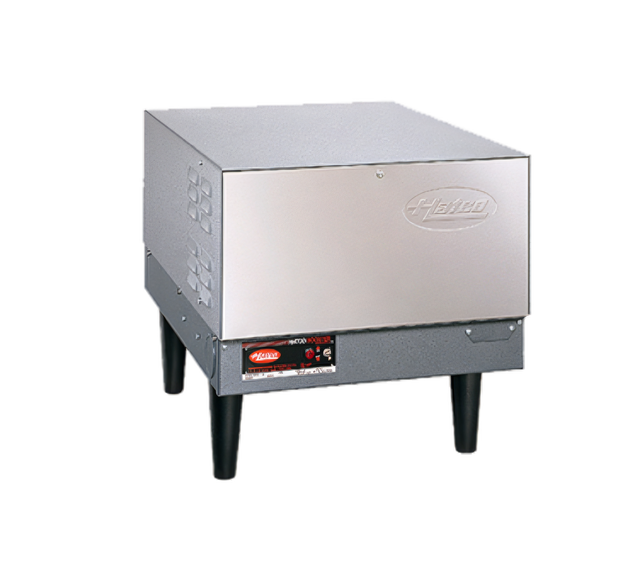

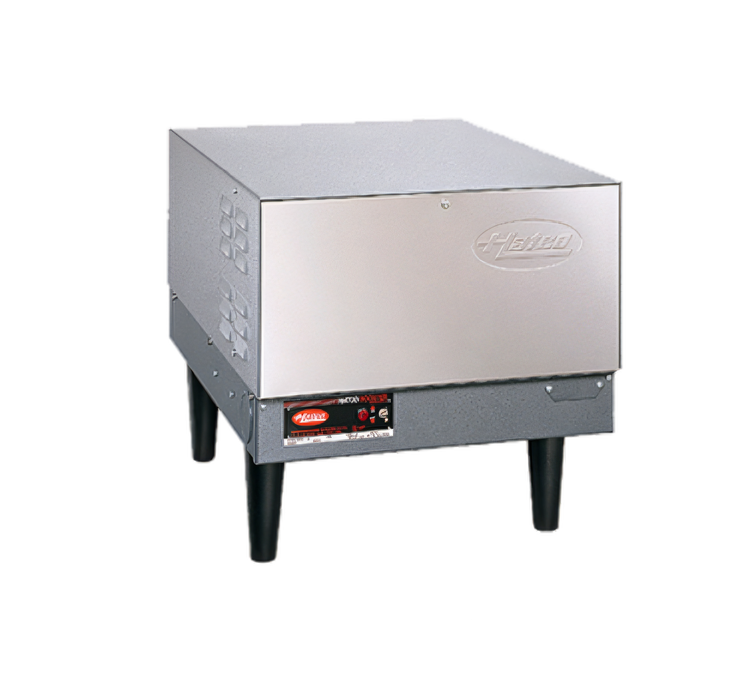

Hatco C-45 “Quick Ship” Compact Electric Booster Water Heater
45 kW • 480 V / 60 Hz / 3-Phase • 6 gal (23 L) storageDeliver a consistent 180 °F (82 °C) final rinse without waiting weeks for production. Hatco’s Quick Ship C-45 Booster Heater arrives fast, installs easily beside your warewasher, and powers through the most demanding dishroom loads with an industry-leading 45 kW recovery rate.
Key advantages
- Lightning-fast recovery: Up to 452 GPH at a 40 °F rise—plenty of 180 °F rinse water for high-volume conveyor or flight-type machines.

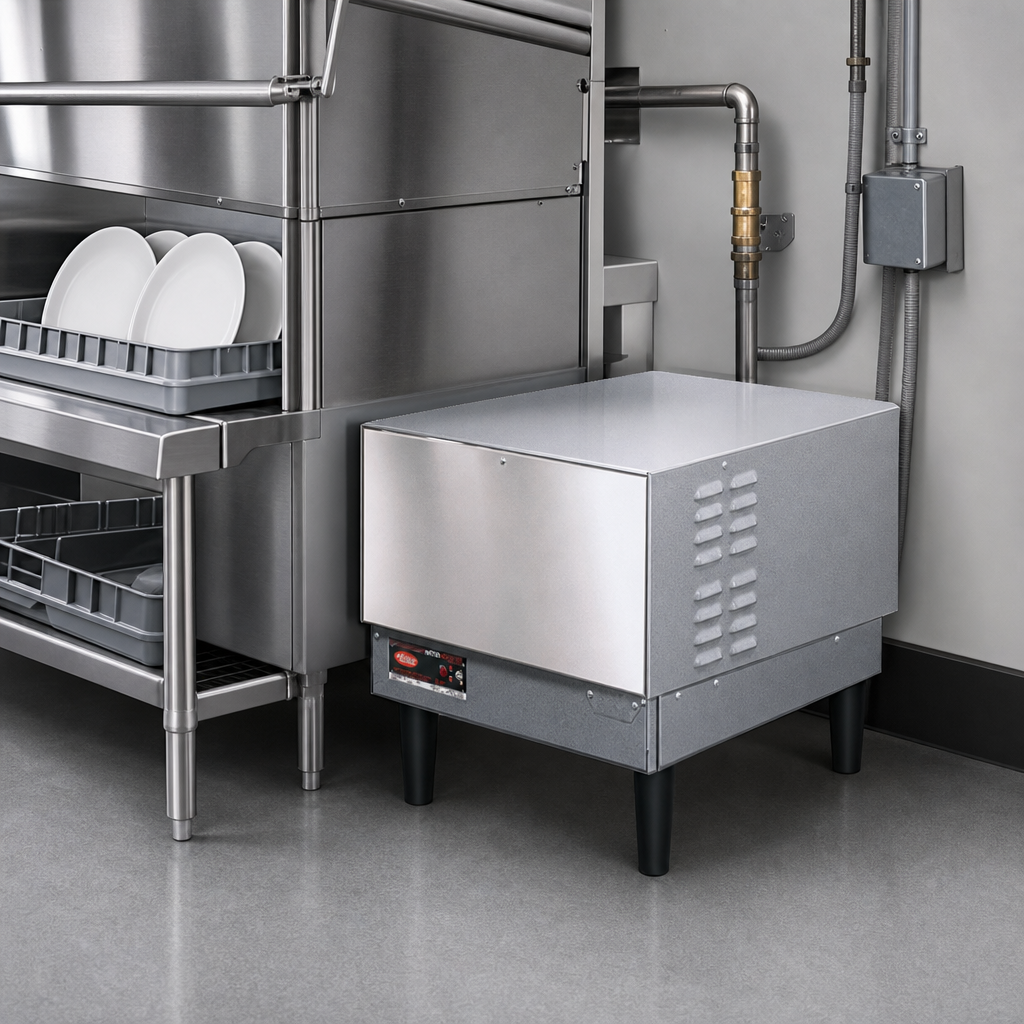

- Space-saving footprint: Compact 18 in W x 24 in D cabinet fits neatly under a dishtable or next to the dishwasher.
- Castone® lined tank: Corrosion-resistant lining backed by a 10-year limited warranty.
- Fully insulated: High-density fiberglass minimizes standby heat loss and operating costs.
- Total safety package: Includes temperature/pressure relief valve, pressure-reducing valve, dual temp/pressure gauges, high-limit cutoff, and automatic low-water cut-off.
- User-friendly front panel: Swing-away stainless panel provides tool-free access to elements, probes, and fuses for rapid service.
- Tough exterior: Stainless steel front with powder-coated silver-gray hammertone body resists dents, scratches, and microbial growth (IFS anti-microbial coating).
- Plug-and-play installation: Factory pre-plumbed and pre-wired with a calibrated immersion thermostat.
- Certified & Made in the USA: NSF &cULus listed and proudly built in Wisconsin.
- Quick Ship: Ships from stock so you can be up and running in days, not weeks.
Technical specifications
| Storage capacity | 6 gal / 23 L |
|---|---|
| Input | 45 kW |
| Voltage / phase | 480 V, 60 Hz, 3-phase |
| Amperage | 54.2 A |
| Recommended breaker / fuse | 70 A |
| Water recovery @ 40 °F rise | 452 gal hr (1711 L hr) |
| Water recovery @ 70 °F rise | 258 gal hr (977 L hr) |
| Connections | ¾ in NPT inlet & outlet (factory installed) |
| Dimensions * | 18 in W × 24 in D (29.25 in w/ T&P valve) × 12.03 in H (plus 6 in plastic legs) |
| Shipping weight | ≈ 142 lb / 64 kg |
| Certifications | NSF, cULus |
| Country of origin | Made in USA |
| Warranty | 10-year limited tank, 1-year parts & labor |
*Height shown excludes legs. Add 6 in (152 mm) for installed legs.
What’s included
- Hatco C-45 Compact Booster Heater with 6 in plastic legs
- Factory-installed temperature/pressure relief valve
- Pressure-reducing valve & dual gauges
- Start-up & operation manual
Installation at a glance
- Locate within 5 ft of warewasher for optimal performance.
- Provide an electrician-supplied 70 A fused disconnect.
- Plumb ¾ in cold-water supply and final-rinse outlet.
- Allow 6 in (152 mm) clearance at front for service.
Need a different voltage, slide mounting brackets, or stainless legs? Contact us—additional Hatco factory options are available at time of order.
