Hatco C-45-240-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

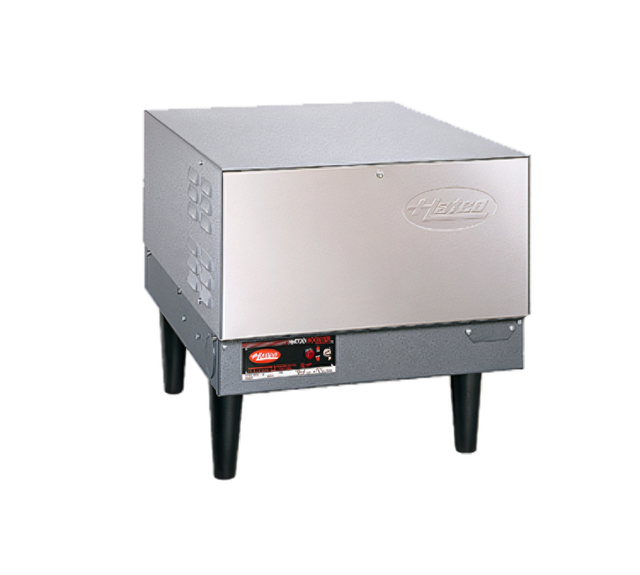

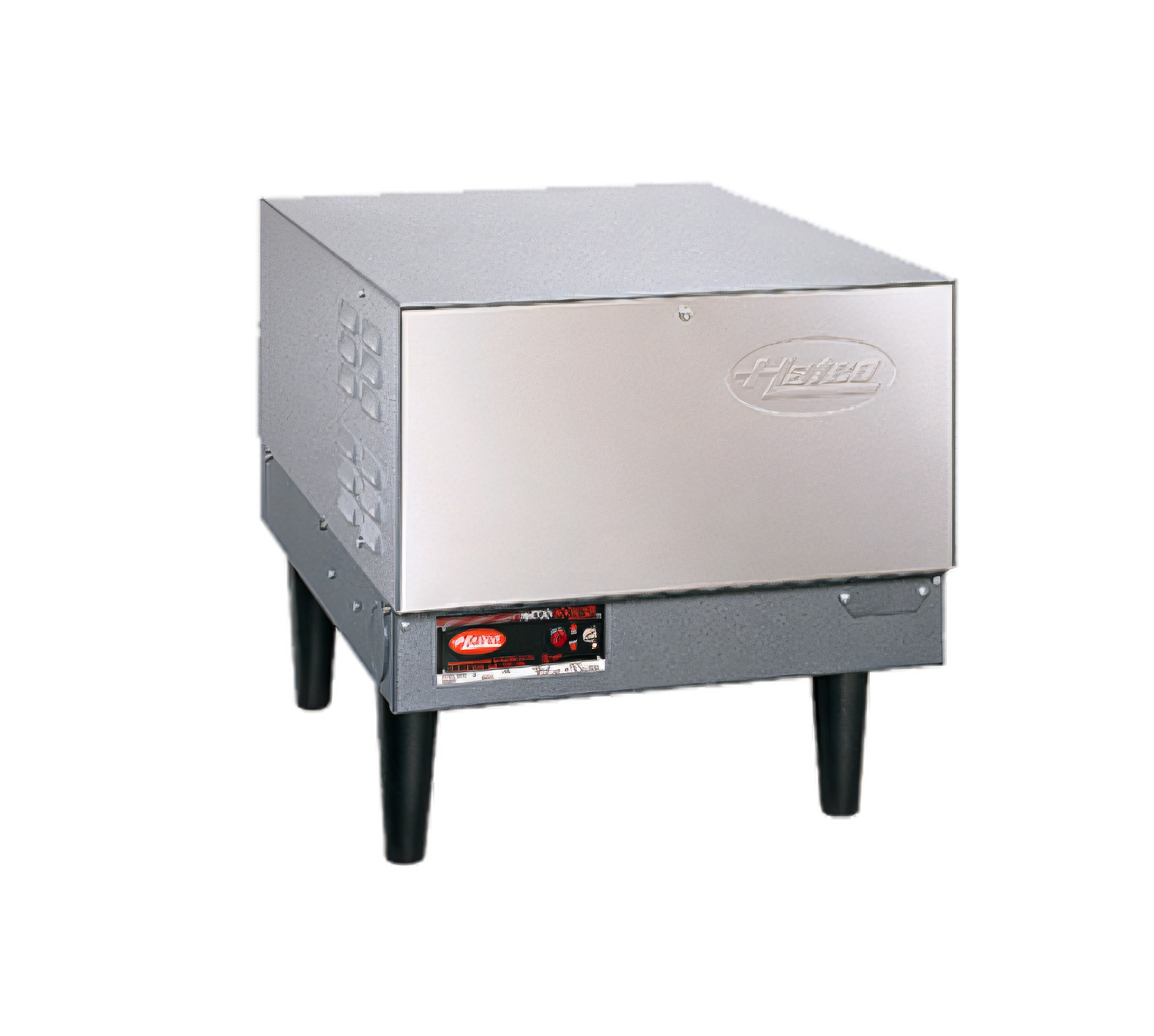

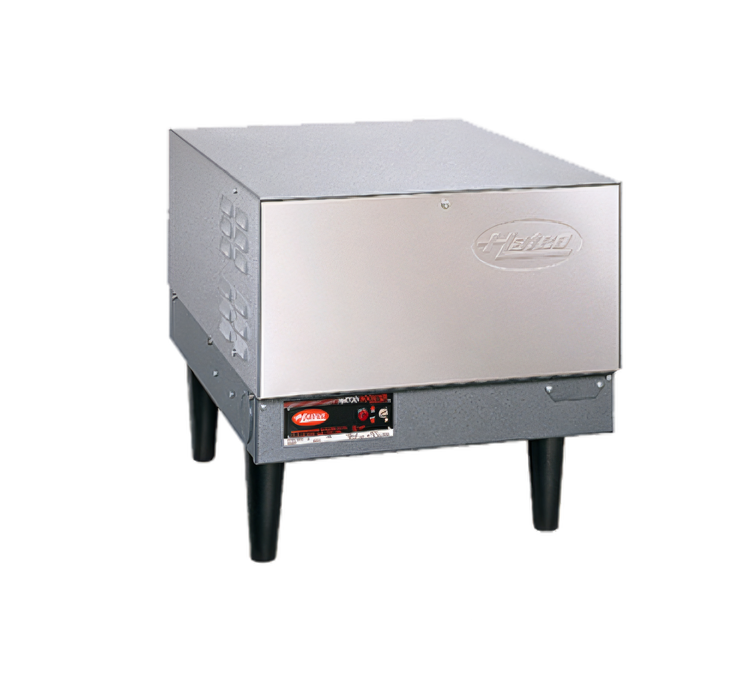

Hatco C-45 Compact Booster Heater – Quick-Ship

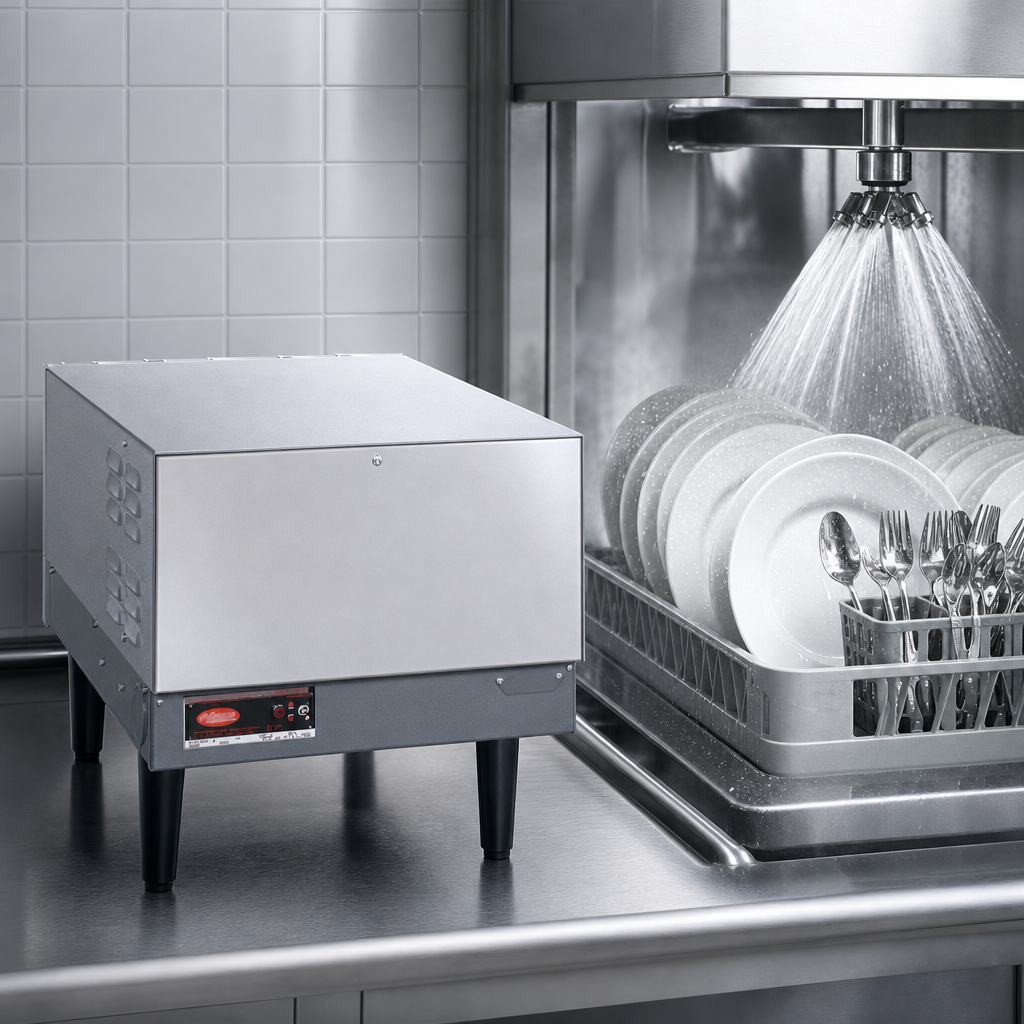

45 kW • 6 gal storage • 240 V / 60 Hz / 3-phGet the 180 °F (82 °C) final-rinse water your high-volume dishmachine needs now. Hatco’s Quick-Ship C-45 delivers heavy-duty sanitation power in a space-saving footprint, shipped the same day when ordered before noon CT (based on stock).
Performance & Convenience

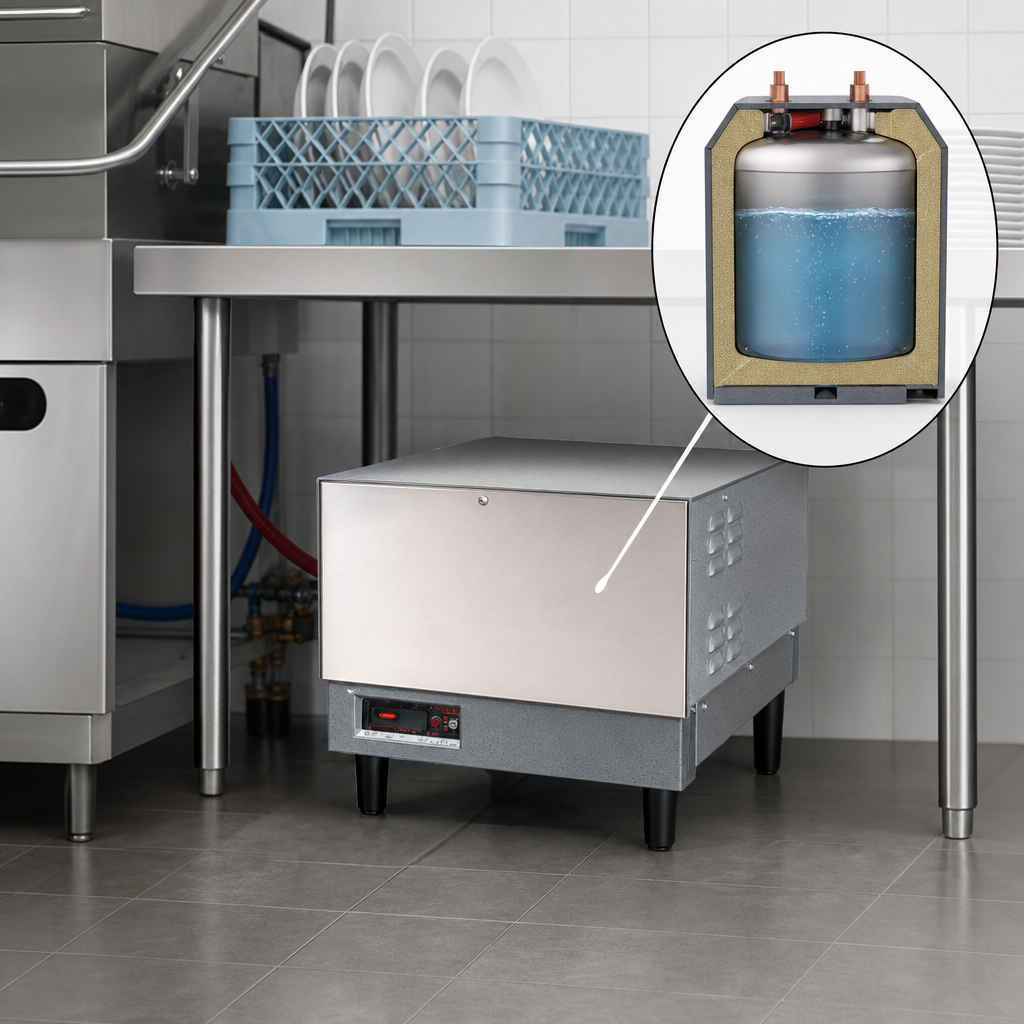

- 45 kW output heats 6 gal (23 L) of water to 180 °F for continuous sanitizing.
- High recovery rates — 452 gph @ 40 °F rise or 258 gph @ 70 °F rise.
- Factory pre-plumbed & pre-wired for fast, hassle-free installation.
- Compact body (only 18 " W) mounts on included 6 " plastic legs or optional slide brackets.
- Quick-Ship designation means industry-leading lead times when you’re on a deadline.
Built-In Safeguards
- Castone® lined tank (10-year limited warranty) resists corrosion and liming.
- Temperature/pressure relief valve, pressure-reducing valve & dual gauges for reliable operating control.
- High-temperature limit, low-water cut-off and control fuses protect heating elements.
- Swing-away stainless-steel front panel offers instant service access.
- Fiberglass insulation minimizes heat loss and operating cost.
Durable Hatco Construction
- Stainless steel front panel with powder-coated silver-gray hammertone body.
- Made in the USA and listed to NSF & cULus standards for food-service safety.
At-a-Glance Specs
| Storage capacity | 6 gal (23 L) |
|---|---|
| Heat input | 45 kW electric |
| Electrical | 240 V / 60 Hz / 3-phase • 108.3 A |
| Recovery rate | 452 gph @ 40 °F rise • 258 gph @ 70 °F rise |
| Dimensions (W × D × H*) | 18 " × 24 " (29.25 " w/ T&P) × 12.03 "* *add 6 " for legs |
| Shipping weight | ≈ 142 lb (64 kg) |
| Certifications | NSF, cULus, Made in USA |
Castone® tank carries a 10-year limited warranty. All other components are covered for 24 months parts & labor (USA & Canada).
Quick-Ship availability may vary with inventory levels. Orders received before 12 PM CT typically ship the same business day.
For optimum performance the incoming water hardness must not exceed 3.0 GPG; water treatment is required when hardness is higher. Damage caused by lime or sediment buildup is not covered under warranty.
