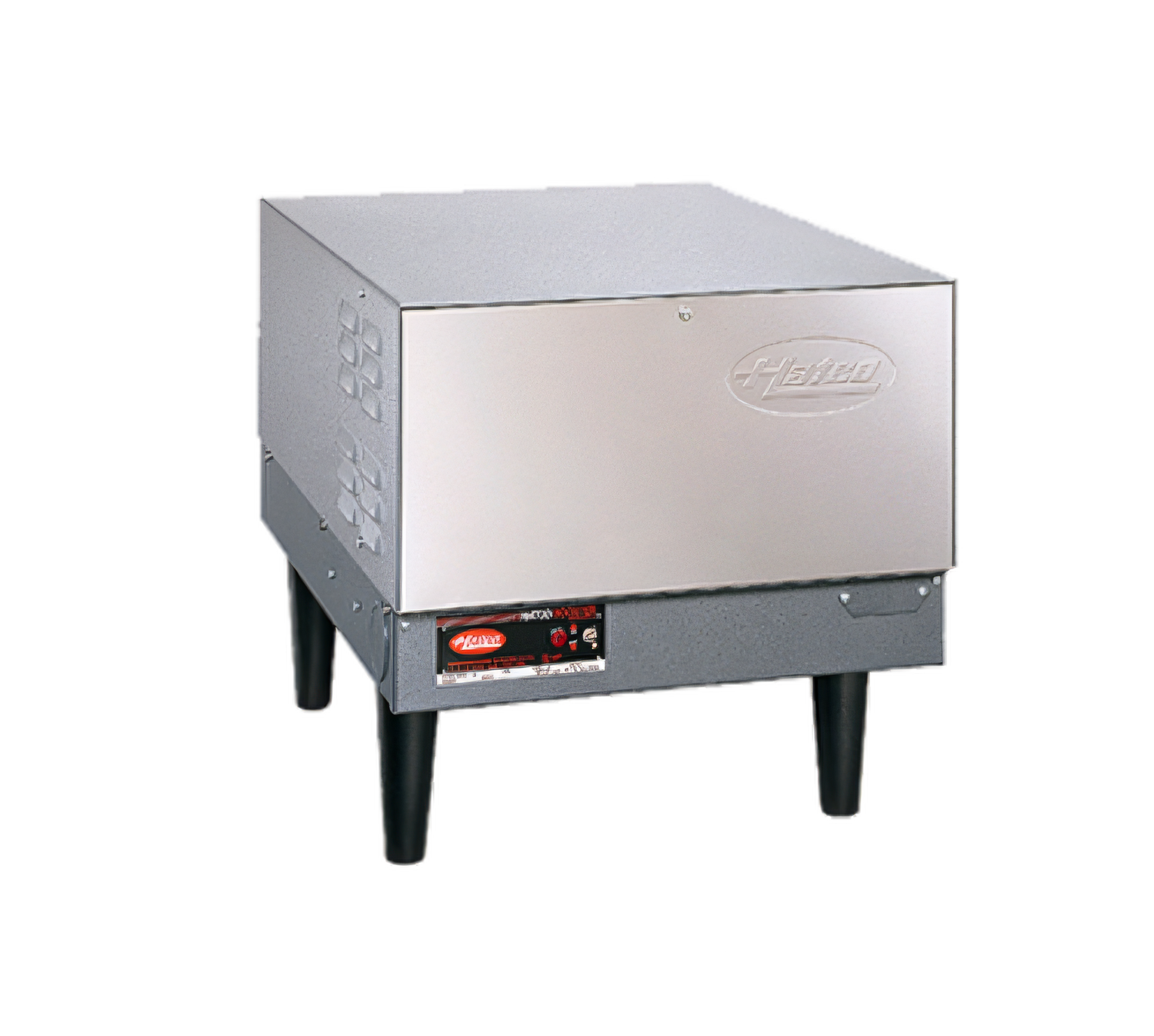

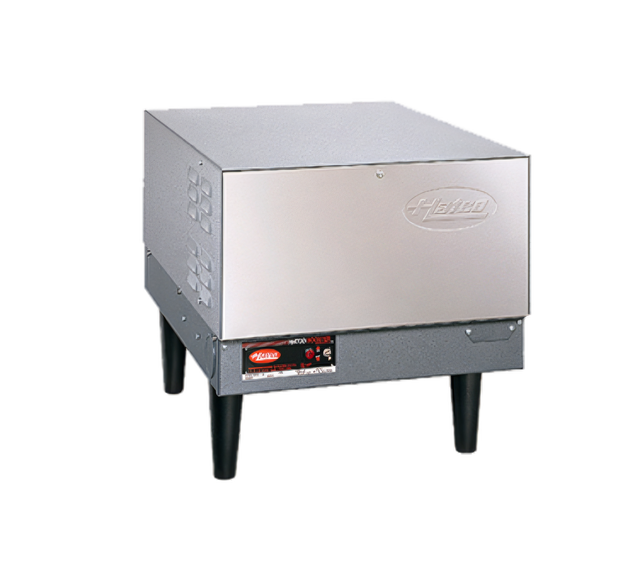

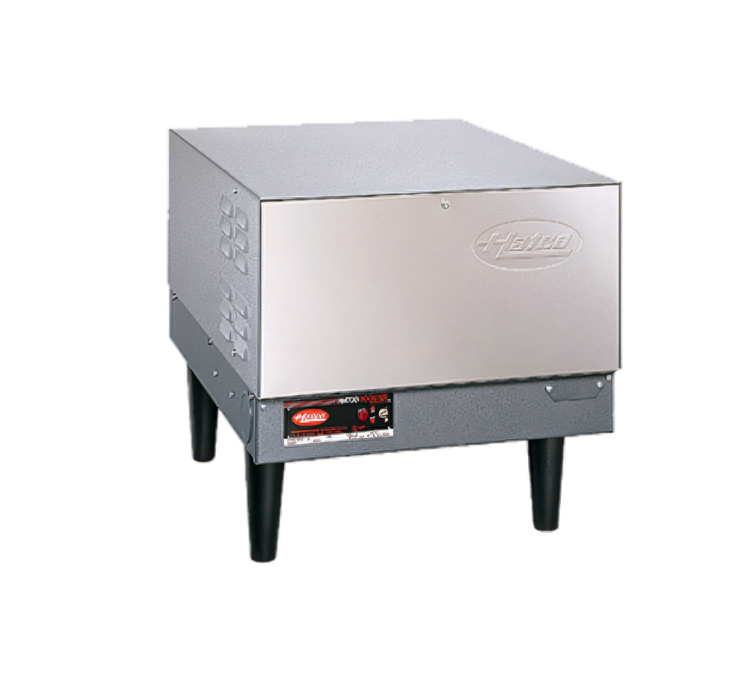

Hatco Compact Electric Booster Water Heater, 6-Gallon, 45 kW, 208V, 3-Phase

SKU: C-45-208-3-QS
GTIN: 61570000988
$4,634.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Water Heater, 6-Gallon, 45 kW, 208V, 3-Phase

Quick Ship Model

Delivers 180°F final rinse water in a compact 6-gallon design built for efficient commercial dishroom performance.

  • 45 kW, 208V, 3-phase electric booster heater for commercial dishwashers.
  • 6-gallon storage capacity fits compact dish room installations.
  • Designed to supply 180°F (82°C) final rinse water to help sanitize and flash-dry dishes and flatware.
  • Castone-lined tank and fiberglass insulation support durability and heat retention.
  • Built-in safety package includes a temperature/pressure relief valve, pressure reducing valve, two gauges, high-temperature limit control, low-water cut-off, pilot light, and on-off switch.
  • Can be installed on 6-inch legs or mounted with slide brackets for under-dishtable installation.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

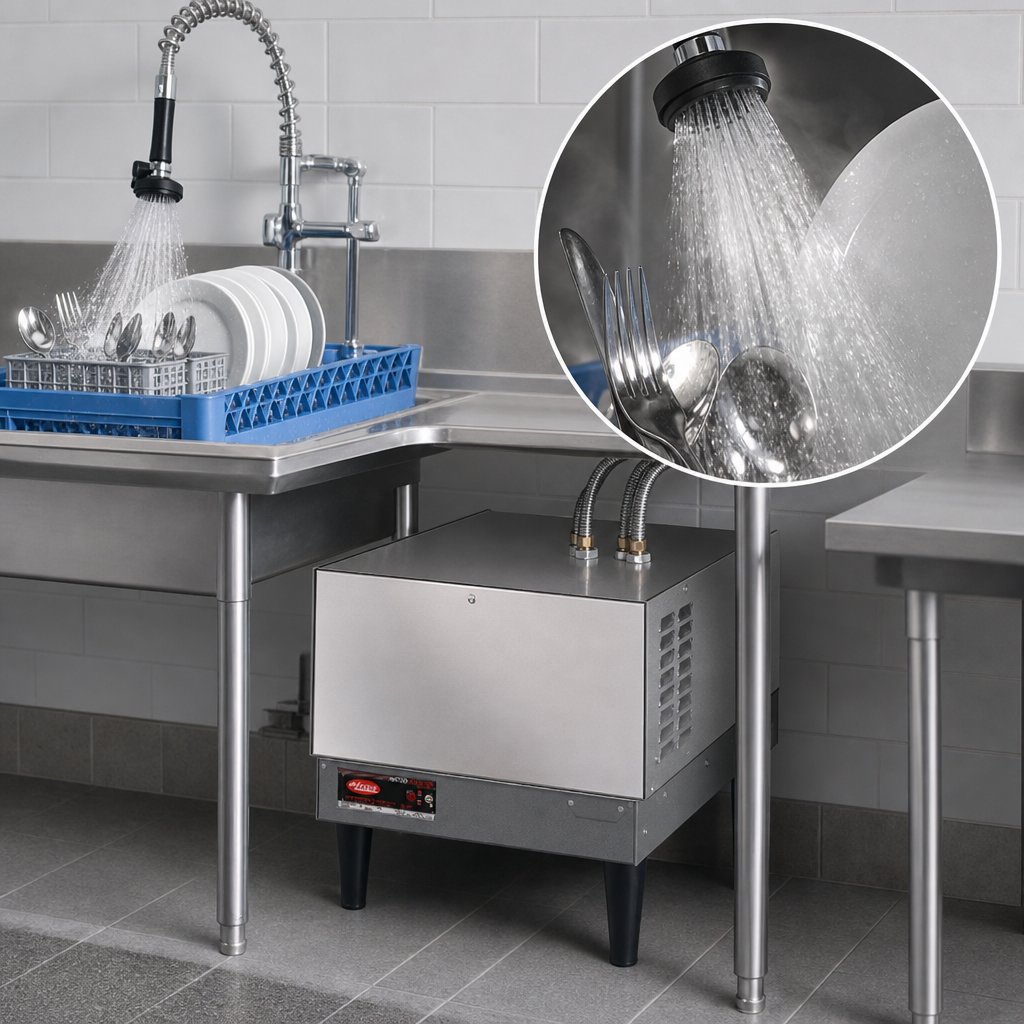

180°F Final Rinse Output

Provides the hot final rinse water needed to sanitize and flash-dry dishes and flatware.

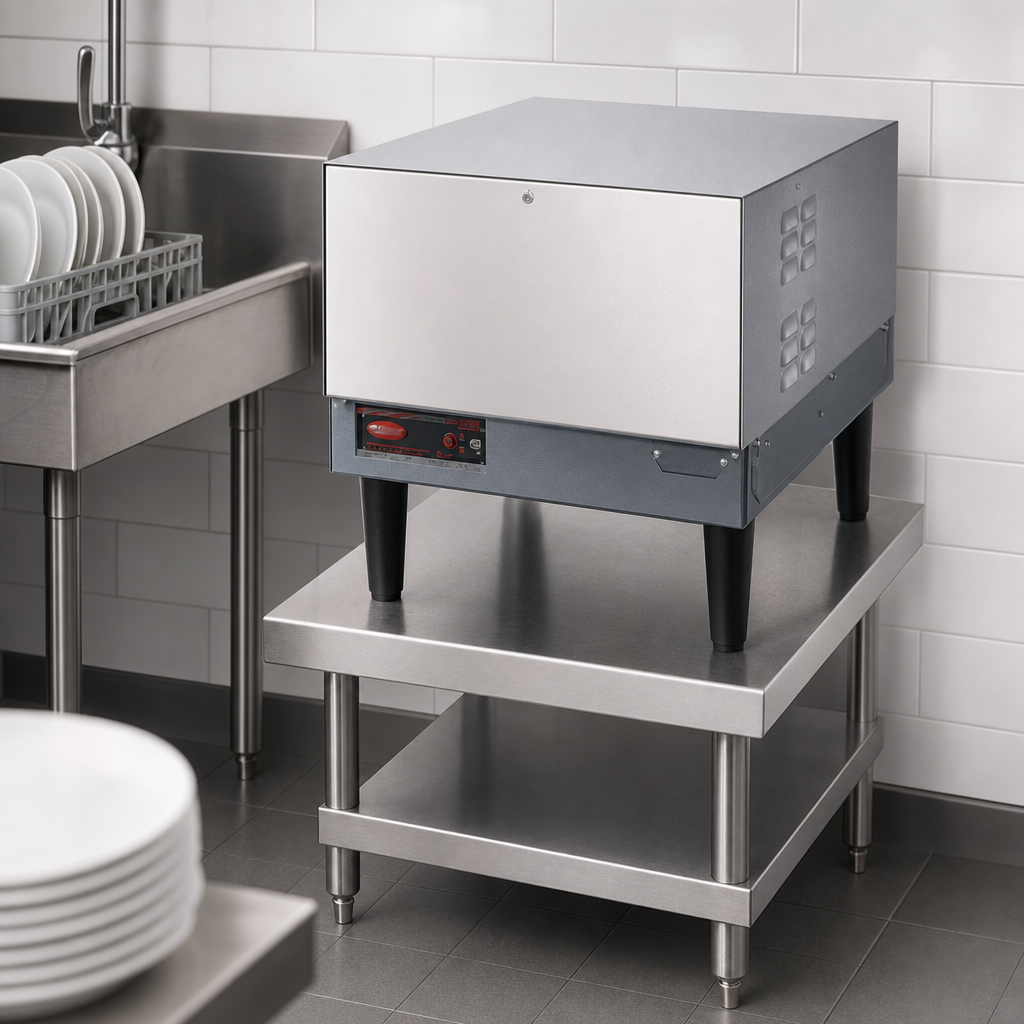

6-Gallon Storage Capacity

Compact tank size is well suited to tight dish room spaces.

Castone-Lined Tank

Includes a Castone-lined tank with a 10-year limited warranty.

Factory Pre-Plumbed and Pre-Wired

Arrives pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Durable Exterior

Standard stainless steel front panel with a powder-coated silver-gray hammertone body.

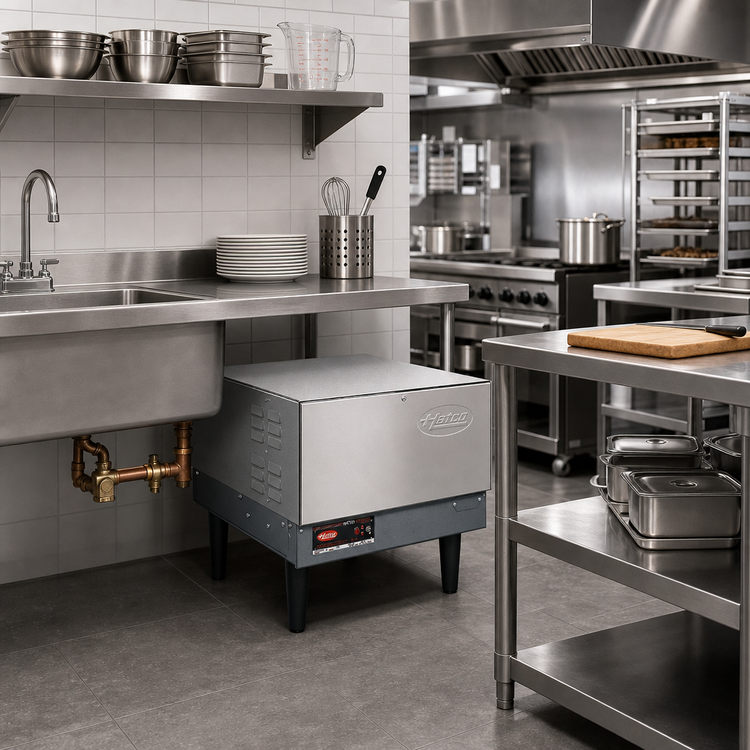

Flexible Installation

Can be set on 6-inch legs or mounted with optional slide brackets for under-dishtable use.

Easy Service Access

Swing-away front panels provide quick access to probes and elements for easier maintenance.

Type Booster Water Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Voltage 208 Volts
Hertz 60 Hz
Phase 3-Phase
Amps 125 Amps
Breaker Size 175 Amps
Watts 45 kW
Connection Size 3/4 Inch NPT
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 18 Inches
Shipping Weight 142 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on Castone-lined tank

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It supplies 180°F (82°C) final rinse water for sanitizing and flash-drying dishes and flatware.
The unit has a 6-gallon (23 liter) storage capacity.
This model is rated at 208V, 60 Hz, 3-phase, 45 kW.
It can be installed on 6-inch legs or with slide brackets for mounting under a dishtable.
Incoming water above 3.0 grains per gallon must be treated and softened before use to help prevent liming and sediment buildup.
The Castone-lined tank includes a 10-year limited warranty, and the literature also notes 24/7 parts and service assistance in the U.S. and Canada.
