Hatco  |  SKU: C-4

Hatco C-4 High Temp & Low Temp Dishwashers

$2,456.24
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

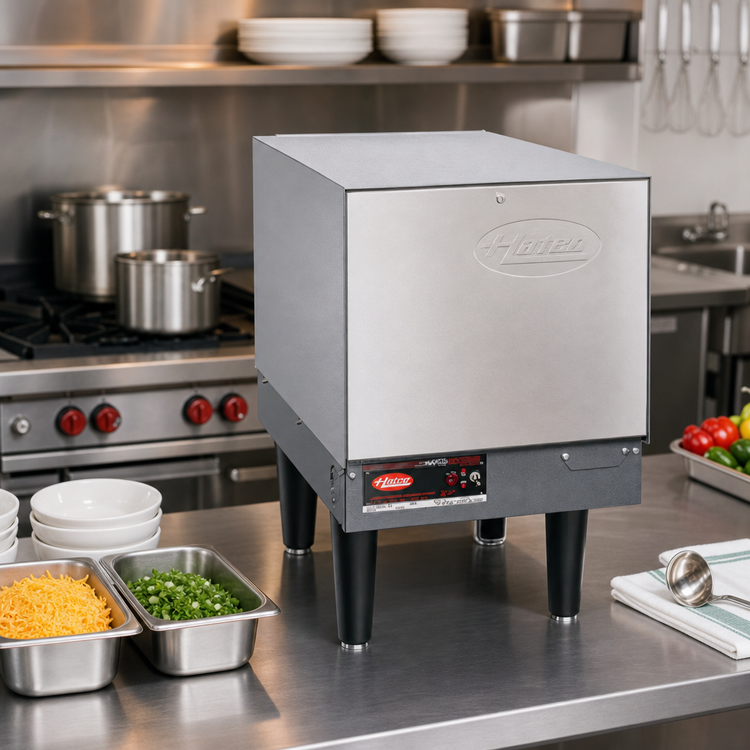

Hatco C-4 Compact Electric Booster Heater – 4 kW, 6 Gal

Space-saving performance for a 180 °F (82 °C) final rinse

Give your undercounter or pass-through dishwasher the 180 °F sanitizing rinse it needs—without giving up precious floor space. Hatco’s USA-made C-4 Compact Electric Booster Heater packs fast recovery, rugged construction and user-friendly controls into a cabinet barely wider than a dish rack.

Key advantages

  • 4.0 kW of electric heat produces up to 40 GPH at a 40 °F rise (23 GPH at 70 °F rise).

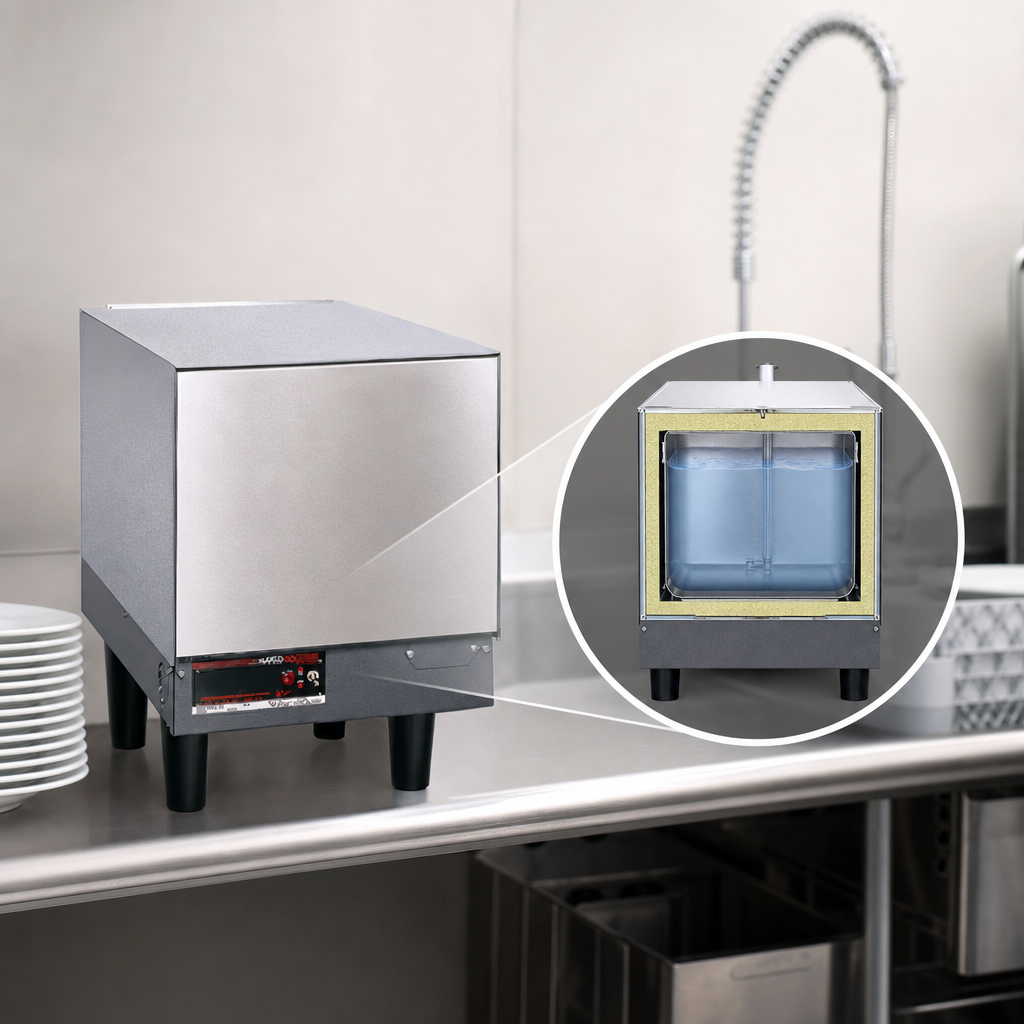

  • Castone® lined storage tank (6 gal / 23 L) resists corrosion and carries a 10-year limited warranty.
  • Pre-plumbed & pre-wired at the factory—just connect water and power, set the thermostat and go.
  • Stainless steel front panel plus a powder-coated silver-gray hammertone body for long-lasting good looks.
  • Comprehensive safety package:
    • Temperature / pressure relief valve & dual gauges
    • Pressure-reducing valve (¾" NPT)
    • High-temperature limit control & low-water cut-off
    • Pilot indicator light and lighted ON/OFF toggle switch
  • Dense fiberglass insulation minimizes standby heat loss.
  • Includes four 6" (152 mm) plastic legs—ideal for floor mounting; optional slide brackets available.
  • Certified NSF & cULus; proudly Made in the USA.

At-a-glance specifications

Storage capacity 6 gal (23 L)
Heat input 4.0 kW electric
Recovery rate 40 GPH @ 40 °F rise | 23 GPH @ 70 °F rise
Factory setpoint 180 °F (82 °C) final rinse
Electrical (1-phase) 208 V / 19.3 A | 240 V / 16.7 A | 480 V / 8.4 A
(3-phase models also available)
Connections ¾" NPT inlet & outlet (left side)
Cabinet dimensions* 13.06" W × 20.69" D × 13.78" H
Overall height 19.78" with supplied 6" legs
Shipping weight ≈ 115 lb (52 kg)
Certifications NSF, cULus
Warranty 10-yr tank (Castone) | 1-yr parts & labor

*Height shown without legs. Add 6" (152 mm) for installed legs.

Water quality notice: Incoming water harder than 3 GPG (0.75 GPG / L) must be treated & softened. Mineral scale will reduce efficiency and is not covered under warranty.

Ideal applications

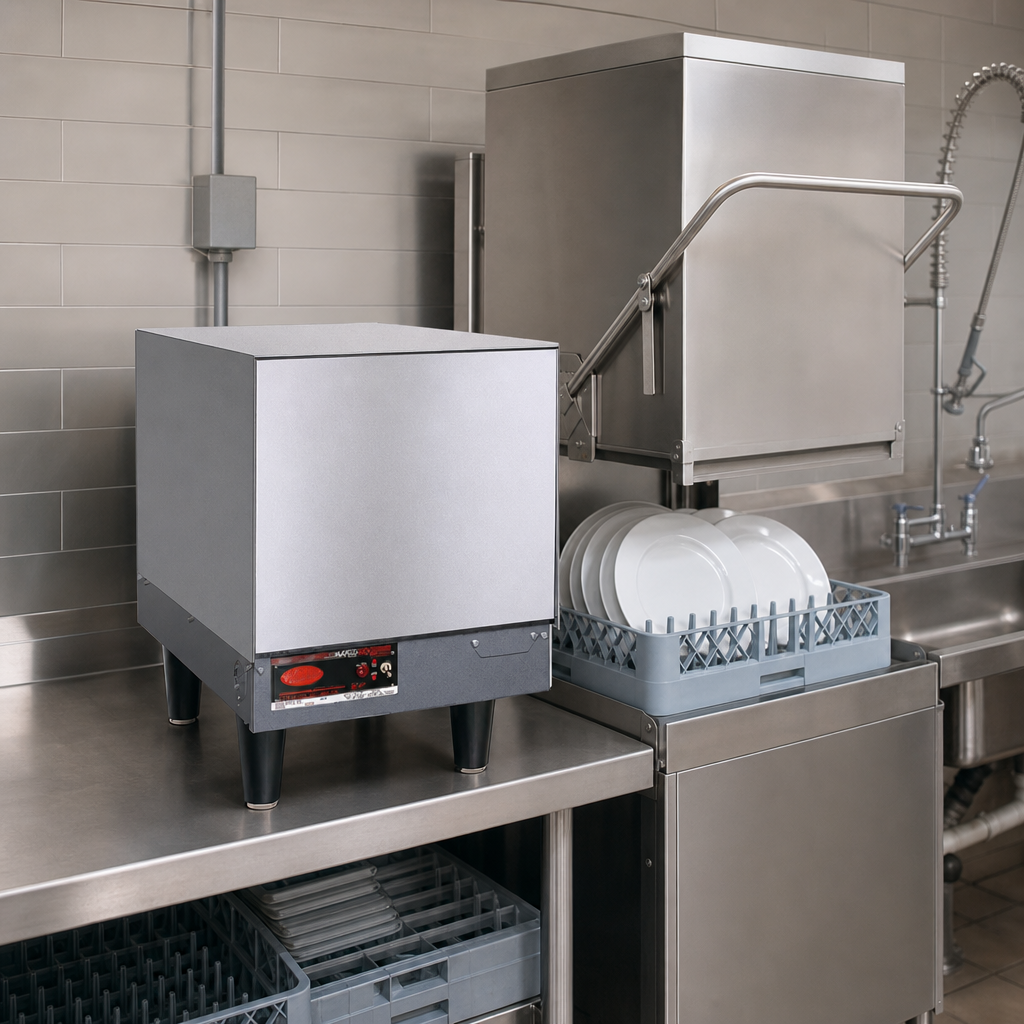

  • Undercounter, door-type or conveyor dishwashers
  • Glasswashing stations in bars & tasting rooms
  • Compact kitchens in cafés, food trucks and catering operations

Upgrade your warewashing line with the dependable Hatco C-4 Booster Heater and enjoy spotless, sanitizing results—cycle after cycle.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

19.75in

Width

13.0in

Depth

20.75in

Shipping Weight

115.0lbs

Width

11" - 19"

Tank Capacity

6 gallon

Wattage

4 - 11 kilowatts

Specifications

Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 4.0kW, NSF, cULus, Made in USA
