Hatco Compact Electric Booster Water Heater, 6 Gallon, 4 kW, 208V, 1-Phase

SKU: C-4-208-1-QS
GTIN: 61570000960
$2,481.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Water Heater, 6 Gallon, 4 kW, 208V, 1-Phase

Quick Ship Model

This compact 6-gallon booster heater delivers the 180°F final rinse water commercial dish machines need in a small, easy-to-install footprint.

  • 6-gallon compact electric booster heater for commercial dishroom rinse-water boosting.
  • 4.0 kW heating on 208V, 60 Hz, single-phase power.
  • Castone® lined tank with stainless steel front panel and powder-coated silver-gray hammertone body.
  • Built-in safety controls include a high-temperature limit, low-water cut-off, relief valve, and gauges.
  • 6-inch legs and compact footprint simplify placement next to a dishwasher.
  • NSF and cULus listed; made in USA.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

115.0 lb

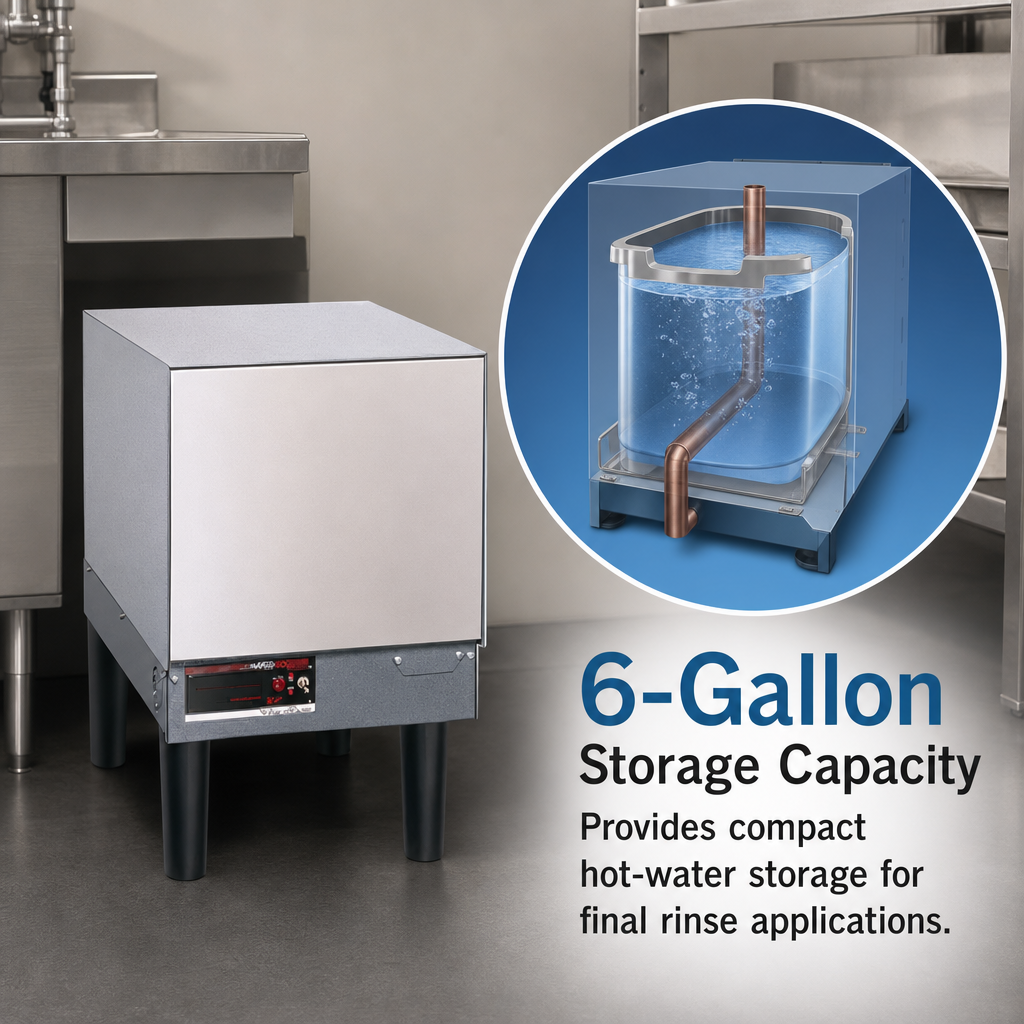

6-Gallon Storage Capacity

Provides compact hot-water storage for final rinse applications.

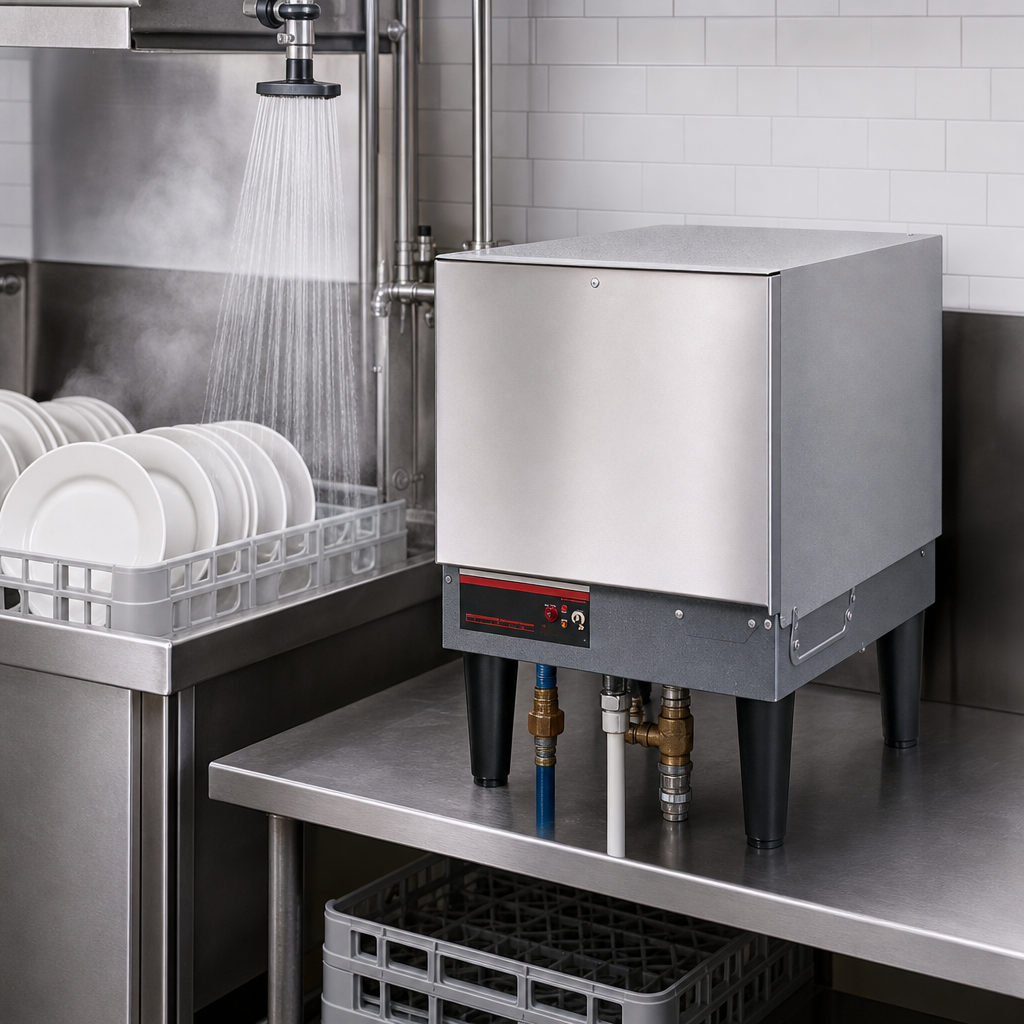

180°F Final Rinse Output

Designed to supply the sanitizing rinse water needed to flash-dry dishes and flatware.

4.0 kW, 208V, 1-Phase Operation

Configured for 208-volt single-phase electrical service at 60 Hz.

Castone® Lined Tank

Durable lined tank construction with a 10-year limited warranty.

Stainless Steel Front Panel

Corrosion-resistant front panel paired with a powder-coated silver-gray hammertone body.

Built-In Safety And Service Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two gauges, high-temperature limit control, pilot light, on-off switch, and low-water cut-off.

Factory Pre-Plumbed And Pre-Wired

Internal plumbing and factory wiring help simplify installation and startup.

6-Inch Non-Adjustable Legs

Stable floor mounting height for installation beside the dishwasher.

Water Recovery Rate

Rated at 40 gph at a 40°F rise and 23 gph at a 70°F rise.

Type Electric Booster Water Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 4 kW
Voltage 208 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 19.3 Amps
Breaker Size 30 Amps
Controls Thermostatic
Material Steel
Interior Finish Castone® Lined
Finish Powder-Coated Silver-Gray Hammertone
Water Inlet Size 3/4 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 115 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Quick ship PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It supplies 180°F final rinse water for sanitizing and flash-drying dishes and flatware.
This model operates on 208 Volts, 60 Hz, single-phase power and is rated at 4.0 kW.
The storage capacity is 6 gallons.
It is supplied with 6-inch legs and can also be ordered with slide brackets for mounting under a dishtable.
Yes. Incoming water over 3.0 grains of hardness per gallon must be treated and softened before being supplied to the booster heater.
