Hatco C-39 High Temp & Low Temp Dishwashers
Description

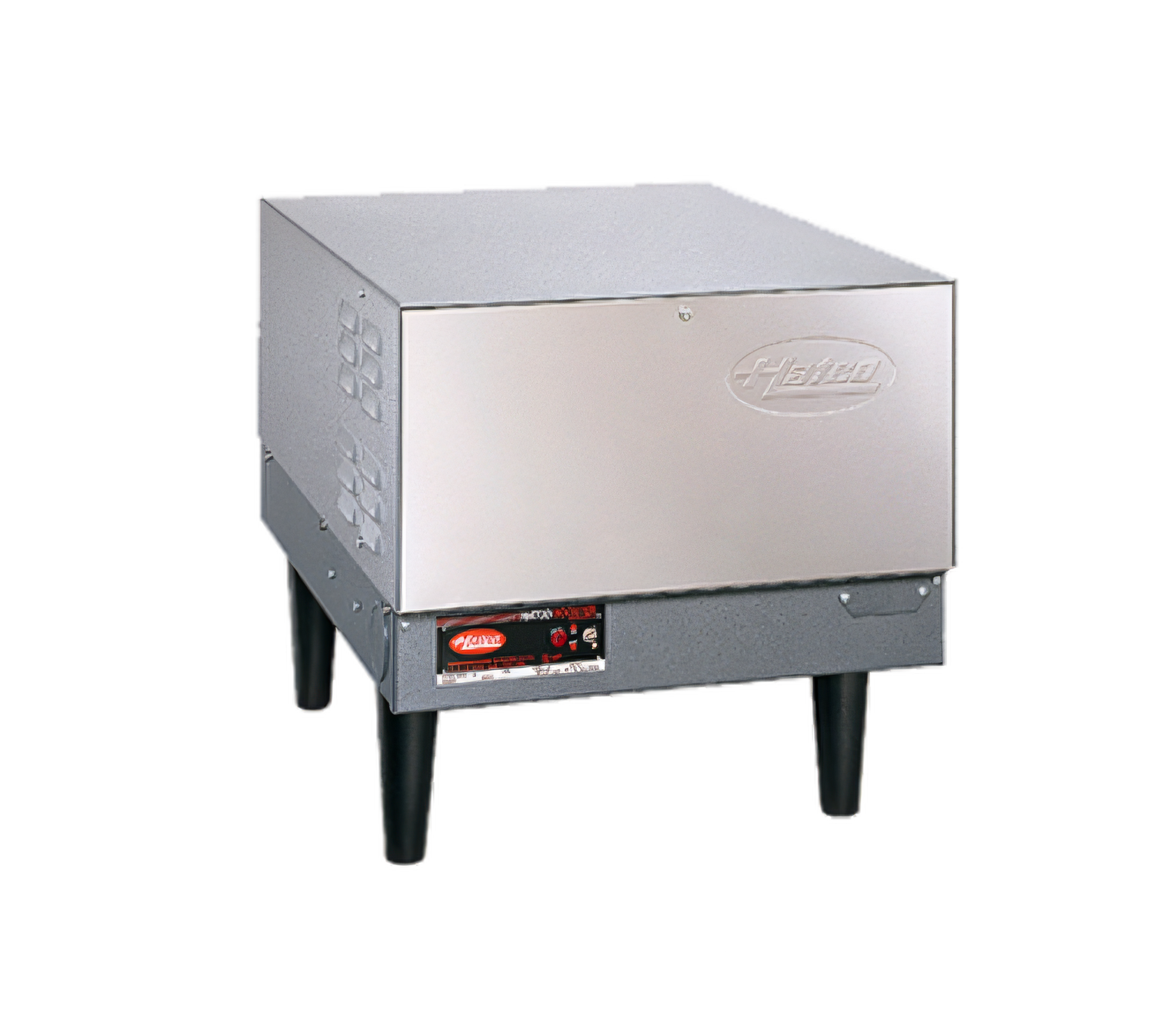

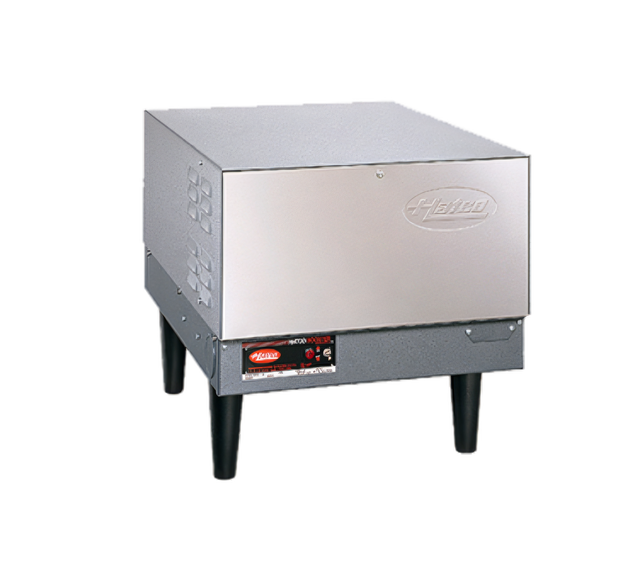

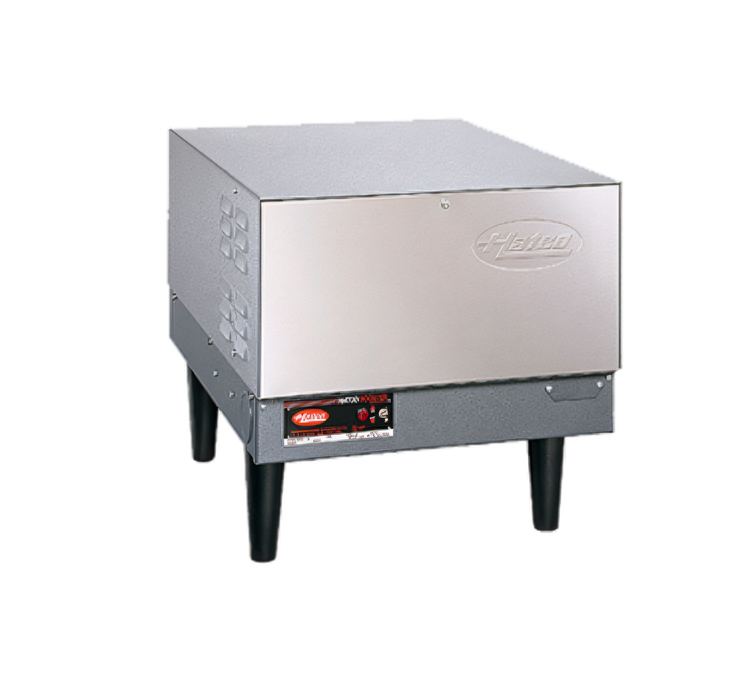

Hatco C-39 Compact Electric Booster Water Heater – 39 kW, 6 gal
NSF & cULus Listed • Made in USAGet a continuous supply of 180 °F (82 °C) final-rinse water in the space of a dish rack. The Hatco C-39 delivers high-volume performance, robust safety features, and legendary Hatco durability in a compact footprint that installs right next to your dishwasher.
Why You’ll Love It
- Produces up to 391 gph @ 40 °F rise or 224 gph @ 70 °F rise for busy conveyor, flight-type, or rack machines.
- 6 gal Castone® lined tank resists corrosion & liming – backed by a 10-year limited warranty.
- Factory-set immersion thermostat holds 180 °F; high-temp limit & low-water cut-off protect elements.
- Stainless steel front panel with antimicrobial silver-gray hammertone body shrugs off kitchen abuse.
- Arrives pre-plumbed & pre-wired – ¾" NPT inlet/outlet and electrical knockouts on left & bottom.
- Thick fiberglass insulation minimizes standby heat loss for lower energy costs.
- Swing-away front panel gives instant access to probes, fuses & elements for faster service.
- Standard 6″ non-adjustable plastic legs; optional slide brackets or stainless legs available.
Performance & Specifications
| Storage capacity | 6 gal / 23 L |
|---|---|
| Power rating | 39 kW |
| Voltage options | 208 V / 240 V / 480 V / 600 V • 3-phase (balanced) 208 V & 240 V models may be field-converted to 1-phase* |
| Max. amperage (1-phase) | 187.5 A @ 208 V • 162.5 A @ 240 V |
| Recovery @ 40 °F (22 °C) rise | 391 gph / 1480 lph |
| Recovery @ 70 °F (39 °C) rise | 224 gph / 848 lph |
| Water connections | ¾″ NPT inlet & outlet |
| Working pressure | 150 psi (1034 kPa) |
| Dimensions | 18″ W × 24″ D × 12.03″ H† |
| Shipping weight | Approx. 142 lb / 64 kg |
†Height excludes 6″ legs & 29.25″ T/P relief valve clearance.
* Units ship 3-phase open-delta; larger branch circuit may be required when field-converted.
Built-In Protection
- Temperature/pressure relief valve & pressure-reducing valve included.
- Dual temperature/pressure gauges for at-a-glance monitoring.
- Pilot indicator light & front-mounted on/off toggle switch.
- High-temperature limit control stops runaway heating.
- Low-water cut-off prevents element burnout if supply is interrupted.
What’s Included
- Hatco C-39 Compact Electric Booster Heater
- Pre-installed 6″ plastic legs & T/P relief valve
- Temperature/pressure gauges & pressure-reducing valve
- Installation & operation manual
- 10-year Castone tank warranty & 24/7 Hatco service support
Upgrade your warewashing line with the Hatco C-39 and keep dishes spotless, safe, and ready for service—shift after shift.
