Hatco C-36 High Temp & Low Temp Dishwashers
Description

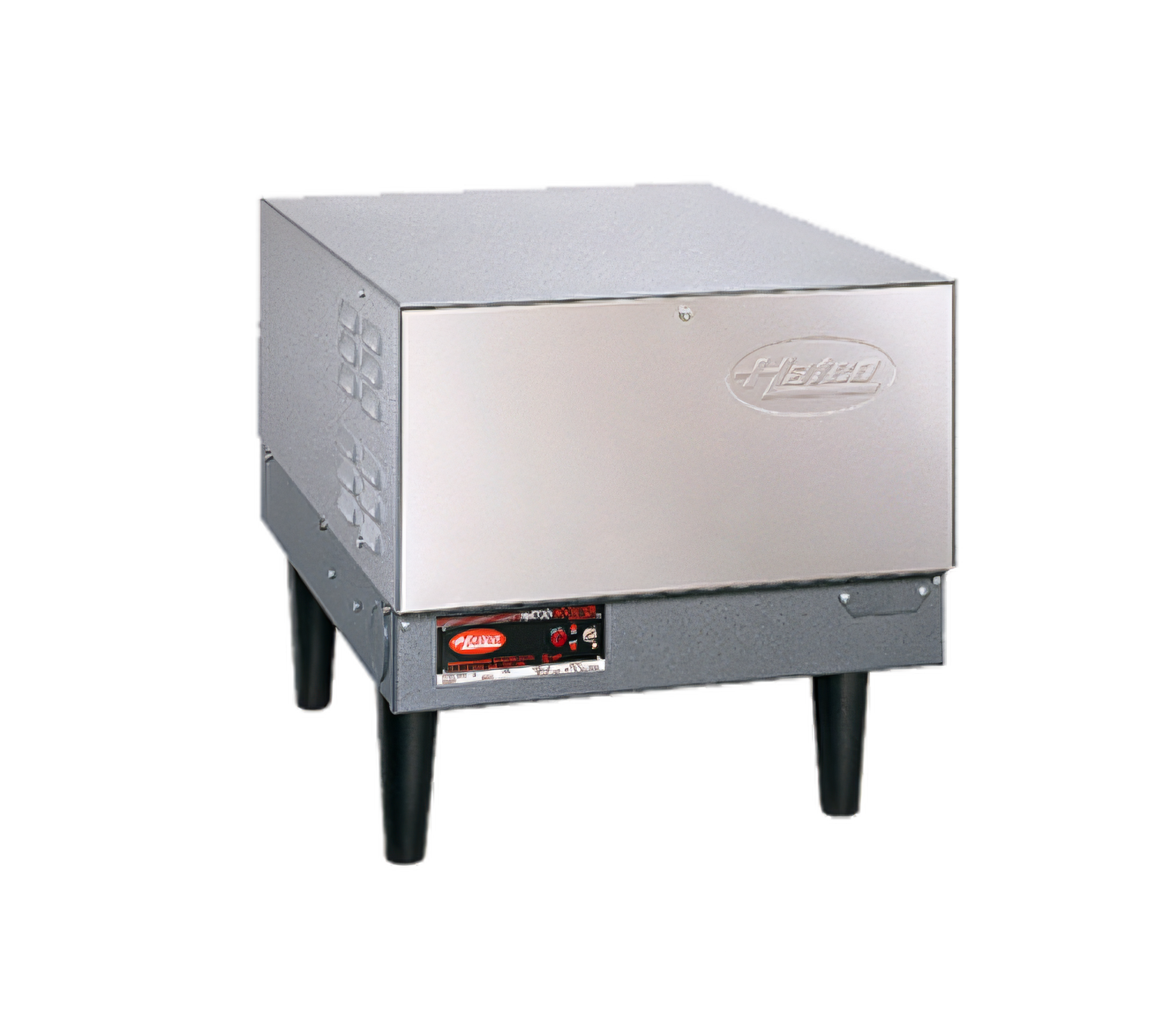

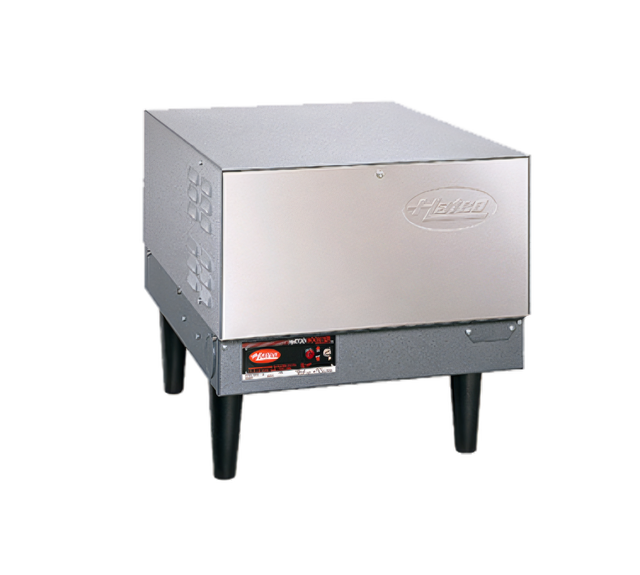

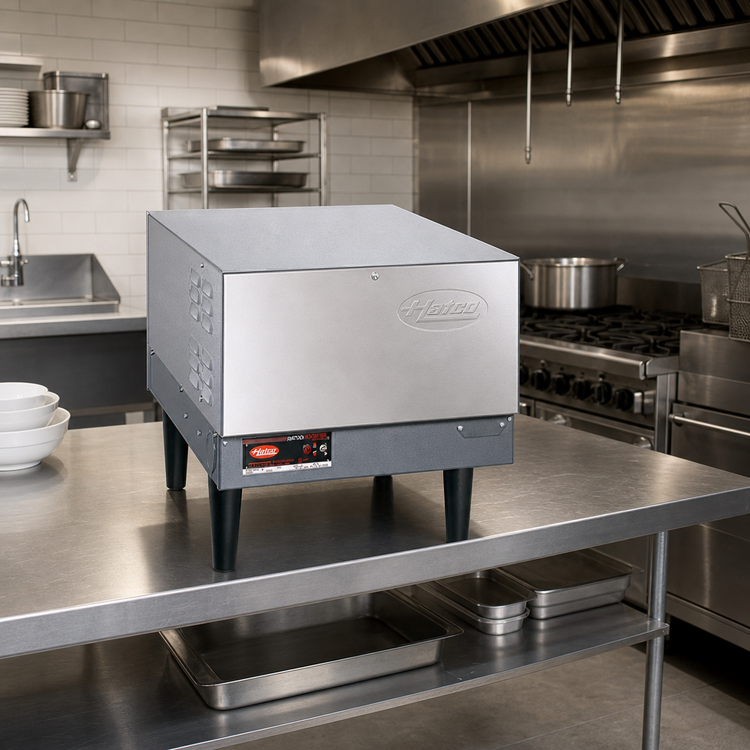

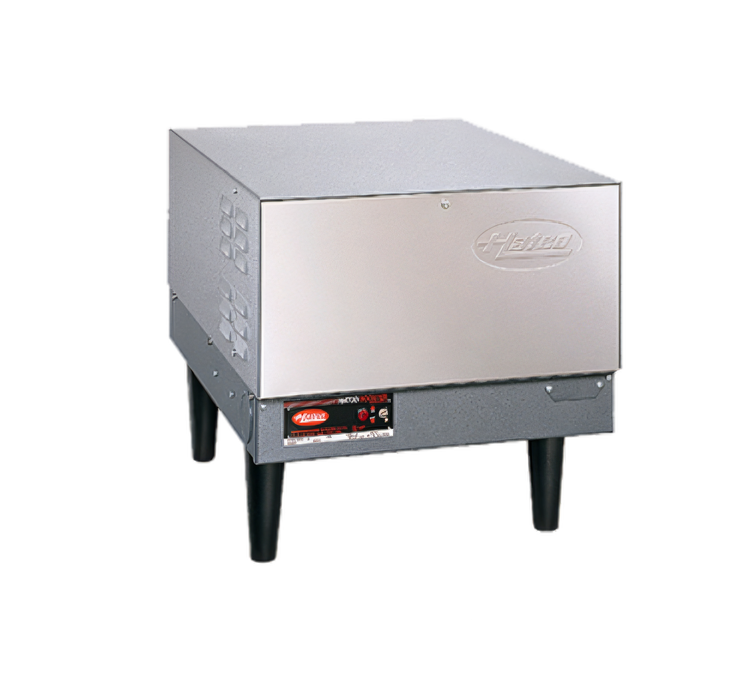

Hatco C-36 Compact Electric Booster Water Heater
36 kW | 6-gal Castone® tank | NSF & cULusServe spotless, 180 °F (82 °C) dishes shift after shift—without sacrificing floor space. The Hatco C-36 delivers 36 kW of instant heat and a 6-gallon storage tank in a rugged, under-counter footprint engineered for today’s high-temperature commercial dishmachines.
Why you’ll love it
- Recovers up to 361 gph at a 40 °F rise (206 gph at 70 °F) so racks keep moving during peak service.
- Castone® lined tank combats corrosion and scale—protected by a 10-year limited warranty.
- Factory-preset to 180 °F for immediate, sanitary final-rinse results.
- Stainless steel front with powder-coated silver-gray hammertone sides stands up to busy kitchens.
- Swing-away front panel plus low-water cut-off, fuses and transformer for fast, front-service access.
- Completely pre-plumbed & pre-wired: includes T/P relief valve, pressure-reducing valve, dual gauges and ¾″ NPT connections.
- Thick fiberglass insulation minimizes standby heat loss and utility costs.
- Ships on 6″ (152 mm) reinforced plastic legs; slide-mounting brackets available.
- Meets NSF/ANSI 5, cULus listed and proudly Made in the USA.
Performance

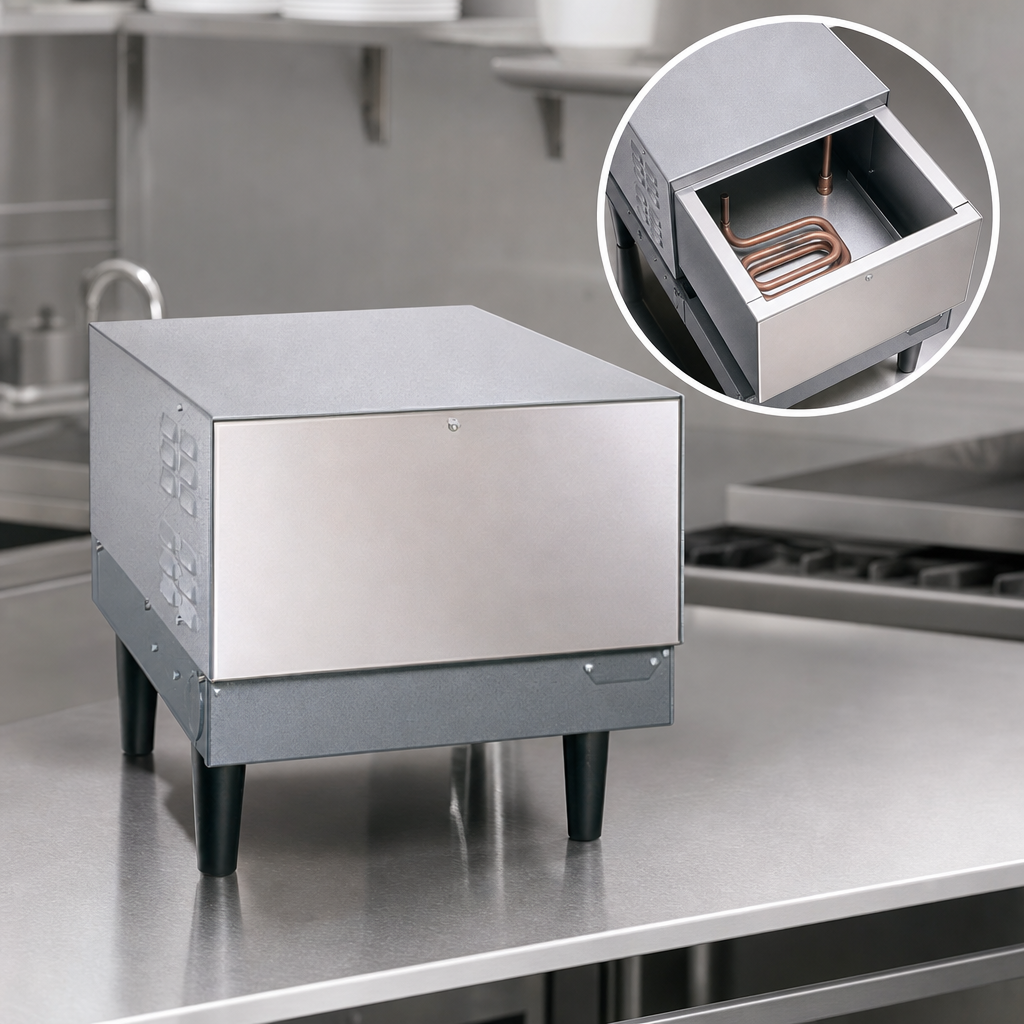

| Storage capacity | 6 gal / 23 L |
|---|---|
| Heat input | 36 kW electric |
| Recovery @ 40 °F rise | 361 gph (1367 lph) |
| Recovery @ 70 °F rise | 206 gph (780 lph) |
| Preset output temp. | 180 °F (82 °C) |

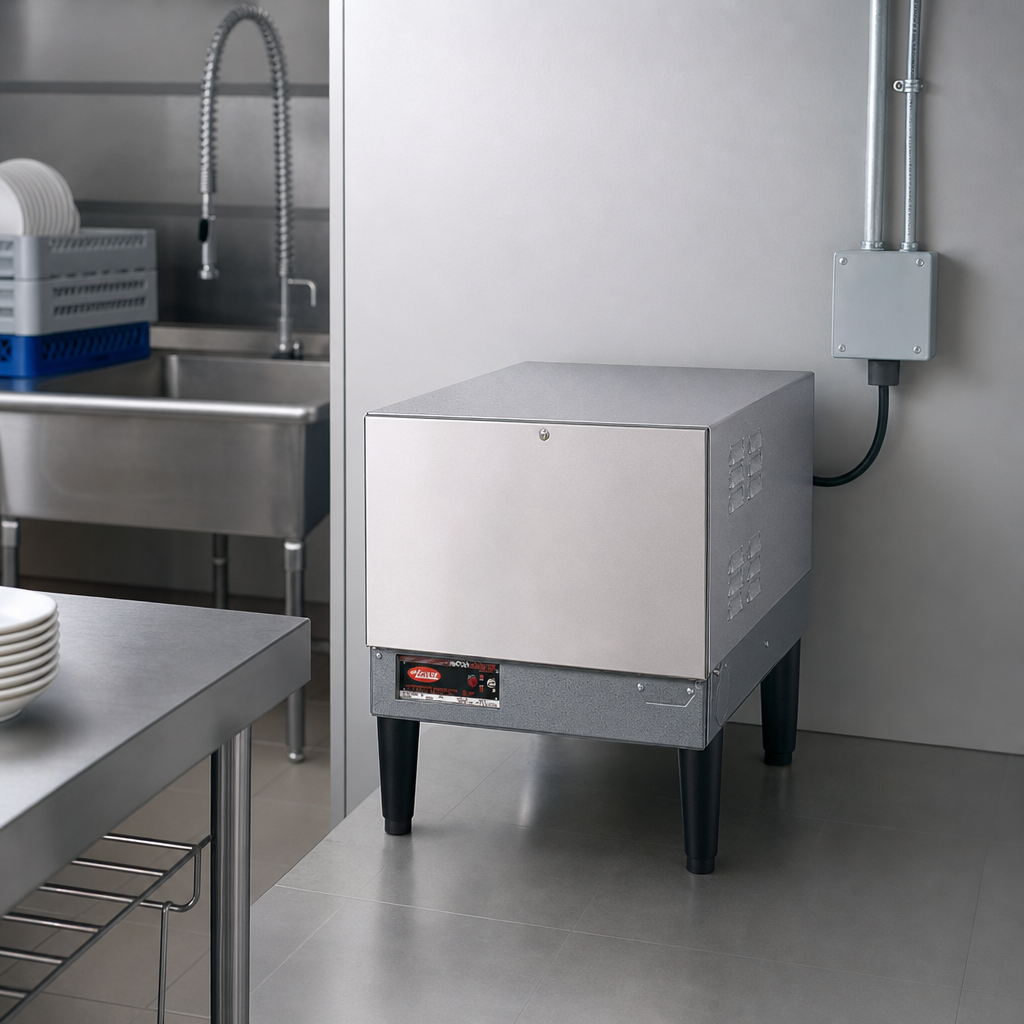

Electrical data
| Voltage options | 208, 240, 480 or 600 V |
|---|---|
| Phase | 3 ɸ standard (single-phase not available above 12 kW) |
| Full-load amps (3 ɸ) | 208 V: 100 A | 240 V: 86.7 A | 480 V: 43.4 A | 600 V: 34.8 A |
| Recommended breaker | 208 V: 125 A | 240 V: 125 A | 480 V: 60 A | 600 V: 50 A |
| Field wiring | Knockouts on left & bottom (1½″–2″) |
Always verify local code requirements with a licensed electrician.
Dimensions & weight
| Unit size (W × D × H) | 18″ × 24″ × 12.03″ (457 × 610 × 306 mm)† |
|---|---|
| Height w/ T&P valve | 29.25″ (743 mm) |
| Inlet / outlet | ¾″ NPT, rear mounted |
| Shipping weight | 142 lb (64 kg) |
†Height excludes 6″ legs.
Built-in safeguards
- Immersion thermostat with manual reset high-limit.
- Low-water cut-off to protect heating elements.
- Temperature/pressure relief valve factory installed.
Boost your warewashing efficiency and keep every rack table-ready—order the Hatco C-36 today and experience industry-leading performance backed by Hatco reliability.
