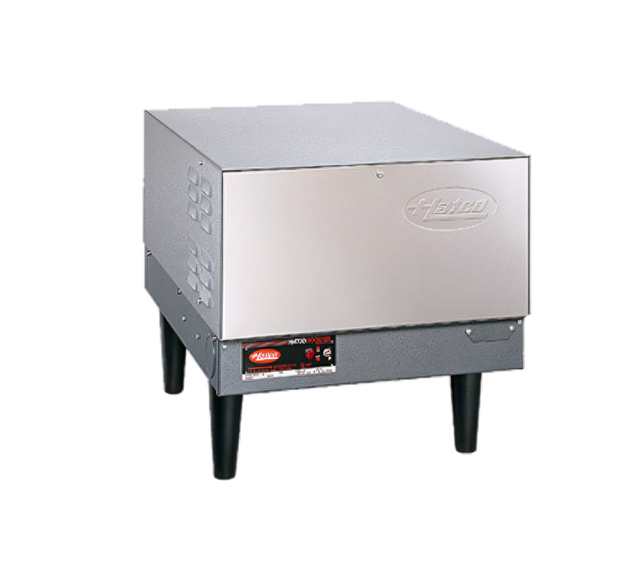

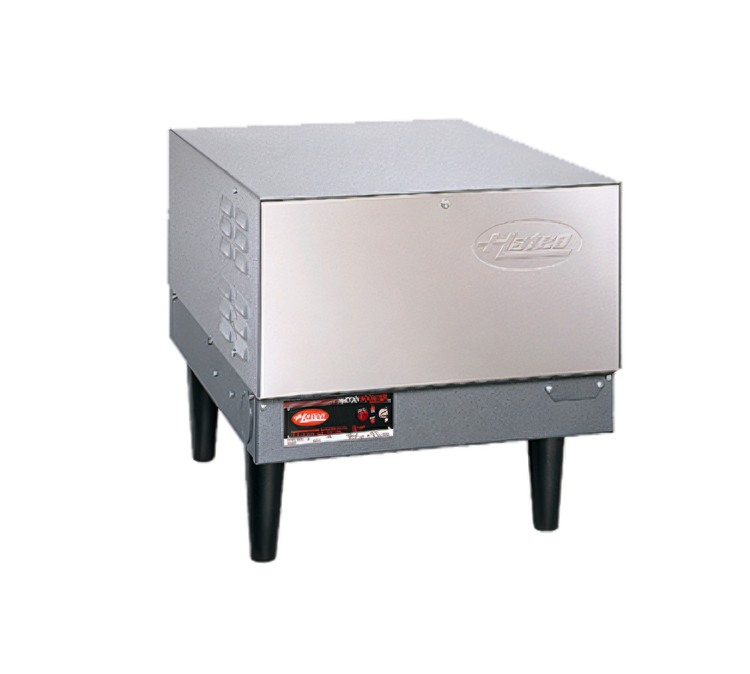

Hatco Compact Electric Booster Water Heater, 6-Gallon, 36 kW, 480V, 3-Phase

Stainless Steel Front, Powder-Coated Silver-Gray Body, Castone-Lined Tank

A compact 6-gallon booster heater that delivers 180°F final rinse water with 36 kW of electric power and built-in safety controls.

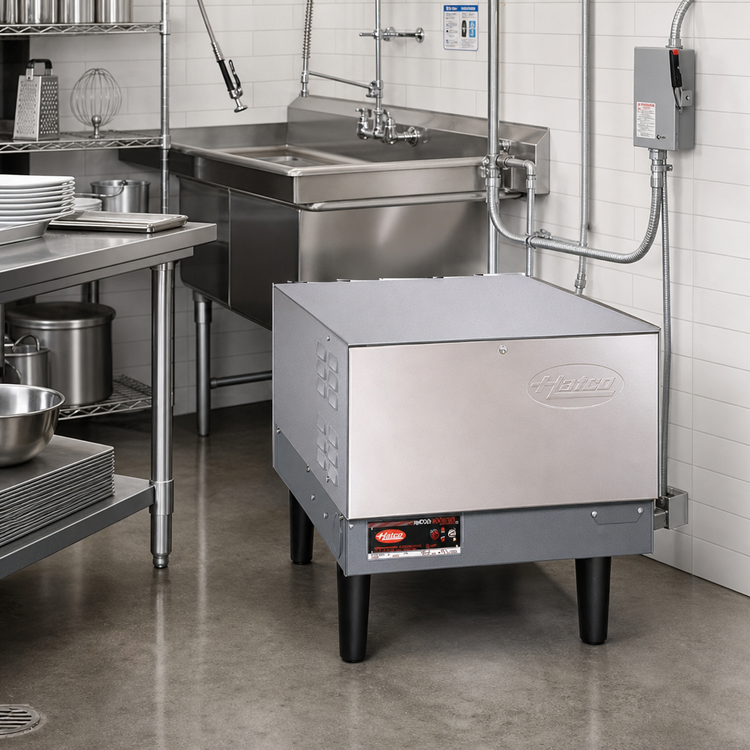

  • Space-saving compact design fits tight dishroom layouts and installs next to the dishwasher.
  • 6-gallon storage capacity helps supply the hot final rinse water needed for sanitation and flash-drying.
  • 36 kW electric output at 480V, 3-phase supports fast recovery in high-demand operations.
  • Castone-lined tank, stainless steel front panel, and powder-coated silver-gray body provide durable construction.
  • Factory pre-plumbed and pre-wired for easier installation, with standard 6-inch plastic legs included.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

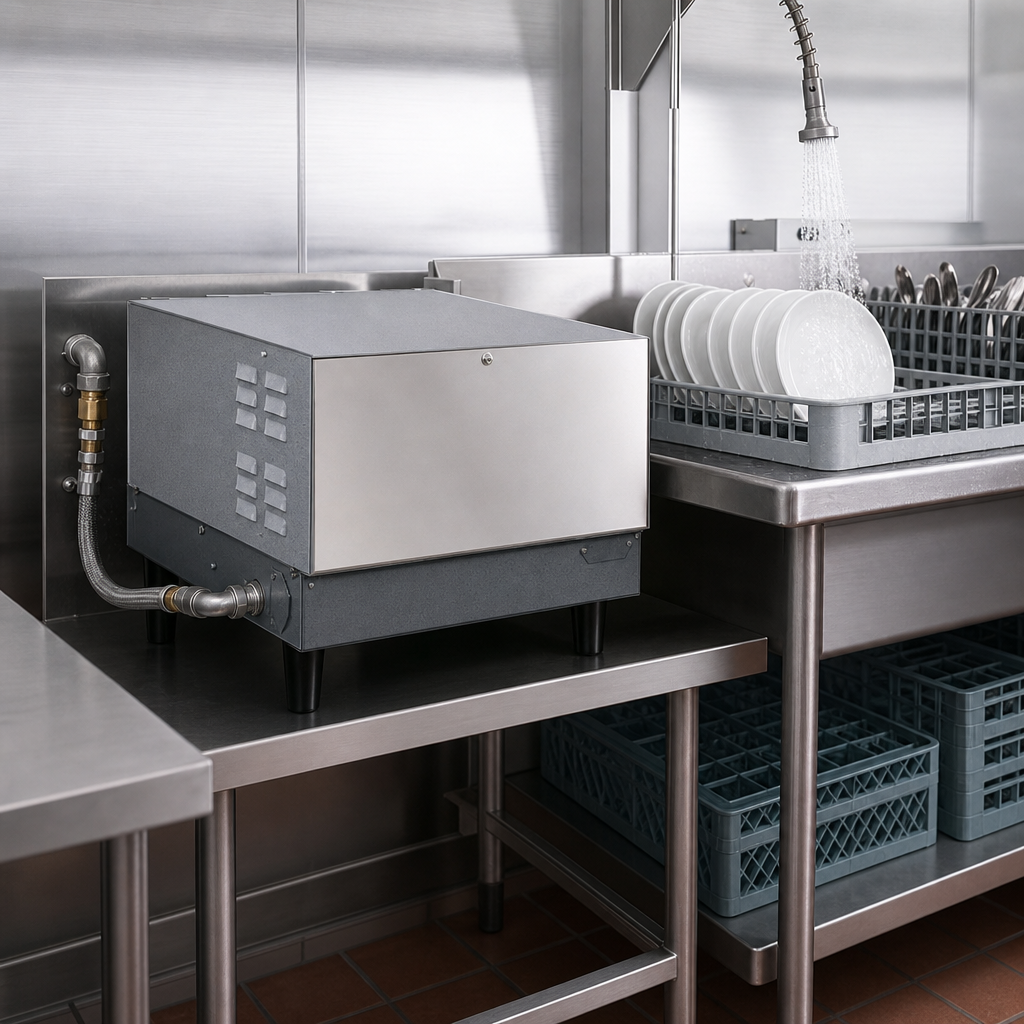

180°F Final Rinse Water

Designed to supply the 180°F (82°C) final rinse water needed to sanitize and flash-dry dishes and flatware.

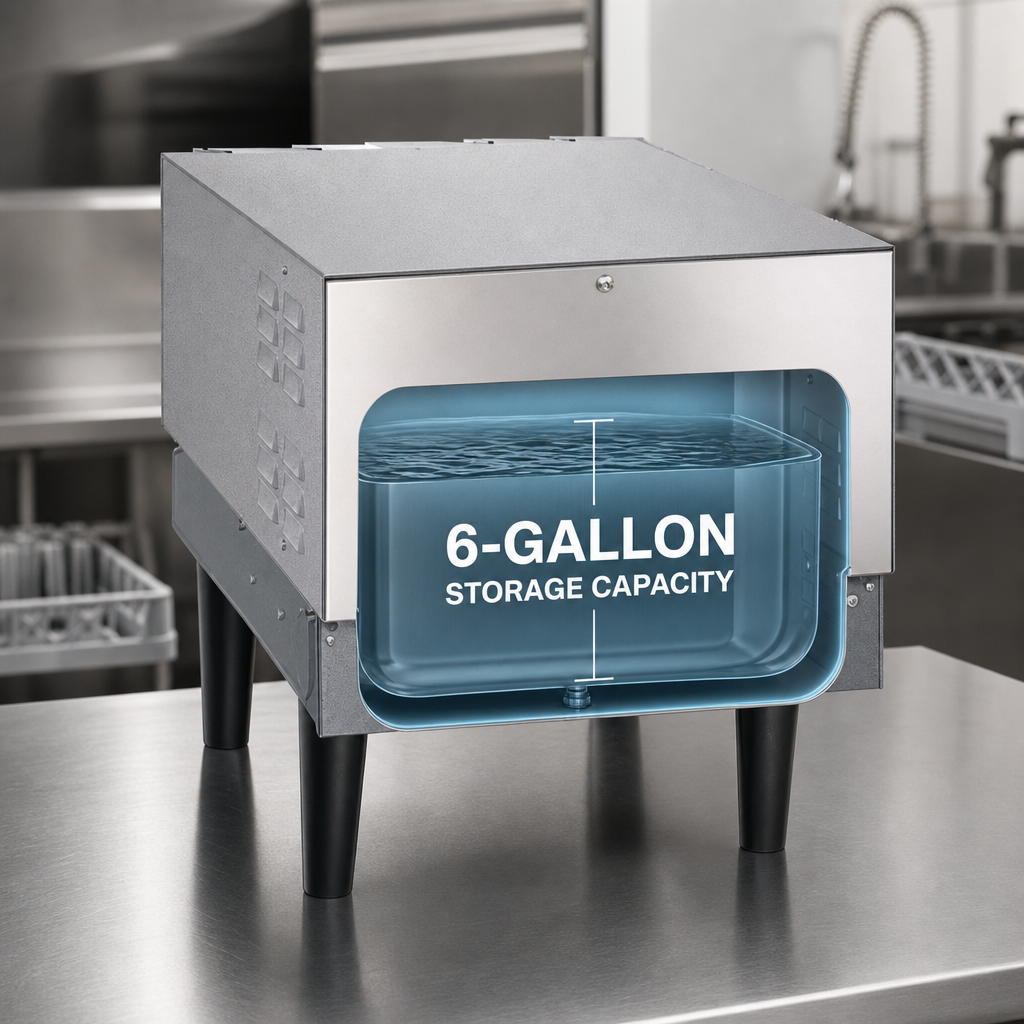

6-Gallon Storage Capacity

Compact 6-gallon (23 liter) storage capacity suits dishroom booster applications.

36.0 kW Electric Output

High-output electric heating delivers rapid temperature recovery for busy kitchens.

480V, 3-Phase Power

Built for 480 Volt, 60 Hz, 3-phase operation.

High Recovery Rate

Rated at 361 gph for a 40°F rise and 206 gph for a 70°F rise.

Castone® Lined Tank

Durable tank lining helps extend service life and includes a 10-year limited tank warranty.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Stainless Steel Front / Powder-Coated Body

Features a stainless steel front panel and a powder-coated silver-gray hammertone body.

Factory Pre-Plumbed and Pre-Wired

Supplied with calibrated immersion thermostat, high-temperature limit switch, and internal plumbing for easier installation.

Standard 6-Inch Plastic Legs

Includes 6-inch non-adjustable plastic legs for floor placement.

Type Electric Booster Water Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 36 kW
Voltage 480 Volts
Hertz 60 Hz
Phase 3-Phase
Amps 43.4 Amps
Breaker Size 60 Amps
Water Inlet Size 3/4 Inch NPT
Color Silver-Gray
Finish Powder-Coated Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited tank warranty

Documents

PDF Cutsheet PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It provides 180°F (82°C) final rinse water to help sanitize and flash-dry dishes and flatware.
The storage tank holds 6 gallons (23 liters).
This model operates on 480 Volts, 60 Hz, 3-phase power and is rated at 36.0 kW.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, a pilot indicator light, an on-off switch, and a low-water cut-off.
Yes. Incoming water above 3.0 grains per gallon of hardness should be treated and softened to help maintain efficiency and service life.
It includes 6-inch non-adjustable plastic legs for floor placement, and the documentation also notes slide brackets are available as an accessory.
