Hatco C-36-240-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

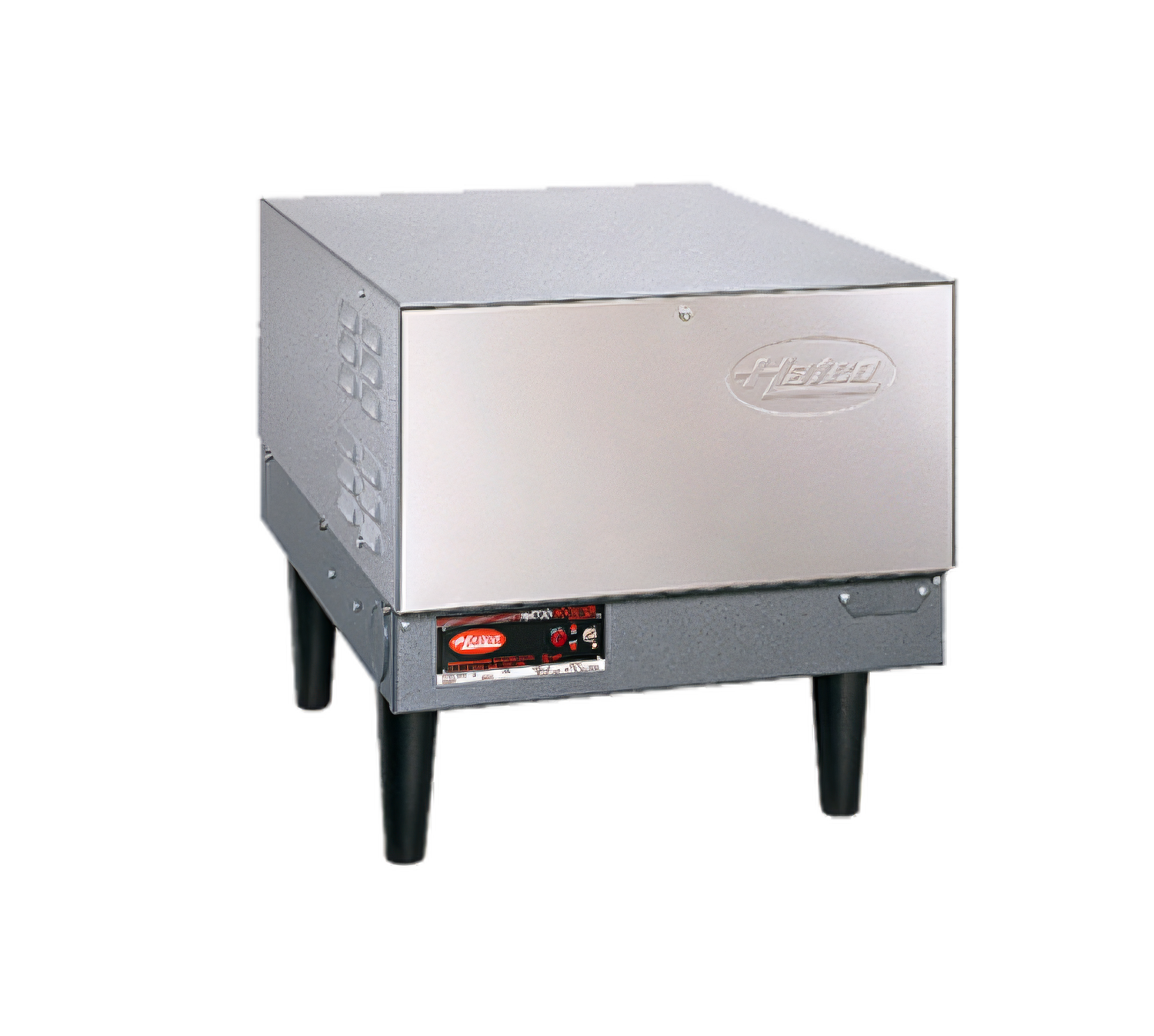

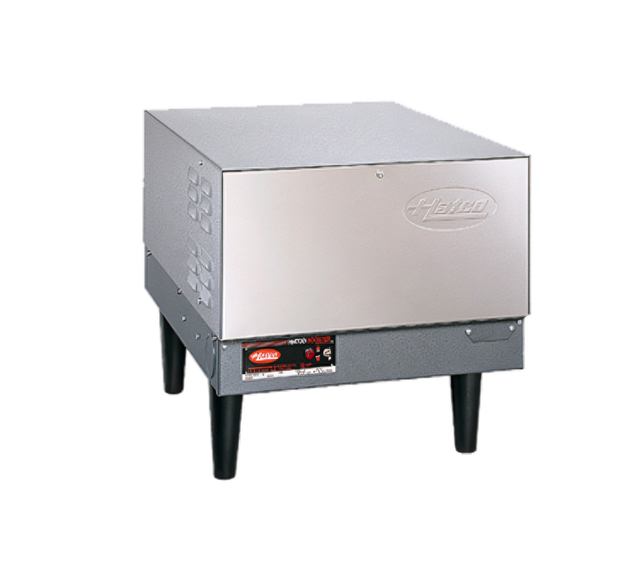

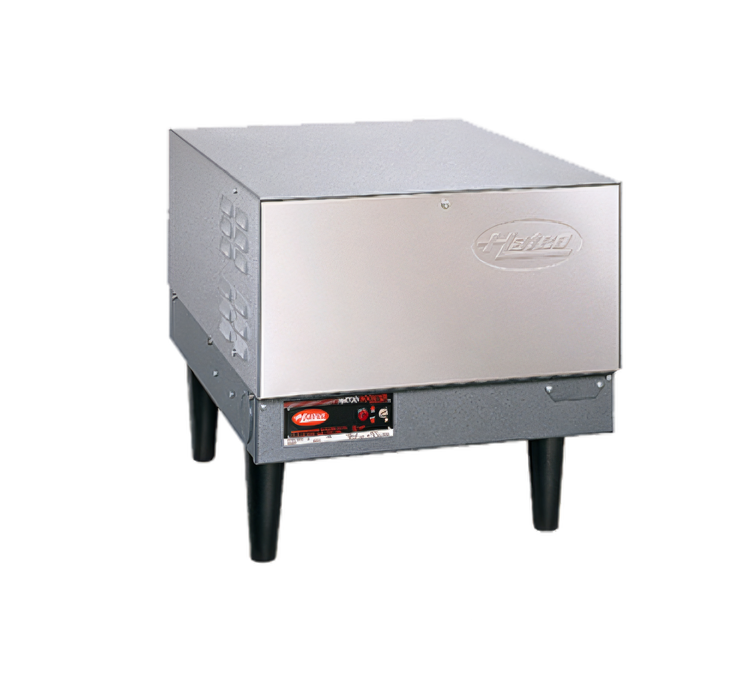

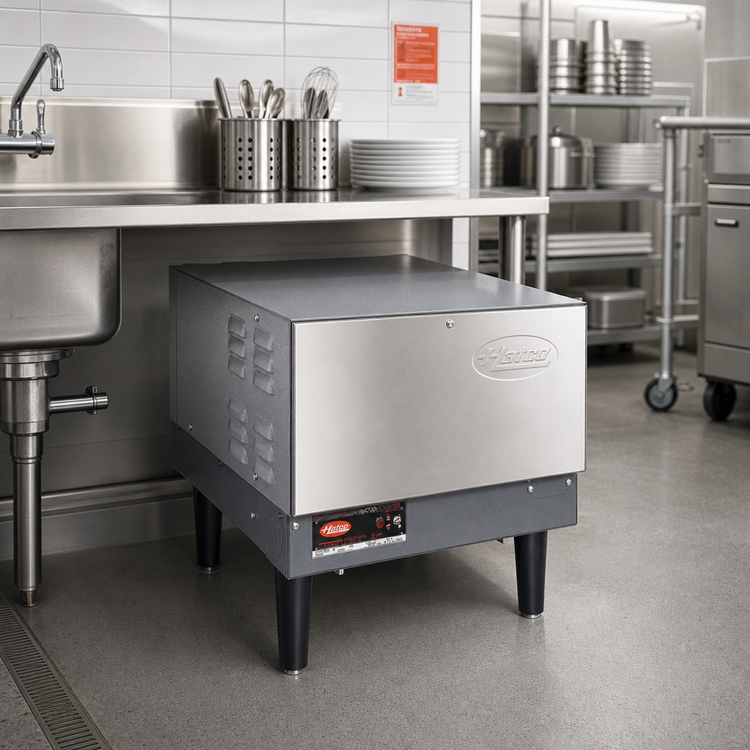

Hatco C-36 Compact Electric Booster Water Heater

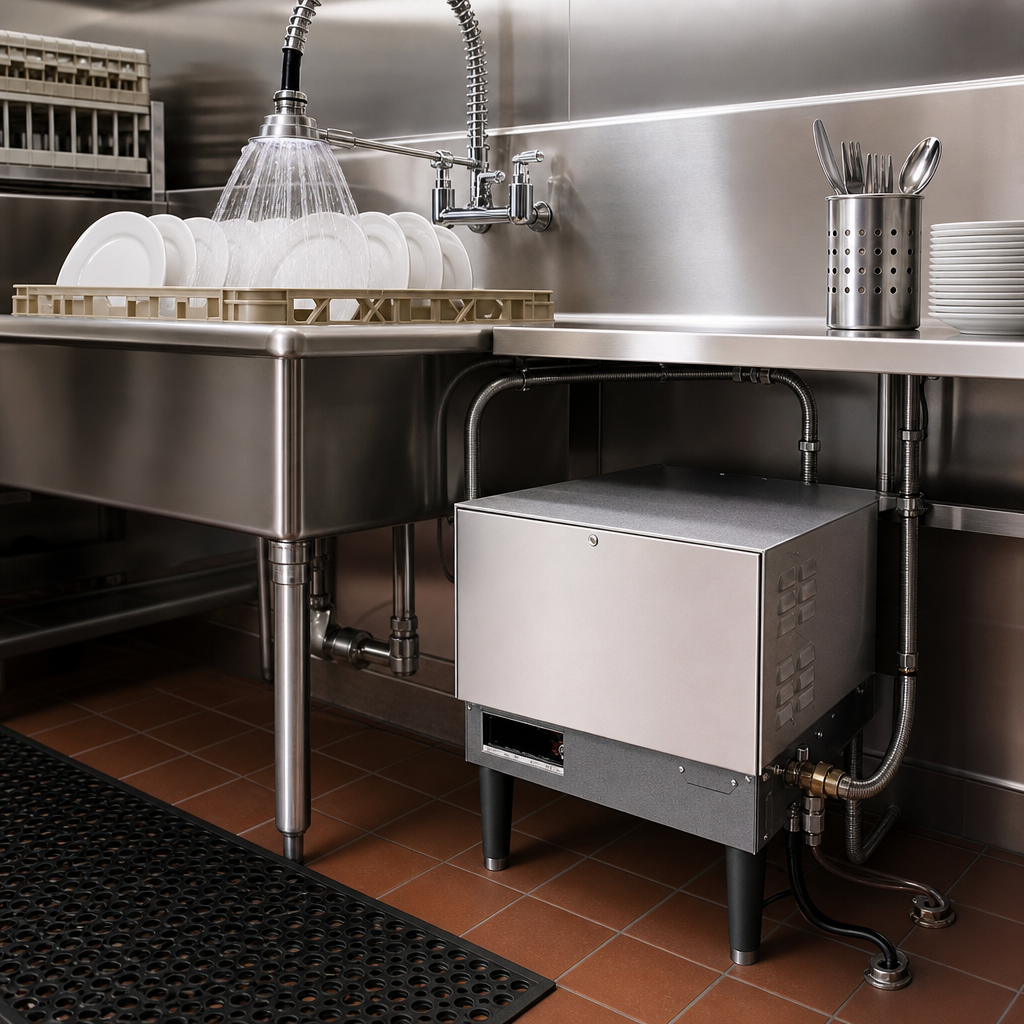

Quick-Ship • 36 kW • 240 V / 60 Hz / 3-Phase • 6 gal StorageGet 180 °F (82 °C) final-rinse water on demand—without giving up valuable floorspace. Hatco’s C-36 Quick-Ship Booster Heater delivers high-volume sanitizing power in a compact, pre-plumbed, and pre-wired package that can be installed next to almost any commercial dishwasher in minutes.
Key Features
- 36 kW heating capacity supplies up to 361 gph (40 °F rise) / 206 gph (70 °F rise).

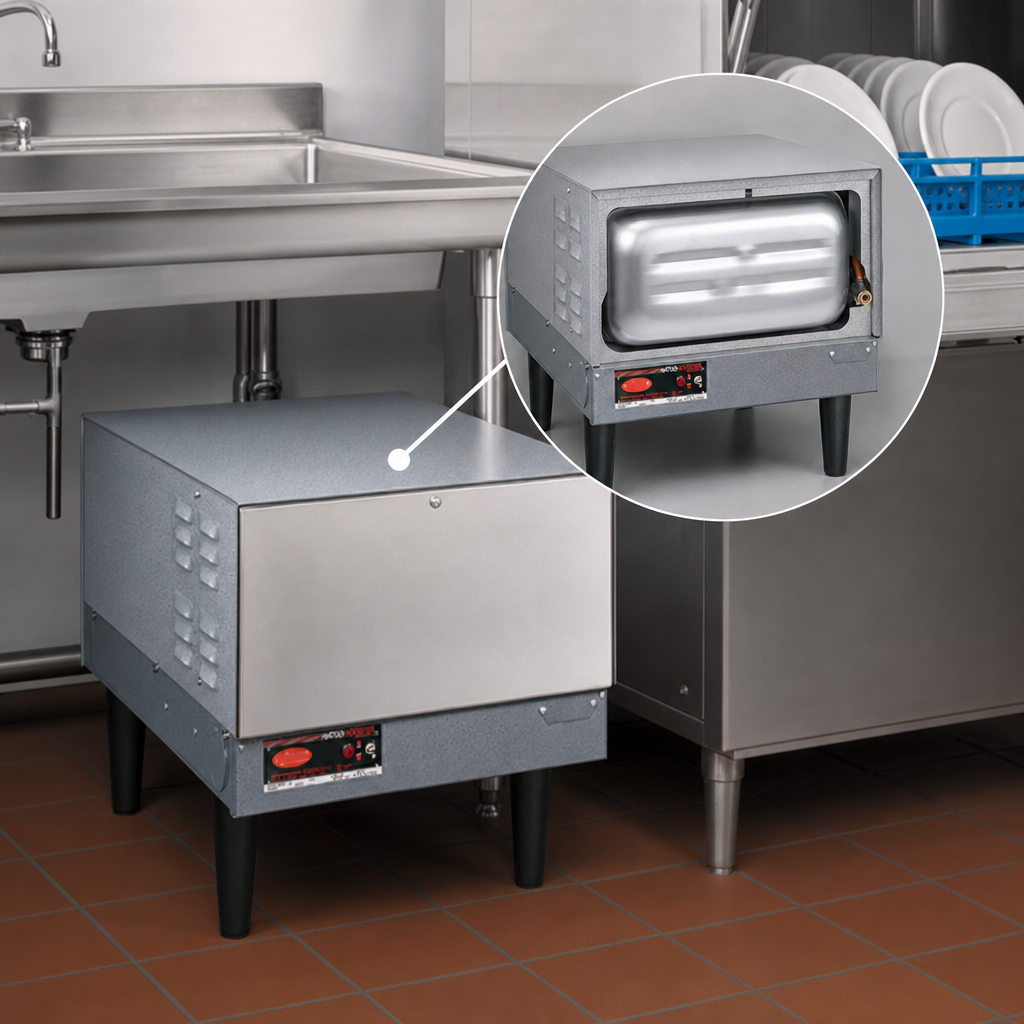

- 6 gal (23 L) Castone®-lined tank with a 10-year limited warranty resists corrosion & liming.
- Factory-set immersion thermostat & high-temperature limit switch for consistent 180 °F rinse water.
- Comprehensive safety package: low-water cut-off, temperature/pressure relief valve, pressure-reducing valve, dual temp/pressure gauges, and pilot indicator light.
- Durable stainless-steel front panel and powder-coated silver-gray hammertone body.
- 6" (152 mm) molded-plastic legs (non-adjustable) keep the unit off the floor and speed up cleaning.
- Thick fiberglass insulation minimizes standby heat loss and operating costs.
- Simple swing-away front panel gives instant service access to probes and elements.
- NSF & cULus listed; proudly Made in the USA.
At-a-Glance Specs
| Model | C-36 (Quick-Ship) |
|---|---|
| Storage Capacity | 6 gal / 23 L |
| Heating Capacity | 36 kW |
| Voltage / Phase | 240 V / 60 Hz / 3-Phase |
| Amps (240 V, 3 Φ) | 86.7 A |
| Recommended Breaker/Fuse | 125 A (3-pole) |
| Recovery Rate | 361 gph @ 40 °F rise 206 gph @ 70 °F rise |
| Inlet / Outlet Connections | ¾" NPT |
| Overall Dimensions (w × d × h, less legs) |
18" × 24" × 12.03" (457 × 610 × 306 mm) |
| Leg Height | 6" (152 mm) |
| Ship Weight | Approx. 142 lb (64 kg) |
| Certifications | NSF, cULus |
| Country of Origin | USA |
What’s Included
- Booster heater, fully assembled & wired
- Temperature/pressure relief valve & pressure-reducing valve (installed)
- Dual temp/pressure gauges
- On/Off toggle switch & indicator lights
- 6" plastic legs
- Installation & operating manual
Need it fast? This Quick-Ship model typically leaves the factory in 24–48 hours. For optional accessories (slide brackets, stainless legs, shock absorber, and more) please contact our team before ordering.
