Hatco C-36-208-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

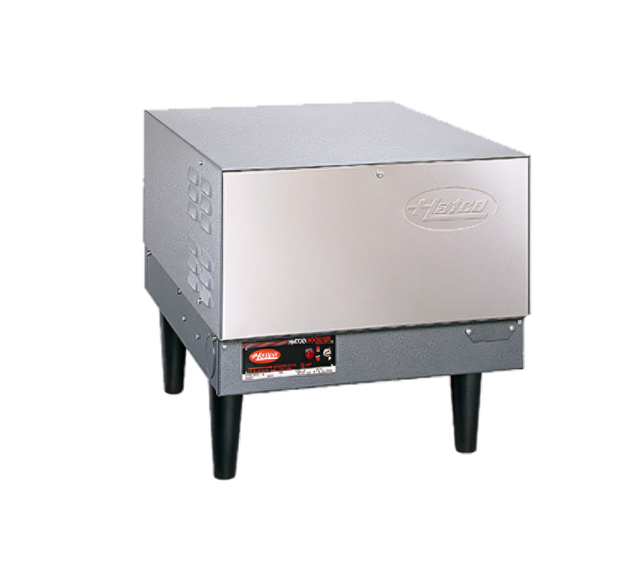

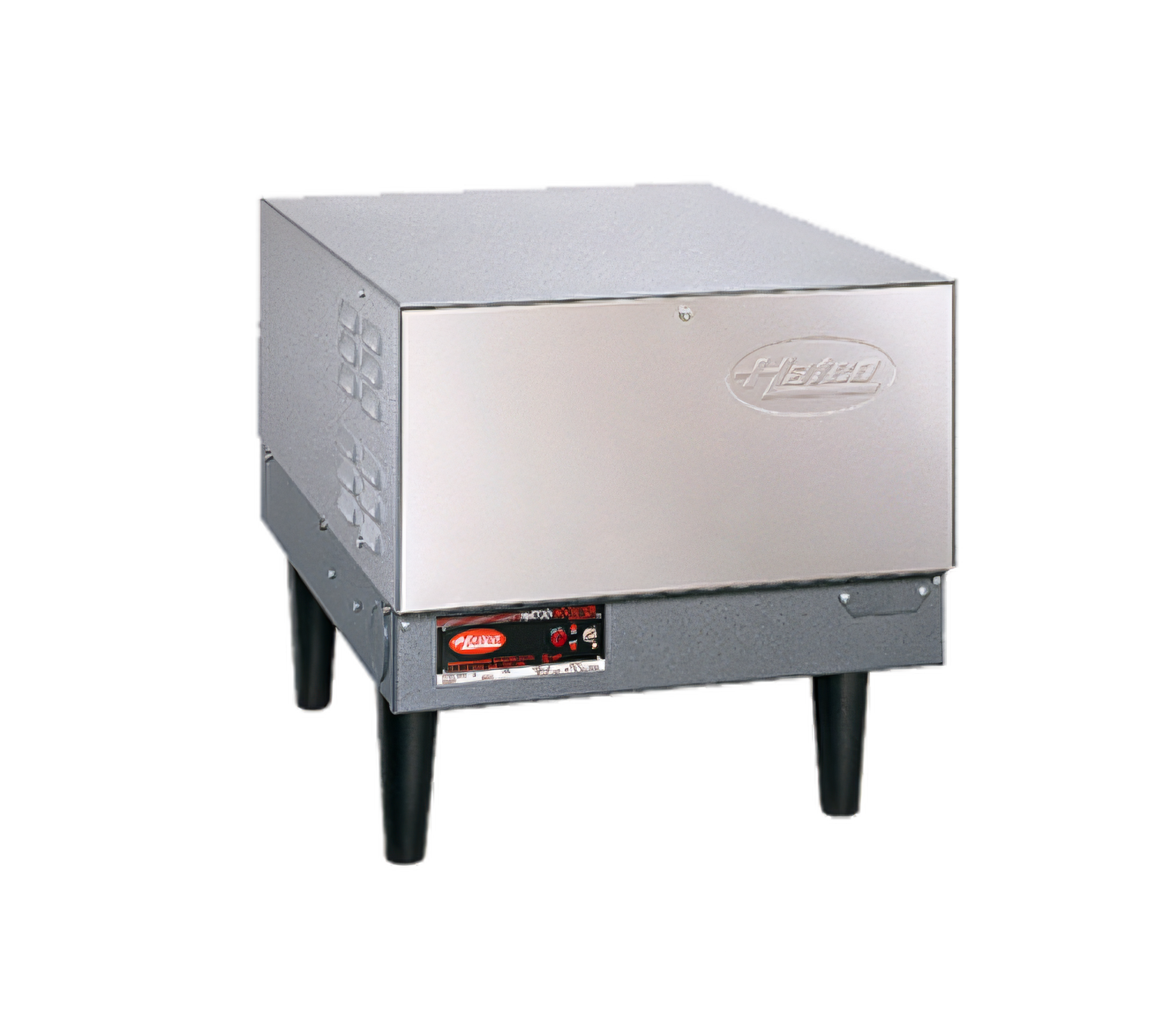

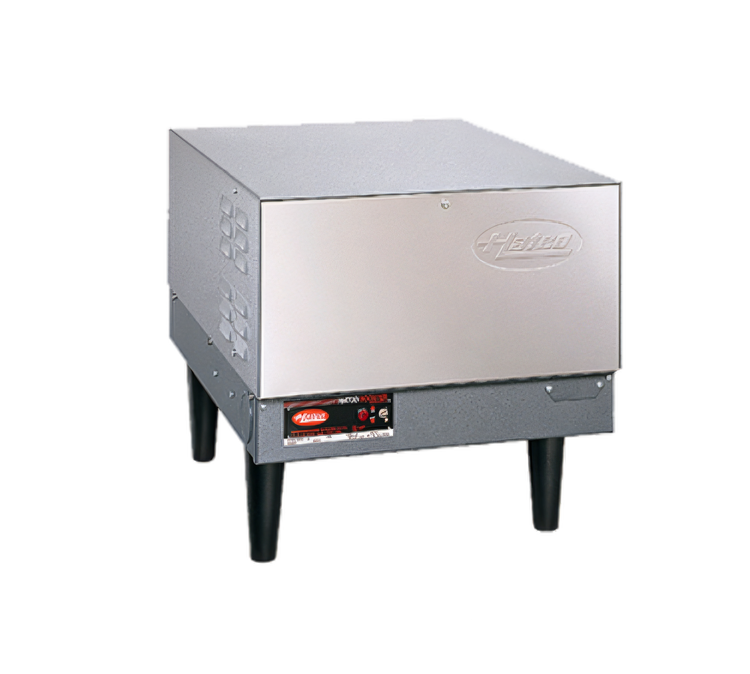

Hatco C-36 Compact Electric Booster Water Heater – Quick Ship

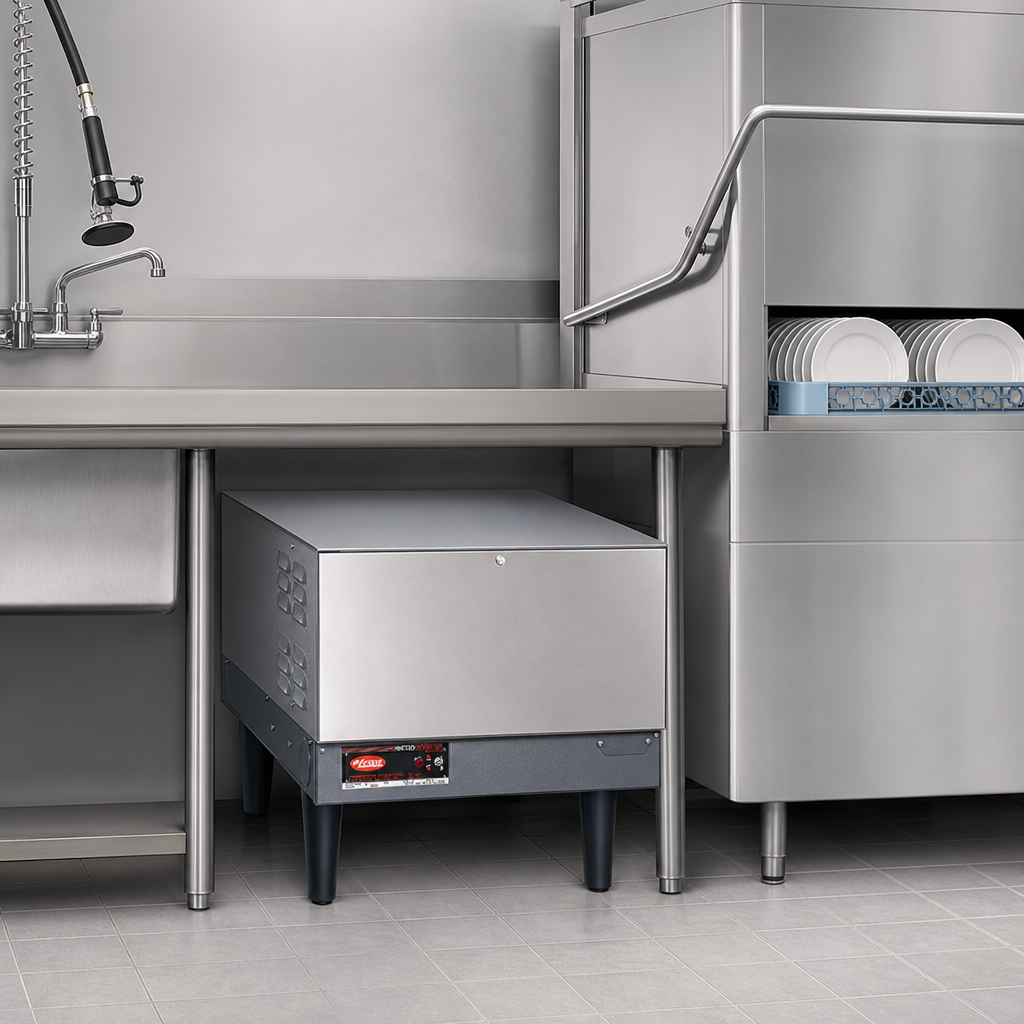

36 kW • 208 V / 3-Phase • 6 gal Castone® TankNeed 180°F (82°C) final-rinse water now? Hatco’s Quick-Ship C-36 Booster Heater slips under a dish table or work counter and sends a steady surge of sanitizing hot water to high-volume conveyor and flight-type warewashers—no wait, no worries.
Key features & benefits
- Quick-Ship configuration leaves the factory fast to keep projects on schedule.
- 36 kW output handles up to 361 GPH at a 40°F rise (206 GPH at 70°F).

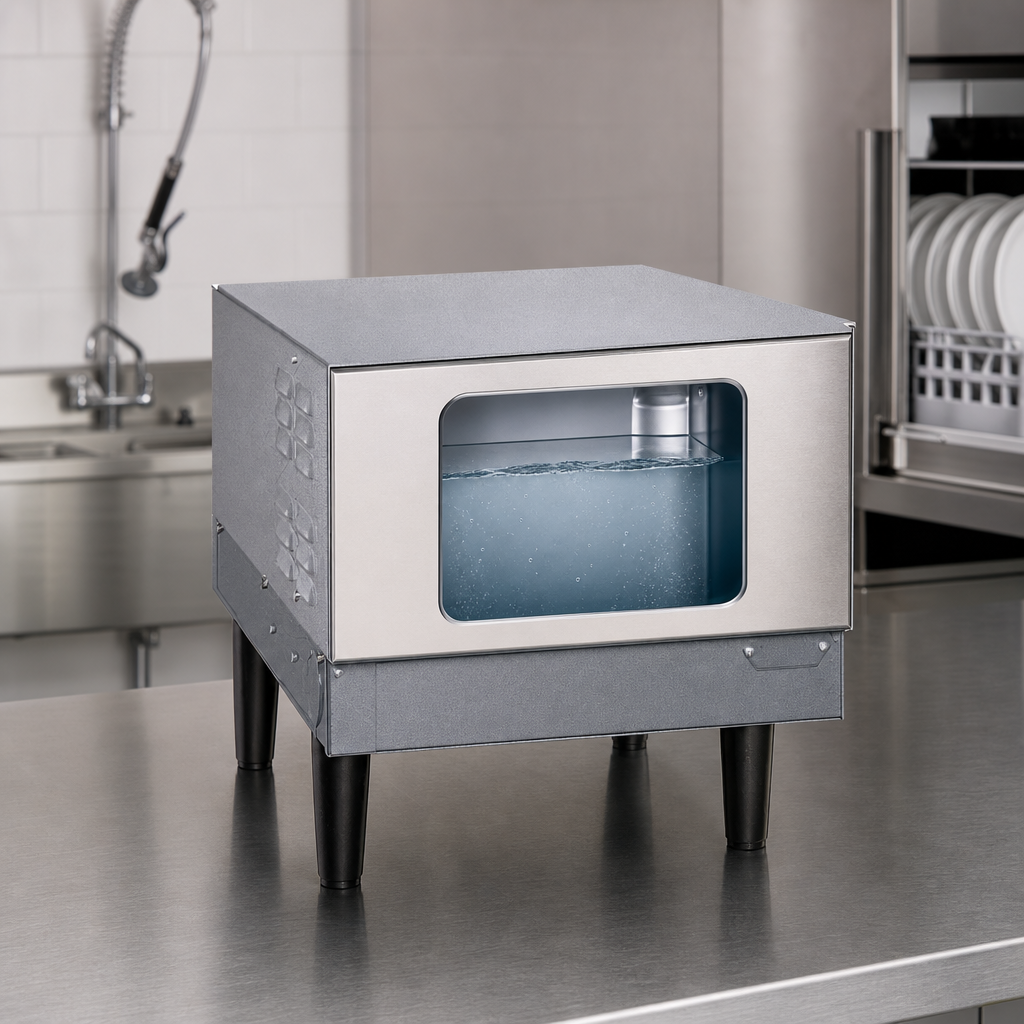

- 6 gallon Castone®-lined tank resists corrosion & carries a 10-year limited warranty.
- Factory-set thermostat delivers NSF-required 180°F rinse water for spot-free dishes.
- Stainless steel front panel & powder-coated silver-gray hammertone body for long-lasting good looks.
- Fully insulated to minimize standby heat loss and reduce energy costs.
- Comprehensive protection: low-water cut-off, high-limit thermostat, on/off toggle, pilot light, pressure-reducing valve & T/P relief valve.
- ¾" NPT inlet/outlet plus multiple electrical knockouts for painless installation.
- NSF & cULus listed; proudly Made in the USA.
Performance data
| Storage capacity | 6 gal (23 L) |
|---|---|
| Input | 36 kW |
| Voltage / phase | 208 V / 3-ph / 60 Hz |
| Full-load amps | 100 A (125 A recommended disconnect) |
| Recovery @ 40°F rise | 361 GPH (1 367 LPH) |
| Recovery @ 70°F rise | 206 GPH (780 LPH) |
| Water connections | ¾" NPT (inlet & outlet) |
| Overall dimensions* | 18" W × 24" D × 18.03" H (with 6" legs) |
| Certifications | NSF, cULus |
| Country of origin | USA |
*Body height is 12.03"; 6" non-adjustable plastic legs included.
What’s in the box
- C-36 Booster Heater with 6" legs installed
- Temperature/pressure relief valve
- Pressure-reducing valve
- Dual temperature/pressure gauges
- Installation & operation manual
Why choose Hatco?
- 70+ years of commercial foodservice expertise
- 24/7 parts & service assistance (US & Canada)
- Robust domestic parts availability for the life of the unit
Incoming water harder than 3.0 GPG must be treated/softened to maintain warranty coverage.
