Hatco  |  SKU: C-30

Hatco C-30 High Temp & Low Temp Dishwashers

$3,871.94
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual Parts list
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

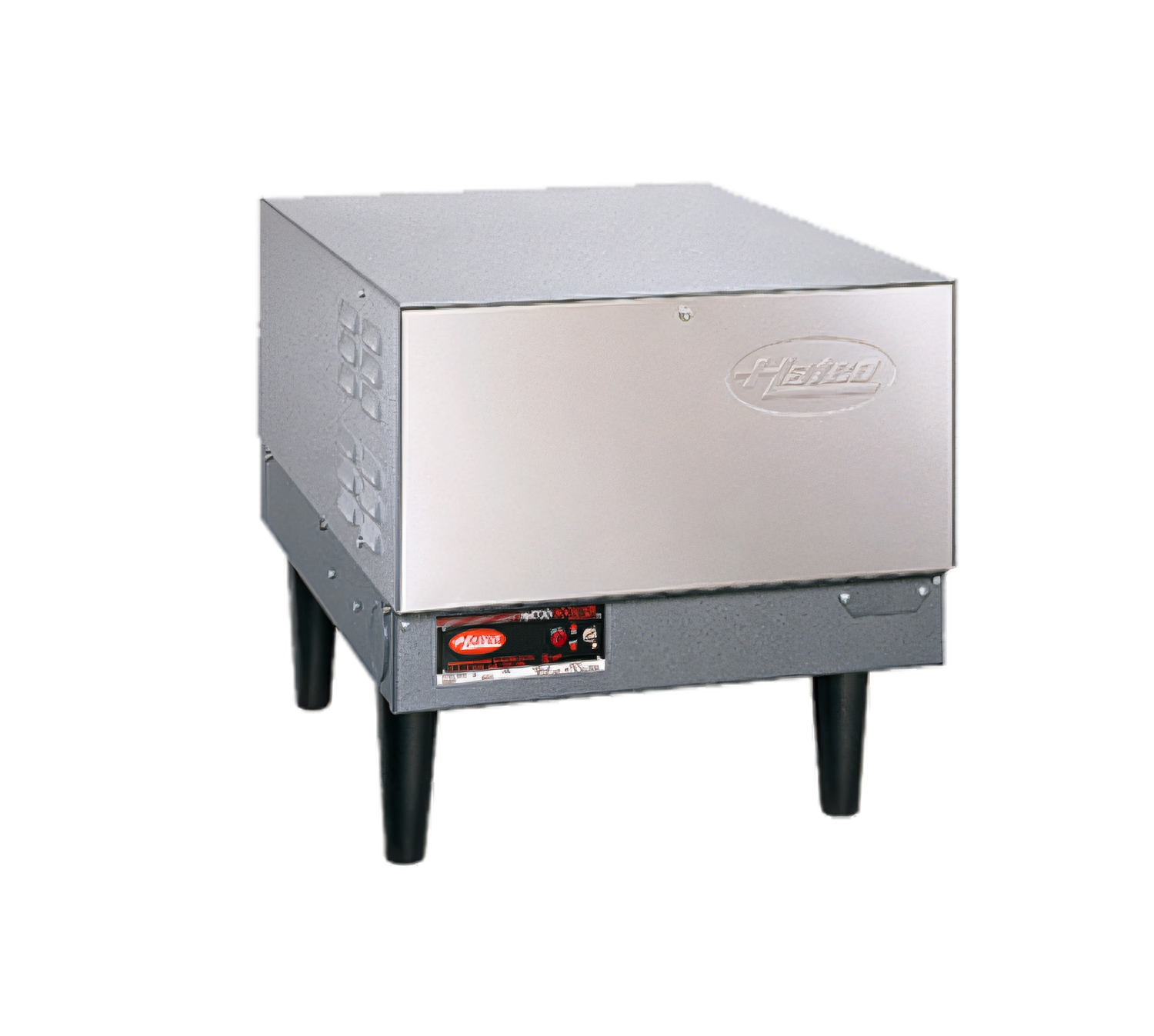

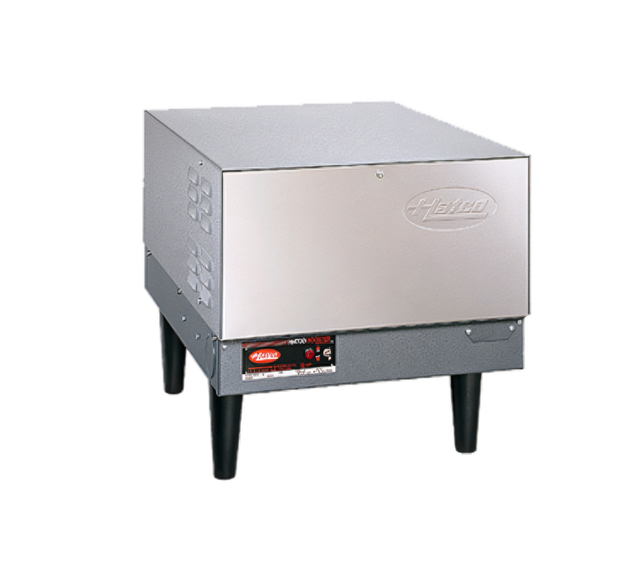

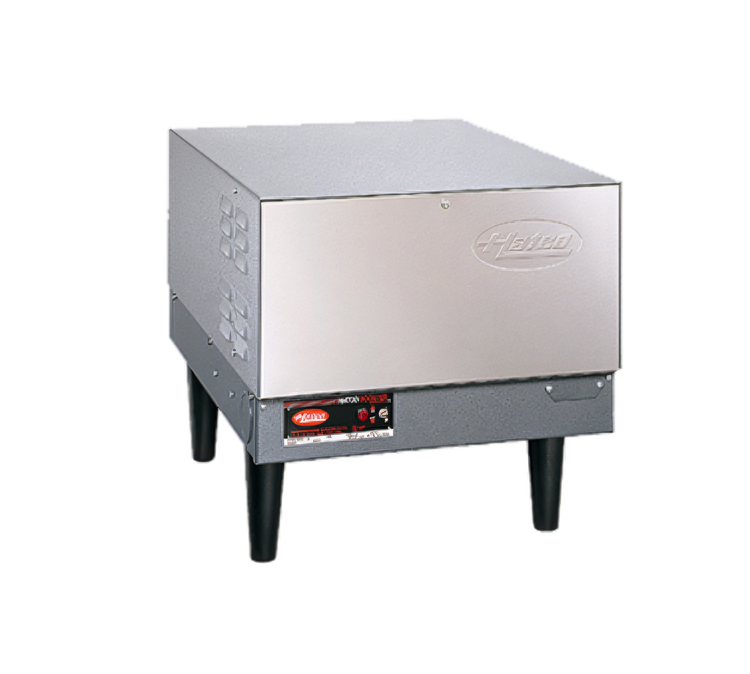

Hatco C-30 Compact Electric Booster Water Heater

30 kW • 6 gal Castone® tank • NSF & cULus listed

Give your high-volume dishmachine all the 180 °F (82 °C) final-rinse water it needs in a space-saving footprint. The Hatco C-30 delivers heavy-duty performance, exceptional durability and the proven reliability that food-service professionals have trusted for decades.

Key benefits

  • High output: 30 kW element package recovers up to 301 gph at a 40 °F rise (172 gph at 70 °F).
  • 6-gallon (23 L) reservoir: Castone® lined and backed by a 10-year limited tank warranty.
  • Ready to install: Factory pre-plumbed & pre-wired with calibrated immersion thermostat, high-temperature limit, 3⁄4" NPT inlet/outlet, pressure-reducing valve and T&P relief valve.
  • Built-in protection: Low-water cut-off prevents element burnout; swing-away front panel gives fast access for service.
  • Tough, sanitary exterior: Stainless-steel front panel and powder-coated silver-gray hammertone body resist corrosion and feature antimicrobial protection.
  • Efficient insulation: Full fiberglass jacket minimizes stand-by heat loss.
  • Versatile mounting: Supplied with 6" (152 mm) non-adjustable plastic legs—ideal for under-counter or dish-table placement.
  • Certified NSF, cULus and proudly Made in the USA.

At-a-glance specs

Model C-30
Storage capacity 6 gal (23 L)
Power rating 30 kW, electric
Voltage options (1 Φ) 208 V – 173.1 A (225 A breaker) | 240 V – 150 A (200 A breaker)
Voltage options (3 Φ) 208 V – 86.7 A | 240 V – 75 A | 480 V – 43.4 A | 600 V – 34.8 A
Recovery rate* 301 gph @ 40 °F rise | 172 gph @ 70 °F rise
Connections 3⁄4" NPT inlet & outlet
Dimensions** 18" W × 24" D × 12.03" H (+6" legs)
Shipping weight ≈ 142 lb (64 kg)
Certifications NSF, cULus
Origin Made in USA

*To 180 °F final rinse temperature.   **Depth includes temperature/pressure relief valve. Height excludes legs.

Ideal for

  • Conveyor, flight-type or door-type dishwashers
  • Cafeterias, hotels & banquet facilities
  • High-volume food courts and institutional kitchens
Water quality requirement: Incoming water harder than 3.0 grains per gallon must be softened. Lime or sediment damage is not covered under warranty.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

18.0in

Width

18.0in

Depth

24.0in

Shipping Weight

142.0lbs

Width

11" - 19"

Wattage

20 - 40 kilowatts

Tank Capacity

6 gallon

Specifications

Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 30.0kW, NSF, cULus, Made in USA
