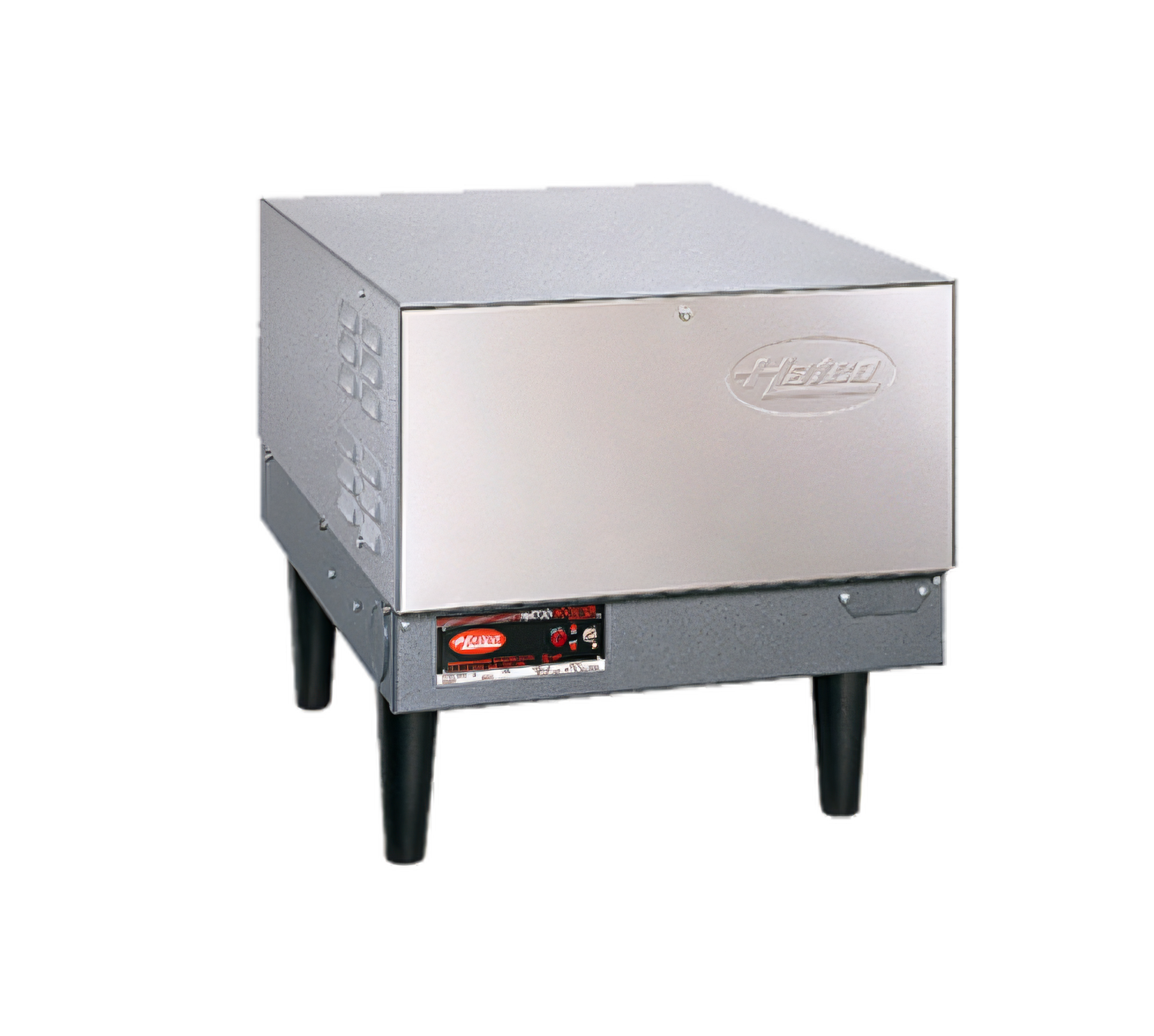

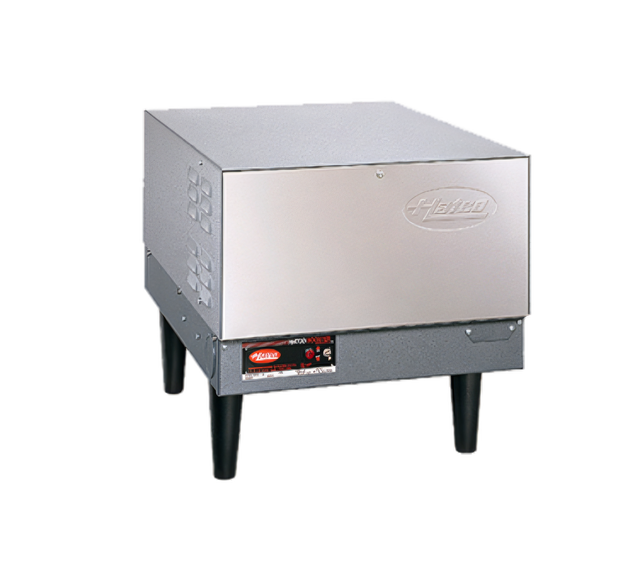

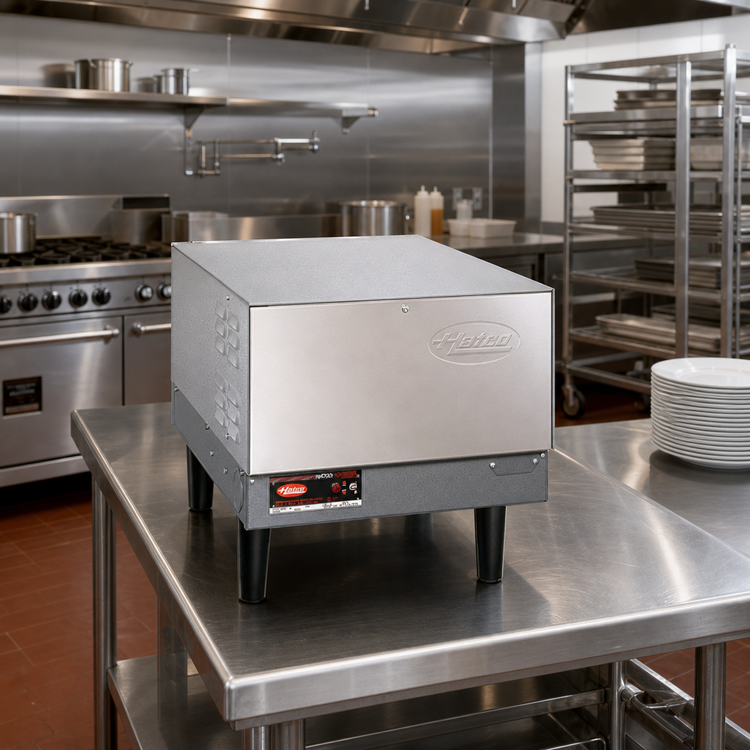

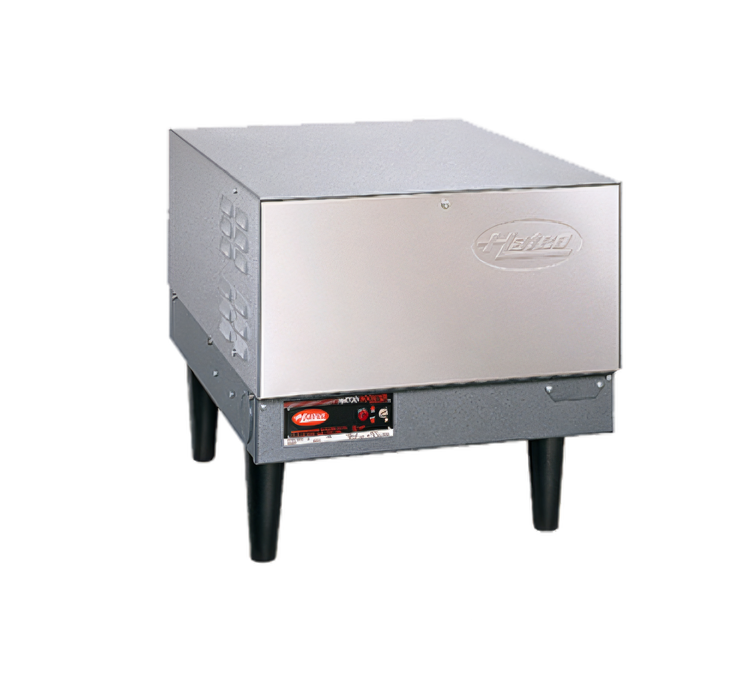

Hatco Quick Ship Compact Electric Booster Heater, 6 Gallon, 30 kW, 480V, 3-Phase

Space-Saving Dishwasher Rinse Booster with Castone-Lined Tank

Delivers reliable 180°F final-rinse water in a compact 6-gallon footprint for busy dish rooms.

  • Provides the 180°F final-rinse water needed to sanitize and flash-dry dishes and flatware.
  • Compact 6-gallon storage capacity fits well in tight dish room layouts.
  • 30.0 kW electric heating with 480V, 60 Hz, 3-phase service for demanding operations.
  • Castone®-lined tank and built-in safety controls help support long-term performance.
  • Stainless steel front panel and powder-coated silver-gray hammertone body add durability.
  • Factory pre-plumbed and pre-wired for easier installation, with 6-inch plastic non-adjustable legs.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

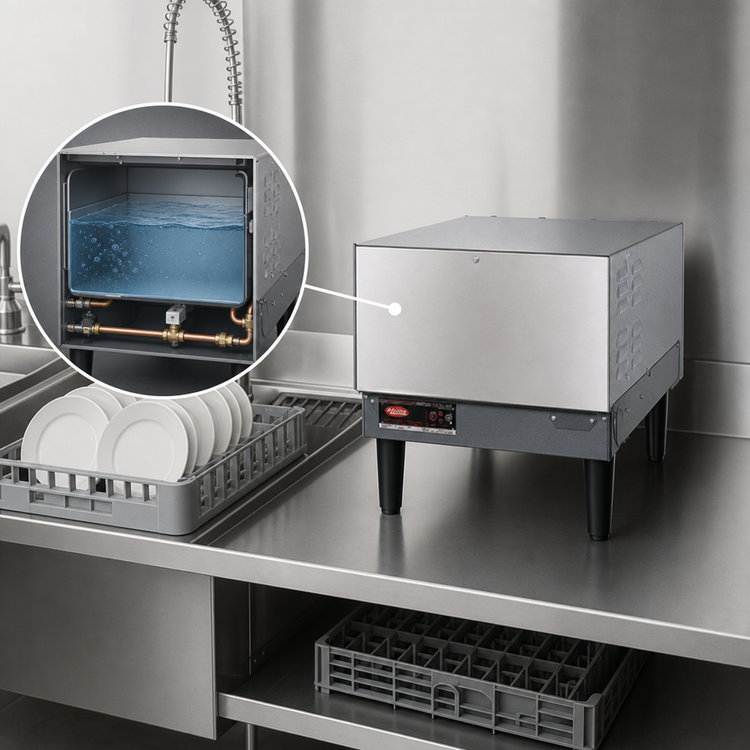

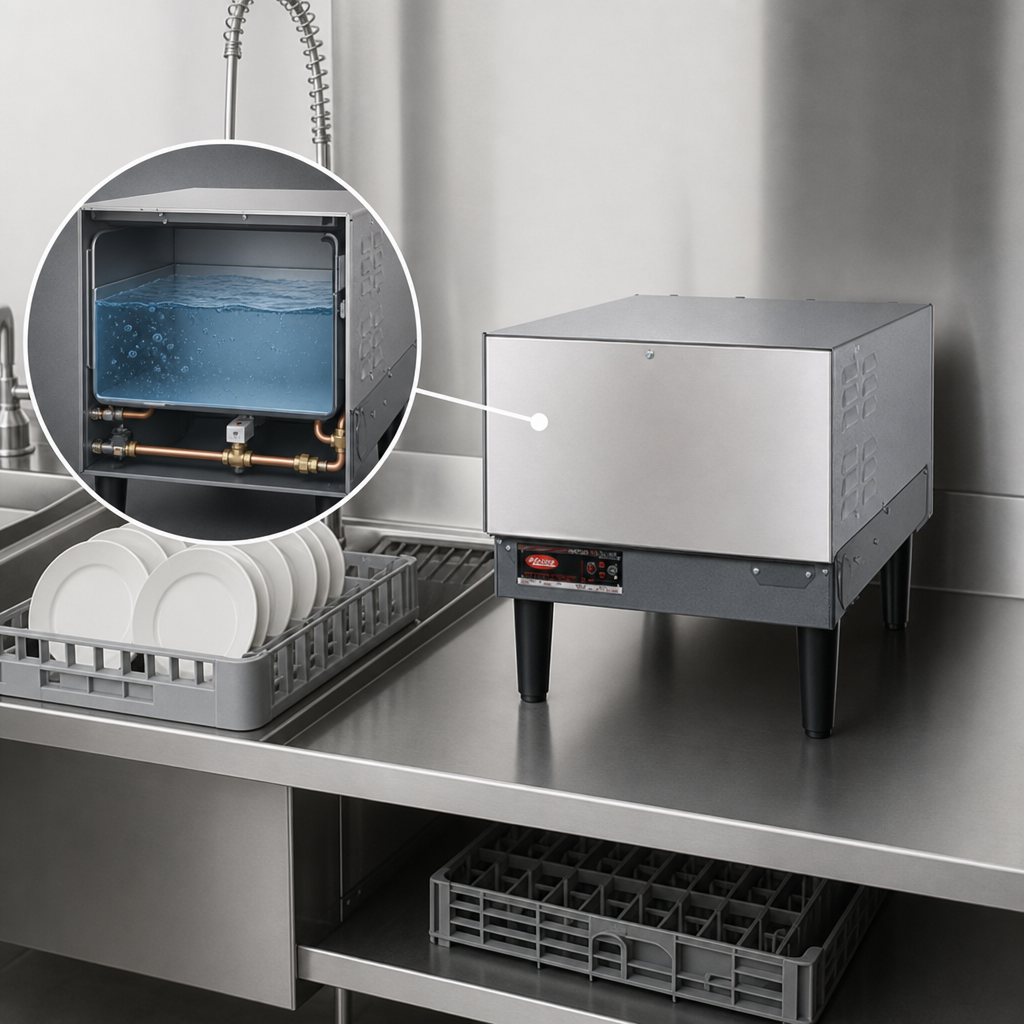

6-Gallon Storage Capacity

Compact tank holds 6 gallons (23 liters) of heated water for final-rinse service.

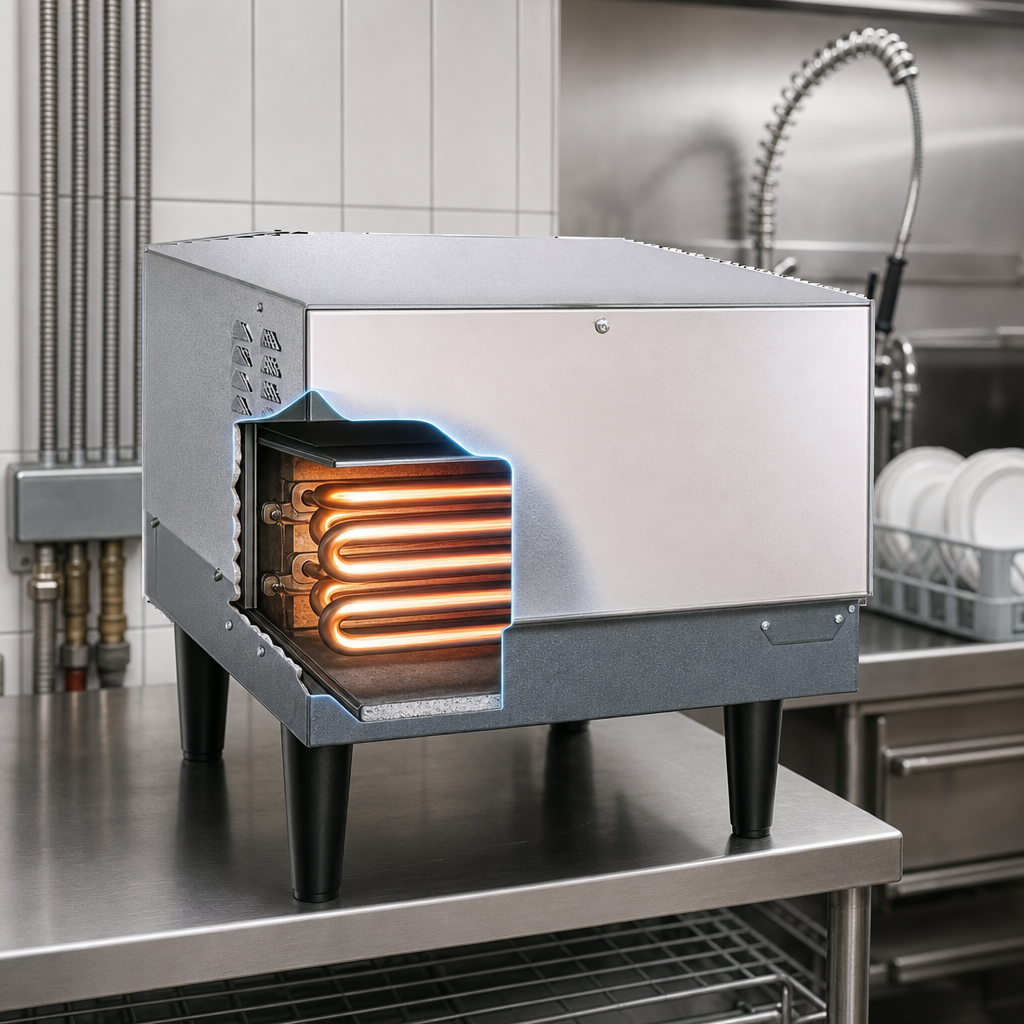

30.0 kW Electric Heating

High-output electric operation supports rapid recovery for commercial dishwasher rinse cycles.

480V, 60 Hz, 3-Phase Power

Designed for 480-volt, 60 Hz, three-phase electrical service.

Castone®-Lined Tank

Durable Castone-lined tank construction includes a 10-year limited warranty on the tank.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Factory Pre-Plumbed and Pre-Wired

Arrives with calibrated immersion thermostat and high-temperature limit switch already configured.

Durable Exterior Construction

Features a stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch plastic non-adjustable legs.

3/4-Inch NPT Plumbing Connections

Internal piping and fittings are provided for inlet and outlet connections.

Type Booster Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Watts 30 kW
Voltage 480 Volts
Hertz 60 Hz
Phase 3-Phase
Amps 36.1 Amps
Breaker Size 50 Amps
Water Inlet Size 3/4 Inch NPT
Color Silver-Gray
Finish Powder-Coated Hammertone
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 18 Inches
Shipping Weight 142 Pounds
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone-lined tank.

Documents

PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It provides 180°F final-rinse water for sanitizing and flash-drying dishes and flatware.
It is rated for 480 volts, 60 Hz, 3-phase operation at 30.0 kW.
The unit has a 6-gallon (23-liter) storage capacity.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
The unit is designed to install next to a dishwasher and can also be mounted under a dishtable with slide brackets; this model includes 6-inch plastic non-adjustable legs.
The Castone®-lined tank includes a 10-year limited warranty, and the product literature also notes 24/7 parts and service assistance in the US and Canada.
