Hatco

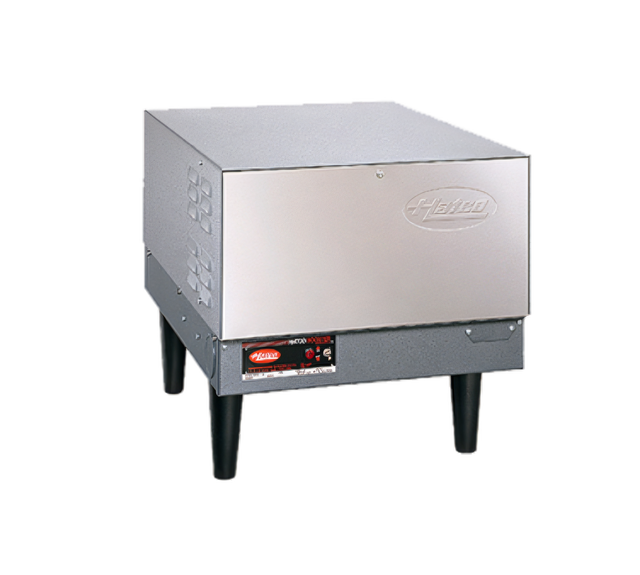

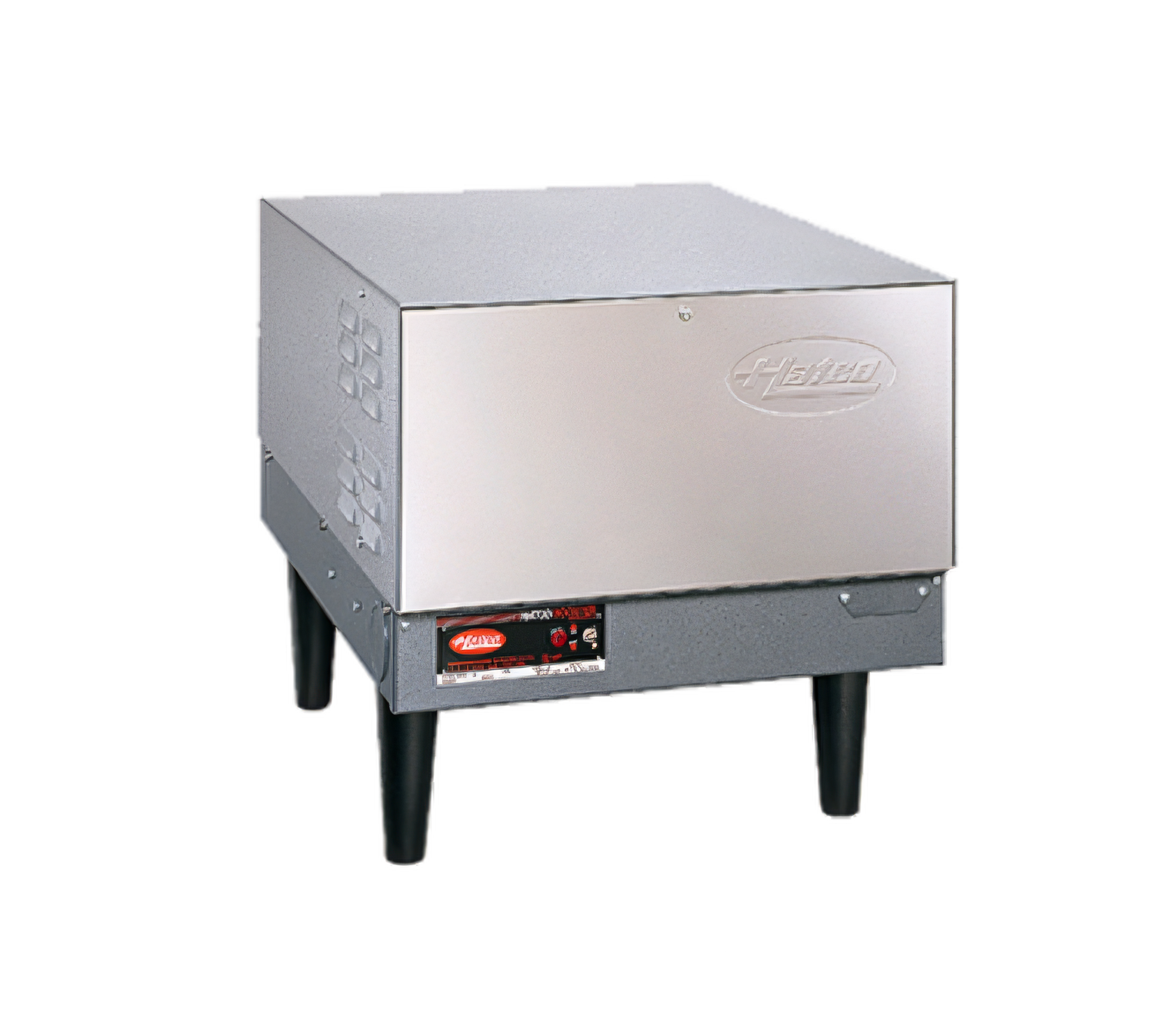

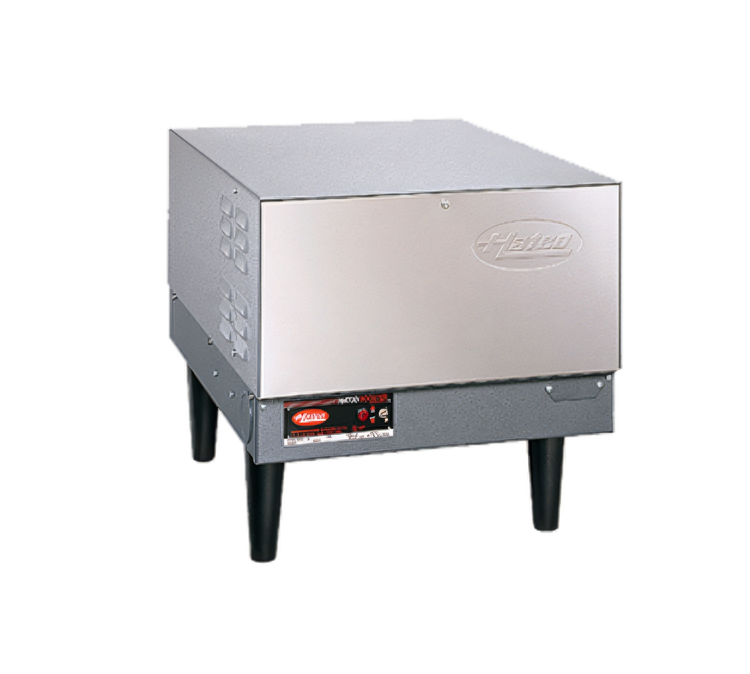

Hatco Compact Electric Booster Water Heater, 6 Gallon, 30 kW, 240V, 3-Phase

SKU: C-30-240-3-QS
GTIN: 61570000983
$3,911.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Water Heater, 6 Gallon, 30 kW, 240V, 3-Phase

Stainless Steel Front Panel, Powder-Coated Silver-Gray Hammertone Body, 6-Inch Legs

Delivers 180°F final rinse water in a compact footprint for reliable dishmachine sanitation and quick turnaround.

  • 6-gallon storage capacity in a space-saving compact design.
  • 30 kW electric heating with 240V, 3-phase service.
  • Provides 180°F final rinse water to sanitize and flash-dry dishes and flatware.
  • Castone® lined tank construction with a 10-year limited warranty.
  • Stainless steel front panel and powder-coated silver-gray hammertone body.
  • Includes built-in safety controls such as low-water cut-off, high-temperature limit control, gauges, and relief valve.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

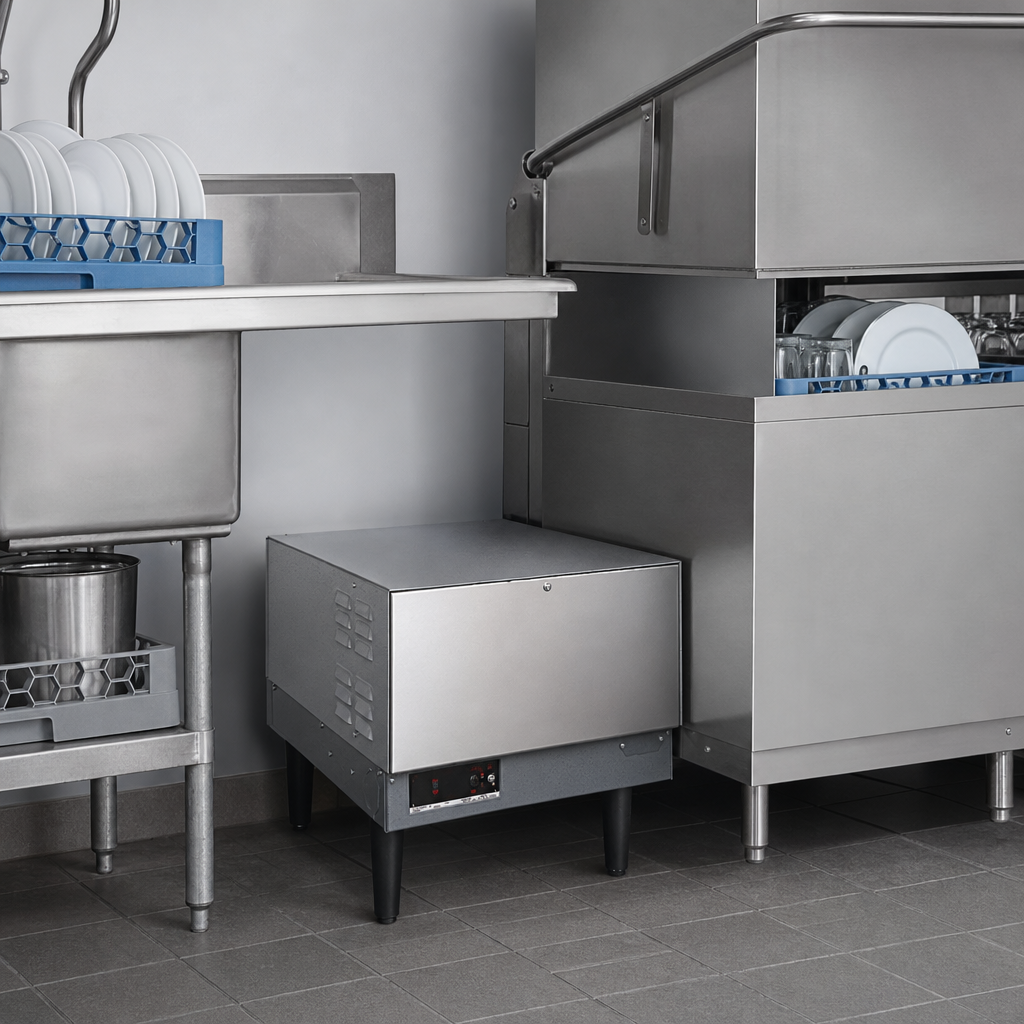

Compact Space-Saving Design

Designed to install next to the dishwasher and fits compact dishrooms without sacrificing performance.

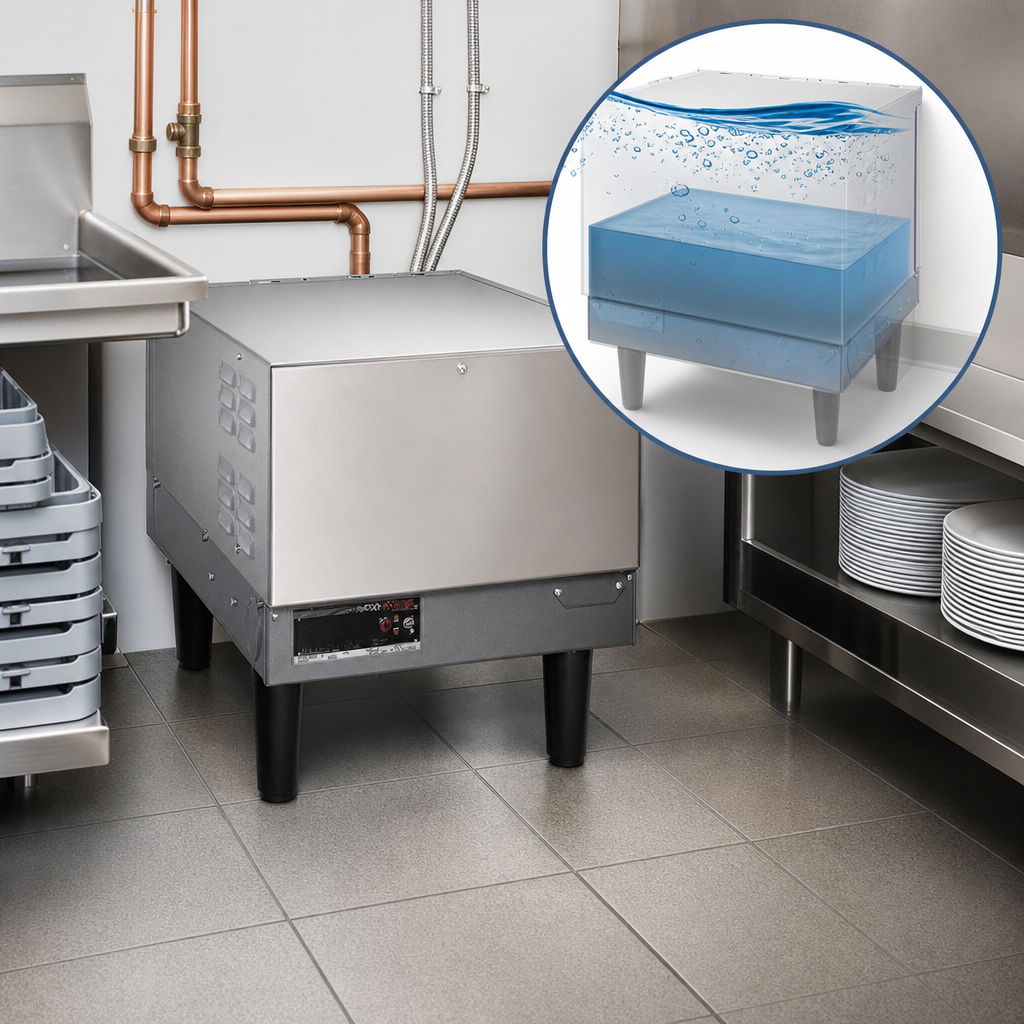

6-Gallon Storage Capacity

Holds 6 gallons of water for final rinse demand.

30.0 kW Electric Heating

High-output electric heating supports fast recovery for busy warewashing operations.

240V, 3-Phase Operation

Configured for commercial electrical service at 240 volts, 60 Hz, 3-phase.

Castone® Lined Tank

Tank is lined for durability and is covered by a 10-year limited warranty.

Built-In Safety and Control Package

Includes a temperature/pressure relief valve, pressure reducing valve, two gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Factory Pre-Plumbed and Pre-Wired

Arrives pre-plumbed and pre-wired with calibrated immersion thermostat and high-temperature limit switch for easier installation.

Durable Exterior Construction

Features a stainless steel front panel and powder-coated silver-gray hammertone body with 6-inch legs.

Type Electric Booster Water Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 30 kW
Voltage 240 Volts
Hertz 60 Hz
Phase 3-Phase
Amps 72.2 Amps
Breaker Size 100 Amps
Finish Powder-Coated Silver-Gray Hammertone
Controls Thermostatic
Water Inlet Size 3/4 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It supplies 180°F final rinse water to sanitize and flash-dry dishes and flatware.
The unit has a 6-gallon storage capacity.
It operates on 240 volts, 60 Hz, 3-phase power.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, two gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.
Incoming water above 3.0 grains of hardness per gallon must be treated and softened before use.
The documentation says slide brackets are available for mounting under a dishtable.
