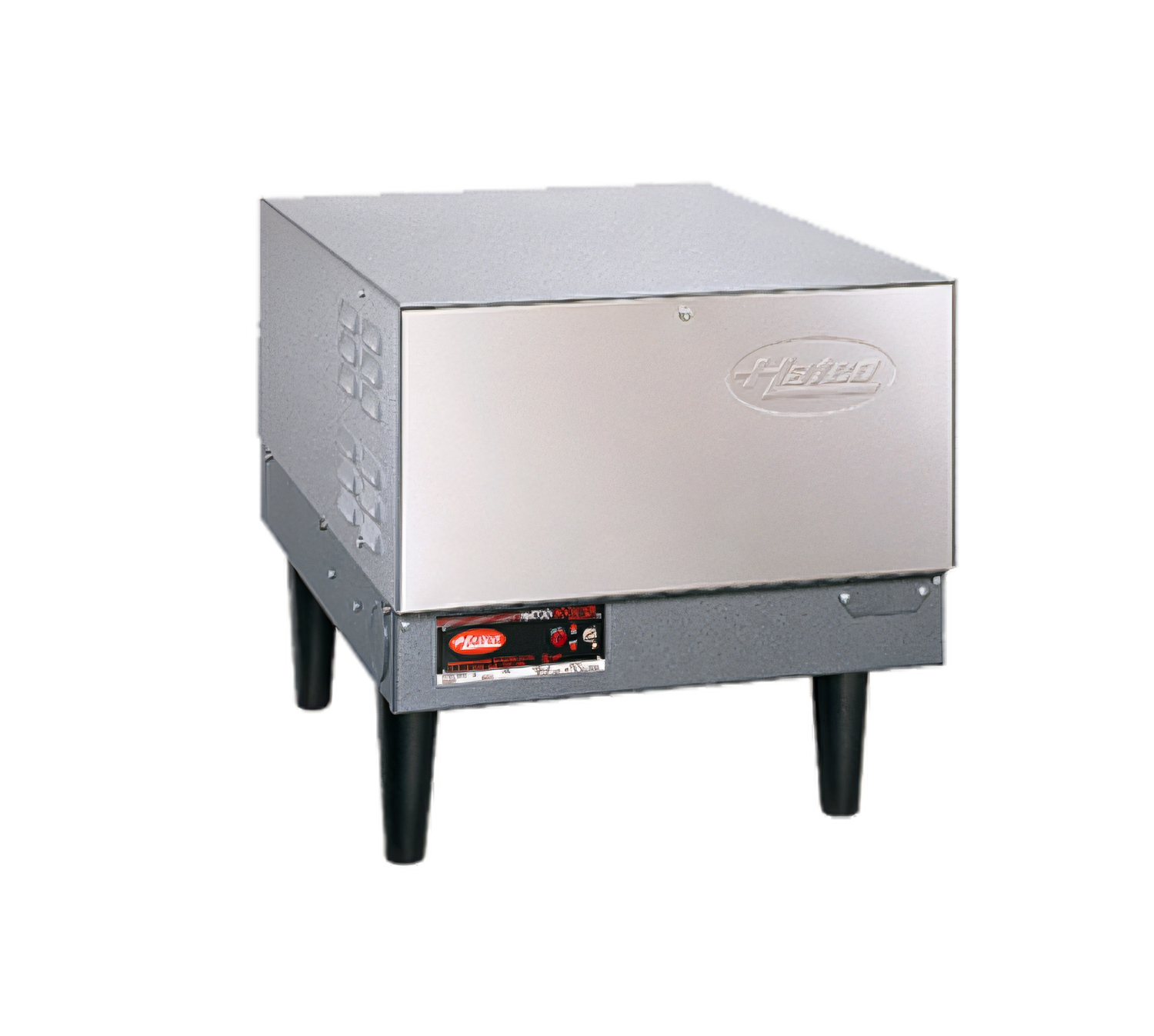

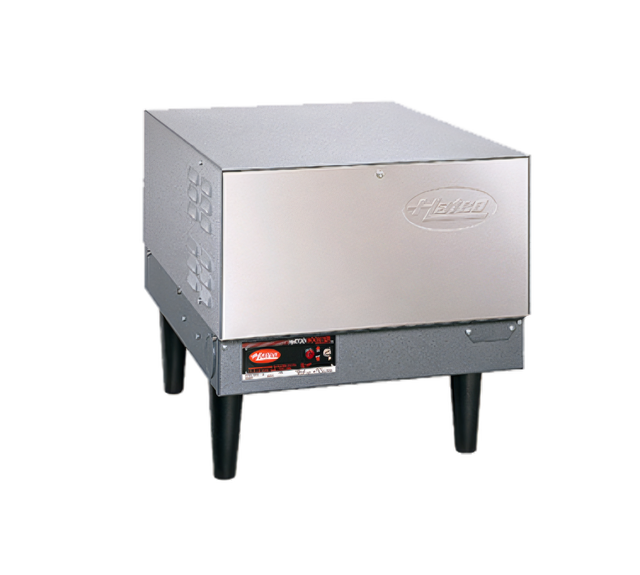

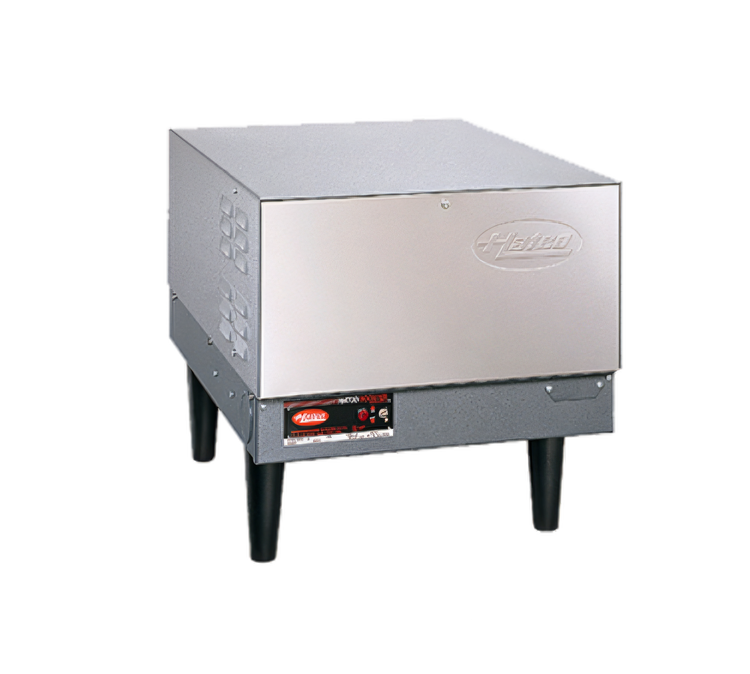

Hatco Compact Electric Booster Water Heater, 6 Gallon, 30 kW, 208V, 3-Phase

Quick Ship Model with 6" Non-Adjustable Legs

This compact electric booster heater delivers 180°F final-rinse water in a space-saving 6-gallon design built for dependable dish room performance.

  • Compact booster heater designed for dishwasher final-rinse applications.
  • 6-gallon storage capacity and 30 kW output support high-demand hot water recovery.
  • Provides 180°F rinse water to help sanitize and flash-dry dishes and flatware.
  • Castone® lined tank, fiberglass insulation, and built-in safety controls support reliable operation.
  • Stainless steel front panel with powder-coated silver-gray hammertone body.
  • Factory pre-plumbed and pre-wired with 3/4" NPT inlet and outlet connections.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

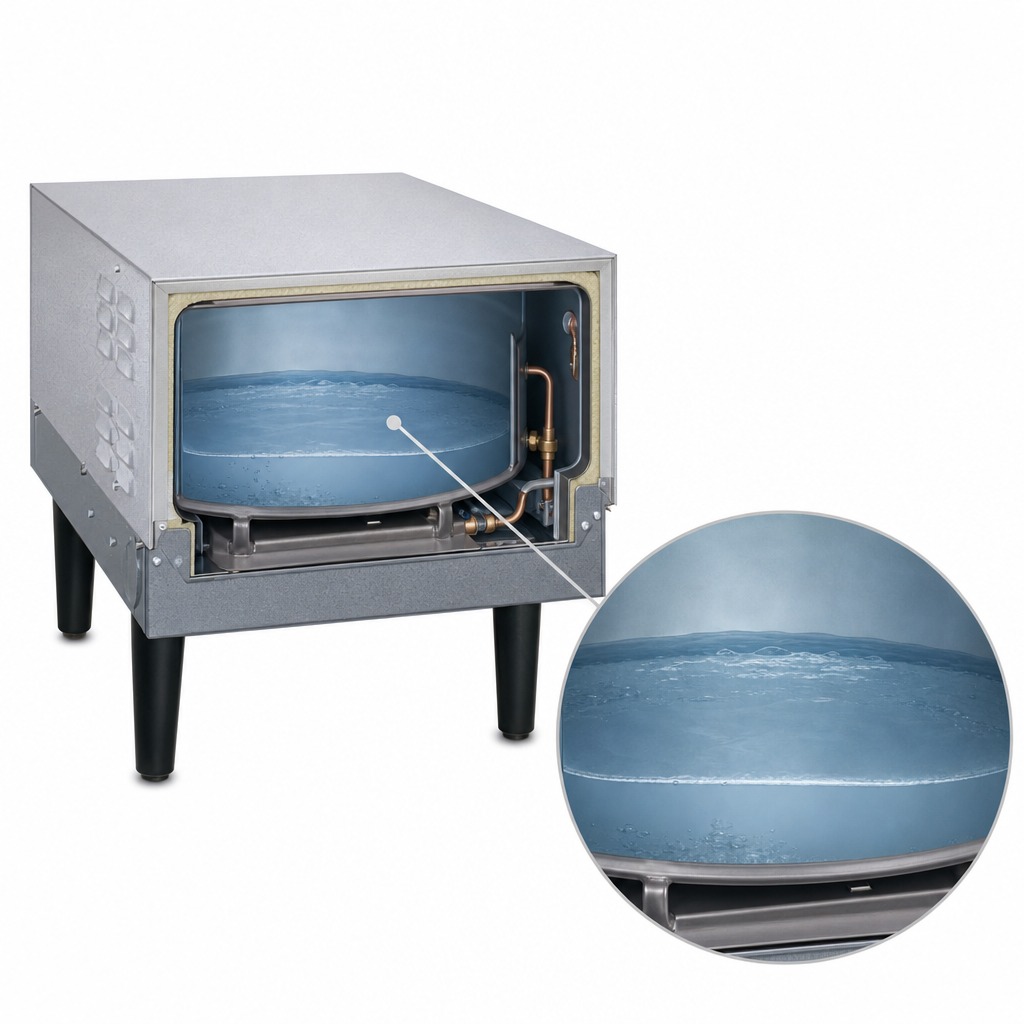

6-Gallon Storage Tank

Compact storage capacity provides hot water reserve for final-rinse demand.

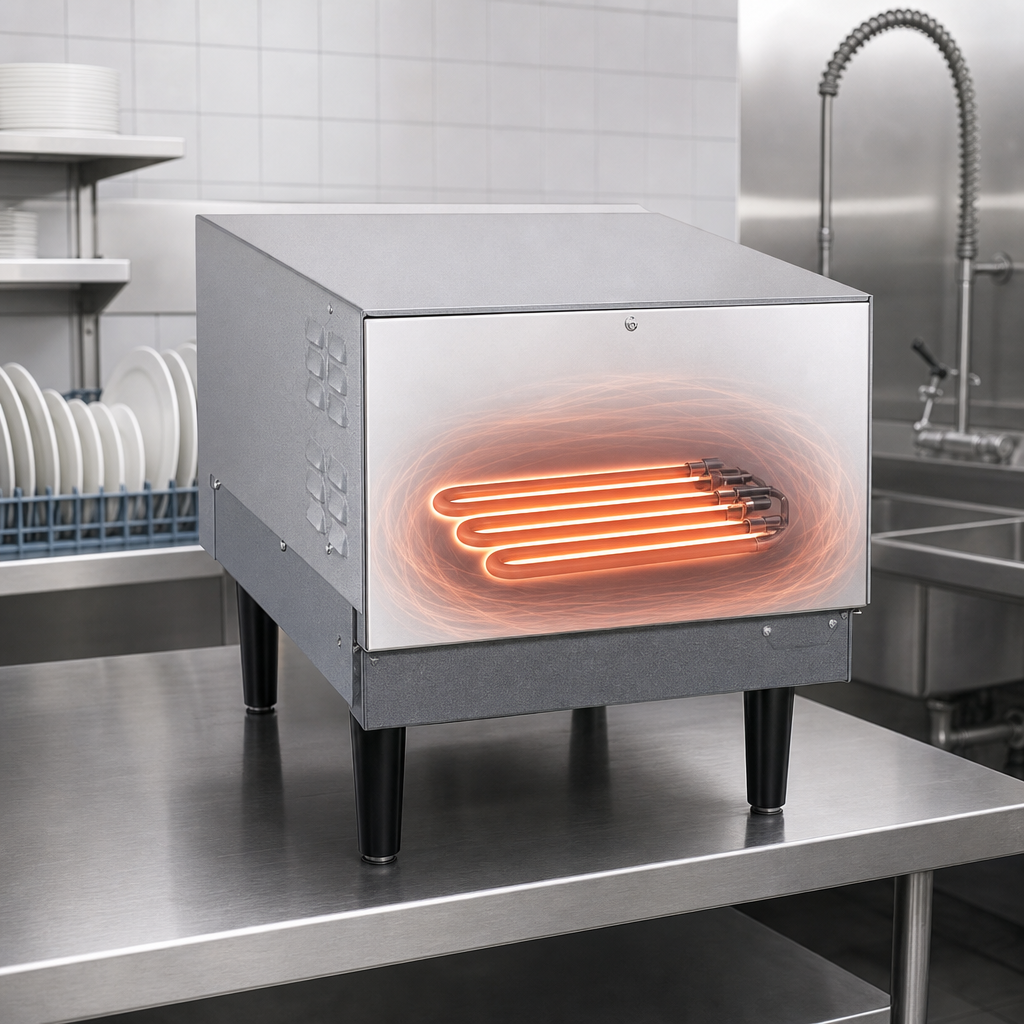

30.0 kW Electric Heating

High-output electric heating supports strong recovery in busy dish room use.

180°F Final Rinse Water

Designed to supply sanitizing rinse water for dishes and flatware.

Castone® Lined Tank

Lined tank construction helps durability and includes a 10-year limited tank warranty.

Built-In Safety Package

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, a pilot indicator light, an on-off switch, and a low-water cut-off.

Pre-Plumbed and Pre-Wired

Factory-assembled plumbing and wiring simplify installation and startup.

Durable Exterior Finish

Stainless steel front panel with a powder-coated silver-gray hammertone body.

6" Non-Adjustable Legs

Standard legs support floor placement next to the dishwasher.

3/4" NPT Connections

Includes internal plumbing with 3/4" NPT inlet and outlet pipe and fittings.

Fiberglass Insulation

Helps minimize heat loss for efficient operation.

Type Electric Booster Water Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Watts 30 kW
Voltage 208 Volts
Amps 83.3 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 125 Amps
Connection Size 3/4 Inch NPT
Color Silver-Gray
Finish Powder-Coated Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download

Frequently Asked Questions

It is designed to provide 180°F (82°C) final rinse water.
This model is rated at 208 Volts, 60 Hz, 3-Phase, 30.0 kW.
The storage capacity is 6 gallons (23 liters).
It includes 3/4" NPT pipe and fittings for inlet and outlet.
Yes. Incoming water above 3.0 grains per gallon of hardness should be softened before use to help prevent liming and sediment buildup.
Available accessories include additional slide brackets, a stainless steel floor mounting leg assembly, a blended phosphate injection system, a shock absorber, a back pressure relief valve, an additional brass pressure reducing valve with bypass, and additional stainless steel adjustable legs.
