Hatco C-27 High Temp & Low Temp Dishwashers
Description
Hatco C-27 Compact Electric Booster Heater – 27 kW, 6 gal
NSF Certified • Made in USA • cULus ListedKeep every rack spotless and ready to serve. The Hatco C-27 delivers a continuous 180°F (82°C) final rinse in a space-saving footprint, pairing a durable 6-gallon Castone® tank with a powerful 27 kW heating system to handle high-volume conveyor and flight-type dish machines.
Key advantages
- Recovers 271 gph at a 40°F rise—perfect for busy kitchens with heavy warewashing demand.

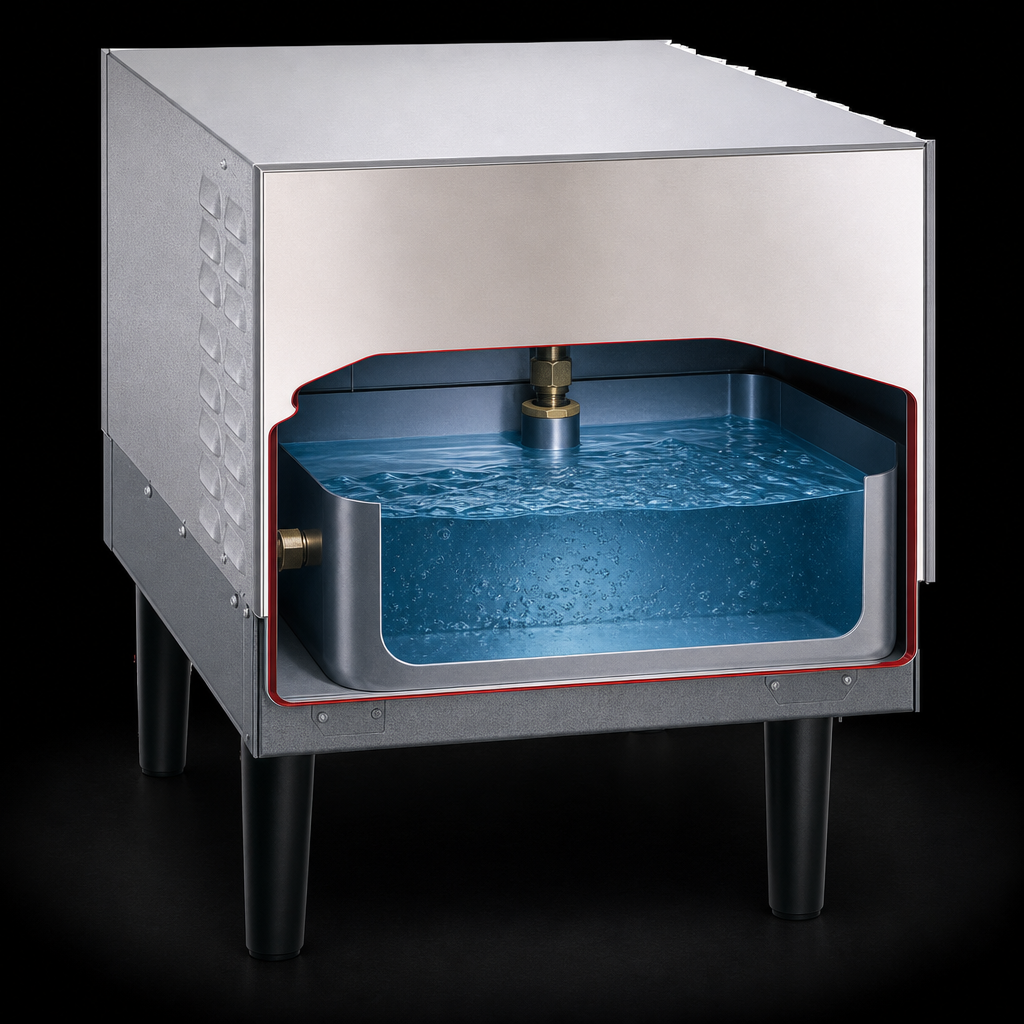

- Castone® lined tank resists corrosion & carries a 10-year limited warranty.
- Factory-installed T/P relief valve, pressure reducing valve, dual gauges and ¾" NPT fittings simplify installation.
- Immersion thermostat, high-limit cut-out and low-water cut-off protect against element burnout.
- Stainless steel front panel and powder-coated silver-gray hammertone body withstand harsh dishroom conditions.
- Swing-away front panel with service-friendly fuses and transformer for fast maintenance access.
- 6" (152 mm) non-adjustable plastic legs offer sturdy support and under-unit clearance for cleaning.
Specification highlights
| Model | Hatco C-27 Compact Booster Heater |
|---|---|
| Storage capacity | 6 gal / 23 L |
| Heating power | 27 kW – electric |
| Voltage / Amps (1-phase) | 208 V 129.9 A | 240 V 112.5 A |
| Voltage / Amps (3-phase) | 208 V 75 A | 240 V 65 A | 480 V 32.5 A | 600 V 26.1 A |
| Recovery @ 40°F rise | 271 gph / 1 026 lph |
| Recovery @ 70°F rise | 155 gph / 587 lph |
| Body dimensions | 18" W x 24" D x 12.03" H (457 x 610 x 306 mm) |
| Overall height | 29.25" (743 mm) to top of T/P valve + 6" (152 mm) legs |
| Water connections | ¾" NPT inlet & outlet |
| Shipping weight | 142 lb / 64 kg |
| Warranty | 10-yr tank • 1-yr parts & labor |
Safety & efficiency built in
- Thick fiberglass insulation minimizes stand-by heat loss.
- Easy-read pilot light and on/off toggle give operators instant status feedback.
- Pre-plumbed & pre-wired at the factory for quick, trouble-free hookup.
Popular accessories (sold separately)
- Slide brackets for under-counter mounting
- Stainless steel adjustable legs (6–7")
- Shock absorber to dampen water hammer
- Back-pressure relief valve
- Security package with Torx® screws & control cover
Need a different kW rating or mounting option? Chat with our equipment specialists—we stock the full Hatco Compact series.
