Hatco C-27-480-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

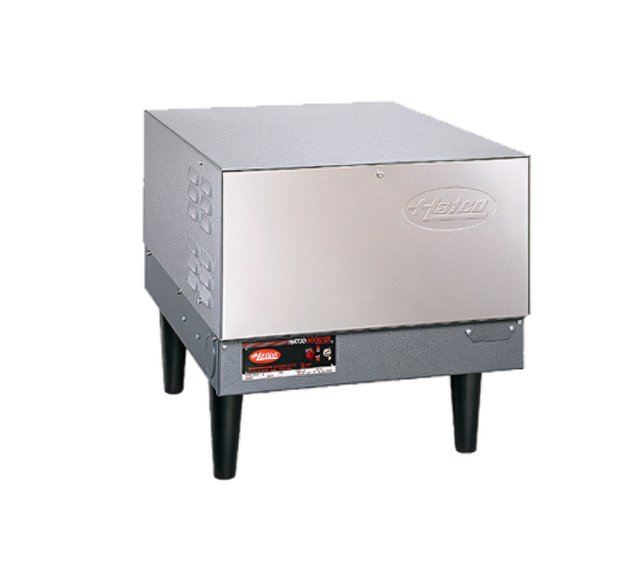

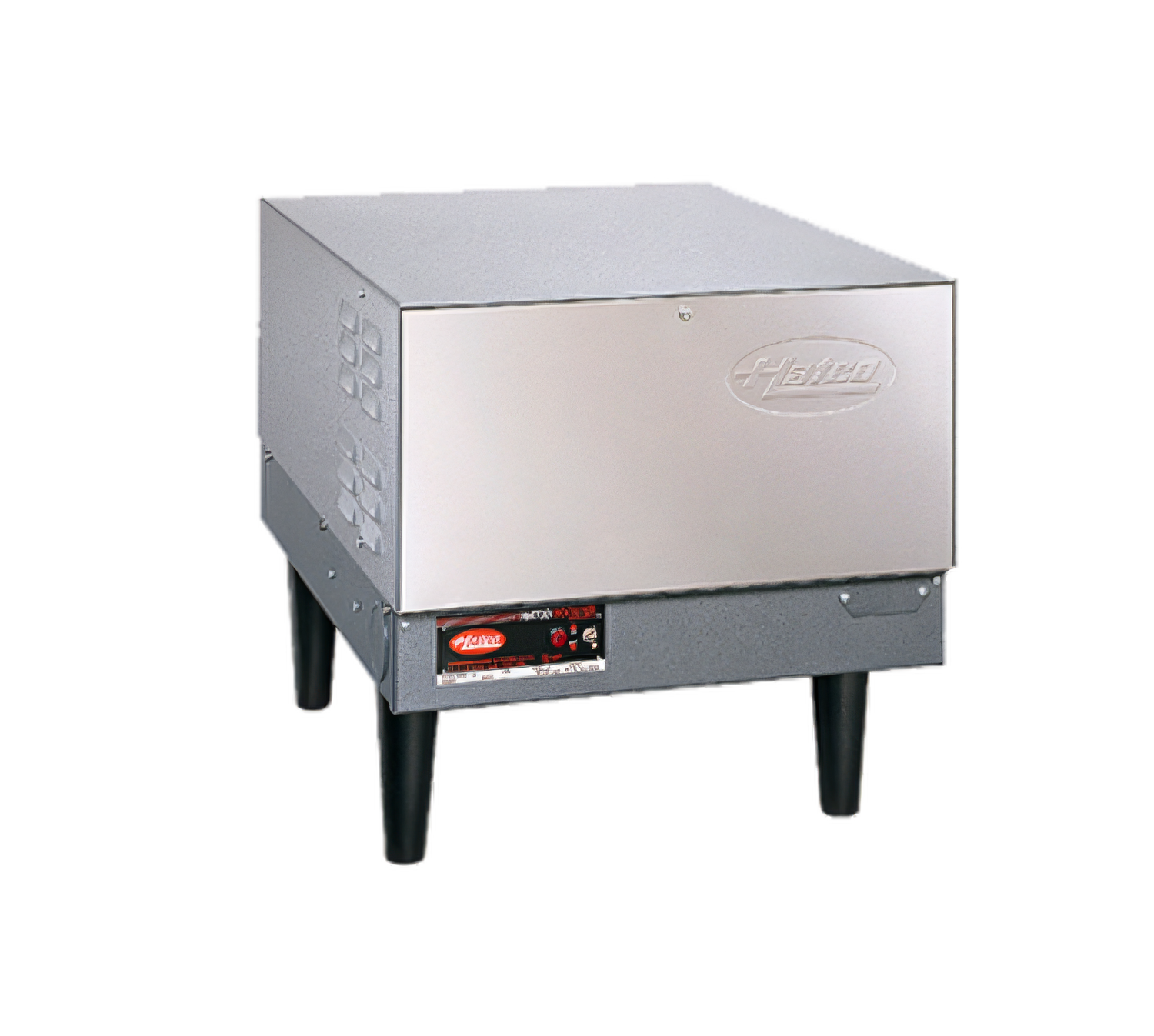

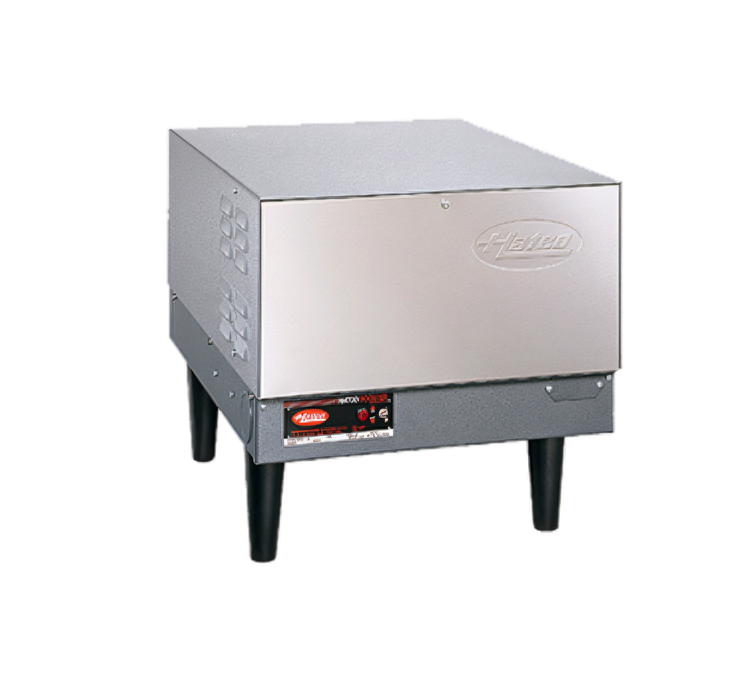

Hatco C-27 Compact Booster Heater – Quick Ship

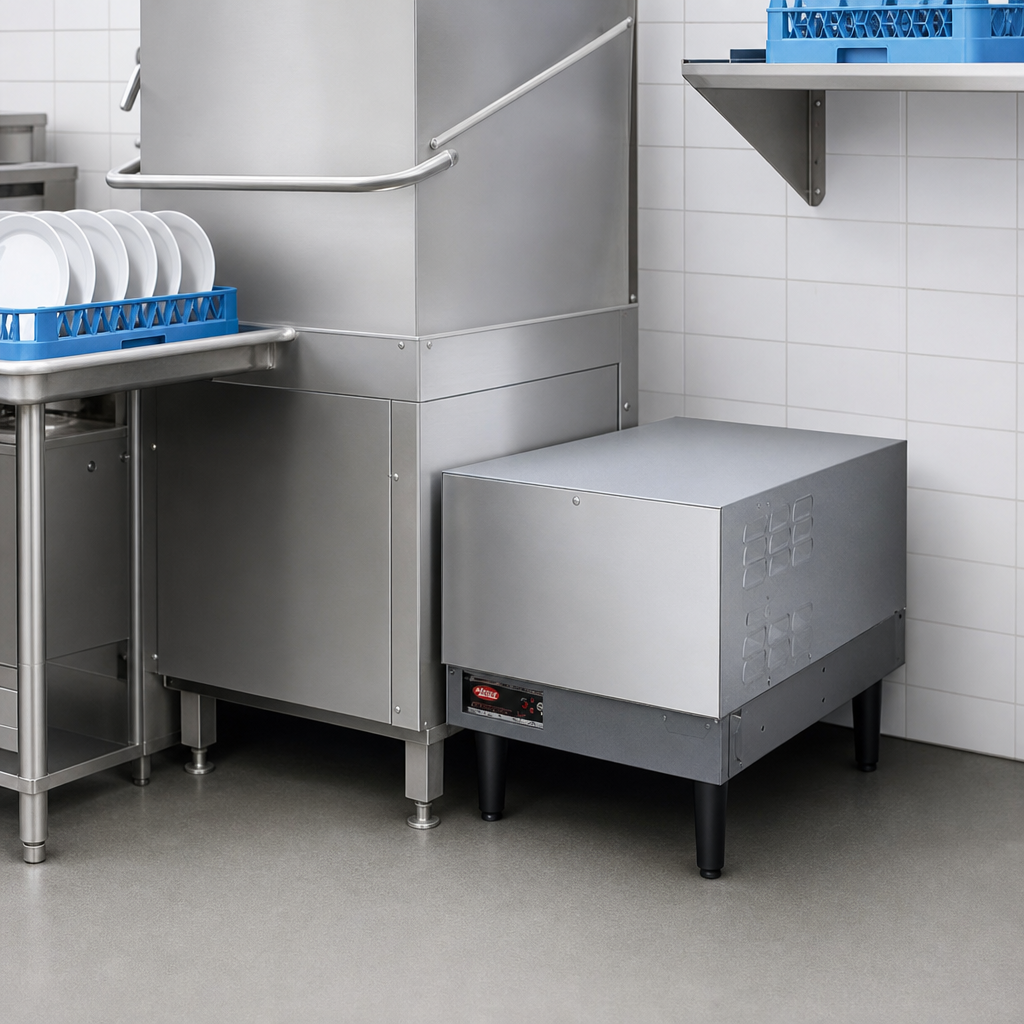

27 kW • 480 V / 60 Hz / 3-phase • 6-gal Castone® tankGet 180 °F (82 °C) sanitizing rinse water on demand—no waiting, no compromises. Hatco’s Quick Ship C-27 delivers powerful 27 kW performance in a space-saving footprint that fits right next to your dishwasher, so you can keep racks moving at peak service times.
Built for serious warewashing
- 27 kW heating power recovers up to 271 gph @ 40 °F rise (155 gph @ 70 °F rise).

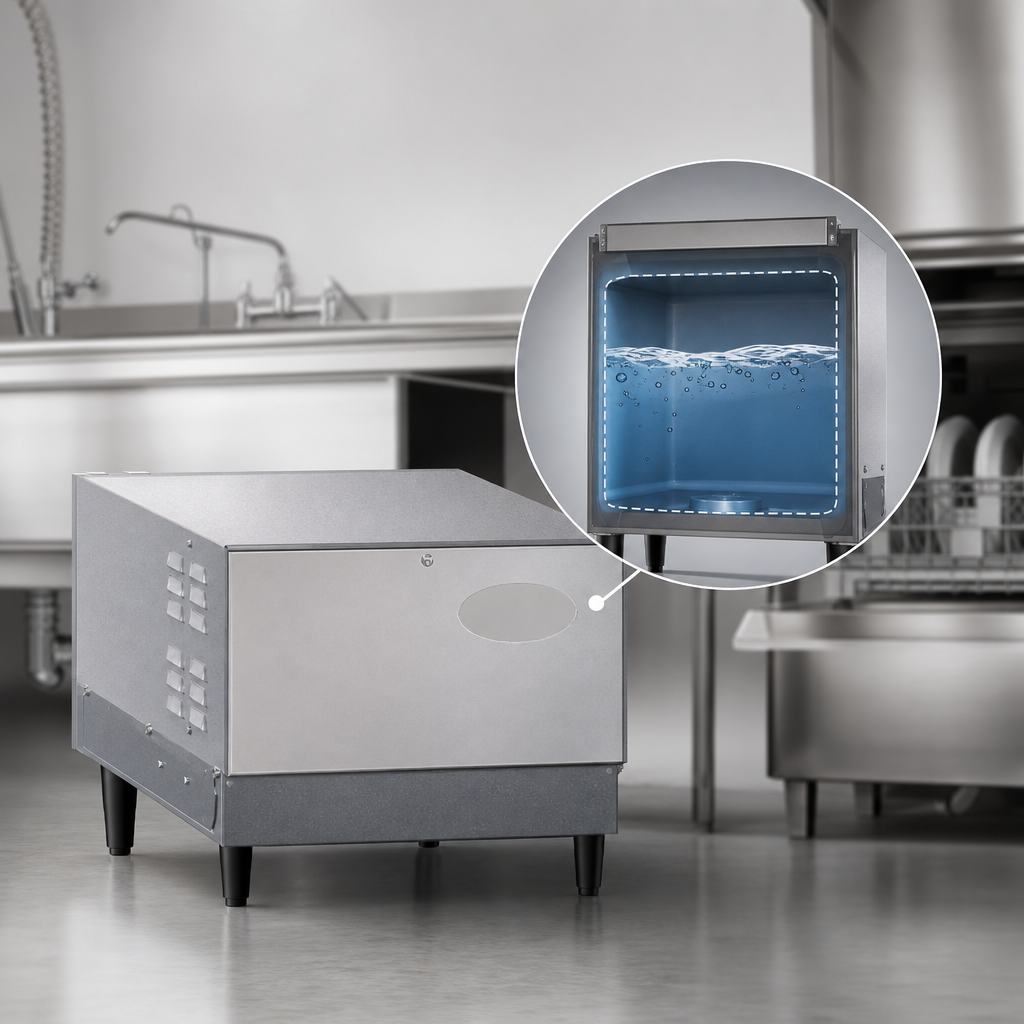

- 6-gal (23 L) Castone®-lined tank resists corrosion — backed by a 10-year limited warranty.
- Factory-calibrated immersion thermostat and high-temperature limit switch protect elements and ensure consistent output.
- Low-water cut-off prevents element burnout for worry-free operation.
- Swing-away stainless front panel grants instant access to probes and elements for faster service.
- Full insulation minimizes standby heat loss and lowers energy costs.
- Powder-coated silver-gray hammertone body with antimicrobial finish; stainless steel front panel as standard.
- Ships with 6" non-adjustable plastic legs for under-counter or floor mounting.
- NSF & cULus listed; proudly Made in the USA.
Technical snapshot
| Model | C-27 (Quick Ship configuration) |
|---|---|
| Storage capacity | 6 gal / 23 L |
| Heating output | 27 kW |
| Electrical | 480 V, 60 Hz, 3-phase | 32.5 A |
| Water recovery | 271 gph @ 40 °F rise | 155 gph @ 70 °F rise |
| Connections | ¾" NPT inlet & outlet |
| Dimensions(w × d × h, body only) | 18" × 24" × 12.03" (457 × 610 × 306 mm) |
| Ship weight | ≈ 142 lb / 64 kg |
| Certifications | NSF, cULus |
Factory-installed protections
- Temperature/pressure relief valve
- Pressure-reducing valve
- Dual temperature/pressure gauges
- On-off toggle switch with pilot indicator light
Ideal applications
- High-volume conveyor, flight-type, or rack dishwashers
- Hotels, resorts & banquet kitchens
- Universities, hospitals, & corporate cafeterias
Quick Ship advantage
This configuration is stocked and ready to leave our warehouse fast—because downtime isn’t an option.
Need slide brackets, stainless adjustable legs, or other accessories? Reach out before ordering to configure your Quick Ship unit.
