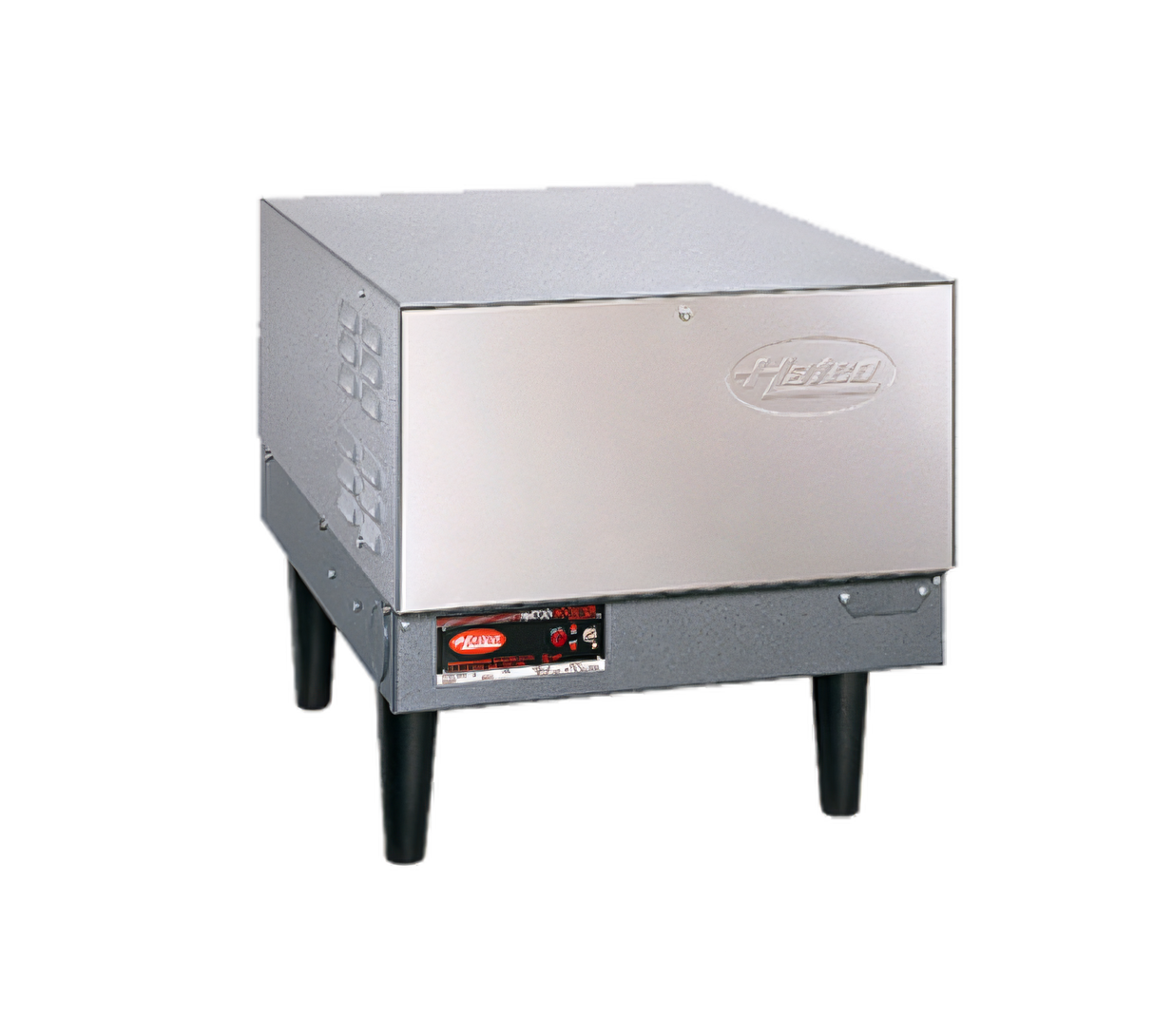

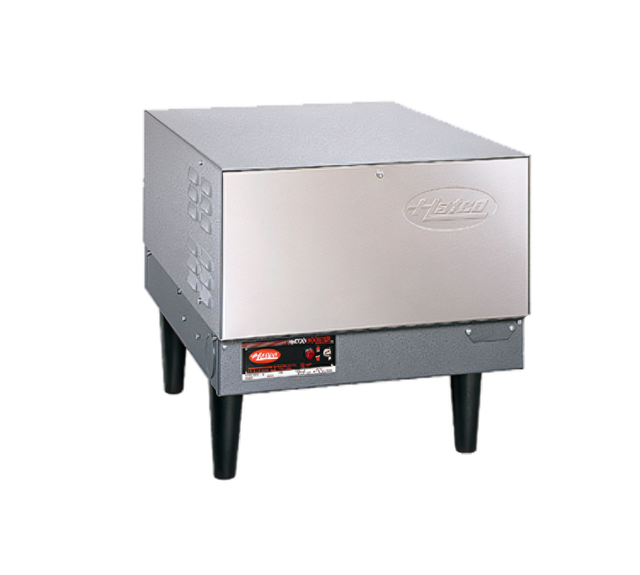

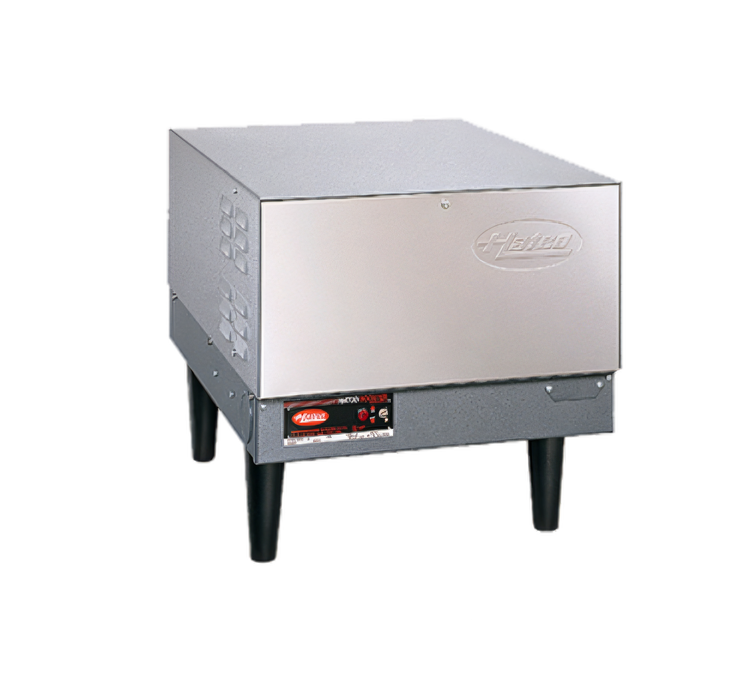

Hatco Compact Electric Booster Water Heater, 6-Gallon, 27 kW, 240V, 3-Phase

Quick Ship Model with Stainless Steel Front Panel and Silver-Gray Hammertone Body

Built for fast, reliable dish room performance, this compact 6-gallon booster heater delivers 180°F final rinse water with 27 kW of electric power.

  • Supplies 180°F final-rinse water to sanitize and flash-dry dishes and flatware.
  • Compact 6-gallon storage capacity helps save space in busy dish rooms.
  • 27 kW output on 240V, 3-phase service delivers strong recovery performance.
  • Castone-lined tank, fiberglass insulation, and low-water protection support durability.
  • Stainless steel front panel with powder-coated silver-gray hammertone body for a clean, commercial look.
  • NSF and cULus listed and made in the USA.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

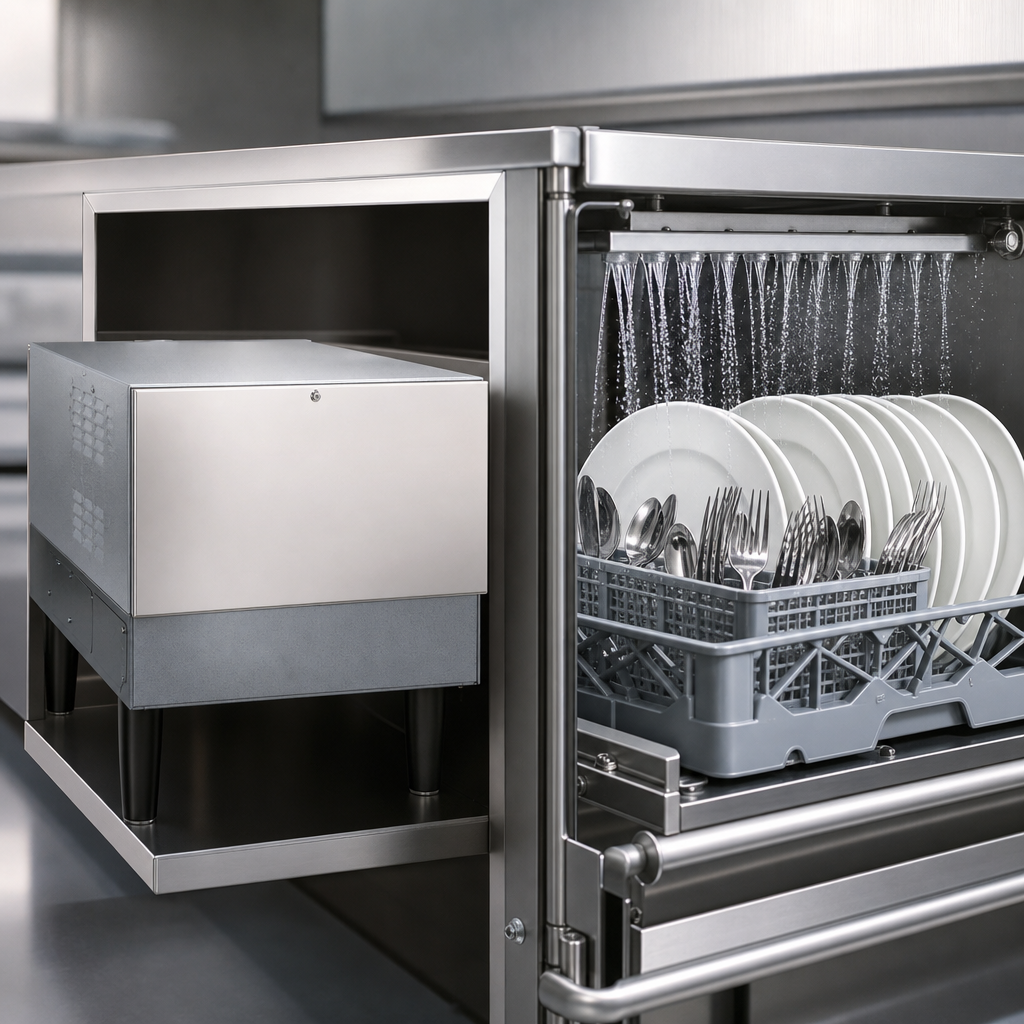

Final-Rinse Output

Provides the 180°F (82°C) final rinse water needed to sanitize and flash-dry dishes and flatware.

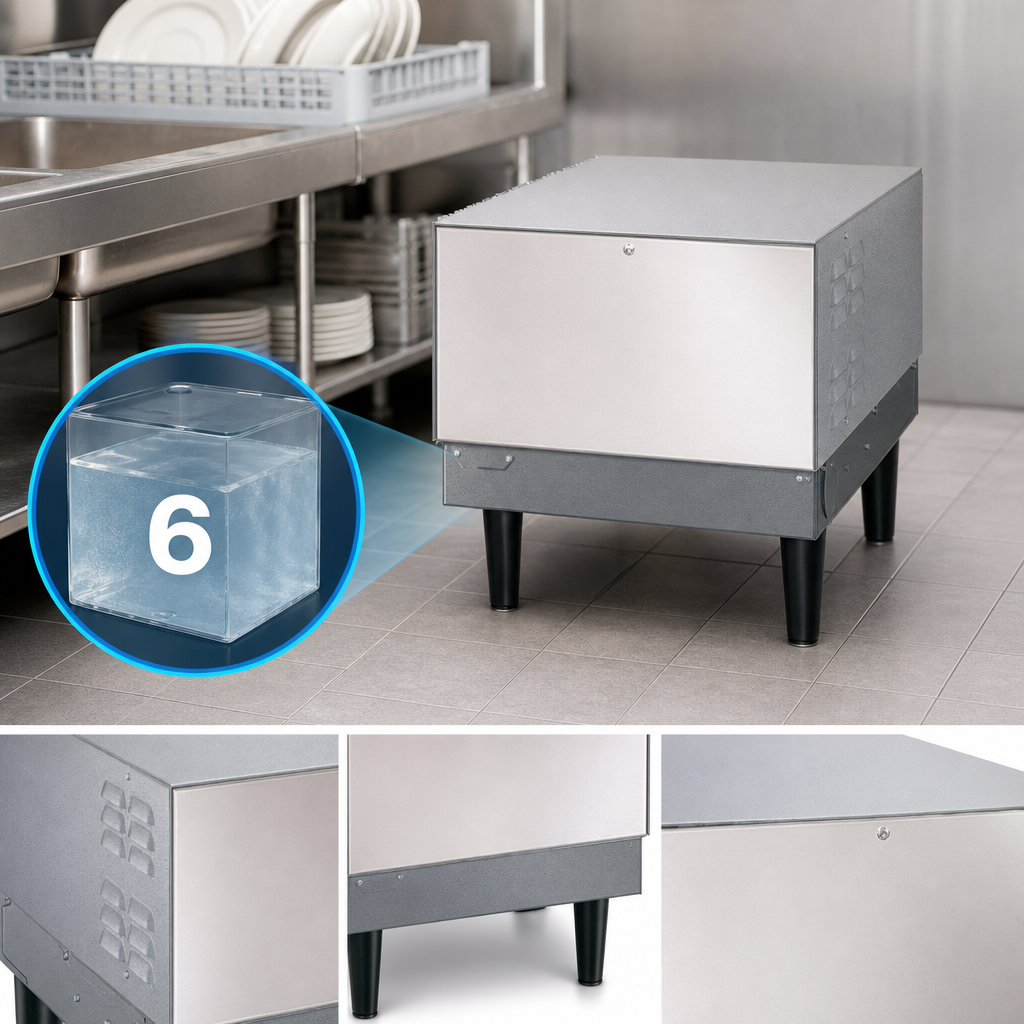

6-Gallon Storage Capacity

Compact 6-gallon tank size offers space-saving performance for commercial dish rooms.

27 kW, 240V, 3-Phase Service

Designed for high-demand electric operation on 240-volt, 3-phase electrical service.

Castone Lined Tank

Includes a Castone-lined tank for durability and long service life.

Factory Pre-Plumbed and Pre-Wired

Factory plumbing and wiring with calibrated immersion thermostat and high-temperature limit switch helps simplify installation.

Safety Control Package

Includes a temperature/pressure relief valve, pressure reducing valve, low-water cut-off, and two temperature/pressure gauges.

3/4 Inch NPT Water Connections

Built-in inlet and outlet fittings include 3/4 inch NPT pipe connections.

Durable Exterior Construction

Stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch plastic non-adjustable legs.

Fiberglass Insulation

Fiberglass insulation helps minimize heat loss and support efficient operation.

Type Booster Water Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Material Steel
Color Silver Gray
Finish Powder-Coated Silver-Gray Hammertone
Controls Thermostatic
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Voltage 240 Volts
Amps 65 Amps
Watts 27 kW
Hertz 60 Hz
Phase 3-Phase
Breaker Size 90 Amps
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone-lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It supplies 180°F final rinse water to sanitize and flash-dry dishes and flatware.
This model is rated for 240 volts, 60 Hz, 3-phase operation and 27 kW.
Yes. The unit is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch.
The documentation lists a temperature/pressure relief valve, pressure reducing valve, low-water cut-off, high-temperature limit control, and two temperature/pressure gauges.
The Castone-lined tank includes a 10-year limited warranty, and the documentation also notes 24/7 parts and service assistance in the US and Canada.
Yes. Slide brackets are available as an accessory for under-dishtable mounting.
