Hatco Compact Electric Booster Water Heater, 6-Gallon, 27 kW, 208V, 3-Phase

SKU: C-27-208-3-QS
GTIN: 61570000979
$3,875.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

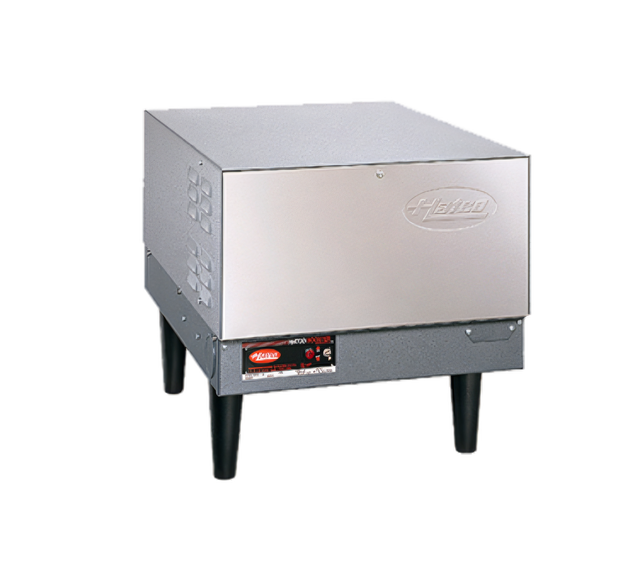

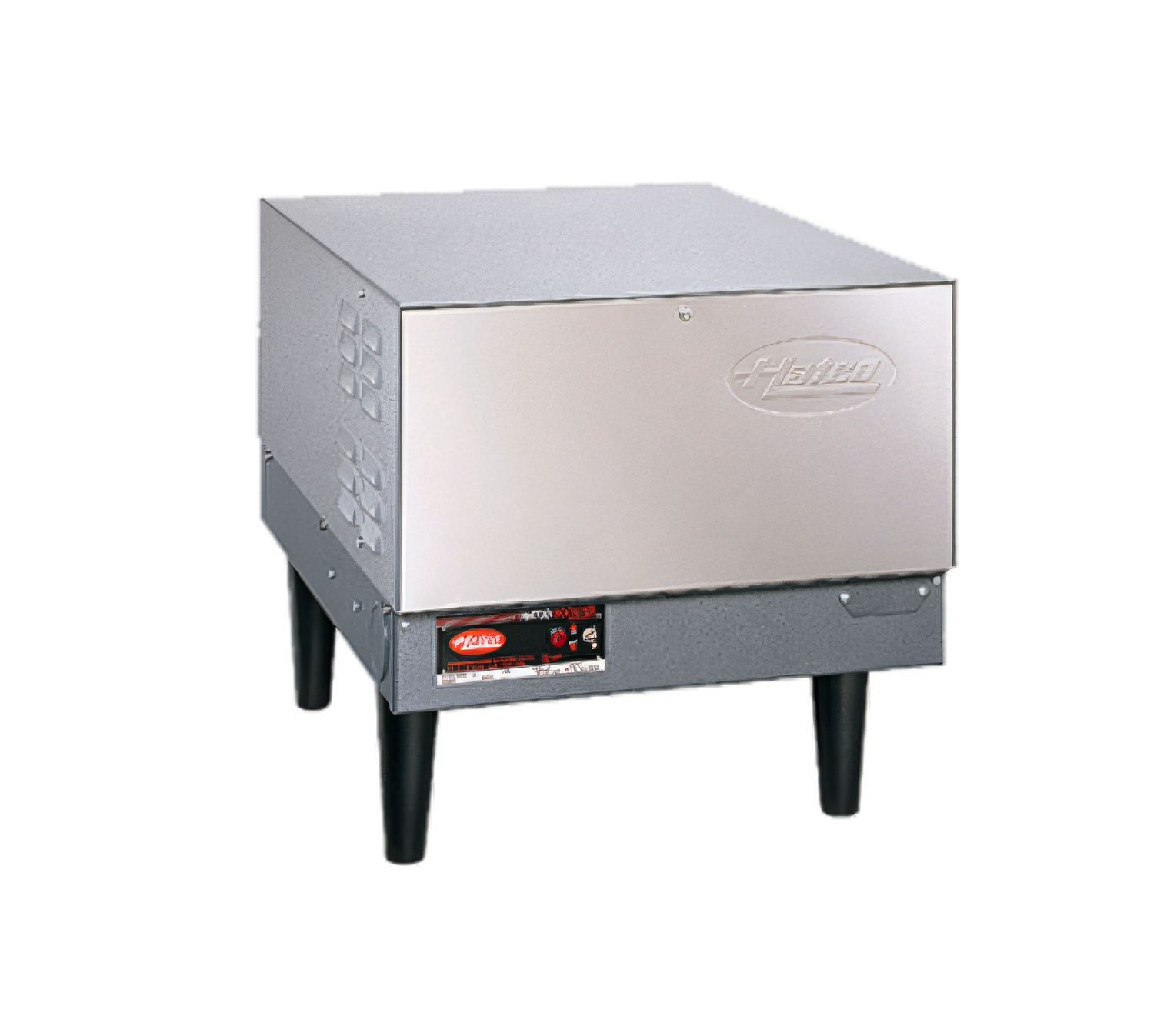

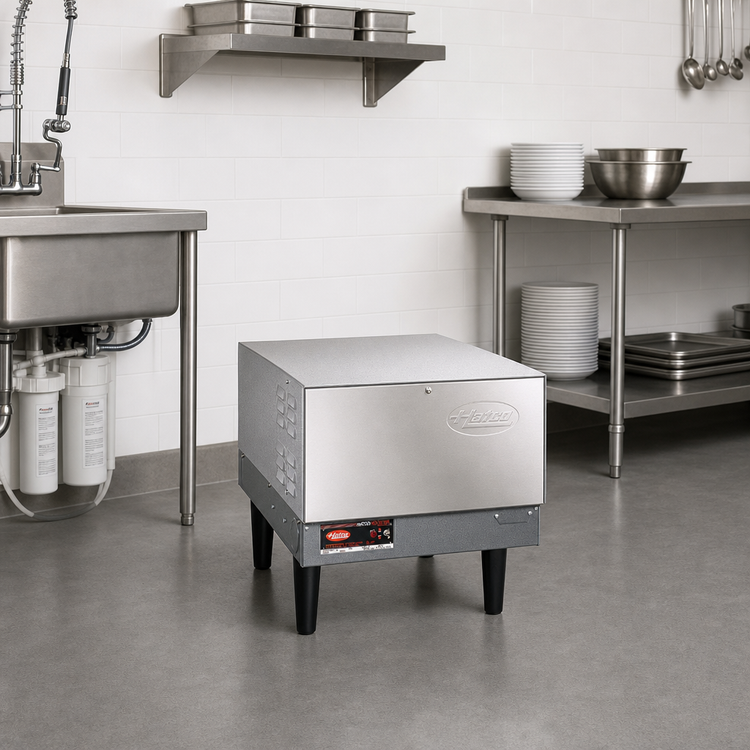

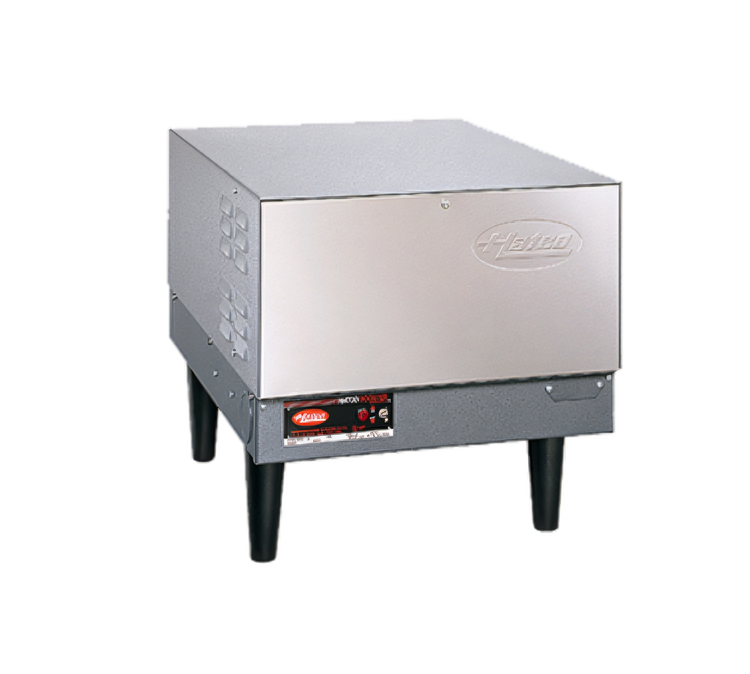

Hatco Compact Electric Booster Water Heater, 6-Gallon, 27 kW, 208V, 3-Phase

Quick Ship Model with Stainless Steel Front Panel

A compact, high-output booster heater that delivers the 180°F final rinse water dish rooms need without taking up extra space.

  • Supplies 180°F final rinse water for sanitizing and flash-drying dishes and flatware.
  • 6-gallon storage capacity with 27 kW electric output for demanding commercial dish rooms.
  • Factory pre-plumbed and pre-wired to help simplify installation and start-up.
  • Castone® lined tank, low-water cut-off, and high-temperature protection support reliable operation.
  • Stainless steel front panel and powder-coated silver-gray hammertone body provide durable construction.
  • Ships with 6-inch plastic non-adjustable legs and can be mounted with slide brackets.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

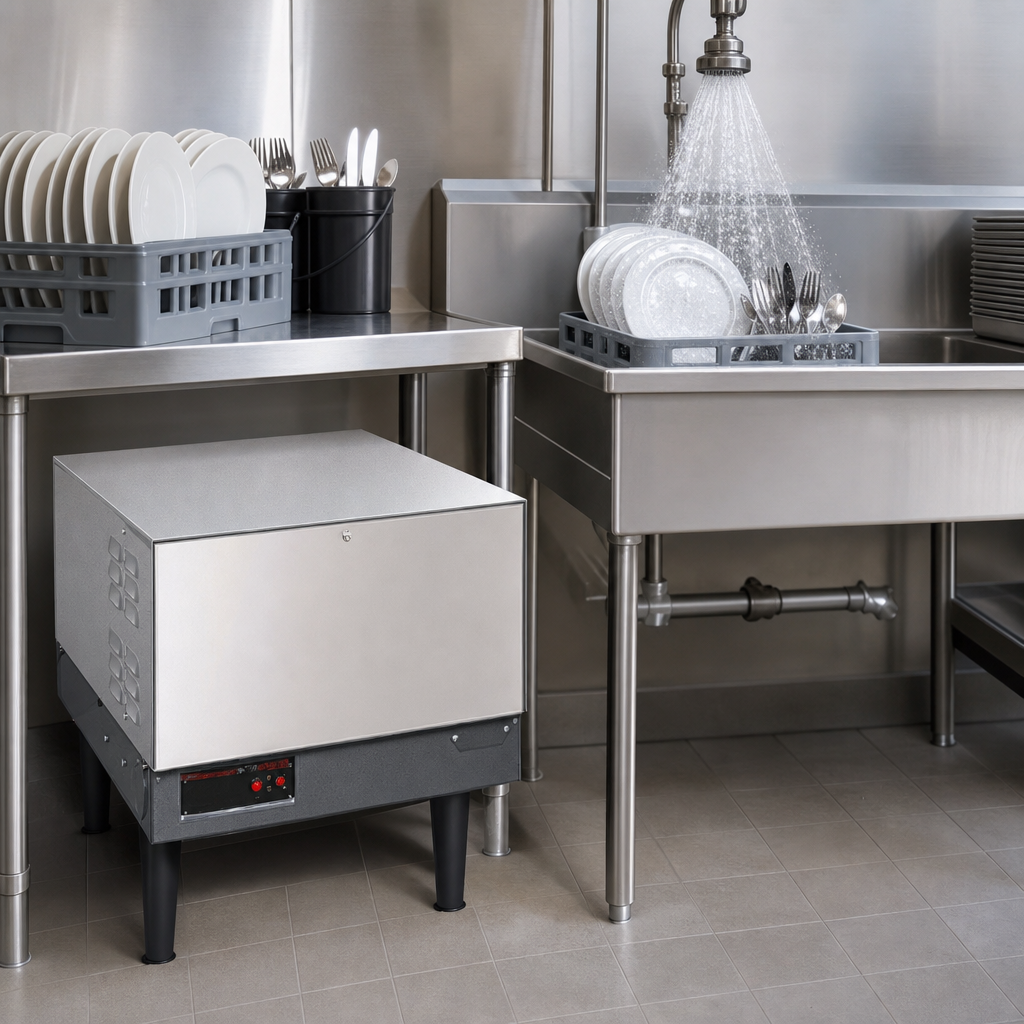

180°F Final Rinse Performance

Provides the high-temperature rinse water needed to sanitize and flash-dry dishes and flatware.

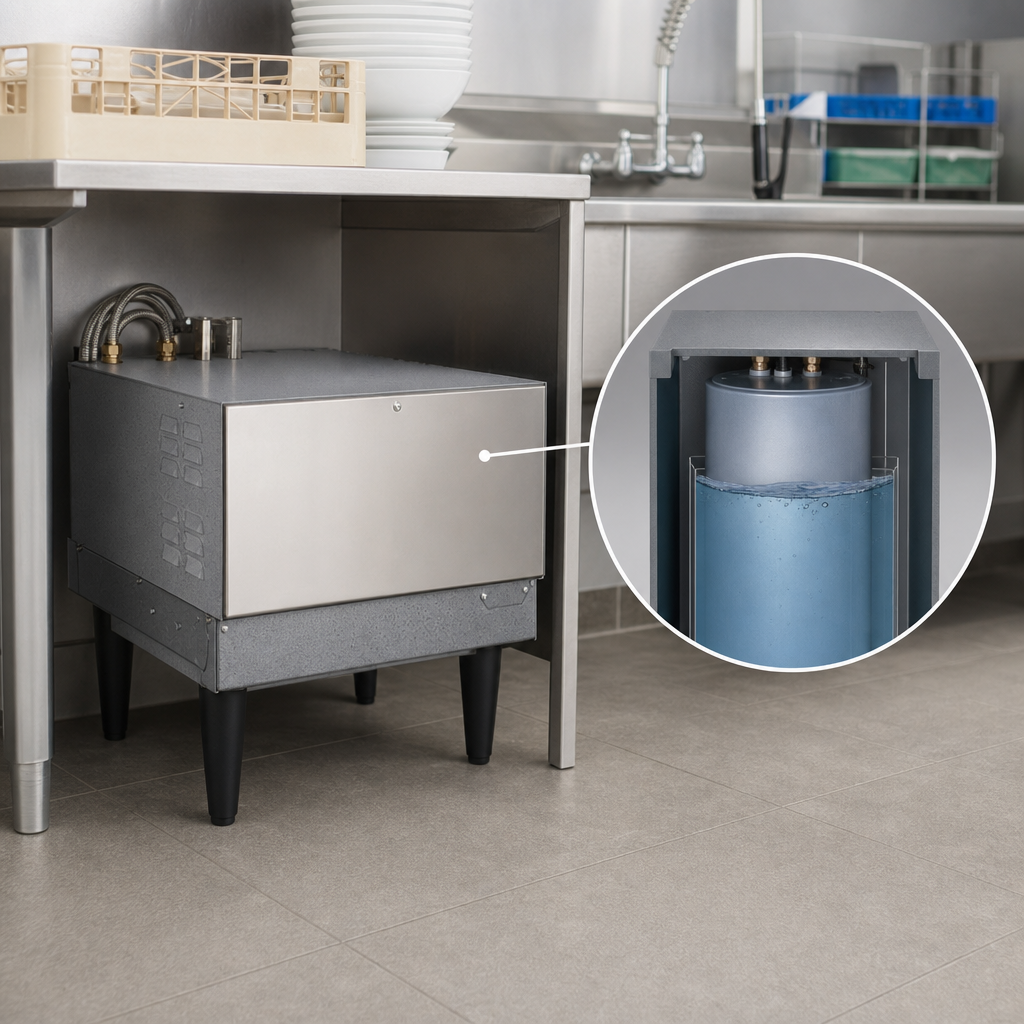

6-Gallon Storage Capacity

Compact tank capacity is sized for commercial dish room use where space is limited.

Castone® Lined Tank

Tank lining helps improve durability and is backed by a 10-year limited warranty.

Factory Pre-Plumbed and Pre-Wired

Unit arrives with internal plumbing and electrical components already configured to reduce installation time.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, and low-water cut-off.

Service-Friendly Design

Swing-away front panels provide easier access to probes, elements, control fuses, and the transformer.

Durable Exterior Construction

Features a stainless steel front panel and a powder-coated silver-gray hammertone body.

Flexible Mounting Options

Standard 6-inch legs are included, and slide brackets are available for under-dishtable mounting.

Water Quality Requirement

Incoming water above 3.0 grains per gallon must be treated and softened to protect efficiency and service life.

Type Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Watts 27 kW
Voltage 208 Volts
Amps 75 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 100 Amps
Controls Thermostatic
Water Inlet Size 3/4 Inch NPT
Color Silver Gray
Finish Powder-Coated Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 18 Inches
Shipping Weight 142 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank

Documents

PDF Cutsheet PDF Download PDF Quick ship PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It supplies 180°F final rinse water for dishwashers to help sanitize and flash-dry dishes and flatware.
Yes. It is factory pre-plumbed and pre-wired, and it includes calibrated immersion thermostat and high-temperature limit protection.
The unit includes 3/4 Inch NPT pipe and fittings for inlet and outlet connections.
Yes. Slide brackets are available for under-dishtable mounting.
Incoming water above 3.0 grains per gallon must be treated and softened before being supplied to the booster heater.
The Castone® lined tank includes a 10-year limited warranty.
