Hatco C-24 High Temp & Low Temp Dishwashers
Hatco C-24 High Temp & Low Temp Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco C-24 High Temp & Low Temp Dishwashers
Description

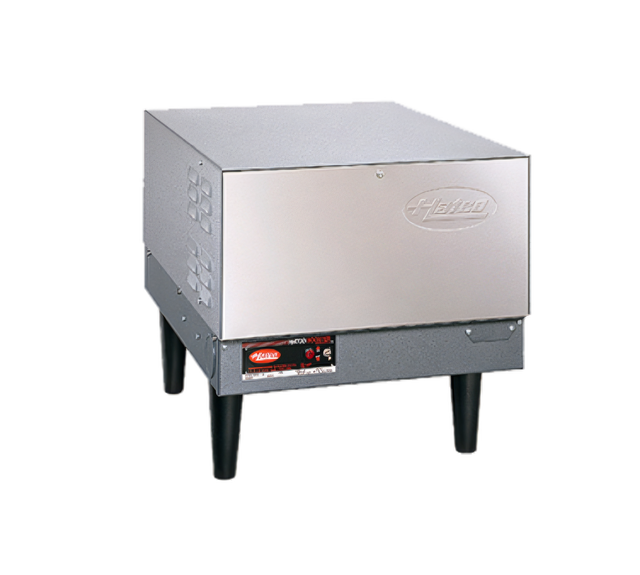

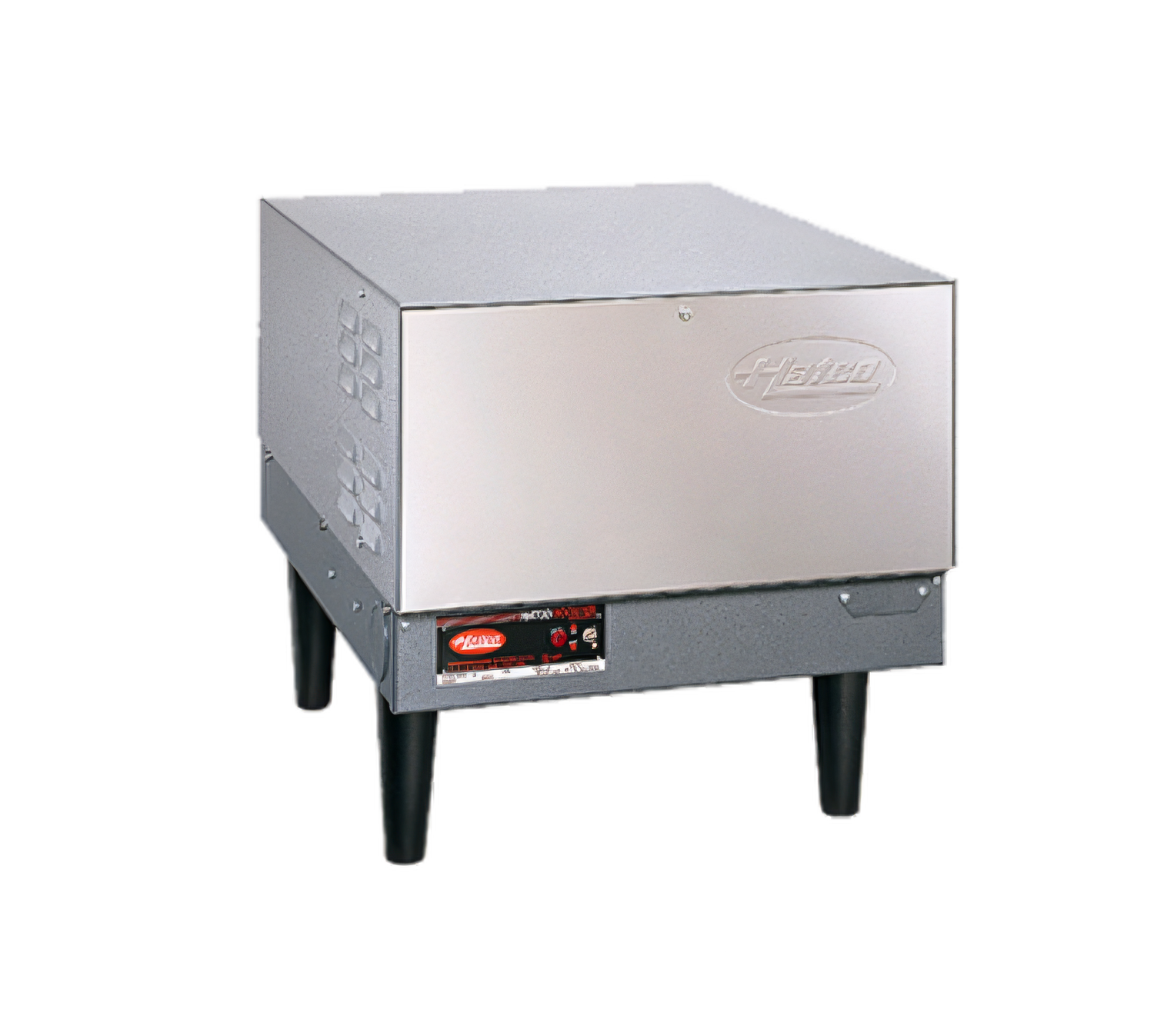

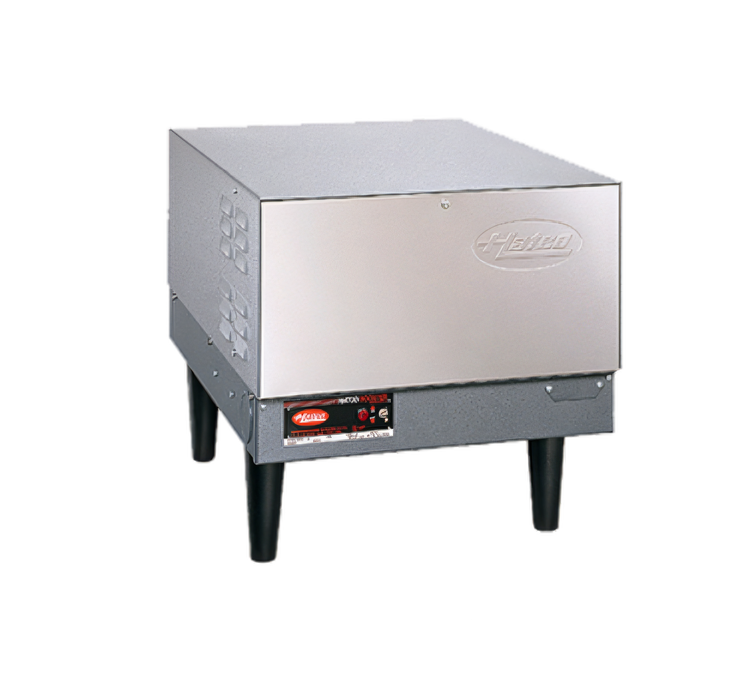

Hatco C-24 Compact Electric Booster Heater – 24 kW, 6 gal

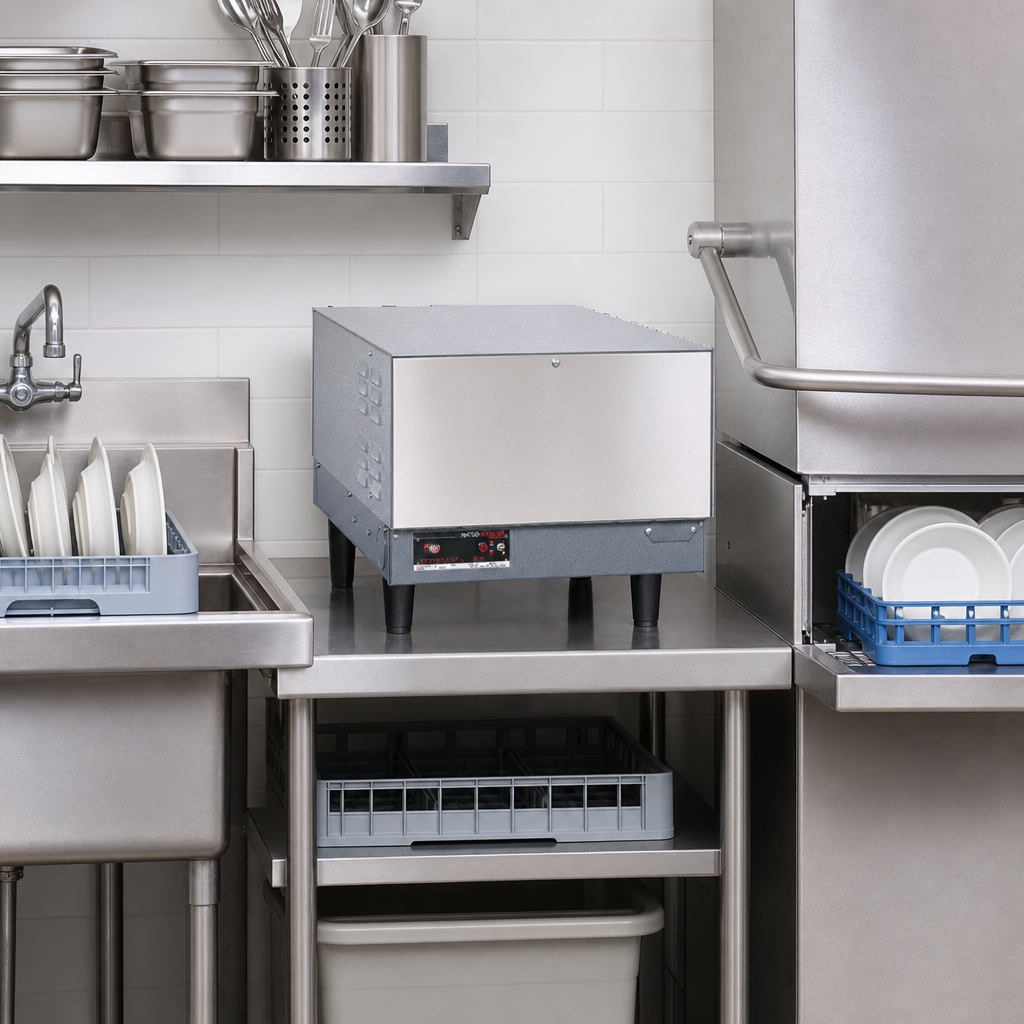

NSF • cULus • Made in USADeliver a dependable 180 °F (82 °C) final-rinse every cycle. The Hatco C-24 packs a powerful 24 kW punch and a 6 gallon Castone® tank into a space-saving body that fits neatly beside or beneath your commercial dishwasher.
Top Reasons You’ll Love It
- High-volume recovery — up to 241 gph at a 40 °F rise to keep up with the busiest dish rooms.
- Rinse-ready, everytime — factory pre-plumbed, pre-wired and thermostat-calibrated for quick start-up.
- Built to last — Castone® lined tank carries a 10-year limited warranty and resists corrosion, liming and pin-holes.
- Service friendly — swing-away front panel gives instant access to probes, fuses and elements.
- Heat stays where it belongs — thick fiberglass insulation minimizes standby loss.
- Rugged exterior — stainless steel front with powder-coated silver-gray hammertone body stands up to daily wear.
- Safety first — includes pressure-reducing valve, temperature/pressure relief valve, dual temp/pressure gauges, high-limit cut-off, low-water cut-off and pilot indicator light.
- Field-proven design — Hatco has manufactured booster heaters in Milwaukee, Wisconsin for 70+ years.
Perfect For
- High-throughput conveyor or flight-type dishmachines
- Undercounter or door-style dishwashers that need an external 180 °F rinse
- Catering kitchens, hotels, schools & healthcare facilities
Technical Specifications

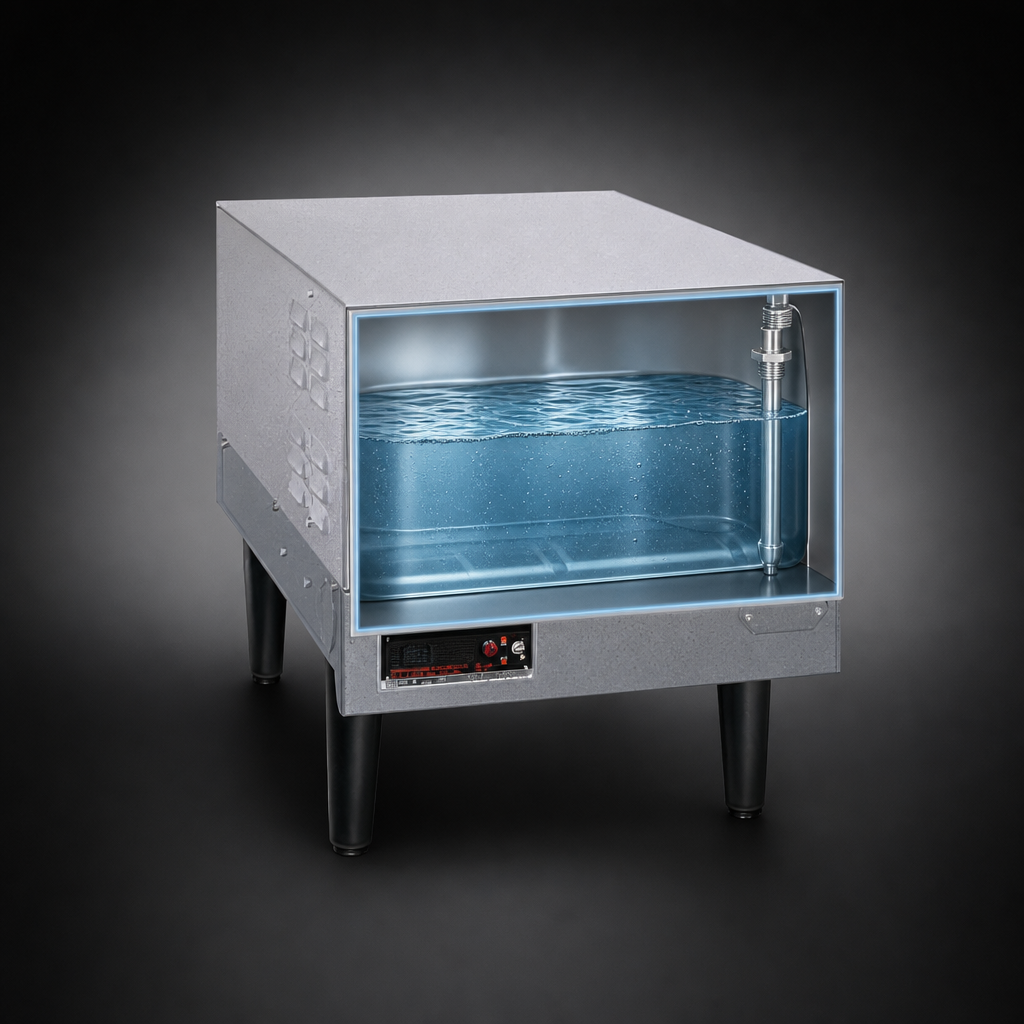

| Storage Capacity | 6 gal | 23 L |
|---|---|
| Heating Capacity | 24 kW electric |
| Water Temperature | Delivers 180 °F (82 °C) final rinse |
| Recovery Rate @ 40 °F Rise | 241 gph | 912 lph |
| Recovery Rate @ 70 °F Rise | 138 gph | 522 lph |
| Dimensions (W × D × H*) | 18" × 24" × 12.03" (457 × 610 × 306 mm) |
| Legs | 6" (152 mm) non-adjustable plastic |
| Electrical |
1-Phase 208 V 115.4 A | 240 V 100 A 3-Phase 208 V 66.7 A | 240 V 57.8 A | 480 V 28.9 A | 600 V 23.2 A |
| Water Connections | ¾" NPT inlet & outlet |
| Shipping Weight | 142 lb | 64 kg (with legs packed separately) |
| Certifications | NSF 5, cULus |
| Country of Origin | United States of America |
*Height does not include legs. Overall height with supplied 6" legs is 18.03" (458 mm).
10-year limited warranty on the Castone® tank • 24/7 parts & service assistance in the US and Canada.
