Hatco Quick Ship Compact Electric Booster Water Heater, 6-Gallon, 24 kW, 208V, 3-Phase

SKU: C-24-208-3-QS
GTIN: 61570000978
$3,817.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

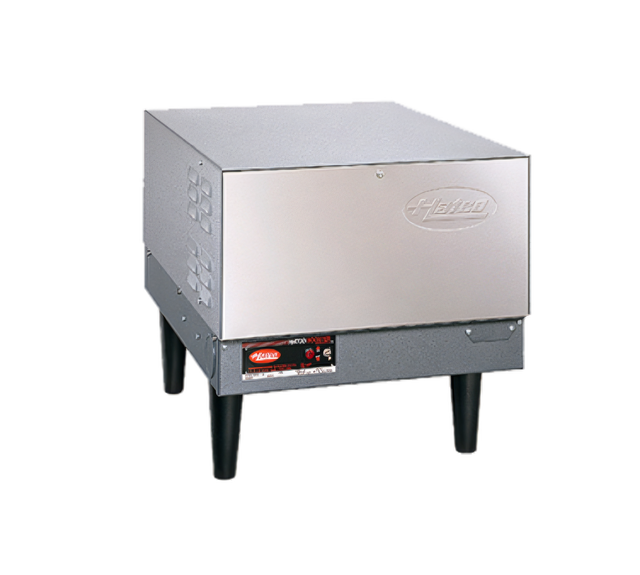

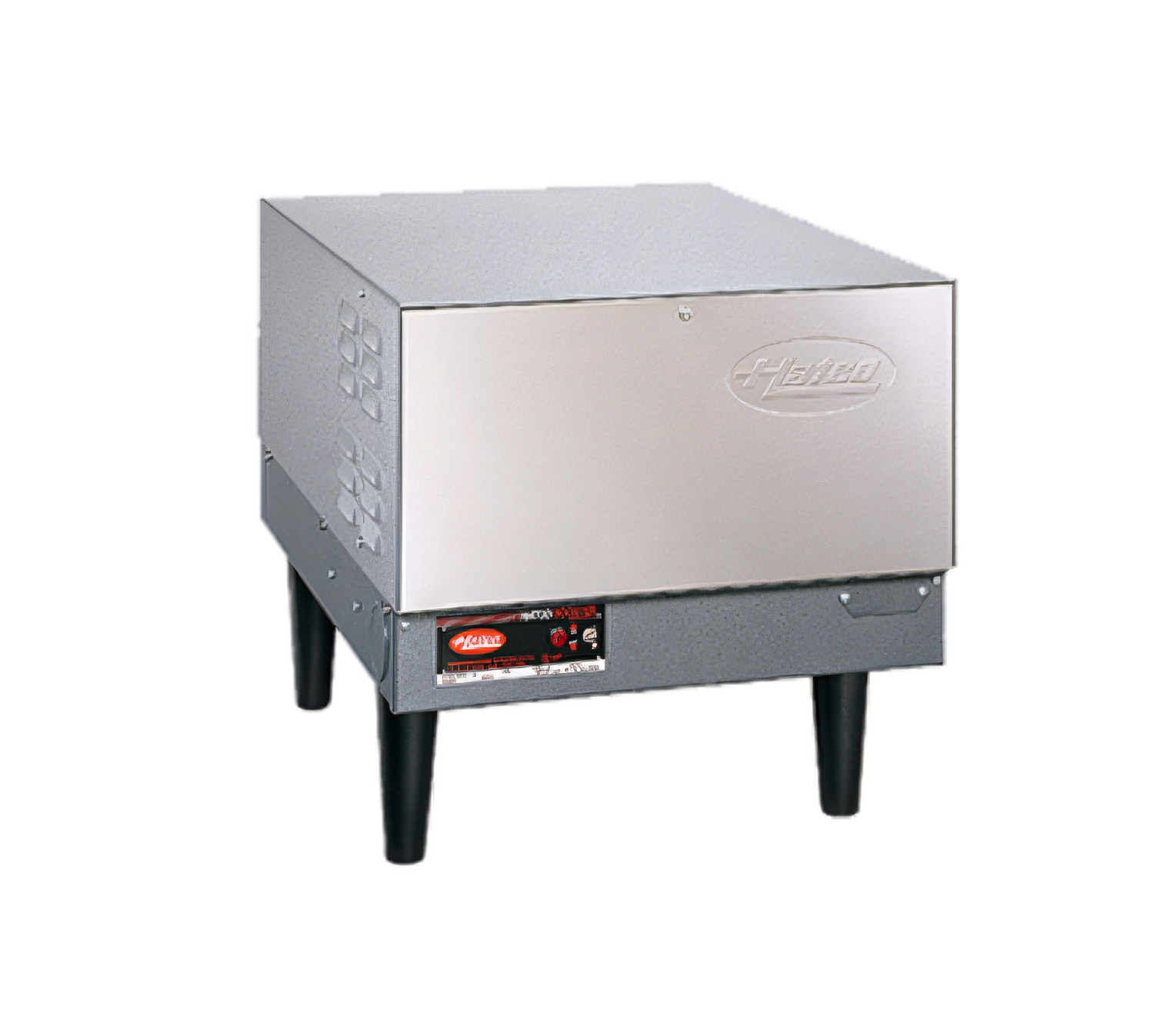

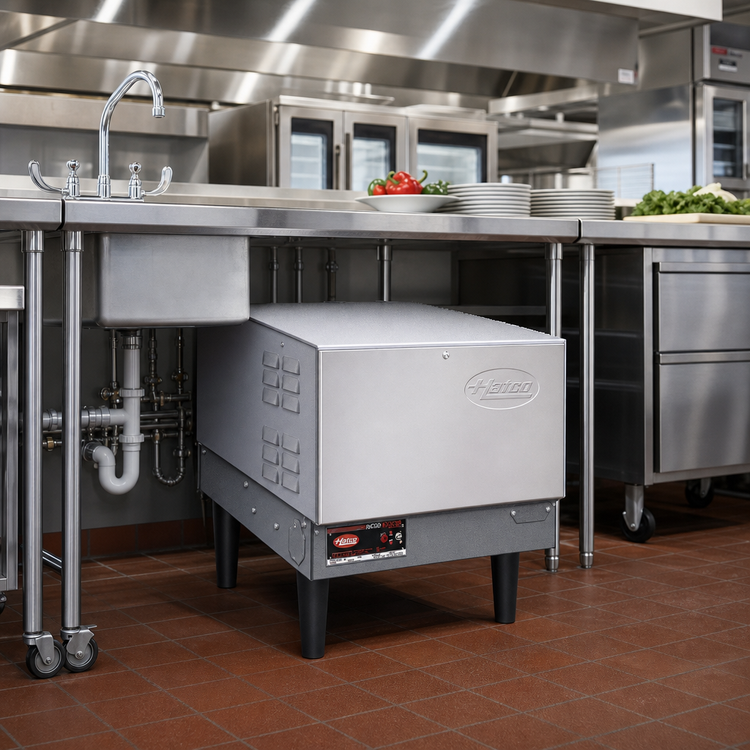

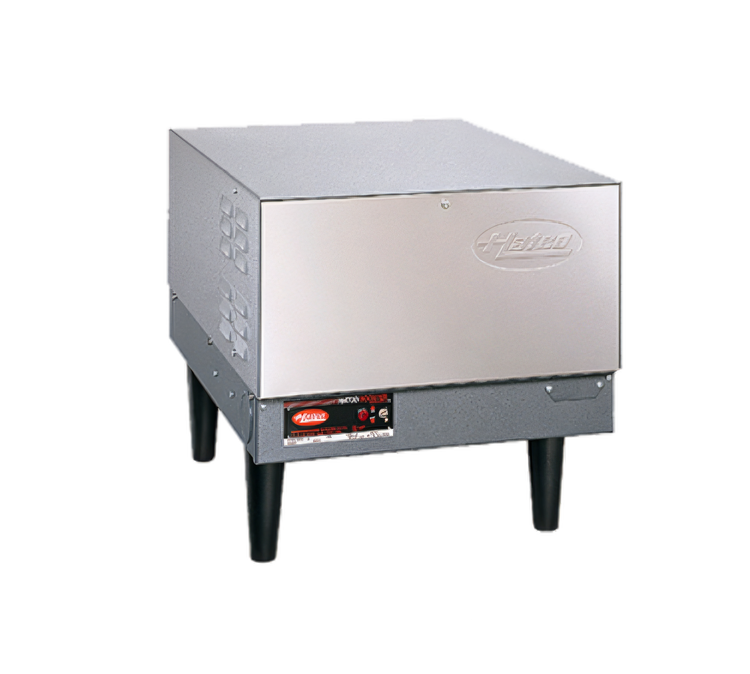

Hatco Quick Ship Compact Electric Booster Water Heater, 6-Gallon, 24 kW, 208V, 3-Phase

Stainless Steel Front Panel, Powder-Coated Silver-Gray Body, 6-Inch Legs

This compact booster heater delivers the 180°F final-rinse water dish rooms need in a space-saving 6-gallon electric package.

  • 24 kW output supports reliable final-rinse water for sanitizing and flash-drying.
  • Compact 6-gallon tank fits tight dish room installations.
  • 208V, 60 Hz, 3-phase operation matches common commercial electrical service.
  • Castone® lined tank, stainless steel front panel, and powder-coated body help ensure durability.
  • Factory pre-plumbed and pre-wired with built-in safety controls for easier installation.
  • Standard 6-inch legs; slide brackets are available for under-dishtable mounting.

Overall Dimensions:

18.0"W x 24.0"D x 18.0"H

Product Weight:

142.0 lb

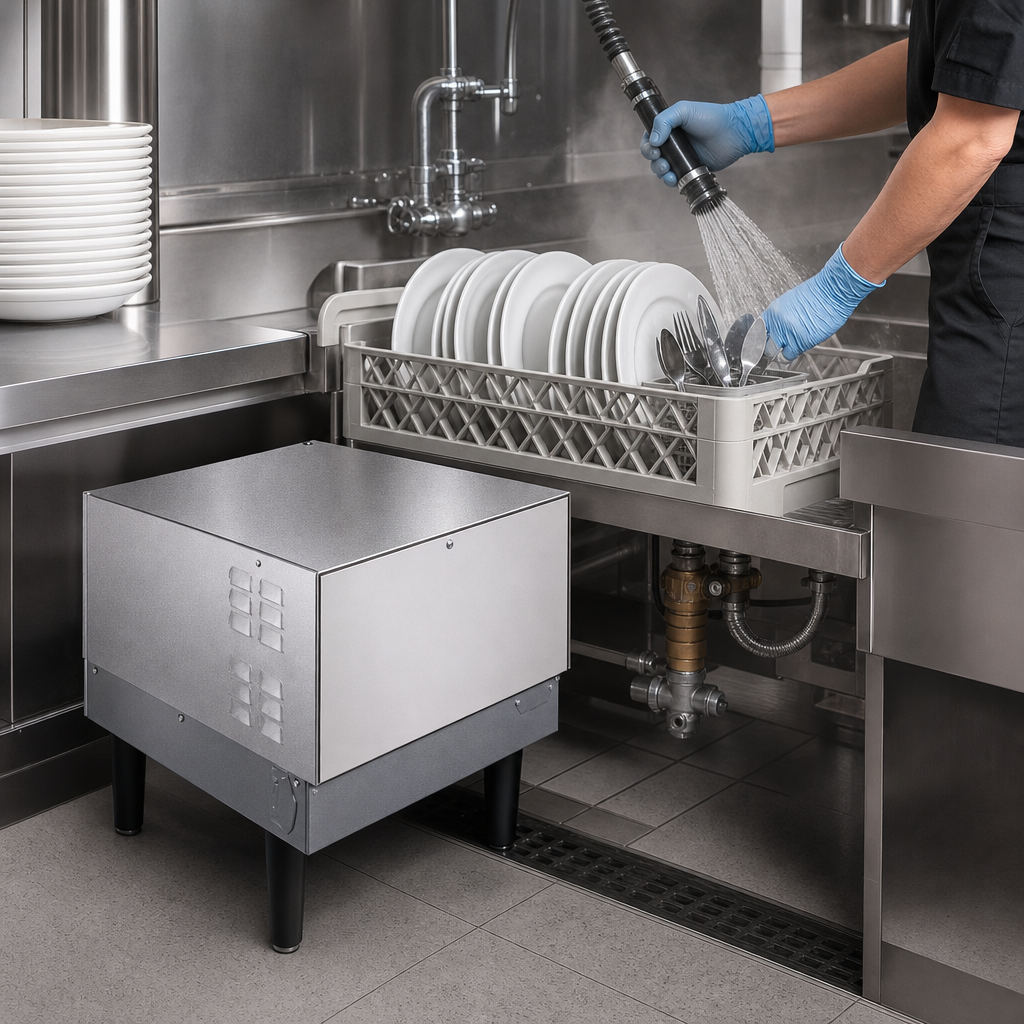

180°F Final Rinse Performance

Heats water to the 180°F final rinse temperature required for sanitizing dishes and flatware.

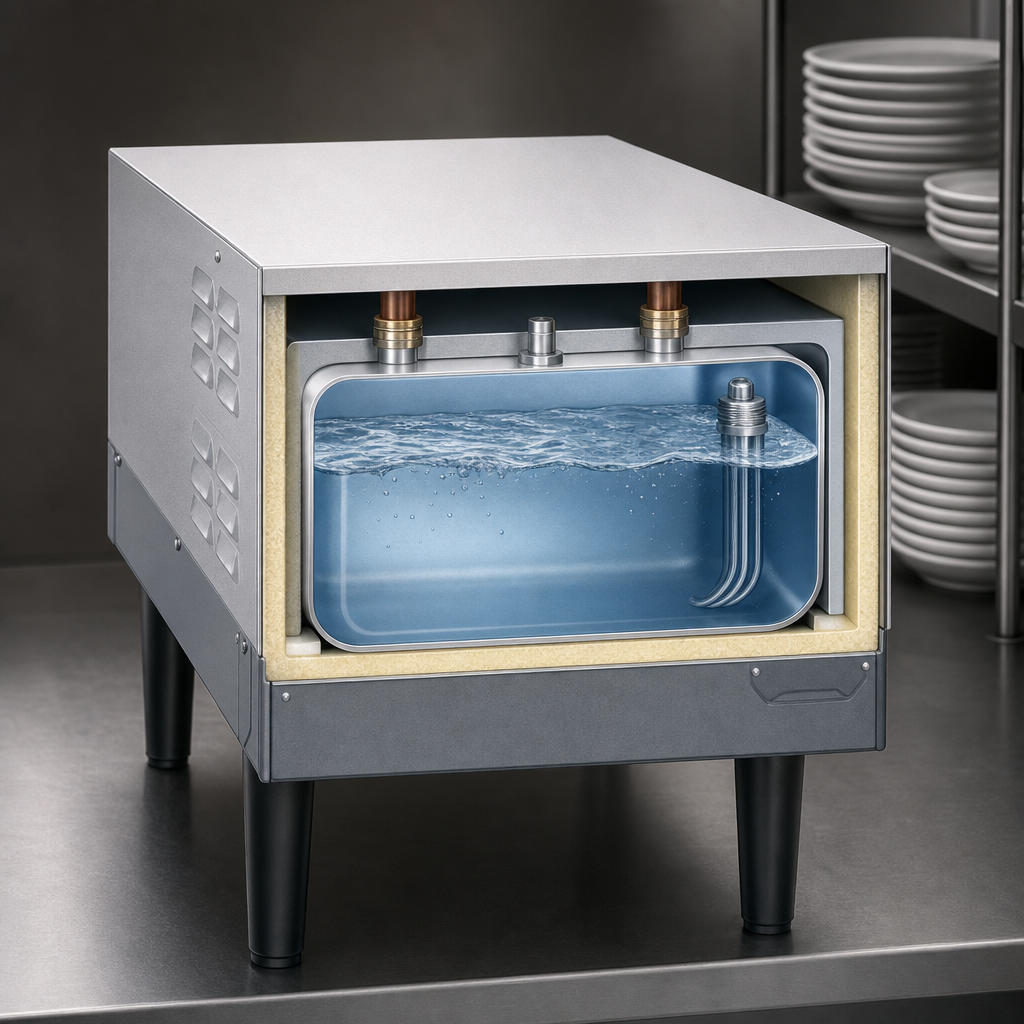

6-Gallon Storage Capacity

Compact storage tank supports short, repeated dish room demand cycles.

Castone® Lined Tank

Durable lined tank construction with a 10-year limited tank warranty.

Factory Pre-Plumbed and Pre-Wired

Arrives with internal plumbing and wiring already configured to simplify installation.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, gauges, high-temperature limit control, low-water cut-off, and pilot indicator light.

Stainless Steel Front Panel

Stainless front panel and powder-coated silver-gray hammertone body provide a durable commercial exterior.

6-Inch Legs

Standard 6-inch plastic non-adjustable legs elevate the unit for floor installation.

Optional Under-Dishtable Mounting

Slide brackets are available for mounting the booster under a dishtable.

Fiberglass Insulation

Helps minimize heat loss and improve operating efficiency.

Type Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Material Steel
Finish Powder-Coated Silver-Gray Hammertone
Voltage 208 Volts
Amps 66.7 Amps
Watts 24 kW
Hertz 60 Hz
Phase 3-Phase
Breaker Size 90 Amps
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 18 Inches
Shipping Weight 142 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited tank warranty.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download PDF Quick ship PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It provides 180°F (82°C) final rinse water for sanitizing and flash-drying dishes and flatware.
This model requires 208V, 60 Hz, 3-phase electrical service.
Yes. Slide brackets are available for mounting the unit under a dishtable.
It includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, a pilot indicator light, and a low-water cut-off.
The Castone® lined tank includes a 10-year limited warranty.
