Hatco  |  SKU: C-18

Hatco C-18 High Temp & Low Temp Dishwashers

$2,840.11
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

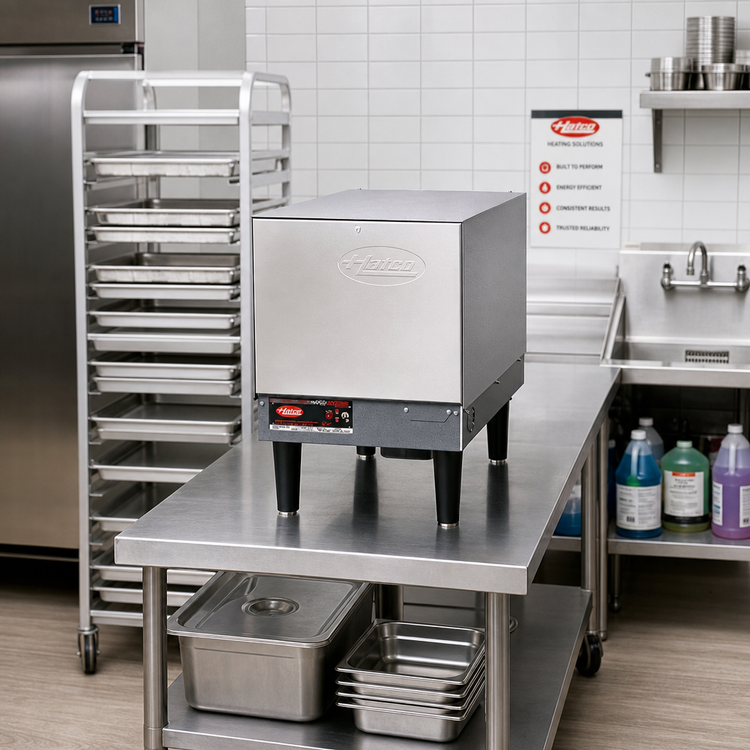

Hatco C-18 Compact Electric Booster Heater 18 kW • 6 gal storage • 180°F final-rinse performance

Give your high-temp dishwasher the 180°F (82°C) final-rinse water it needs—without giving up precious kitchen space. Hatco’s C-18 Compact Booster Heater tucks neatly under a dishtable, yet delivers relentless sanitizing power thanks to its Castone ® lined tank and heavy-duty electric elements.

Why You’ll Love It

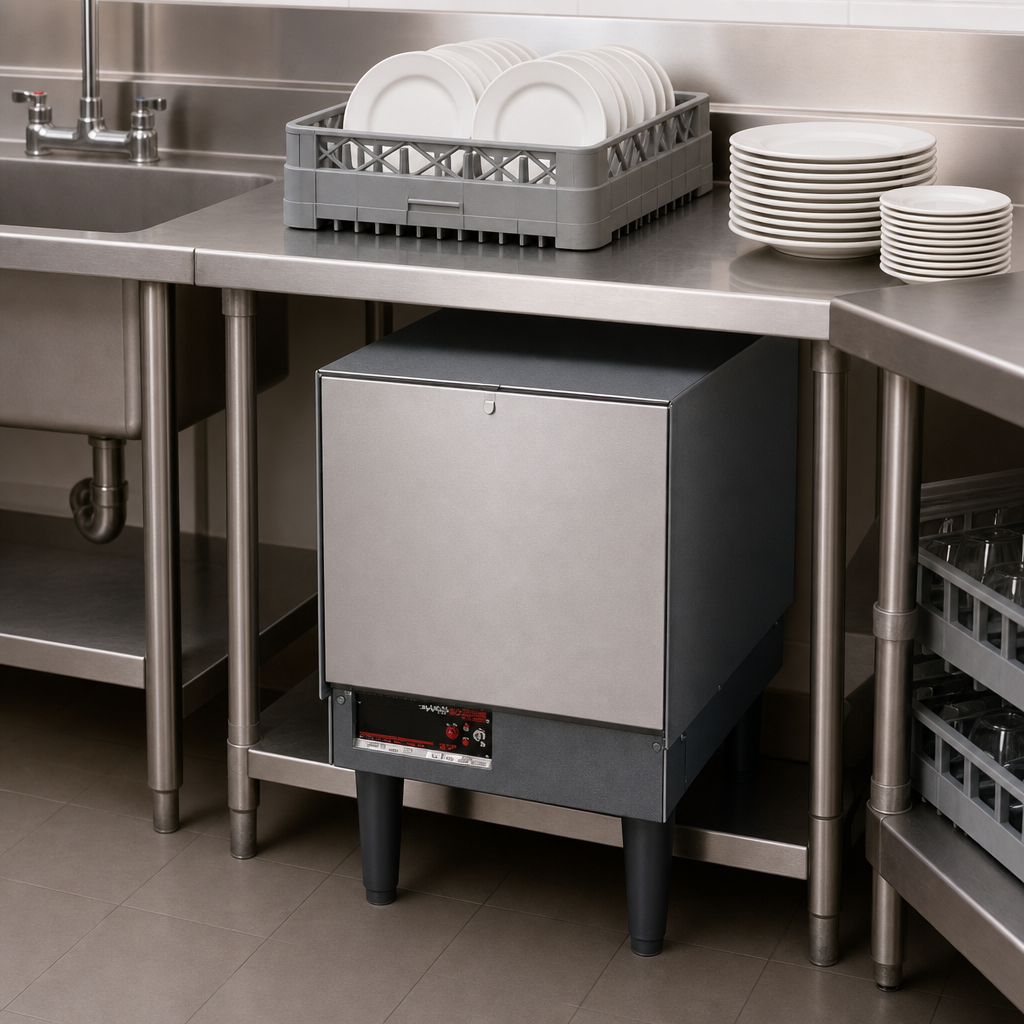

  • Space-saving 13 × 21 in. footprint with built-in slide-bracket mounting slots.

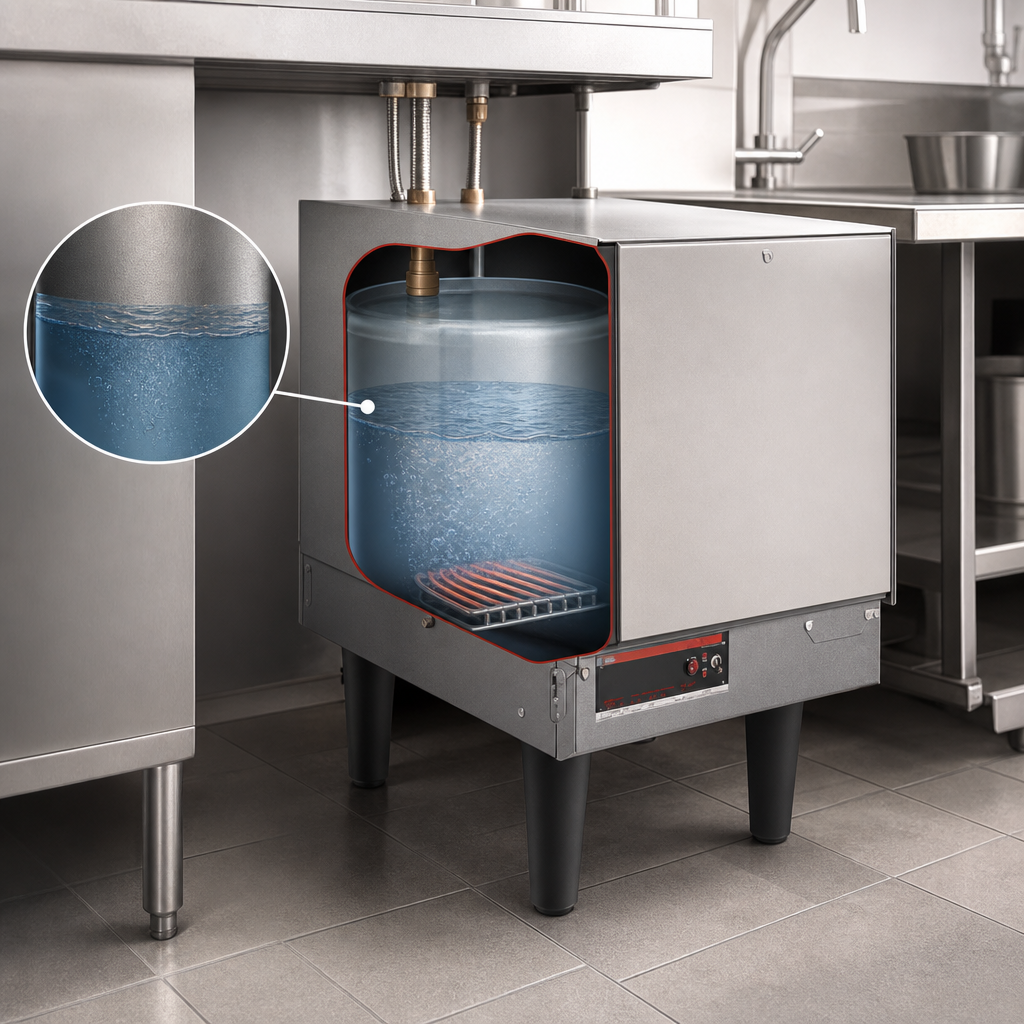

  • 6 gal (23 L) Castone® lined storage tank backed by a 10-year limited warranty.
  • Delivers up to 181 gph recovery at 40°F rise—ideal for single-rack and conveyor machines.
  • Factory pre-plumbed & pre-wired for fast, hassle-free installation.
  • Fiberglass insulation and a swing-away, stainless-steel front panel for energy savings and easy service.
  • Full safety suite: temperature/pressure relief valve, pressure-reducing valve, two gauges, high-limit, low-water cut-off and pilot light.
  • Rugged powder-coated silver-gray hammertone body with corrosion-resistant stainless front.
  • Supplied on 6 in. plastic, non-adjustable legs; optional 6–7 in. stainless legs available.
  • NSF & cULus listed; proudly Made in the USA.

Performance & Electrical

Storage Capacity 6 gal | 23 L
Heat Input 18 kW
Recovery @ 40°F Rise 181 gph | 685 lph
Recovery @ 70°F Rise 103 gph | 390 lph
Standard Operating Temp. Up to 180°F (82°C)
Amp Draw & Breaker/Fuse Guide
Voltage Phase Amps Min. Breaker / Fuse
208 V 1 Ø 86.6 A 125 A
208 V 3 Ø 47.9 A 60 A
240 V 1 Ø 75 A 100 A
240 V 3 Ø 43.4 A 60 A
480 V 1 Ø 37.5 A 50 A
480 V 3 Ø 21.7 A 30 A
600 V 3 Ø 17.4 A 30 A

Dimensions

Width 13.06 in | 332 mm
Depth 20.69 in (26 in. incl. T/P valve) | 525 mm
Height (body) 13.78 in | 350 mm
Leg Height 6 in | 152 mm
Shipping Weight approx. 120 lb | 54 kg

Incoming water harder than 3.0 GPG (0.75 GPL) must be softened to maintain efficiency and warranty coverage.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

19.75in

Width

13.0in

Depth

20.75in

Shipping Weight

120.0lbs

Width

11" - 19"

Wattage

12 - 19 kilowatts

Tank Capacity

6 gallon

Specifications

Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 18.0kW, NSF, cULus, Made in USA
