Hatco Compact Electric Booster Water Heater, 6 Gallon, 17.25 kW, 208V, 3-Phase

SKU: C-17-208-3-QS
GTIN: 61570000977
$2,846.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

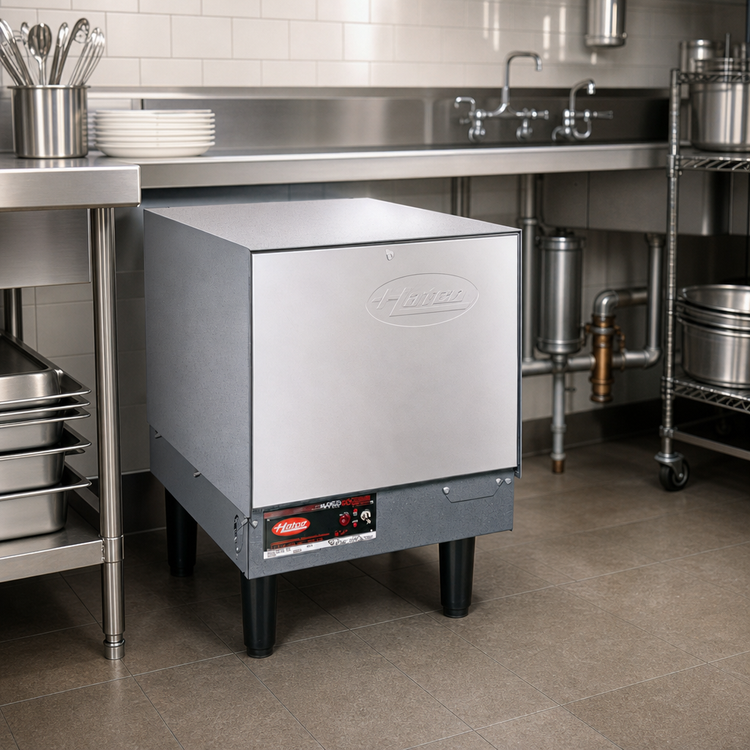

Hatco Compact Electric Booster Water Heater, 6 Gallon, 17.25 kW, 208V, 3-Phase

Quick Ship Model

A space-saving electric booster heater that delivers the 180°F final rinse water commercial dish machines need for sanitizing and flash-drying.

  • 6-gallon storage capacity in a compact footprint for commercial dish rooms.
  • 17.25 kW electric operation on 208V, 3-phase power.
  • Supplies 180°F final rinse water to help sanitize and flash-dry dishes and flatware.
  • Castone® lined tank with a 10-year limited warranty.
  • Stainless steel front panel with powder-coated silver-gray hammertone body.
  • Factory pre-plumbed and pre-wired with built-in safety controls and 6-inch legs.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

120.0 lb

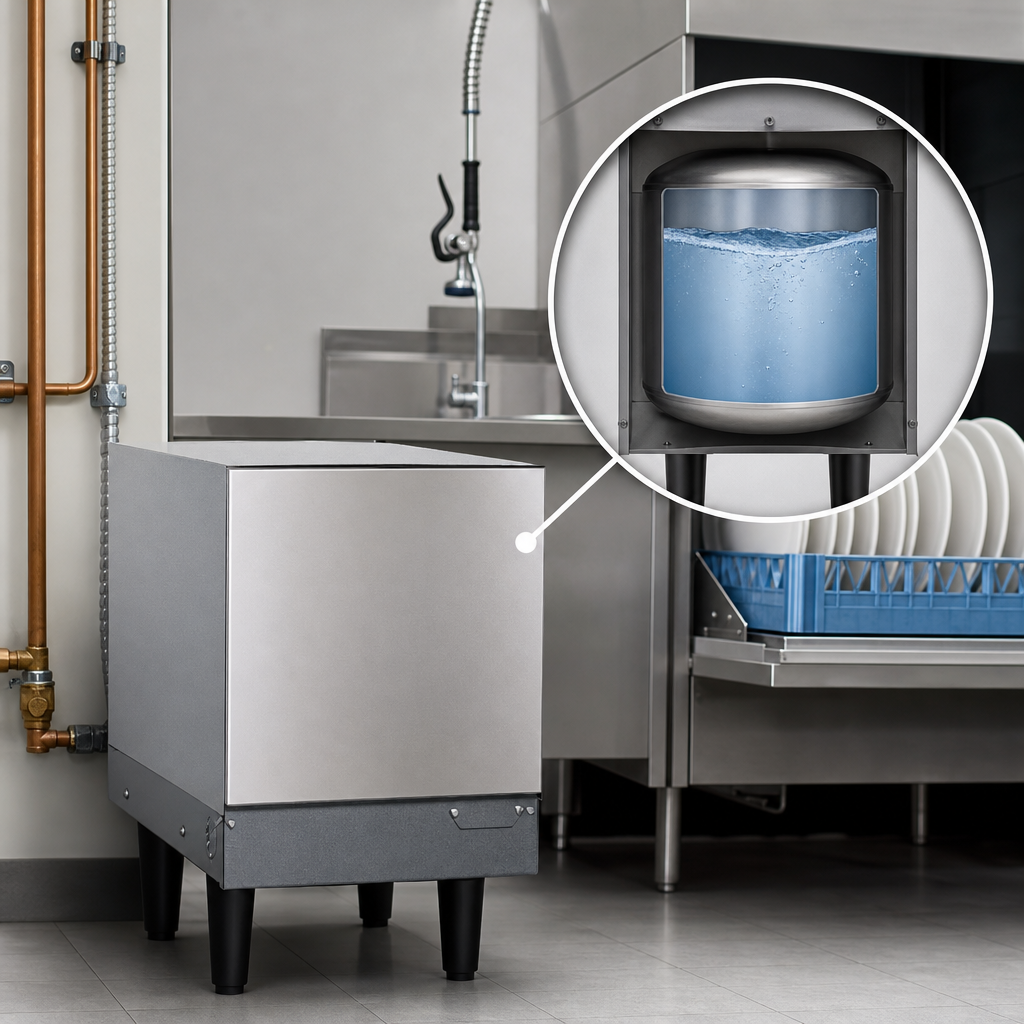

6-Gallon Storage Capacity

Built with a 6-gallon tank to provide the hot water reserve needed for dishwasher final rinse support.

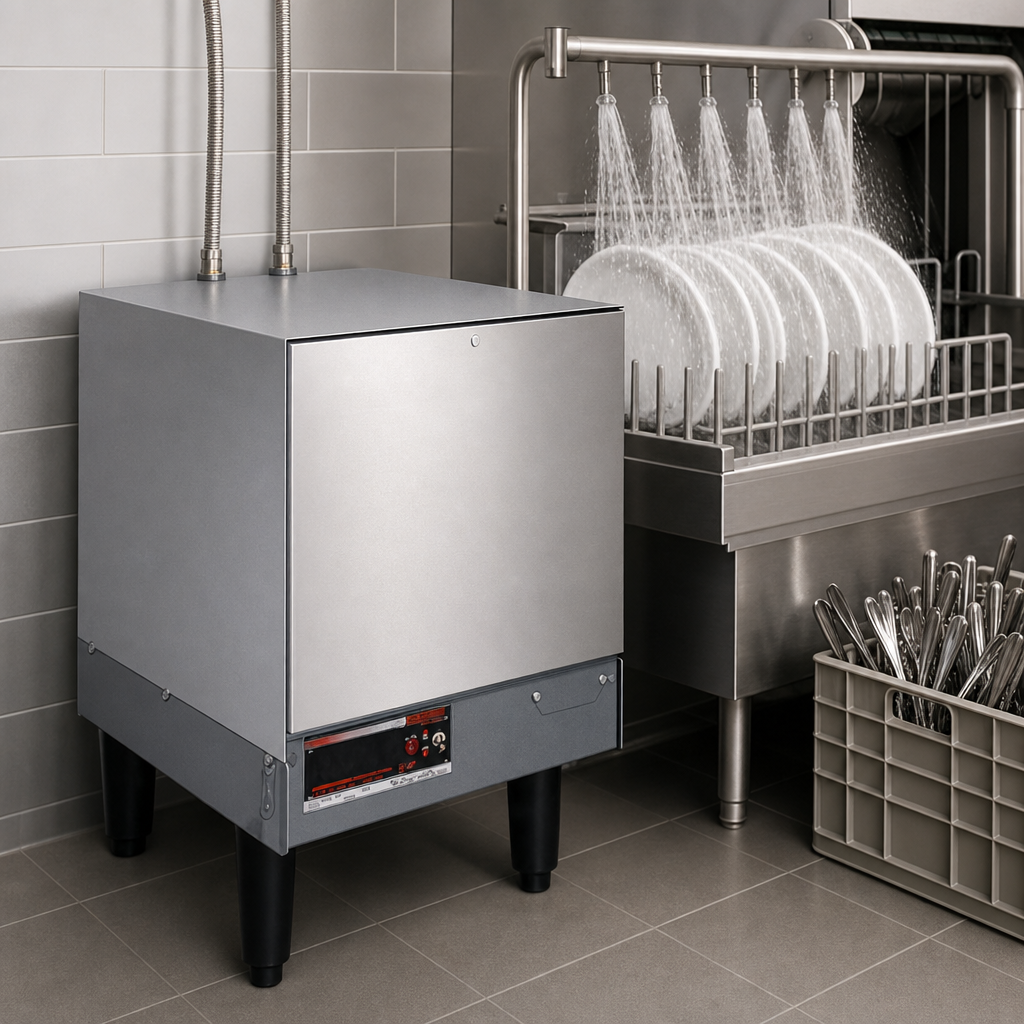

180°F Final Rinse Output

Designed to supply the final 180°F (82°C) rinse water used to sanitize and flash-dry dishes and flatware.

Castone® Lined Tank

Standard lined tank construction helps protect the heater and includes a 10-year limited warranty on the tank.

Factory Pre-Plumbed and Pre-Wired

Ships with internal plumbing and electrical components already assembled for faster installation.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Stainless Steel Front Panel

Features a stainless steel front panel with a powder-coated silver-gray hammertone body.

6-Inch Legs and Mounting Flexibility

Standard 6-inch plastic non-adjustable legs are included, and slide brackets are available for under-dishtable mounting.

Type Electric Booster Water Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Voltage 208 Volts
Amps 47.9 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 60 Amps
Watts 17.25 kW
Water Inlet Size 3/4 Inch NPT
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 120 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Quick ship PDF Download

Frequently Asked Questions

It has a 6-gallon storage capacity.
This model operates on 208 Volts, 60 Hz, 3-phase power and is rated at 17.25 kW.
It is designed to supply 180°F final rinse water.
The unit includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, a pilot indicator light, an on-off switch, and a low-water cut-off.
Yes. The heater can be installed next to the dishwasher with slide brackets, and additional slide brackets are listed as an accessory.
