Description

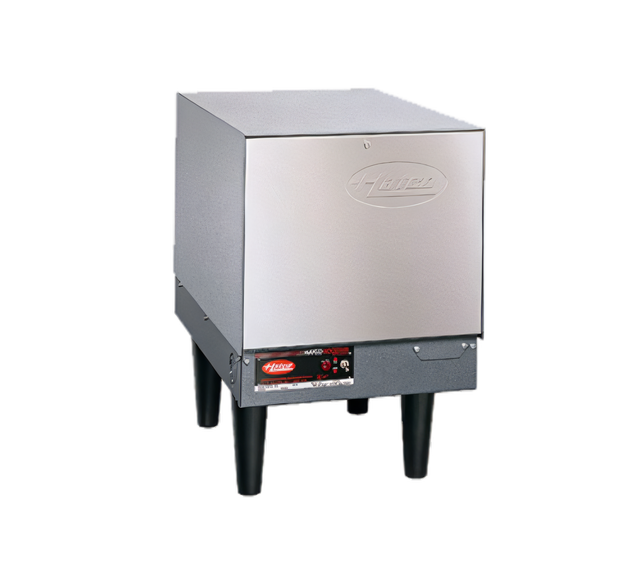

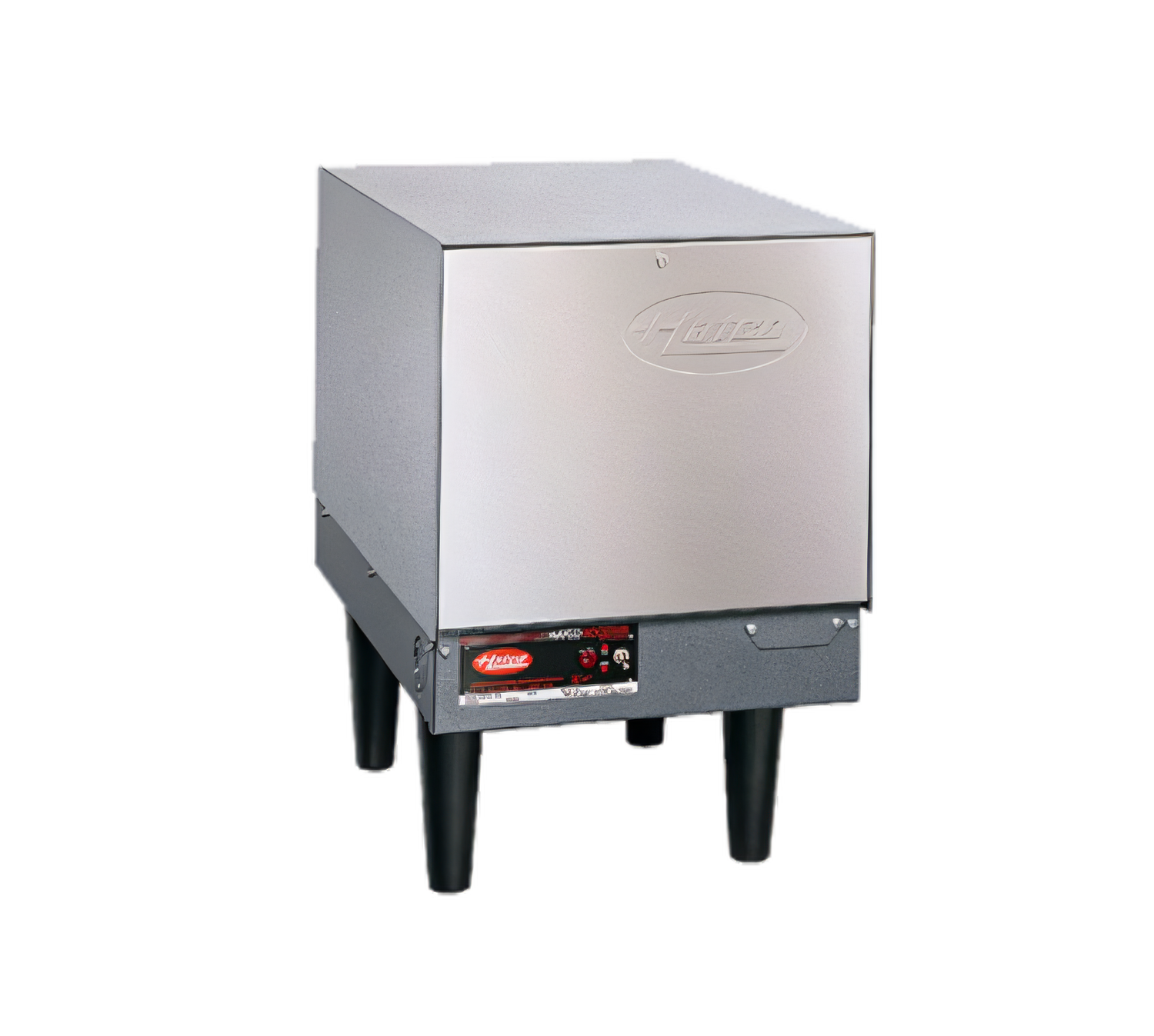

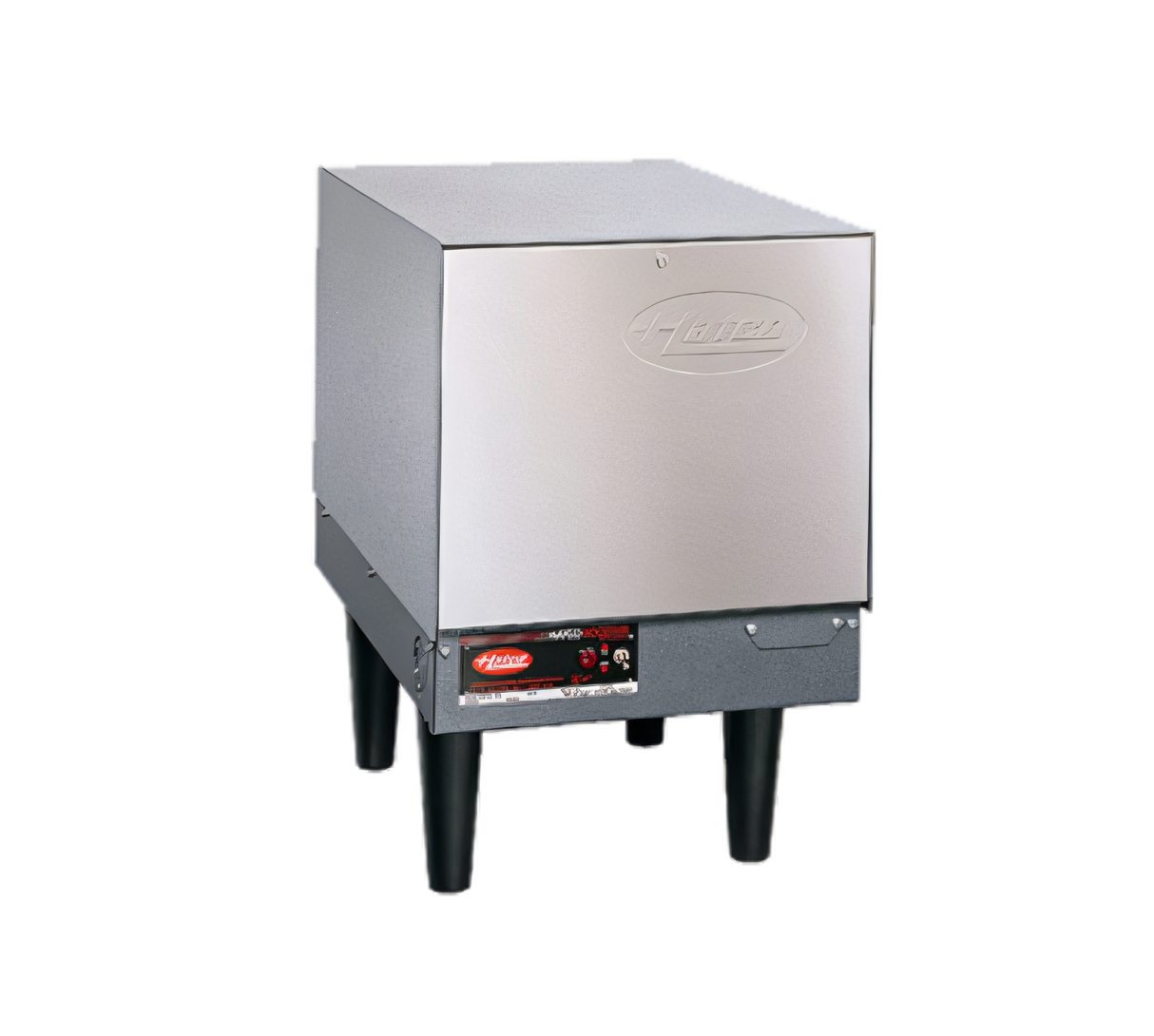

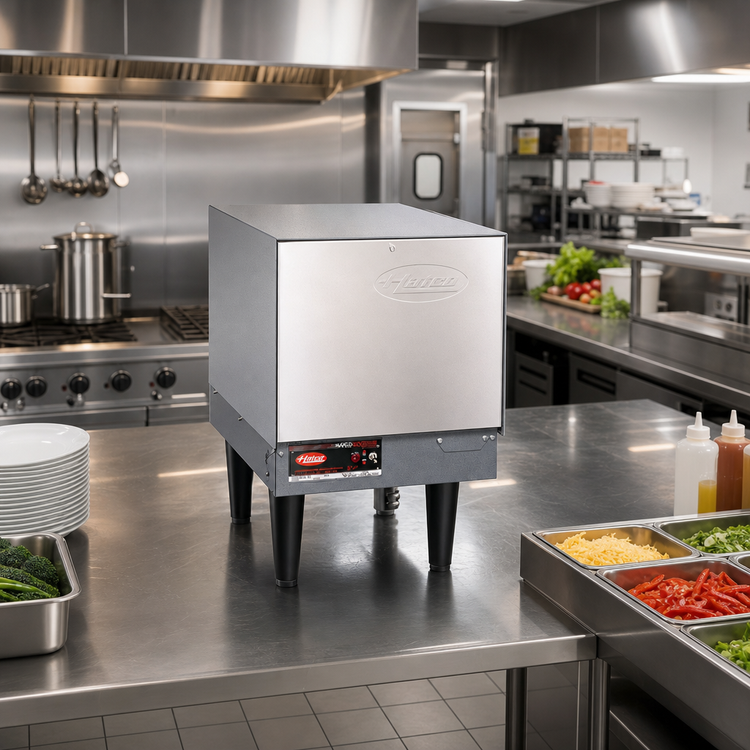

Hatco C-15 Compact Electric Booster Heater – 6 gal / 15 kW

Instant 180 °F (82 °C) final-rinse water for commercial dishmachines

The Hatco C-15 delivers high-performance sanitizing power from a footprint barely wider than a half-sheet pan. With a 6-gallon Castone® lined tank and 15 kW of heating muscle, this compact booster heater keeps plates, glasses and flatware sparkling, sanitary and ready to flash-dry—shift after shift.

Why You’ll Love It
  • 6 gal (23 L) storage tank provides an uninterrupted supply of 180 °F rinse water.
  • Castone® tank lining resists corrosion & liming and carries a 10-year limited warranty.
  • 15 kW electric elements recover up to 151 gph @ 40 °F rise (86 gph @ 70 °F rise).
  • Factory-installed safety package: temperature/pressure relief valve, pressure-reducing valve, dual temp/pressure gauges, high-limit cutoff & low-water protection.
  • Service-friendly swing-away front panel with clearly labelled controls and fuses.
  • Stainless-steel front panel & durable silver-gray hammertone powder-coat sides with Hatco’s IFS antimicrobial finish.
  • 6" (152 mm) non-adjustable plastic legs included; slide-mount brackets available.
  • Fully pre-plumbed & pre-wired at the factory for fast, hassle-free installation.
Technical Specifications
Model Hatco C-15
Storage Capacity 6 gal / 23 L

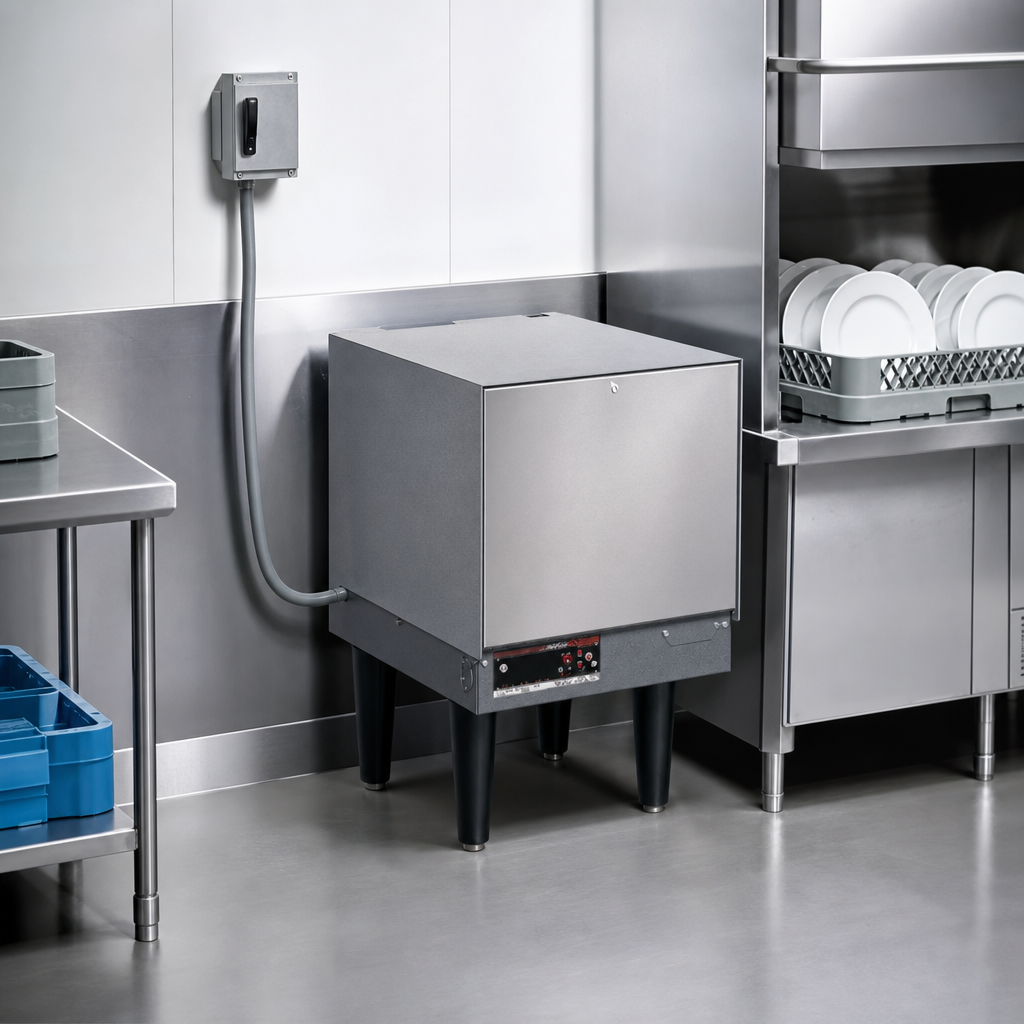

Heating Capacity 15 kW
Recovery Rate 151 gph @ 40 °F rise | 86 gph @ 70 °F rise
Electrical (1-phase) 208 V 72.2 A | 240 V 62.5 A | 480 V 31.3 A
Electrical (3-phase) 208 V 41.7 A | 240 V 36.1 A | 480 V 18.1 A
Water Connections ¾" NPT inlet & outlet
Working Pressure Up to 150 psi (1 034 kPa)
Overall Dimensions* 13.06" W × 20.69" D (26" inc. T/P valve) × 19.78" H
Shipping Weight Approx. 120 lb / 54 kg
Certifications NSF, cULus, Made in USA

*Height includes 6" legs; body height without legs is 13.78".

Ideal Applications
  • High- or low-temperature commercial dishwashers
  • Restaurants, cafés & bars
  • Catering venues & banquet kitchens
  • Hotels, schools & healthcare facilities
Warranty & Support
  • 10-year limited Castone® tank warranty
  • 1-year parts & labor coverage (24/7 parts & service assistance in the US & Canada)
  • Backed by Hatco’s legendary after-sales support
Important: Incoming water hardness must not exceed 3 GPG (0.75 g/L). Water treatment is required if hardness is above this level. Damage caused by lime or sediment build-up is not covered under warranty.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, cULus, Made in USA

Height

19.75in

Width

13.0in

Depth

20.75in

Shipping Weight

120.0lbs

Width

11" - 19"

Wattage

12 - 19 kilowatts

Tank Capacity

6 gallon

Specifications

Compact Booster Heater, electric, 6 gallon storage capacity, electric operation, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 15.0kW, NSF, cULus, Made in USA
