Hatco C-15-480-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description
Hatco “Quick Ship” C-15 Compact Electric Booster Heater – 15 kW, 480 V/3-Ph

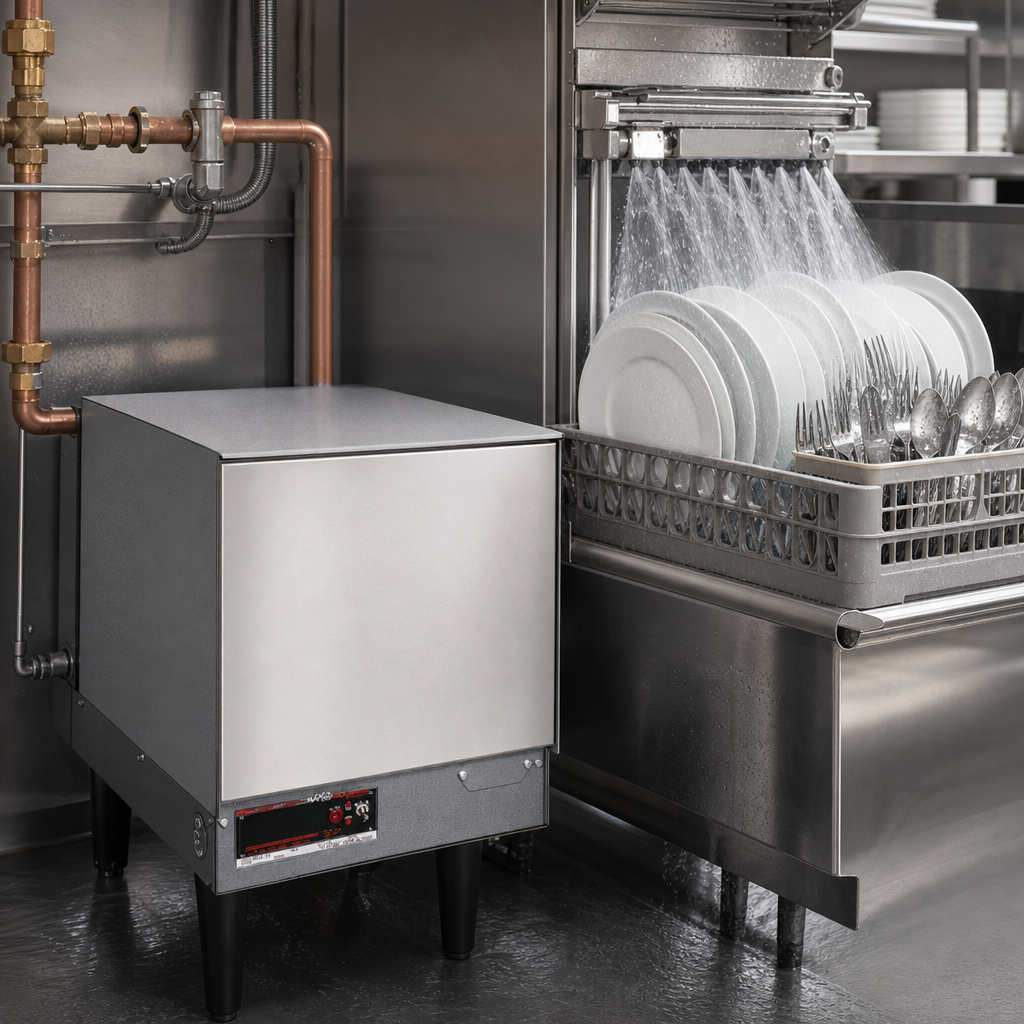

6-gal Castone® tank • 180 °F final-rinse water • Made in USAStop waiting weeks for hot-water equipment. Through Hatco’s Quick Ship program, this NSF-listed booster heater ships out fast—keeping your dishroom compliant and your operation on schedule. At just 13″ wide, the C-15 tucks neatly under a dishtable yet delivers a steady 180 °F (82 °C) final rinse that sanitizes and flash-dries dishes and flatware.
Why you’ll love it
- Powerful 15 kW elements recover up to 151 gph @ 40 °F rise.
- Space-saving footprint (13 × 21 in.) mounts on the included 6″ plastic legs.
- 6-gallon Castone® lined tank resists liming and carries a 10-year limited warranty.
- Factory pre-plumbed & pre-wired—just connect 3/4″ NPT lines and power.
- Stainless steel front panel and silver-gray hammertone body for a clean, durable finish.
- Swing-away front panel gives tool-free access to elements, probes and fuses.
- Built-in safety: pressure-reducing valve, T/P relief valve, high-limit cut-off, low-water cut-off & on/off switch with pilot light.
- Energy-saving fiberglass insulation minimizes standby losses.
- NSF & cULus listed; proudly engineered and built in Wisconsin, USA.
Performance at a glance

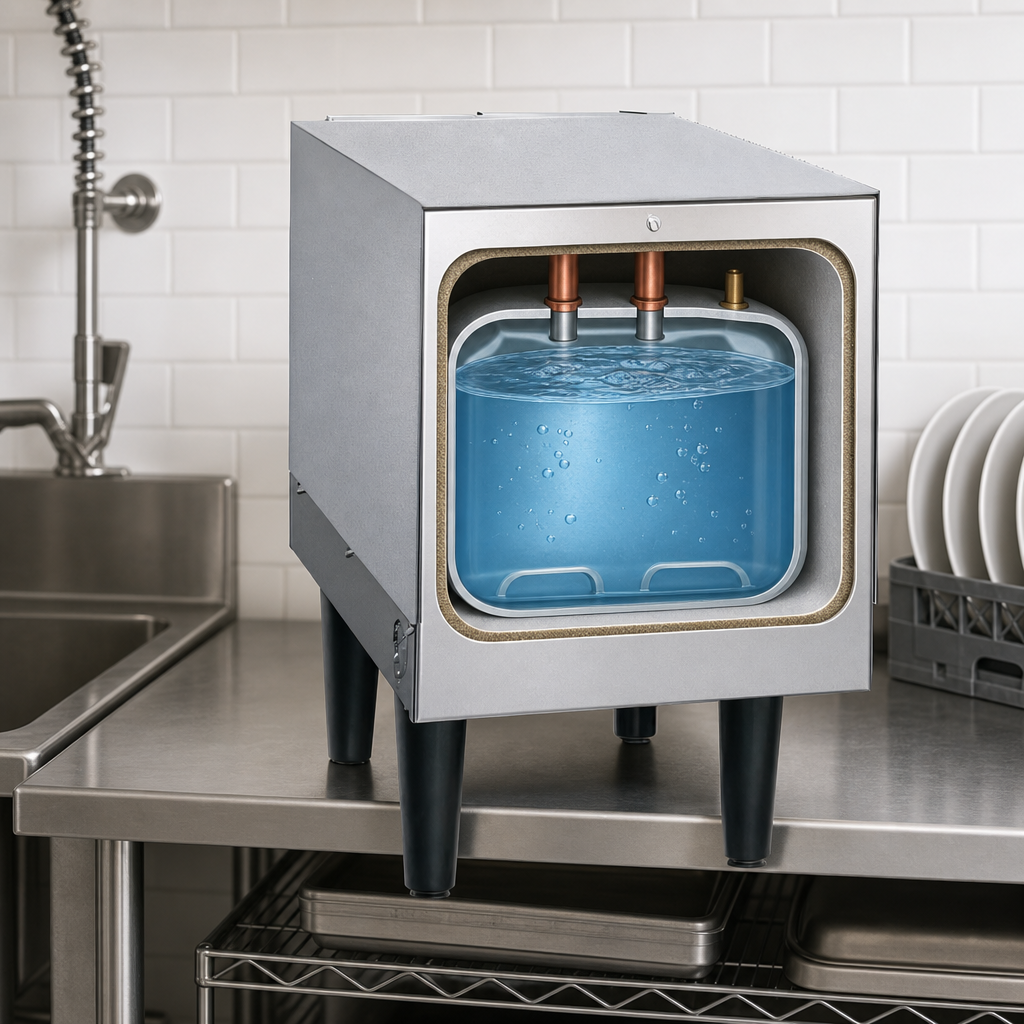

| Storage capacity | 6 gal (23 L) |
|---|---|
| Input | 15 kW electric |
| Voltage / phase | 480 V / 60 Hz / 3-phase |
| Full-load amps (3-ph) | 18.1 A |
| Recovery @ 40 °F rise | 151 gph (572 lph) |
| Recovery @ 70 °F rise | 86 gph (326 lph) |
| Inlet / outlet size | 3/4″ NPT |
| Max working pressure | 150 psi (1034 kPa) |
Compact dimensions
| Width | 13.06″ (332 mm) |
|---|---|
| Depth | 20.69″ (525 mm) 26″ (660 mm) inc. T/P valve |
| Height (body) | 13.78″ (350 mm) |
| Overall height | 19.78″ (502 mm) w/ legs |
| Shipping weight | 120 lb (54 kg) |
Installation notes
- Unit ships pre-set to 180 °F; field-adjustable 140–190 °F.
- Provide a 3-pole disconnect or fused breaker sized for 18.1 A @ 480 V 3-ph.
- Treat incoming water harder than 3 GPG to maintain efficiency and warranty.
- Mount level; allow 3″ rear clearance for ventilation and service access.
Quick Ship inventory is limited and subject to prior sale. Orders typically leave the warehouse within 24–48 hours.
