Hatco C-15-240-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

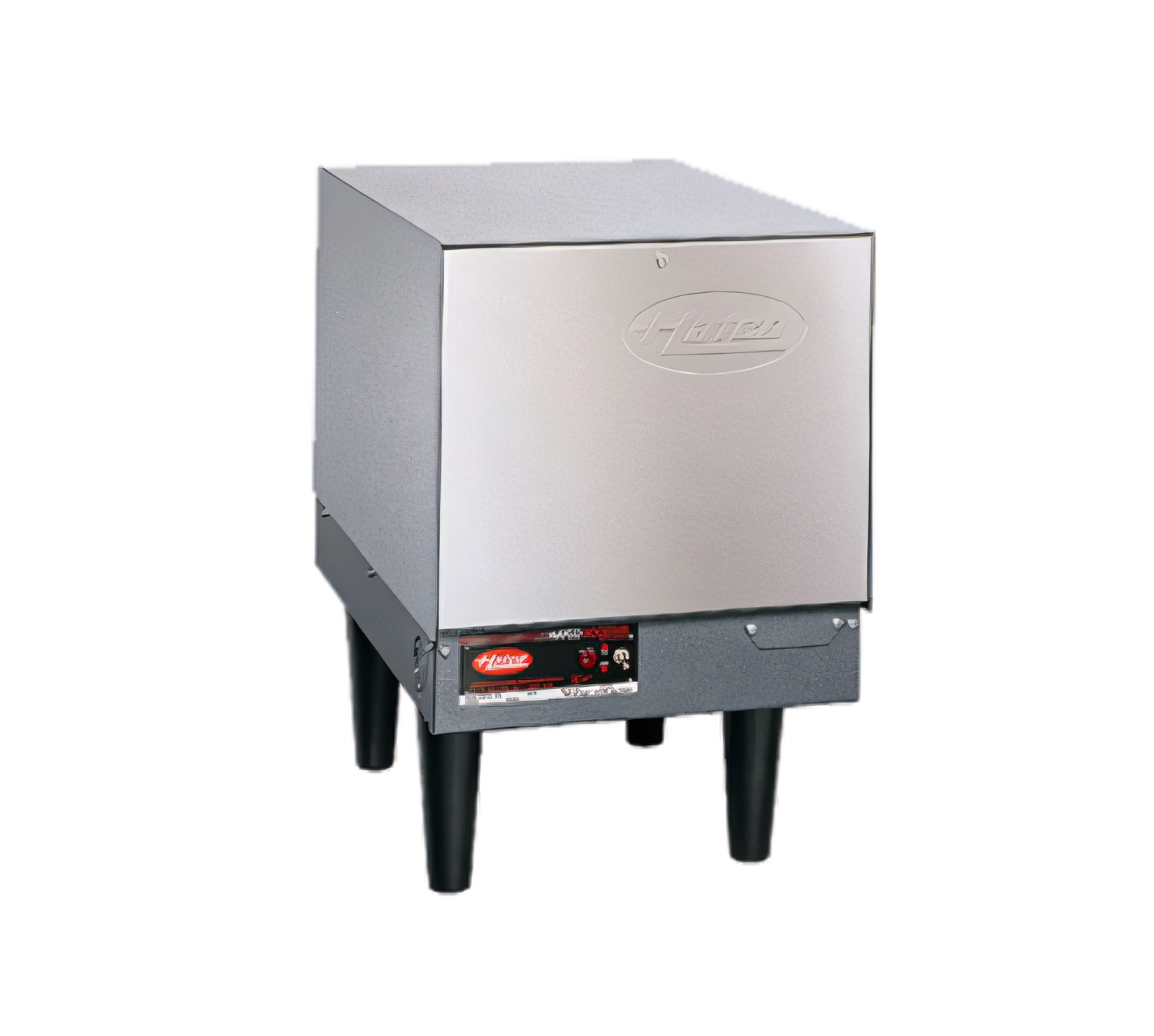

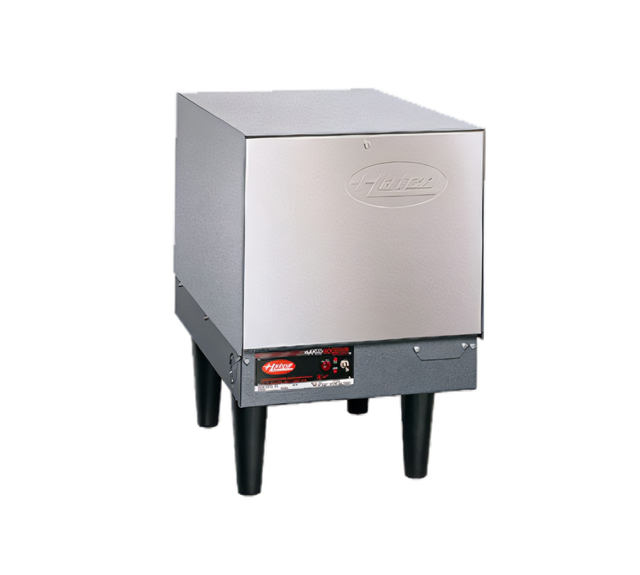

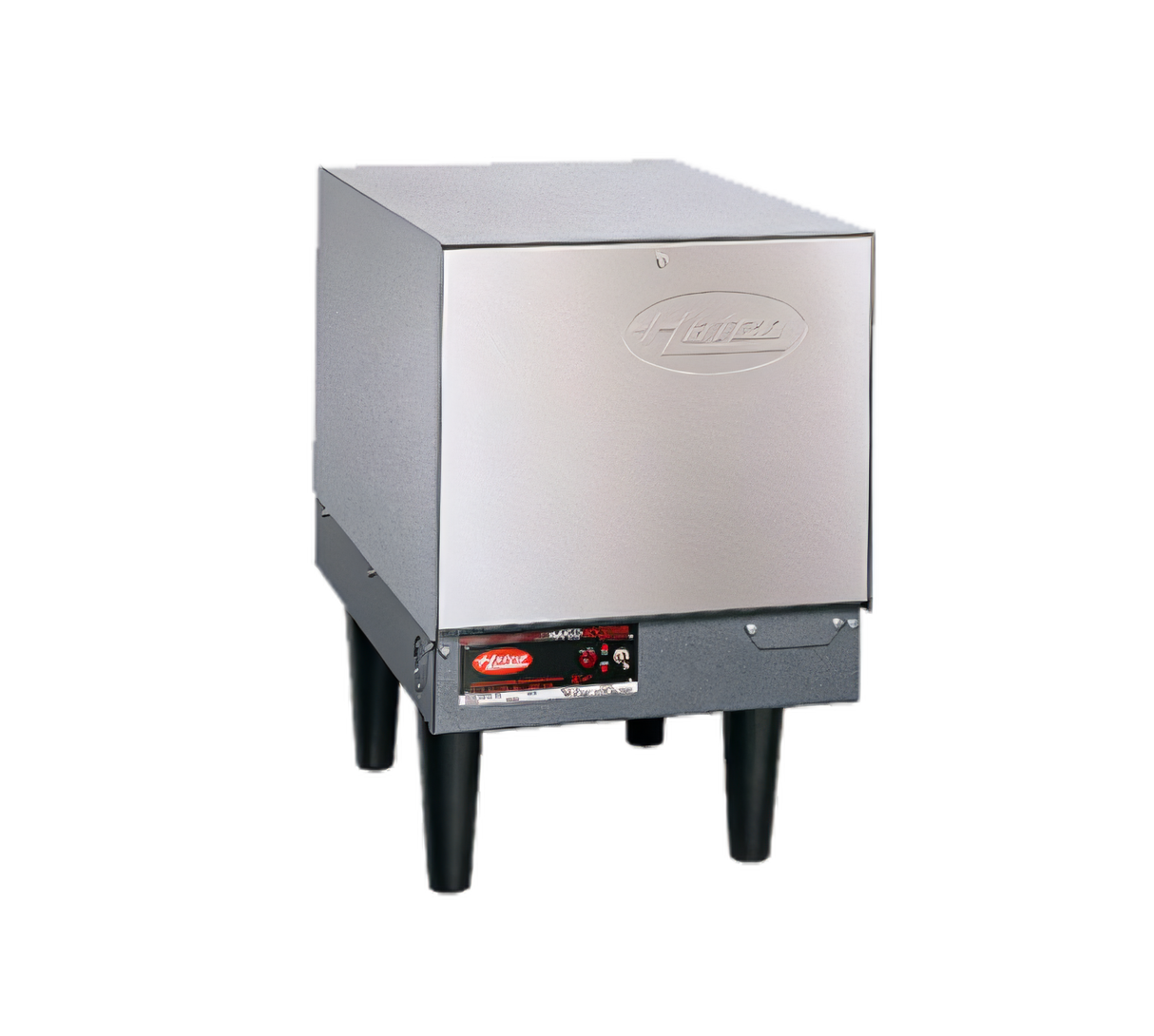

Hatco “Quick Ship” C-15 Compact Electric Booster Water Heater
15 kW • 6-Gallon Castone® Tank • 240 V / 60 Hz / 3-PhaseDeliver a steady 180 °F (82 °C) final-rinse to your high-temp dishwasher without wasting floor space or time. Hatco’s Quick Ship C-15 Booster Heater arrives factory-assembled, pre-plumbed, and ready to install beside the dishmachine—so you’re sanitizing and flash-drying dishes in days, not weeks.
Why You’ll Love It
- 6-gallon (23 L) Castone® lined tank resists corrosion — backed by a 10-year limited warranty.
- 15 kW heat input delivers up to 151 GPH at 40 °F rise (86 GPH at 70 °F rise) for uninterrupted 180 °F rinse water.
- Complete safety package: temperature/pressure relief and reducing valves, dual gauges, high-limit cut-off, low-water cut-off, and pilot indicator light.
- Stainless-steel front panel with swing-away design for fast element and probe access.
- Durable powder-coated silver-gray hammertone body on 6" non-adjustable plastic legs (slide-mounting brackets optional).
- Factory pre-wired with calibrated immersion thermostat and high-temperature limit switch to simplify electrical hook-up.
- NSF Listed, cULus certified, and proudly Made in the USA.
- Part of Hatco’s Quick Ship program for the fastest lead times available.
Key Specifications
| Storage Capacity | 6 gal (23 L) |
|---|---|
| Heat Input | 15 kW |
| Voltage / Phase | 240 V / 60 Hz / 3-Phase |
| Full-Load Amps | 36.1 A |
| Dimensions (W × D × H) | 13.06" × 20.69" × 19.78" (includes 6" legs) |
| Water Connections | ¾" NPT inlet & outlet |
| Recovery @ 40 °F Rise | 151 GPH (572 LPH) |
| Recovery @ 70 °F Rise | 86 GPH (326 LPH) |
| Front Panel | Stainless steel |
| Body Finish | Powder-coated silver-gray hammertone |
| Legs | 6" (152 mm) plastic, non-adjustable |
| Certifications | NSF, cULus |
| Country of Origin | USA |
Perfect For
- Door-type, rack, and undercounter high-temperature dishwashers.
- Space-restricted kitchens in cafés, bars, schools, and healthcare facilities.
- Operators replacing oversized or inefficient storage heaters.
Need a different voltage, phase, or mounting method? Ask us about other Hatco Compact models and factory-installed options.
