Hatco Compact Electric Booster Water Heater, 6-Gallon, 15 kW, 240V, 1-Phase

SKU: C-15-240-1-QS
GTIN: 61570000974
$2,827.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

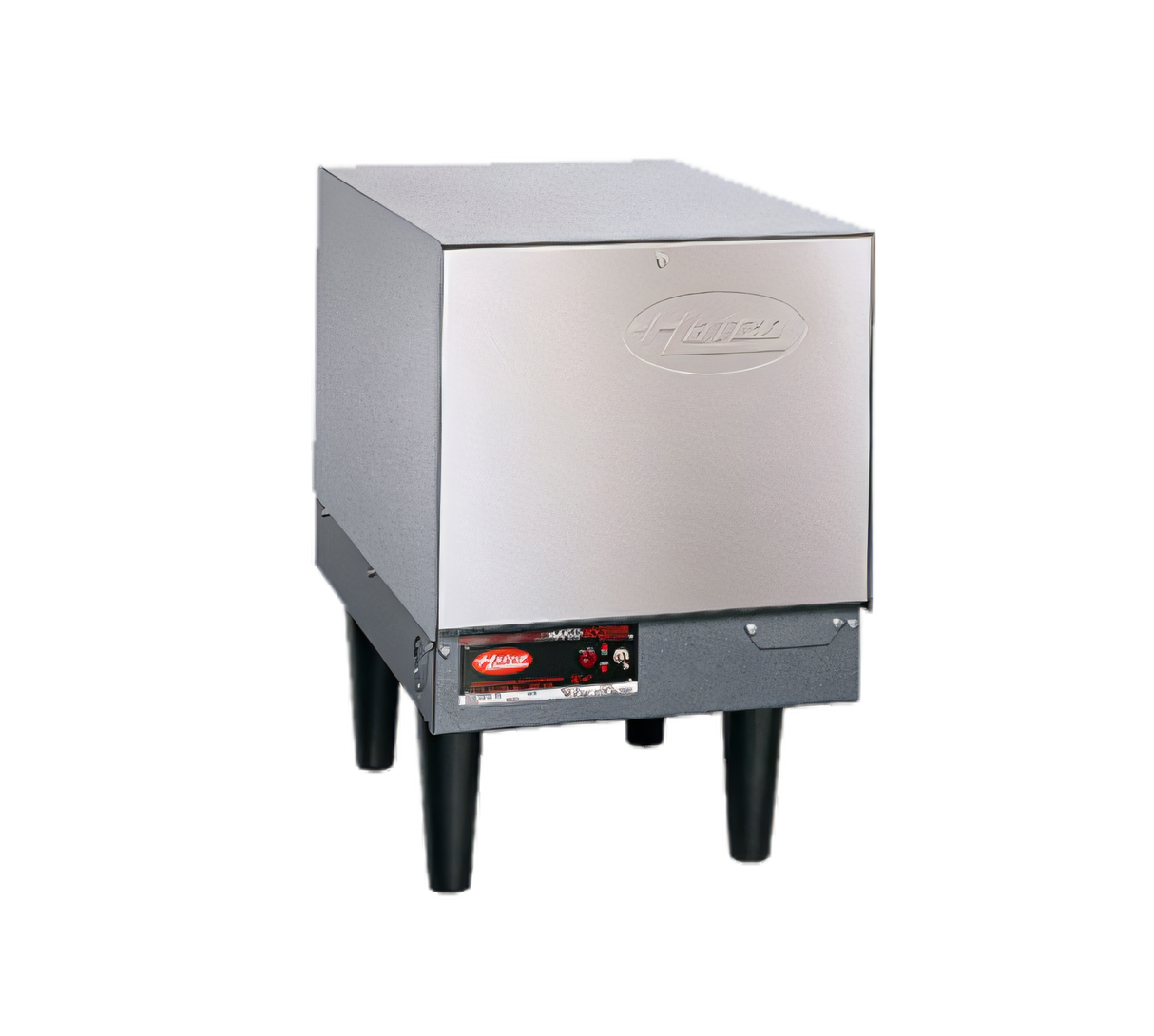

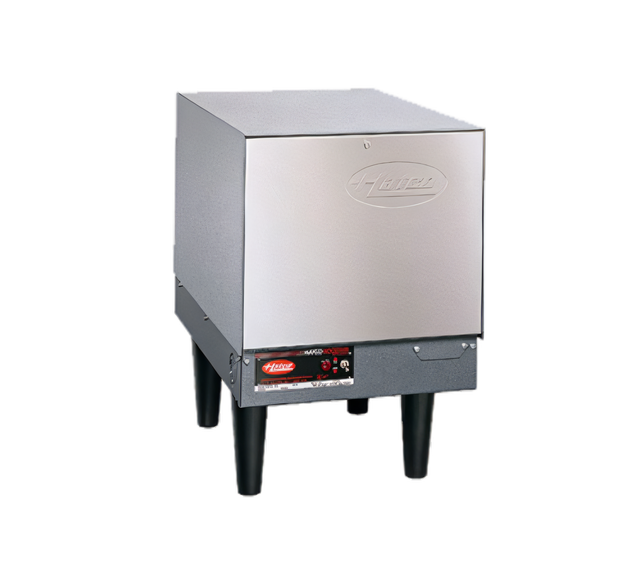

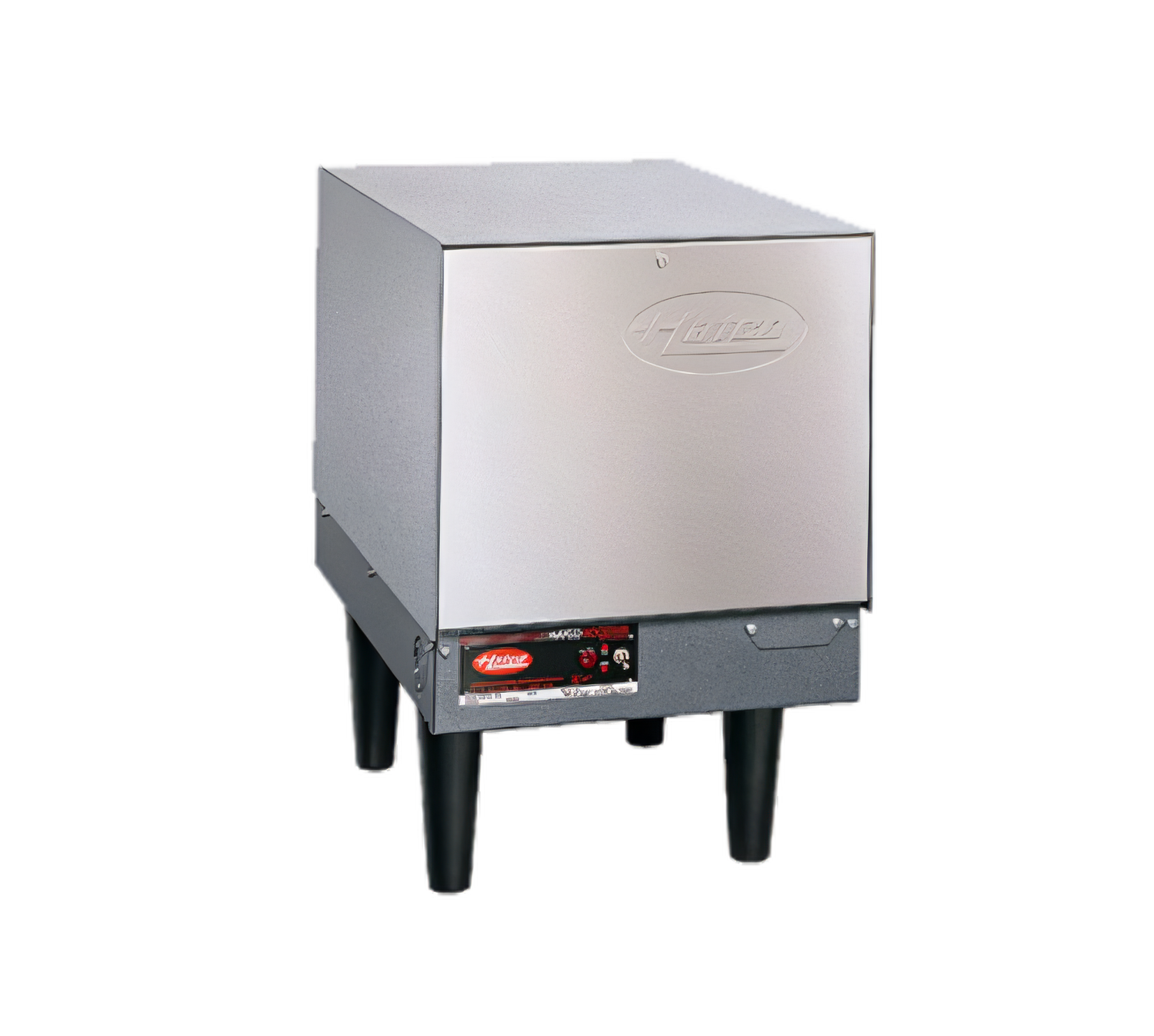

Hatco Compact Electric Booster Water Heater, 6-Gallon, 15 kW, 240V, 1-Phase

Quick Ship Model with Stainless Steel Front Panel and Castone-Lined Tank

A space-saving booster heater that delivers 180°F final-rinse water for reliable dishwasher sanitation and faster flash drying.

  • Compact 6-gallon electric booster water heater for final-rinse applications.
  • 15 kW output on 240V, 60 Hz, single-phase power.
  • Delivers the 180°F rinse water needed to sanitize and flash-dry dishes and flatware.
  • Stainless steel front panel with powder-coated silver-gray hammertone body.
  • Castone-lined tank with built-in safety controls and a 10-year limited tank warranty.
  • Standard 6-inch plastic non-adjustable legs; slide brackets are available for under-dishtable mounting.
  • Made in the USA for commercial dish room use.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

120.0 lb

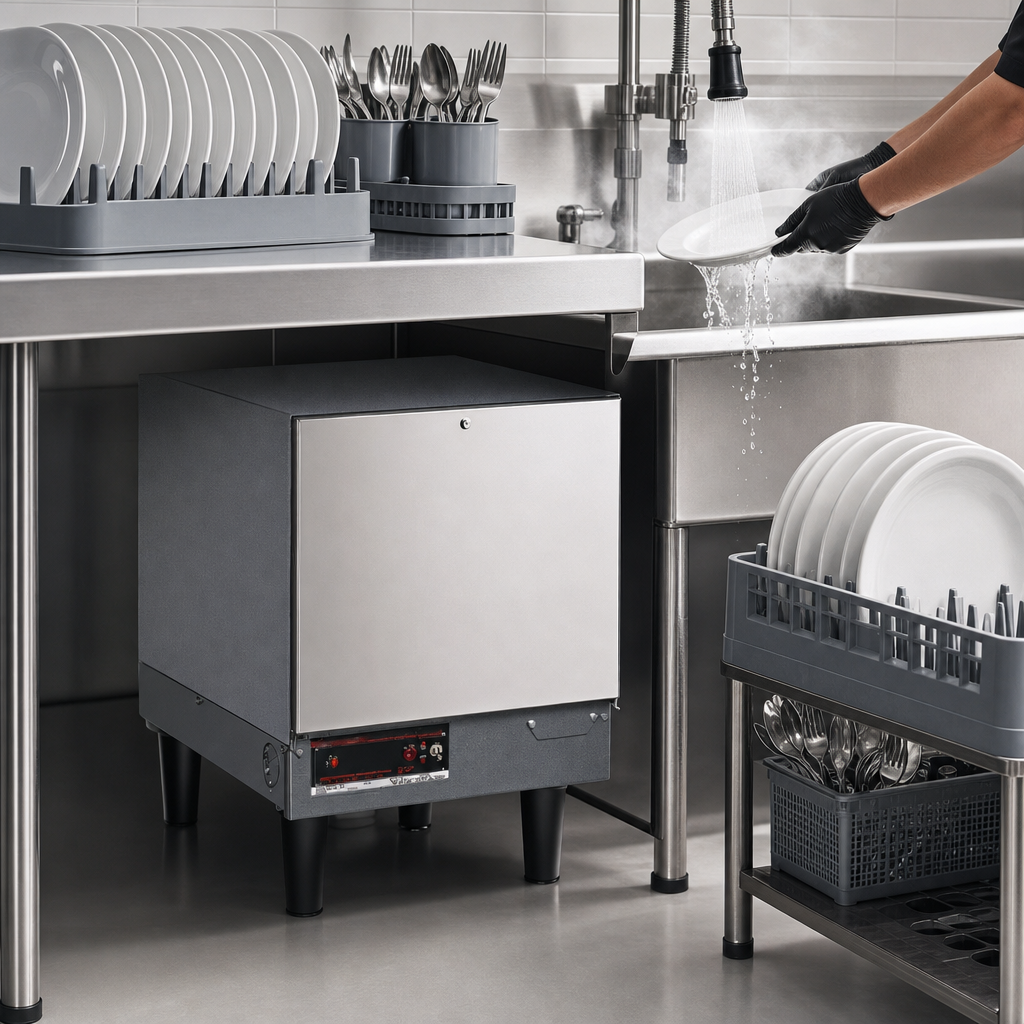

180°F Final Rinse Performance

Supplies the final rinse water temperature needed to sanitize and flash-dry dishes and flatware.

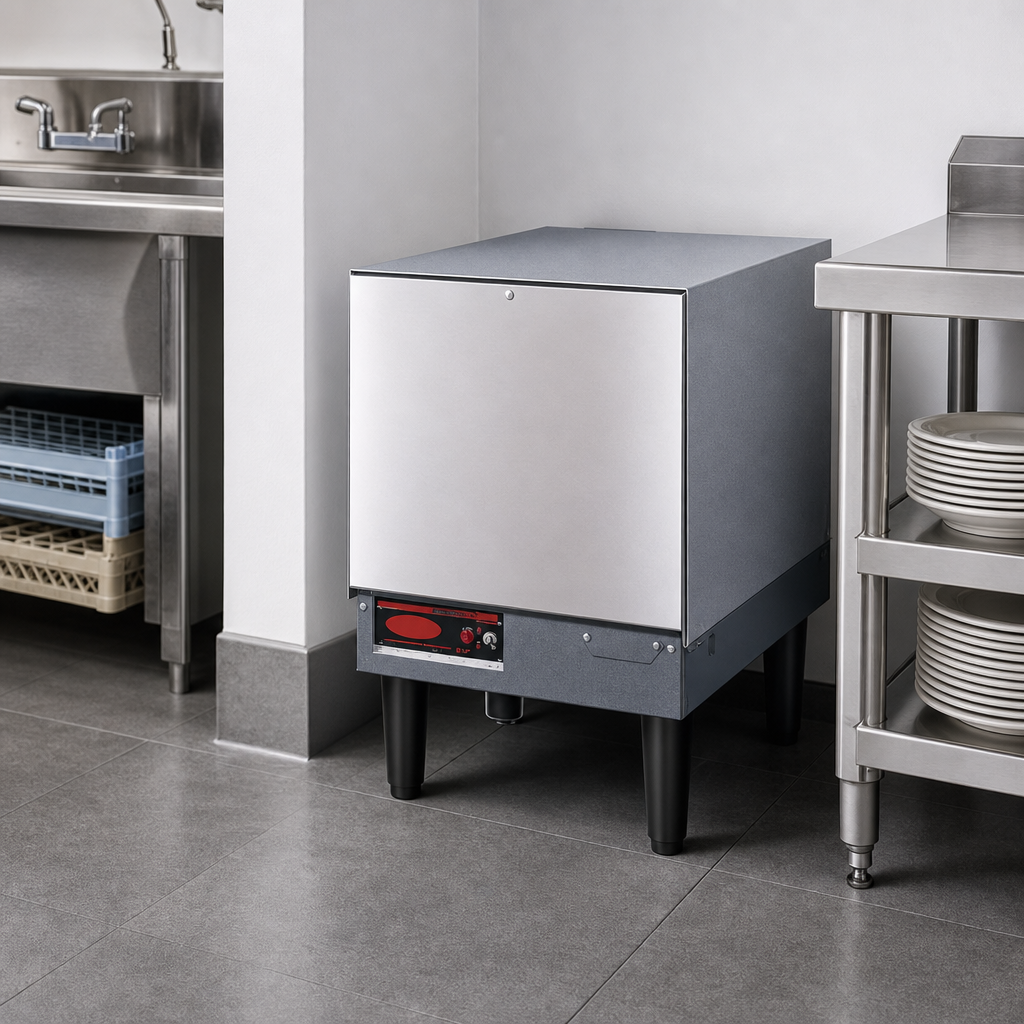

6-Gallon Compact Tank

Space-saving storage capacity is sized for dish room booster heater applications.

15 kW, 240V, 1-Phase Electrical

Configured for 240 volt, 60 Hz single-phase operation.

Castone-Lined Tank

Standard tank lining helps support durability and includes a 10-year limited tank warranty.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, low-water cut-off, pilot indicator light, and on-off switch.

Durable Exterior Finish

Features a stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch plastic non-adjustable legs.

Factory Pre-Plumbed and Pre-Wired

Comes pre-plumbed and pre-wired with calibrated immersion thermostat and high-temperature limit switch for easier installation.

Service-Friendly Access

Swing-away front panels provide quick access to probes and elements for maintenance.

Type Booster Heater
Style Compact
Installation Type Floor Model (With Legs)
Capacity 6 Gallons
Voltage 240 Volts
Amps 62.5 Amps
Watts 15 kW
Hertz 60 Hz
Phase 1-Phase
Breaker Size 90 Amps
Material Steel
Color Silver-Gray
Finish Powder-Coated Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 120 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone-lined tank

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download PDF Quick ship PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It provides the 180°F final rinse water needed to sanitize and flash-dry dishes and flatware.
This model is rated at 15.0 kW and operates on 240 volts, 60 Hz, single-phase power.
Standard controls include a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, low-water cut-off, pilot indicator light, and on-off switch.
It ships on 6-inch plastic non-adjustable legs, and slide brackets are available for under-dishtable mounting.
The Castone-lined tank includes a 10-year limited warranty.
