Hatco Compact Electric Booster Water Heater, 6 Gallon, 15 kW, 208V, 3-Phase

SKU: C-15-208-3-QS
GTIN: 61570000973
$2,827.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Compact Electric Booster Water Heater, 6 Gallon, 15 kW, 208V, 3-Phase

Quick Ship Model

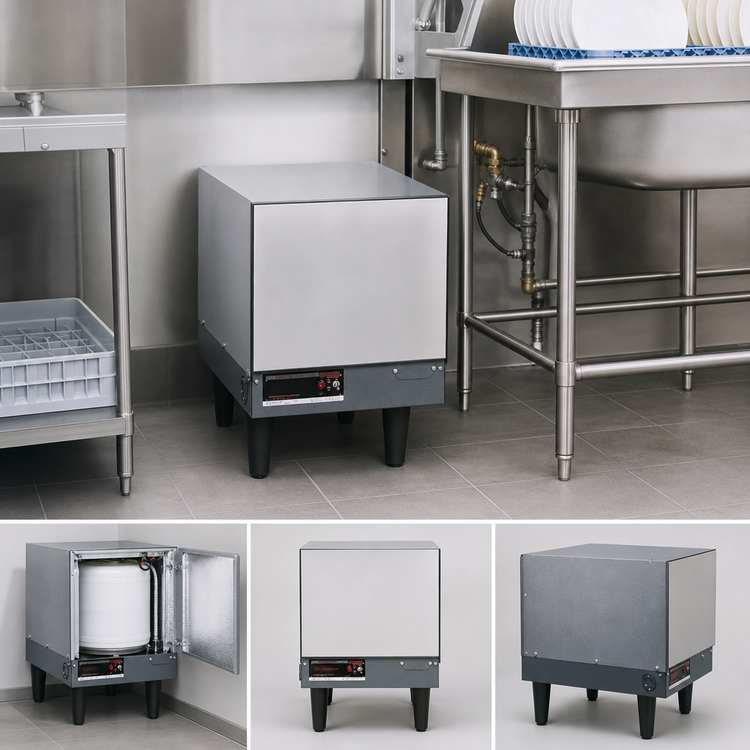

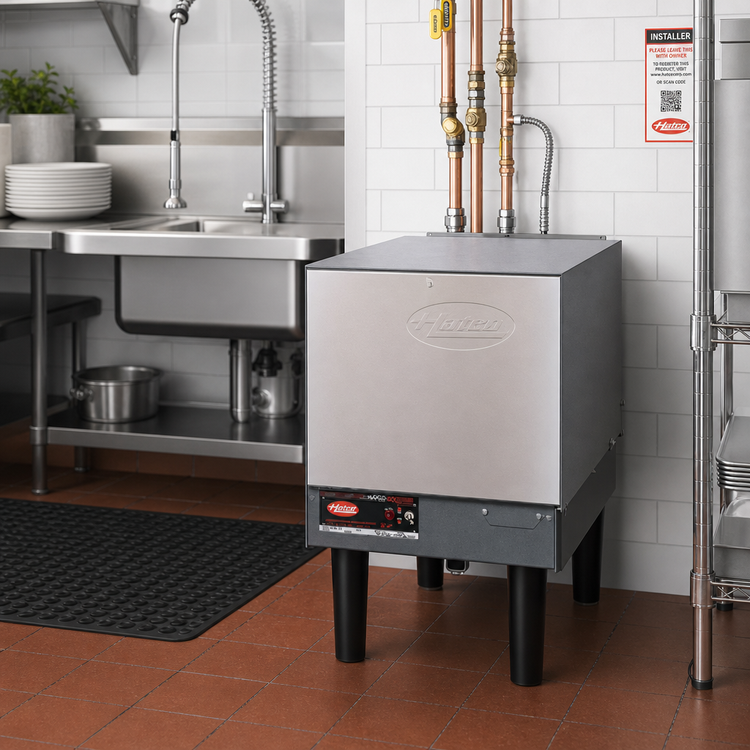

A compact, high-output booster heater that delivers the 180°F final rinse water dishrooms need in a space-saving footprint.

  • Supplies 180°F final rinse water for sanitizing and flash-drying dishes and flatware.
  • 6-gallon storage capacity with 15 kW electric output.
  • 208V, 60 Hz, 3-phase operation for commercial dish room use.
  • Castone® lined tank and fiberglass insulation help retain heat and support durability.
  • Stainless steel front panel, powder-coated silver-gray body, and 6-inch legs included.
  • Factory pre-plumbed and pre-wired with 3/4" NPT inlet/outlet fittings for easier installation.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

120.0 lb

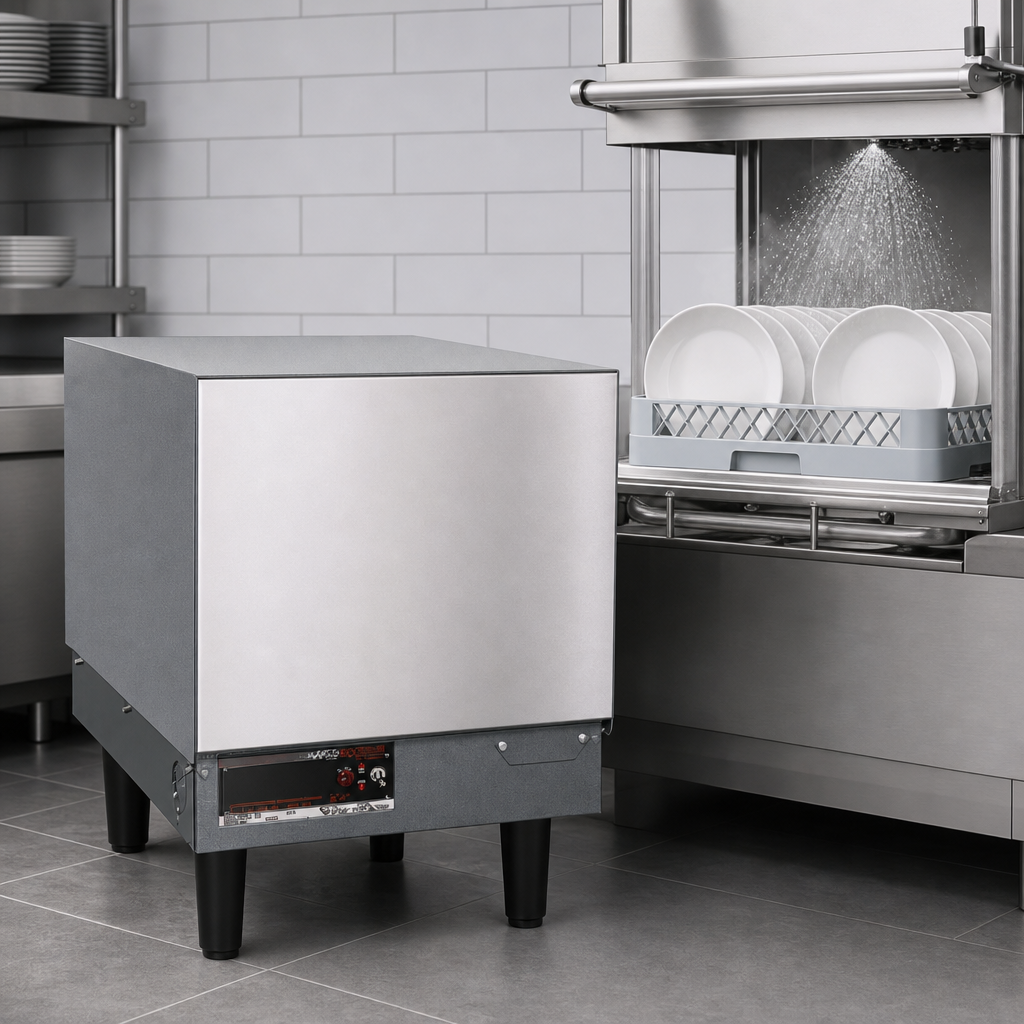

180°F Final Rinse Output

Provides the final rinse water temperature required to sanitize and flash-dry dishes and flatware.

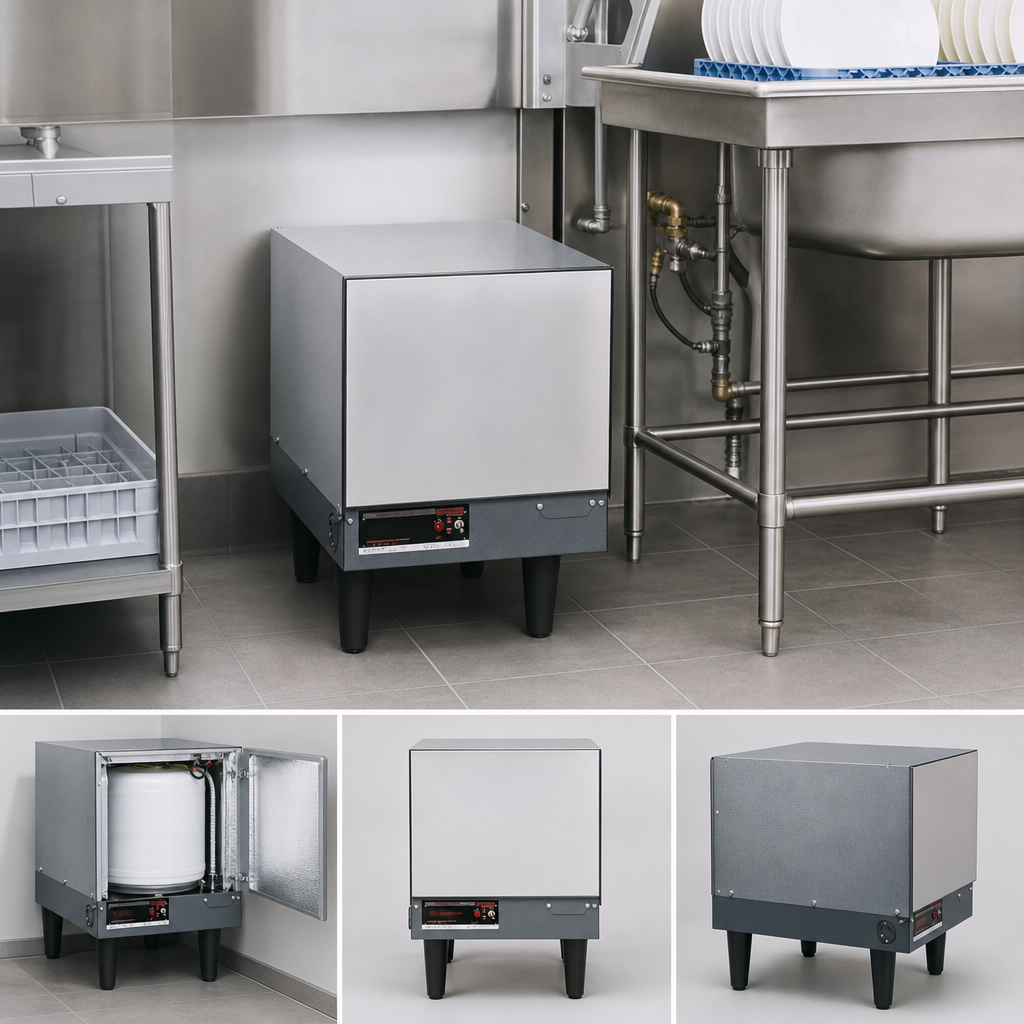

6-Gallon Storage Capacity

Compact tank size suited to smaller dish room footprints.

Castone® Lined Tank

Durable lined tank construction designed for long service life.

Factory Pre-Plumbed and Pre-Wired

Arrives ready for installation with calibrated immersion thermostat and high-temperature limit switch.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on-off switch, and low-water cut-off.

Fiberglass Insulation

Helps minimize heat loss and support efficient operation.

Stainless Steel Front Panel

Stainless steel front panel with a powder-coated silver-gray hammertone body for a clean, durable exterior.

6-Inch Plastic Legs

Standard non-adjustable legs provide floor placement support.

3/4 Inch NPT Connections

Includes 3/4" NPT pipe and fittings for the inlet and outlet connections.

Type Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Finish Powder-Coated Silver-Gray Hammertone
Voltage 208 Volts
Amps 41.7 Amps
Watts 15 kW
Hertz 60 Hz
Phase 3-Phase
Breaker Size 60 Amps
Water Inlet Size 3/4 Inch NPT
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 120 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It provides all the 180°F final rinse water required to sanitize and flash-dry dishes and flatware.
This model is rated at 15 kW, 208 Volts, 60 Hz, 3-phase.
The storage capacity is 6 gallons.
It includes 6-inch plastic non-adjustable legs and can also be mounted with slide brackets, which are available separately.
Standard safety controls include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, a high-temperature limit control, a pilot indicator light, an on-off switch, and a low-water cut-off.
Incoming water above 3.0 grains of hardness per gallon must be treated and softened before being supplied to the booster heater.
