Hatco C-15-208-1-QS Quick Ship High Temp & Low Temp Dishwashers
Hatco C-15-208-1-QS Quick Ship High Temp & Low Temp Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco C-15-208-1-QS Quick Ship High Temp & Low Temp Dishwashers
Description

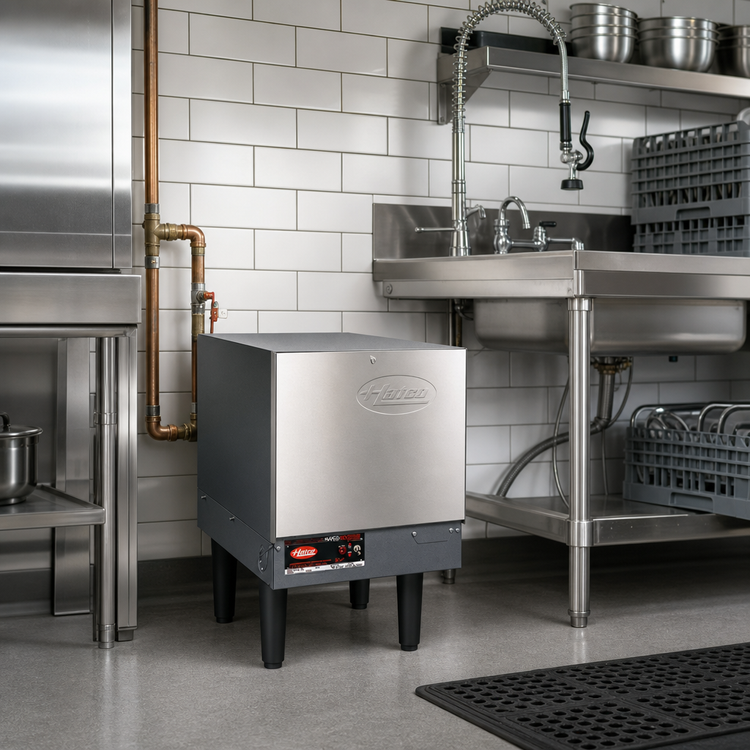

Hatco C-15 “Quick-Ship” Compact Electric Booster Water Heater
15 kW • 208 V / 60 Hz / 1-Ph • 6 gal Castone® TankGet 180 °F (82 °C) final-rinse water today. Hatco’s C-15 Compact Booster Heater is in-stock and ready to leave the warehouse the same business day when you order before 12 PM CT—perfect for keeping your warewashing operation up and running without delay.
Why You’ll Love It
- Delivers 180 °F sanitizing water to high-temp dishmachines for spotless, flash-dried wares.

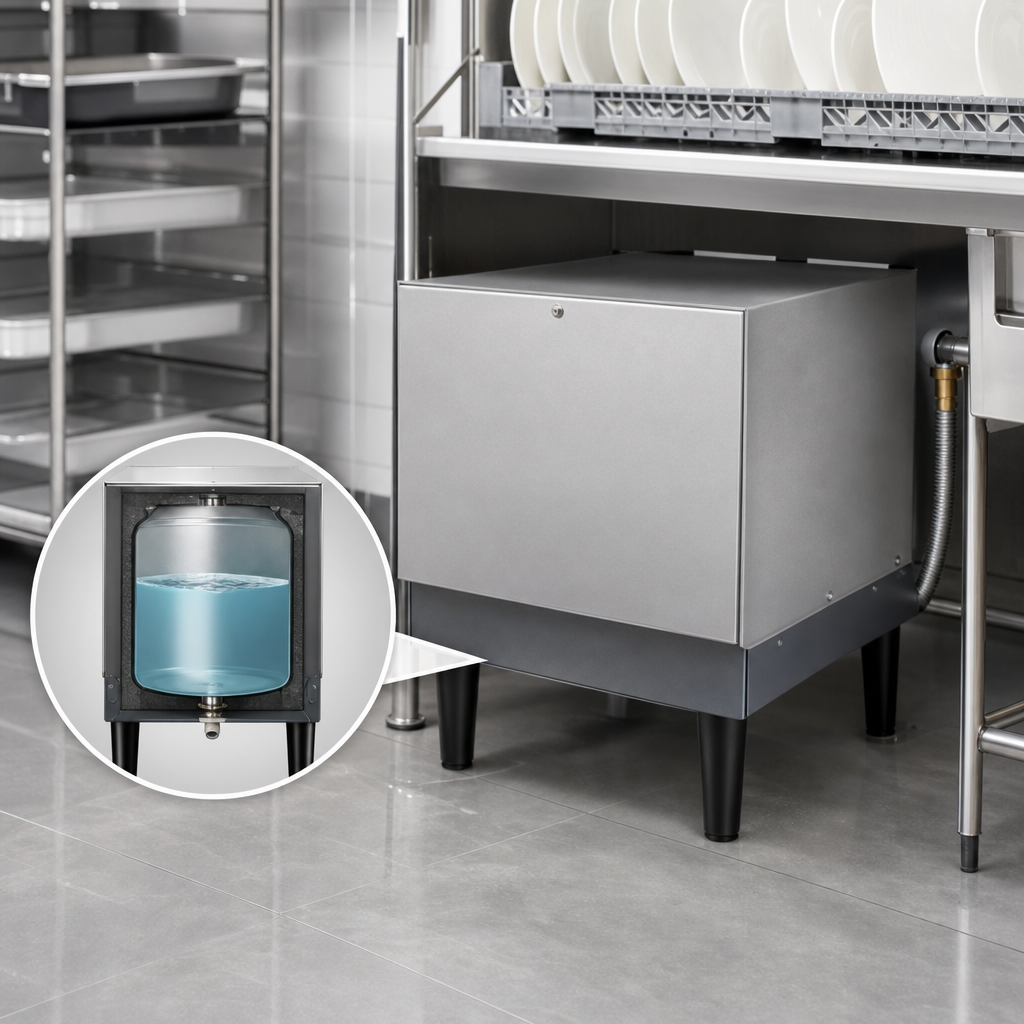

- 6 gal Castone®-lined storage tank carries a 10-year limited warranty.
- Powerful 15 kW heating elements recover up to 151 gph @ 40 °F rise (86 gph @ 70 °F rise).

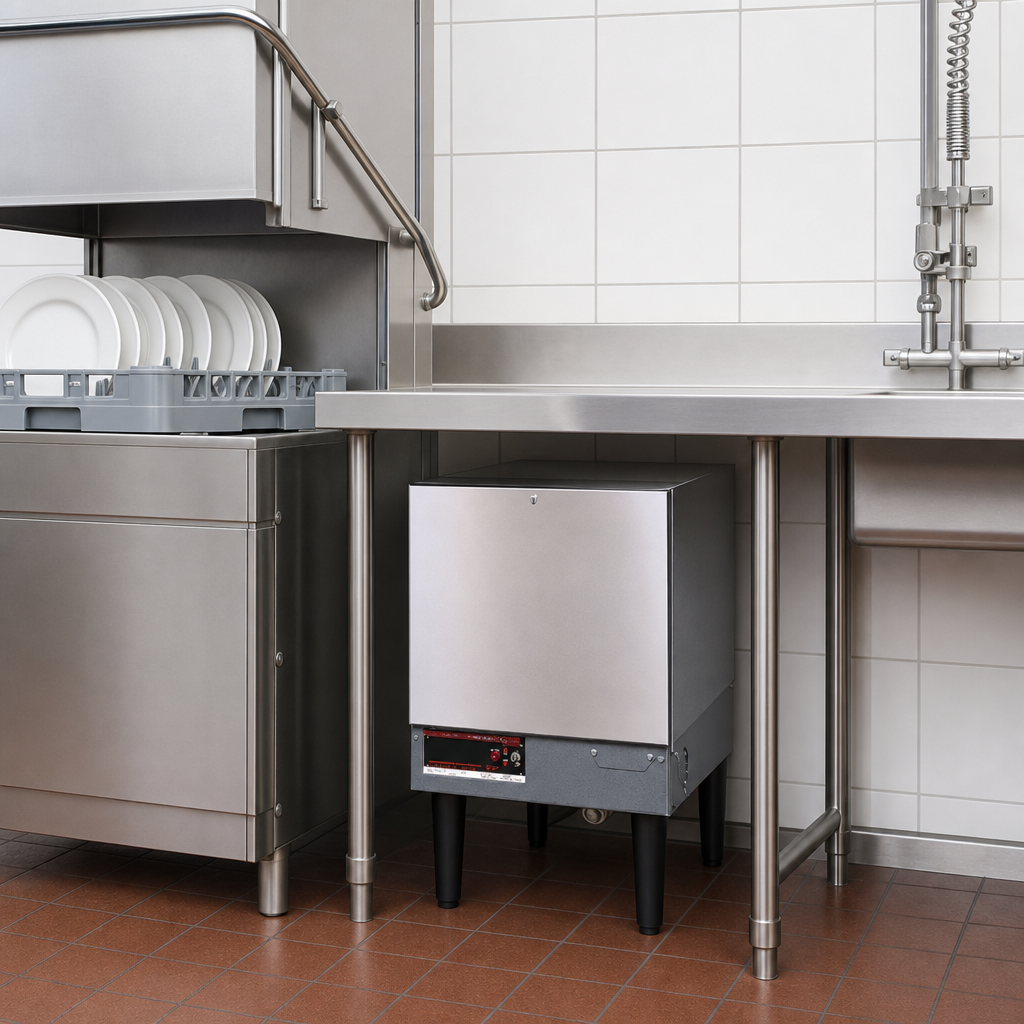

- Space-saving 13.06" W footprint mounts next to, under or behind most dish tables.
- Stainless-steel front panel and powder-coated silver-gray hammertone body resist corrosion and stay looking new.
- Factory-wired & plumbed with 3⁄4" NPT inlet/outlet for plug-and-play installation.
- Low-water cut-off, high-temperature limit, pressure-reducing valve and T&P relief valve provide built-in peace of mind.
- Swing-away front panel gives instant access to fuses, elements and probes for fast service.
- Fully insulated with fiberglass to minimize standby heat loss and energy use.
- NSF, cULus listed and proudly Made in the USA.
Specifications at a Glance
| Storage Capacity | 6 gal (23 L) |
|---|---|
| Recovery @ 40 °F Rise | 151 gph (572 lph) |
| Recovery @ 70 °F Rise | 86 gph (326 lph) |
| Electrical Rating | 15.0 kW, 208 V, 60 Hz, 1-phase, 72.2 A |
| Recommended Breaker / Fuse | 90 A (single-phase) |
| Water Connections | 3⁄4" NPT (inlet & outlet) |
| Overall Dimensions* | 13.06" W × 20.69" D (26" max) × 19.78" H *height includes 6" legs |
| Ship Weight | ≈ 120 lb (54 kg) |
| Certifications | NSF, cULus |
What’s Included
- Booster heater with 6" fixed plastic legs
- Factory-installed T&P relief valve, pressure-reducing valve and dual temperature/pressure gauges
- On/Off switch & pilot indicator light
- Owner’s/Installation manual
Quick-Ship Details
- Order by 12 PM CT for same-day shipment (next business day after 12 PM).
- Standard Hatco discounts and freight terms apply.
- Subject to credit approval and inventory availability.
Need a different voltage, mounting brackets or adjustable stainless legs? Ask our team about additional Hatco Compact Booster models or visit the Hatco website via hatcocorp.com.
