Hatco C-13 High Temp & Low Temp Dishwashers
Description

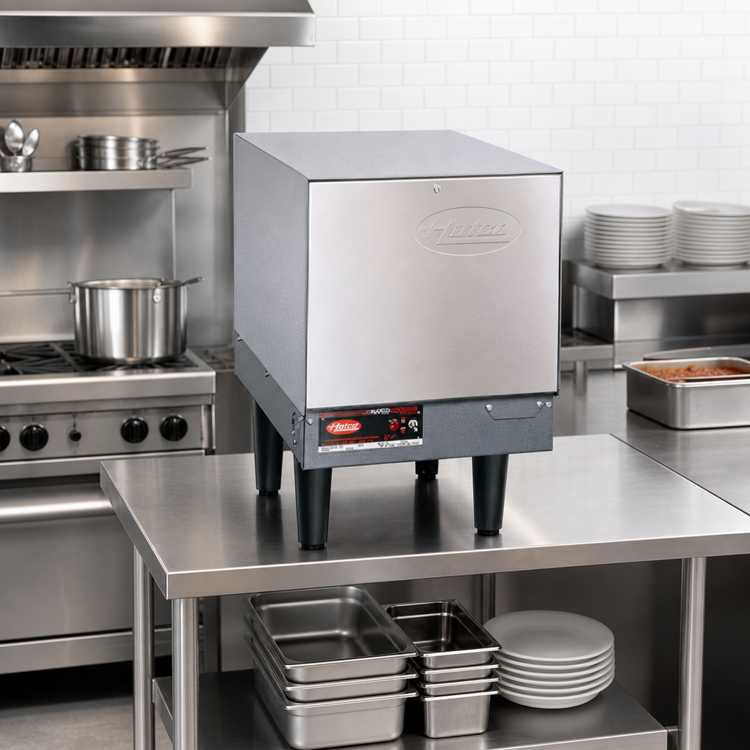

Hatco Compact Electric Booster Water Heater – 13.5 kW
Model C-13 · 6 gal (23 L) Castone® Storage TankDeliver a consistent 180°F (82°C) final-rinse every time without surrendering valuable kitchen space. Hatco’s 13.5 kW Compact Booster Heater tucks neatly beside—or even under—your dishwasher, yet packs all the capacity you need for fast, NSF-compliant sanitizing and flash-drying of dishes, glasses and flatware.
Why you’ll love it

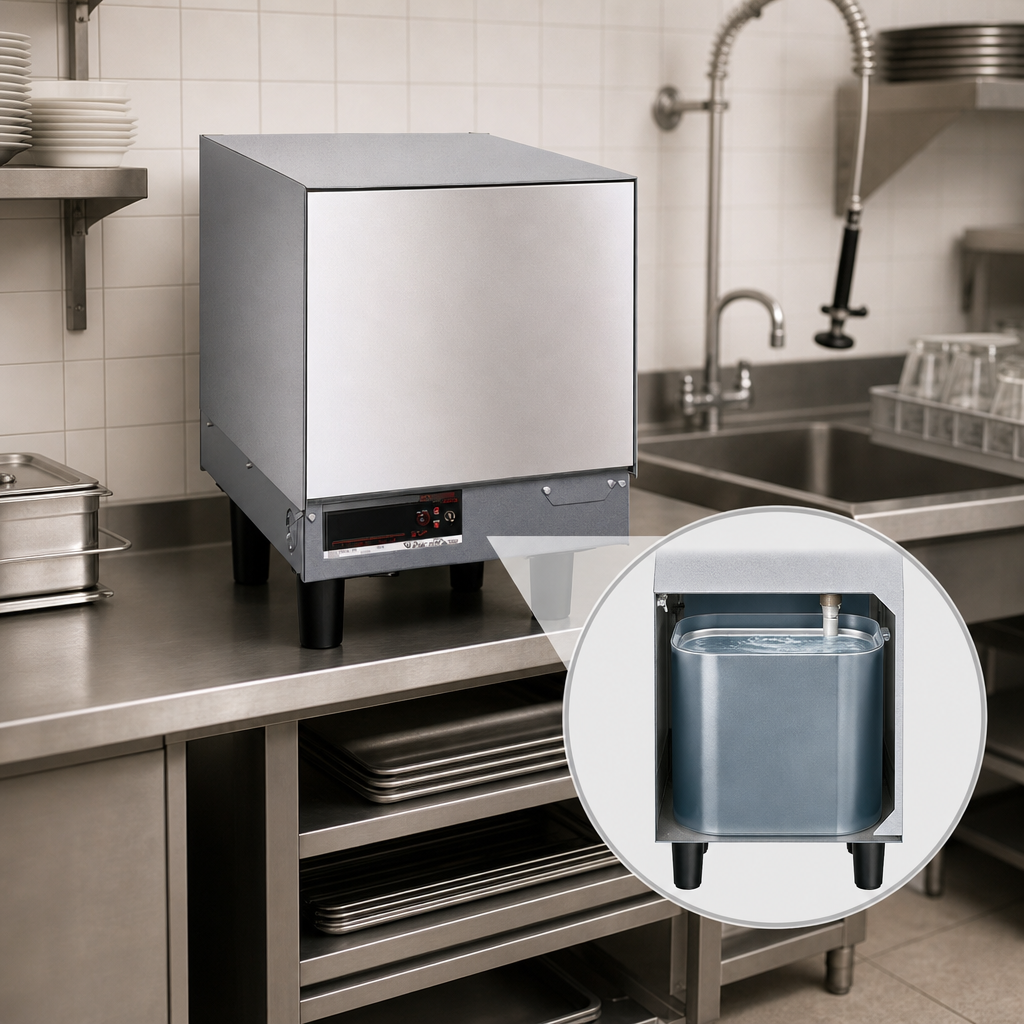

- Six-gallon Castone® tank with a 10-year limited warranty resists corrosion and mineral build-up better than stainless alone.
- High recovery – up to 135 gph @ 40°F rise (77 gph @ 70°F rise) keeps pace with high-volume warewashing.
- Factory pre-plumbed & pre-wired; simply connect ¾" NPT water lines and power, then dial in the thermostat.

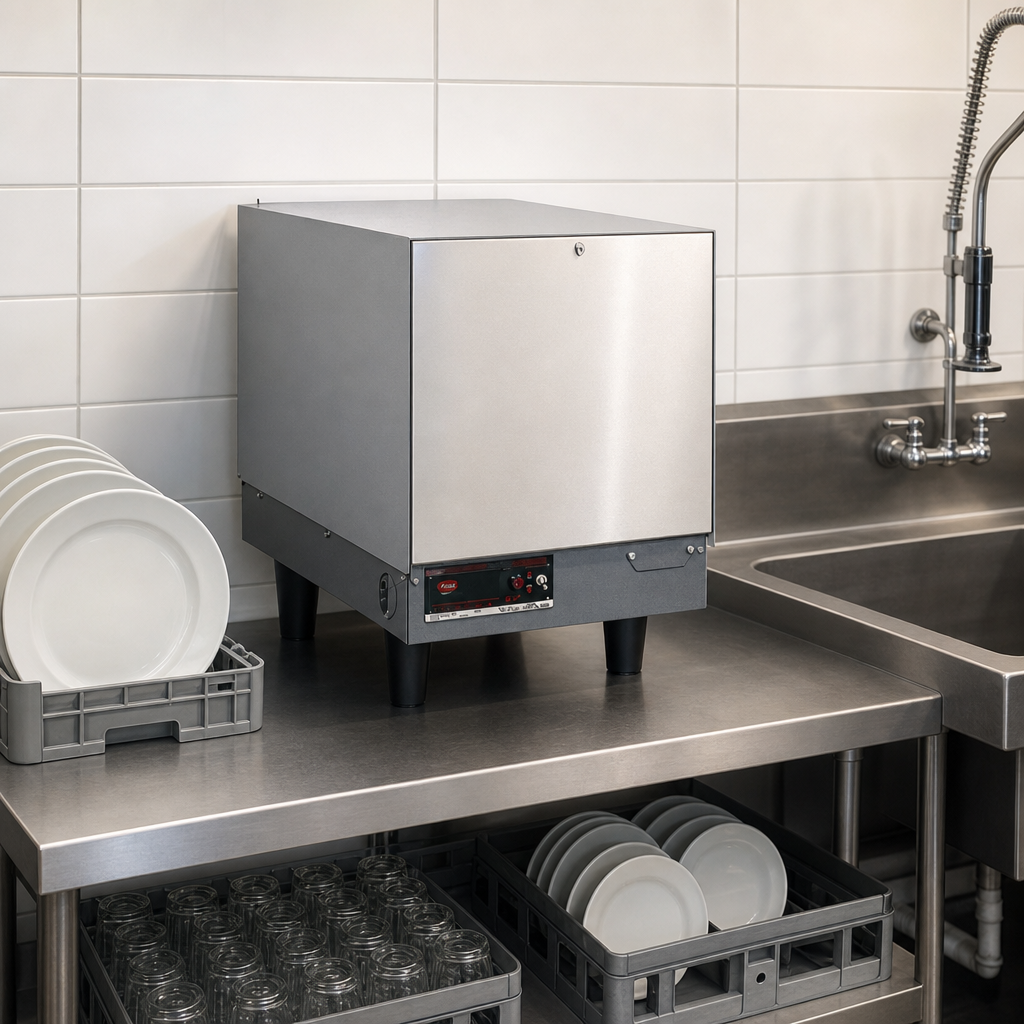

- Space-saving footprint – only 13"W × 20.7"D; ships on 6" non-adjustable plastic legs.
- Durable exterior featuring a stainless-steel front panel and silver-gray powder-coated hammertone body treated with Hatco’s IFS antimicrobial finish.
- Full safety suite – temperature/pressure relief valve, pressure-reducing valve, twin temp/pressure gauges, high-limit, low-water cut-off and pilot indicator light.
- Swing-away front panel grants instant access to elements, fuses and probes for quicker service.
- Made in the USA and listed to NSF 5 & cULus standards.
Performance & capacity
| Storage capacity | 6 gal | 23 L |
|---|---|
| Input rating | 13.5 kW |
| Recovery rate | 135 gph (511 lph) @ 40°F rise 77 gph (292 lph) @ 70°F rise |
| Voltage / phase | 208, 240 or 480 V · 1- or 3-phase |
| Amps (1-phase) | 208 V 65 A | 240 V 56.3 A | 480 V 28.2 A |
| Amps (3-phase) | 208 V 37.5 A | 240 V 32.5 A | 480 V 16.3 A |
| Working pressure | 150 psi (1034 kPa) |
| Water connections | ¾" NPT inlet & outlet (left side/rear) |
| Overall size | 13.06"W × 20.69"D × 19.78"H* *height to top of T/P valve; add 6" for legs |
| Shipping weight | 120 lb (54 kg) |
What’s included
- Factory-installed Castone® lined tank & heating elements
- Stainless-steel front panel, hammertone body & 6" plastic legs
- Temperature/pressure relief valve & pressure-reducing valve
- Duel temp/pressure gauges, calibrated immersion thermostat & high-limit cutoff
- On/Off toggle switch with green (power) and red (high-temp) indicator lights
- Operator’s manual and 24/7 Hatco service assistance
Popular accessories (sold separately)
- Slide brackets for under-dishedesk mounting
- Stainless-steel adjustable 6"–7" legs
- Shock absorber to reduce water hammer
- Back-pressure relief valve or blended-phosphate injection system
Incoming water harder than 3.0 grains per gallon (0.75 g/L) must be softened before entering the booster heater. Mineral build-up caused by untreated water is not covered under warranty.
Certifications & origin
- NSF 5 listed for 180°F dish-machine sanitizing
- cULus listed for electrical & safety compliance
- Manufactured in Milwaukee, Wisconsin USA
Need a different kW rating, leg style or voltage? Explore the full Hatco Compact Series or chat with our equipment specialists for a custom build.
