Hatco C-12 High Temp & Low Temp Dishwashers
Description

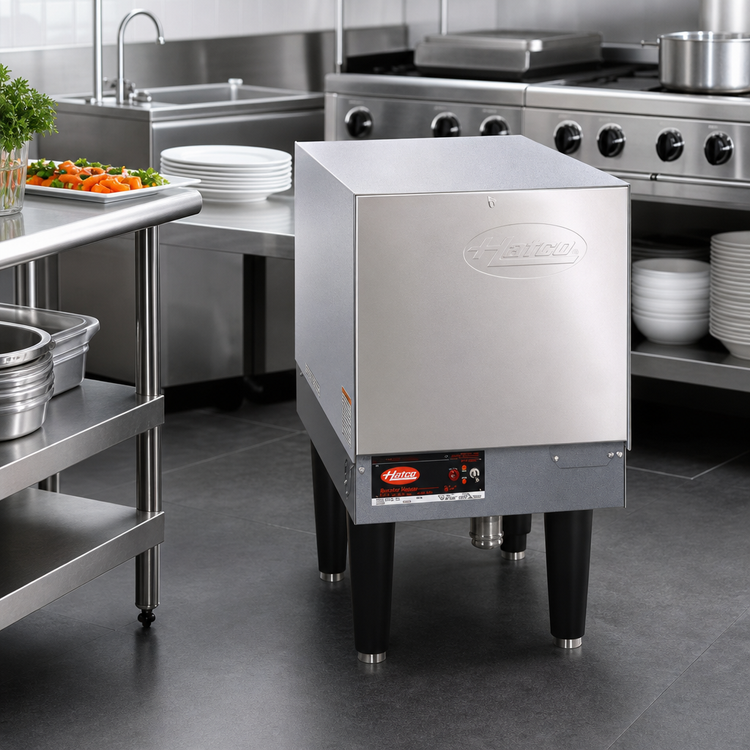

Hatco C-12 Compact Electric Booster Water Heater

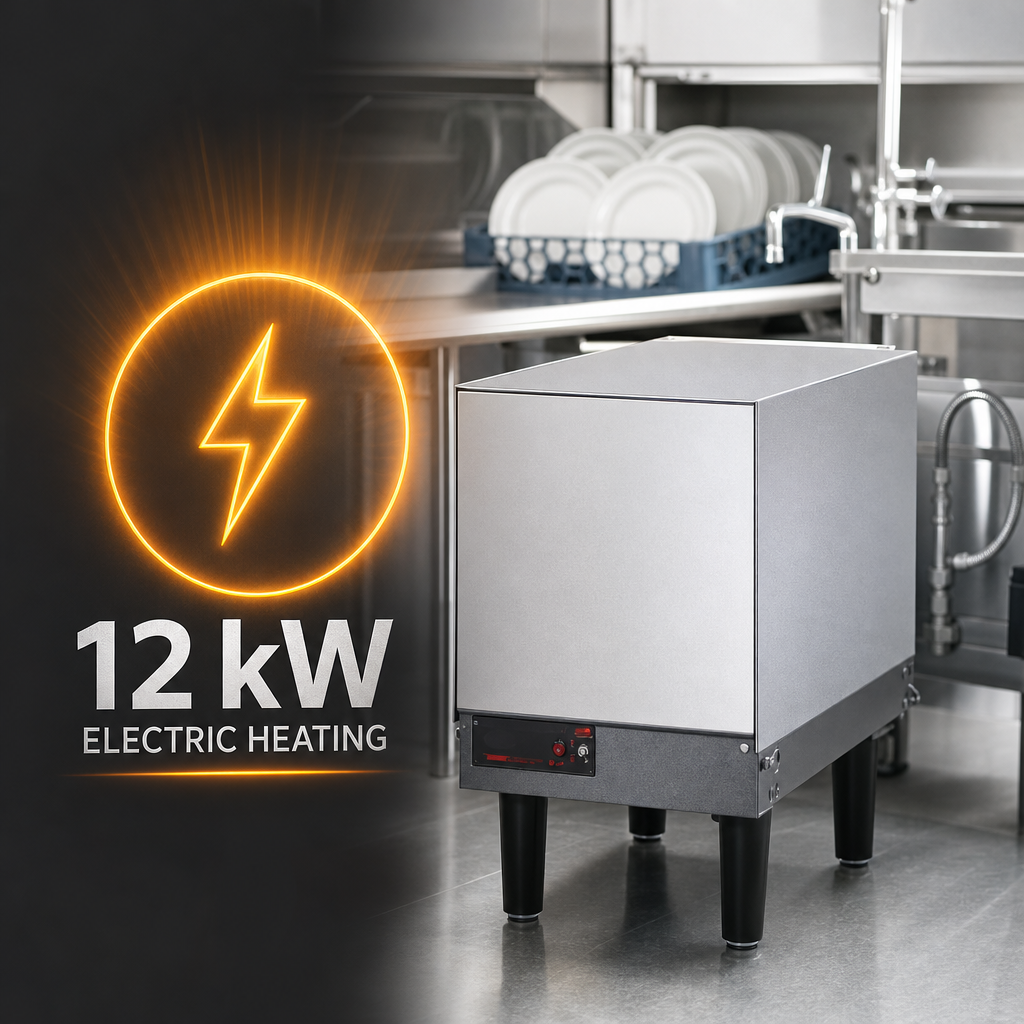

12 kW • 6 gal Castone® Tank • NSF & cULus ListedDeliver a consistent 180 °F (82 °C) final-rinse for your high-temp dishwasher without sacrificing valuable space. The Hatco C-12 couples a 6-gallon Castone® lined storage tank with 12 kW of electric power, giving you the recovery and durability you need in a compact, slide-in package.
Performance & Construction Highlights
- Supplies up to 120 GPH @ 40 °F rise (69 GPH @ 70 °F) – plenty for single-rack and conveyor dish machines.

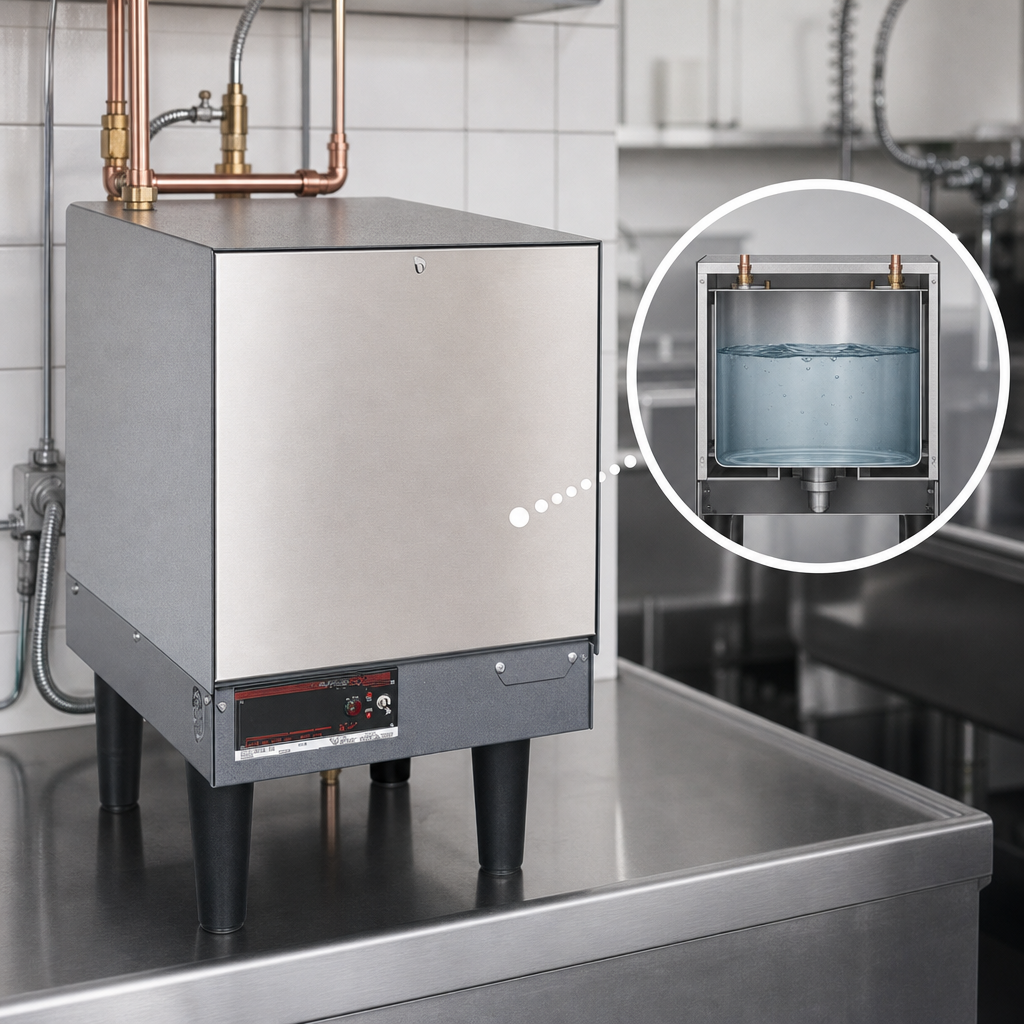

- 6-gal storage tank is Castone® cement-lined for corrosion resistance and backed by a 10-year limited warranty.
- Factory pre-plumbed & pre-wired with a calibrated immersion thermostat and high-temperature limit switch for fast, plug-and-play installation.
- Stainless-steel front panel paired with a powder-coated silver-gray hammertone body for a professional, easy-to-clean exterior.
- Full suite of safety controls: low-water cut-off, high-limit, pressure-reducing valve, temperature/pressure relief valve and dual temp/pressure gauges.
- 6″ plastic legs included; optional slide brackets available for mounting under a dishtable.
- Thick fiberglass insulation minimizes standby heat loss and lowers operating costs.
- Proudly Made in the USA and certified to NSF & cULus standards for sanitation and electrical safety.
Key Specifications
| Model | C-12 |
|---|---|
| Storage Capacity | 6 gal (23 L) |
| Heating Capacity | 12 kW electric |
| Voltage / Phase | 208, 240 or 480 V • 1- or 3-phase |
| Final Rinse Temp | Factory set to 180 °F (82 °C) |
| Recovery Rate | 120 GPH @ 40 °F rise | 69 GPH @ 70 °F rise |
| Water Connections | 3/4″ NPT inlet & outlet |
| Dimensions (W × D × H) | 13.06″ × 20.69″ × 13.78″ (26″ overall height to top of T/P valve; height excludes legs) |
| Legs | 6″ non-adjustable plastic (standard) |
| Ship Weight | Approx. 120 lb (54 kg) |
| Certifications | NSF, cULus |
| Origin | Made in USA |
Popular Factory Options
- Stainless-steel body & base
- Slide-mount brackets for under-counter installation
- Stainless-steel adjustable legs (6″ – 7″)
- Security package with Torx® screws & control cover
- Shock absorber to reduce water hammer
- Back-pressure relief valve
Need help sizing a booster heater for your dishwasher? Contact your Hatco representative for expert assistance.
